Default valve relief

Starting assembly of my motor. The porter suggested that with the over size valves that I should open up the releif on the piston .060" or so on the intake side. So I got out my dremmel and went to work

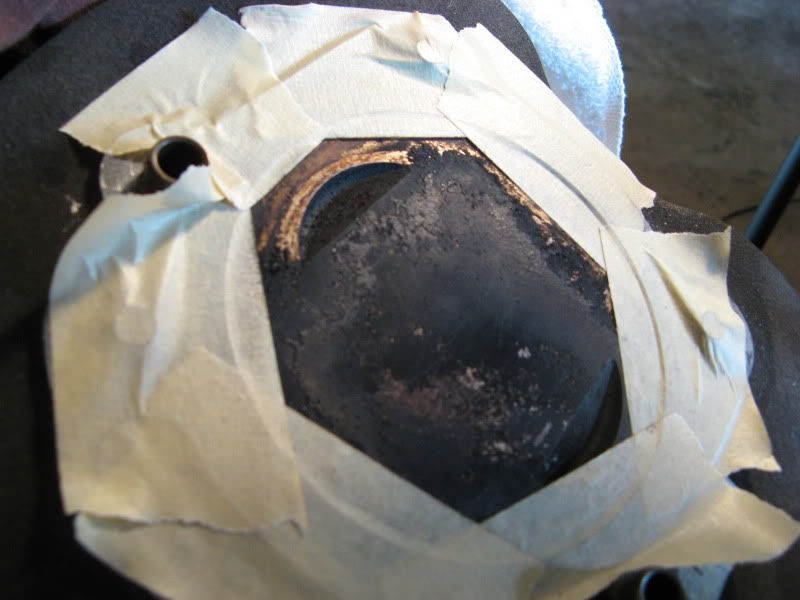

First, tape up the sides good to prevent anything from getting between the rings and mark it
Click the image to open in full size.

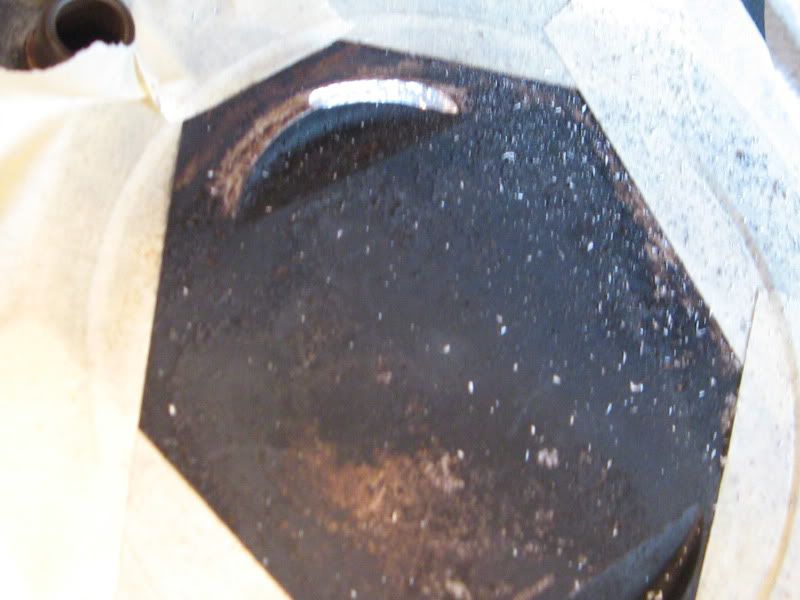

Second pic shows the relief cut 1/2 done
Click the image to open in full size.

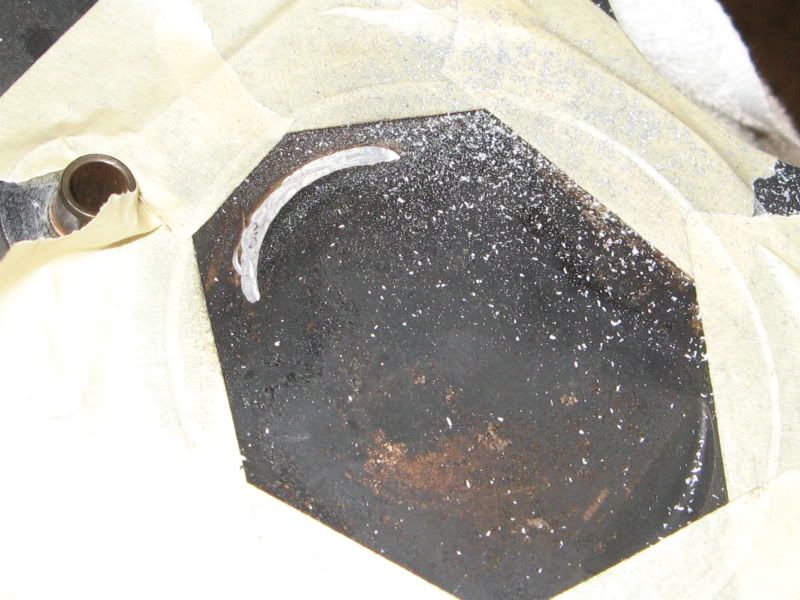

Last pic is the finished relief cut.
Click the image to open in full size.
Fairly easy to do. Vaccum clean and wipe down before removing tape. It's probably closer to .080" but thats cool. Don
__________________

2006 FXDBI / 95" / Andrews 37H / SE 1.725 rockers
Head Designs By Dewey / 1.90 intake / 10:1 CR
Rinehart 2-1 / SE compensator / TTS MasterTune
Tuned by Doc's Performance Tuning, Minneola FL
"The United States is a nation of laws: badly written and randomly enforced." - Frank Zappa
Reply With Quote
  #2
Old 06-27-2009, 01:53 PM
rayfinseats rayfinseats is offline
Road Captain
Join Date: Mar 2008
Location:
Posts: 646
Default

Ouch !
__________________
Danny Ray Finken
Sioux City Iowa
Black 2006 Superglide FXDI, kz550 bobber,gs750 chop, (2) 01 Sportsters, 99 Sportster
"This country is for sale, inquire within."
Rayfinseats@gmail.com
Reply With Quote
  #3
Old 06-27-2009, 02:43 PM
txtec txtec is offline
Banned
Join Date: Jul 2007
Location: underground
Posts: 953
Default

why cut the pistons .060 for valves that are only .006 bigger??stock are 1.84. how much compression you loose with that cut???
Reply With Quote
  #4
Old 06-27-2009, 02:54 PM
thedonthere's Avatar
thedonthere thedonthere is offline
Outstanding HDF Member
Join Date: Dec 2008
Location: Ashland Ore.
Posts: 2,384
Default

Re-do your math 1.840 + .006 = 1.846
1.840 + .060 = 1.90
__________________

2006 FXDBI / 95" / Andrews 37H / SE 1.725 rockers
Head Designs By Dewey / 1.90 intake / 10:1 CR
Rinehart 2-1 / SE compensator / TTS MasterTune
Tuned by Doc's Performance Tuning, Minneola FL
"The United States is a nation of laws: badly written and randomly enforced." - Frank Zappa
Reply With Quote
  #5
Old 06-27-2009, 03:04 PM
txtec txtec is offline
Banned
Join Date: Jul 2007
Location: underground
Posts: 953
Default

Quote:
Originally Posted by thedonthere View Post
Re-do your math 1.840 + .006 = 1.846
1.840 + .060 = 1.90
05 ups are 1.850. you do intake and exh cuts??? looks like a little compression loss with 4 .080 cuts. about 2 ccs each??
Reply With Quote
  #6
Old 06-27-2009, 05:48 PM
redrubicon2004's Avatar
redrubicon2004 redrubicon2004 is offline
Road Warrior
Join Date: Apr 2008
Location: Aurora, IL
Posts: 1,899
Default

Why didnt you do the big bore the first time around? It would only cost about $300 more. $150 pistons and $150 bore cylinders. Saves money buying head gaskets twice. I know $300 is $300, but when spending the money, why not just save up and do it all at once?
__________________
2007 Street Glide
Nitrous fed 124", Chopped, Raked, Stretched with a 26"
Reply With Quote
  #7
Old 06-27-2009, 06:28 PM
thedonthere's Avatar
thedonthere thedonthere is offline
Outstanding HDF Member
Join Date: Dec 2008
Location: Ashland Ore.
Posts: 2,384
Default

Quote:
Originally Posted by redrubicon2004 View Post
Why didnt you do the big bore the first time around? It would only cost about $300 more. $150 pistons and $150 bore cylinders. Saves money buying head gaskets twice. I know $300 is $300, but when spending the money, why not just save up and do it all at once?
When I started this I was working full time. After I got into it I:
a) took a 10% salary reduction..
b) went from 40hrs to 20 hrs per week. I would have loved to have done the 95" now but my budget became extremely limited in a hurry. The heads are actually set for a 95" build so when I do it again this winter I won't have any head work to do. I thought this was the best way to go with the $ I had.Maybe not but it's done now. I hope that makes sense?
__________________

2006 FXDBI / 95" / Andrews 37H / SE 1.725 rockers
Head Designs By Dewey / 1.90 intake / 10:1 CR
Rinehart 2-1 / SE compensator / TTS MasterTune
Tuned by Doc's Performance Tuning, Minneola FL
"The United States is a nation of laws: badly written and randomly enforced." - Frank Zappa

Last edited by thedonthere; 06-27-2009 at 07:24 PM.
Reply With Quote
  #8
Old 06-27-2009, 09:31 PM
kk6pg's Avatar
kk6pg kk6pg is offline
Outstanding HDF Member
Join Date: Nov 2007
Location: Beautiful Downtown Burbank
Posts: 2,287
Default

Don, did you wax the pistons to check clearance before you hit em with a Dremel?
__________________

Its never criminal if its done with friends
08 883 Sportster Super Glide with a 96 inch kit
Reply With Quote
  #9
Old 06-27-2009, 09:58 PM
mud's Avatar
mud mud is offline
muderator
Join Date: May 2006
Location: the 50s & the 60s
Posts: 9,561
Default

.

Quote:
Originally Posted by thedonthere View Post
.
Starting assembly of my motor.

The porter suggested that with the over size valves
that I should open up the releif on the piston .060" or so on the intake side.

So I got out my dremmel and went to work
First, tape up the sides good to prevent anything from getting between the rings and mark it
Click the image to open in full size.
Don

Don, tape over the oil returns as well.


What is the lift on the cams??

With the stock pistons,
You may want to carefully check piston to valve clearance at full lift.




Quote:
Originally Posted by thedonthere View Post
.

Re-do your math 1.840 + .006 = 1.846
1.840 + .060 = 1.90


1.840 + .060 = 1.90

divide that .060 by 2.

.030 on each side of the valve...........

.
__________________
