Shovelhead starter problem... please help..
So I'm currently rebuilding a mean 1983 Harley fxrs 1340 it has STD heads, 3 angle valve job, port and polished, dual plugged, New Nitrated valve, new cast iron valve guides, vitron valve seals, new valve seats, two brand new jugs/ cylinder which have been honed, new chrome molly coated pistons, chrome molly rings, dyna tech electronic ignition, s&s oil pump and oil gear enlarged oil port in cam chest, vulcan hydrologic lifters, chrome molly coated adjustable pushrods, .485 lift cam, split rocker box oil lines, s&s shorty E carb, arrowhead 2.0 kw starter, rear belt drive, stp racing 5 speed tranny, dual brakes in front, aftermarket clutch hub and basket, new 40 amp starter relay, a lot more to list.
The problem I'm having is when the new starters grabs the starter ring gear it will spin a few times then stop, or just not at all, and if it does spin it's boggy as hell like a very weak spin. It's hooked to my 900 CCA truck batter, new starter relay, I've tried bypassing the relay and jumping the starter solenoid and does the same thing, I've tired taking all spark plugs out, putting it in 5 gear, lifting the rear tire off the ground, I can spin the compensator nut with a wrench and it spins fine, no broken of missing teeth, I've benched tested the starter and it spins fine. Does anyone have a clue what it would be it driving me nuts.
The problem I'm having is when the new starters grabs the starter ring gear it will spin a few times then stop, or just not at all, and if it does spin it's boggy as hell like a very weak spin. It's hooked to my 900 CCA truck batter, new starter relay, I've tried bypassing the relay and jumping the starter solenoid and does the same thing, I've tired taking all spark plugs out, putting it in 5 gear, lifting the rear tire off the ground, I can spin the compensator nut with a wrench and it spins fine, no broken of missing teeth, I've benched tested the starter and it spins fine. Does anyone have a clue what it would be it driving me nuts.
Last edited by 83hdfxrs; 05-29-2016 at 09:03 PM.
#2

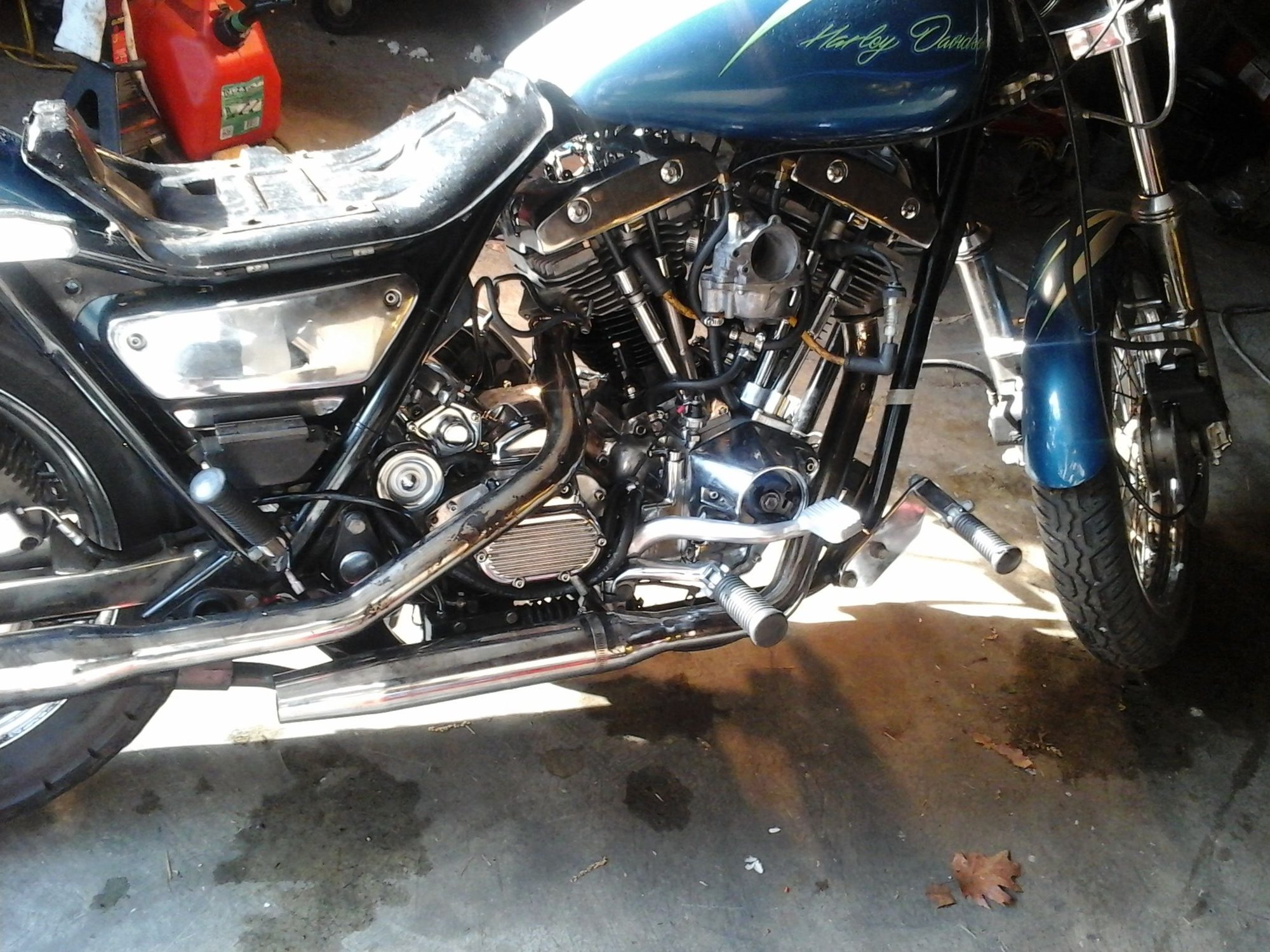

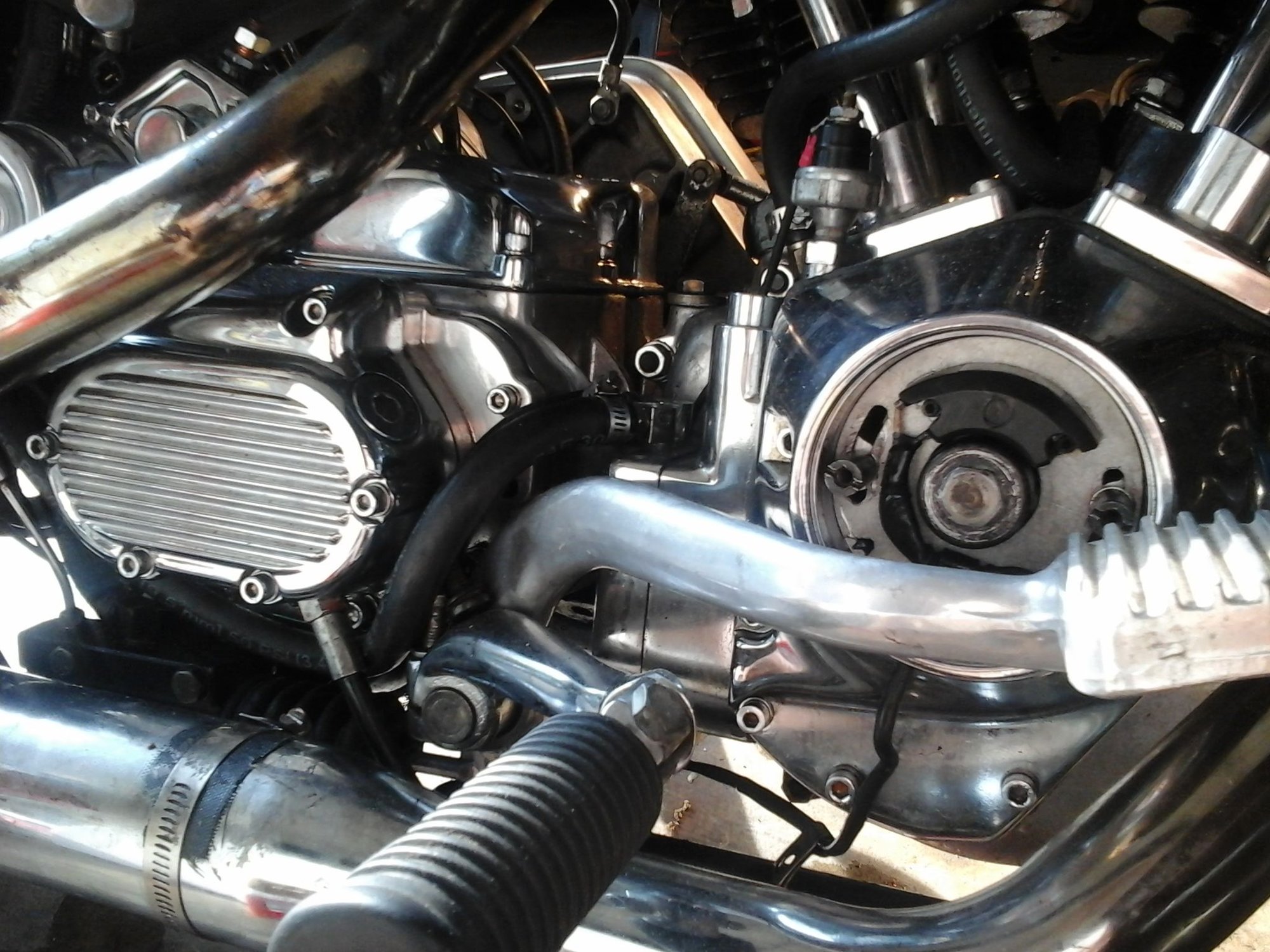

Starters dragging hard under load after all the trouble shooting you've done I'd suspect the brushes & armature are about toast, it's old enough. Can't remember but I believe the starter system & inner primary in the pics are off an evo, somebody in here will know for sure. My 82 FXR had the old prestolite shovel starter.
#3
'83 was a Prestolite certainly...
Having been "upgraded"...IDK...My '83 works just fine...un-moded.
Can't help with the newer stuff...don't got none...
BTW the tranny too looks to have been replaced with newer...at lest the door & cover.
Too many "Hot Rod" changes on that one to Guess.
But, that starter should spin the heck out of that old shovel...
Having been "upgraded"...IDK...My '83 works just fine...un-moded.
Can't help with the newer stuff...don't got none...
BTW the tranny too looks to have been replaced with newer...at lest the door & cover.
Too many "Hot Rod" changes on that one to Guess.
But, that starter should spin the heck out of that old shovel...
Last edited by Racepres; 05-30-2016 at 12:36 AM.
#4
I don't know if I want to help you. You have a Shovel FXR. I'm Jealous !
All kidding aside, it looks like a "Denso" type starter. These are very common as they are also used on automobiles. You can rebuild the solenoid yourself and see what happens. Or you can take it to an auto electric shop and they can rebuild it for you.
Is the starter still under warranty ?
So much has been done, if not already go for some new, bigger cables. A new relay wouldn't hurt either.
If nothing else, clean ALL your cable connections. I mean clean them good.
All kidding aside, it looks like a "Denso" type starter. These are very common as they are also used on automobiles. You can rebuild the solenoid yourself and see what happens. Or you can take it to an auto electric shop and they can rebuild it for you.
Is the starter still under warranty ?
So much has been done, if not already go for some new, bigger cables. A new relay wouldn't hurt either.
If nothing else, clean ALL your cable connections. I mean clean them good.
#5
I don't know if I want to help you. You have a Shovel FXR. I'm Jealous !
All kidding aside, it looks like a "Denso" type starter. These are very common as they are also used on automobiles. You can rebuild the solenoid yourself and see what happens. Or you can take it to an auto electric shop and they can rebuild it for you.
Is the starter still under warranty ?
So much has been done, if not already go for some new, bigger cables. A new relay wouldn't hurt either.
If nothing else, clean ALL your cable connections. I mean clean them good.
All kidding aside, it looks like a "Denso" type starter. These are very common as they are also used on automobiles. You can rebuild the solenoid yourself and see what happens. Or you can take it to an auto electric shop and they can rebuild it for you.
Is the starter still under warranty ?
So much has been done, if not already go for some new, bigger cables. A new relay wouldn't hurt either.
If nothing else, clean ALL your cable connections. I mean clean them good.
It's a new 40 amp starter relay, and I've tried bypassing the solenoid and just jumped the starter and it does the same thing, it's not under warranty anymore
#6
'83 was a Prestolite certainly...
Having been "upgraded"...IDK...My '83 works just fine...un-moded.
Can't help with the newer stuff...don't got none...
BTW the tranny too looks to have been replaced with newer...at lest the door & cover.
Too many "Hot Rod" changes on that one to Guess.
But, that starter should spin the heck out of that old shovel...
Having been "upgraded"...IDK...My '83 works just fine...un-moded.
Can't help with the newer stuff...don't got none...
BTW the tranny too looks to have been replaced with newer...at lest the door & cover.
Too many "Hot Rod" changes on that one to Guess.
But, that starter should spin the heck out of that old shovel...
#7
Starters dragging hard under load after all the trouble shooting you've done I'd suspect the brushes & armature are about toast, it's old enough. Can't remember but I believe the starter system & inner primary in the pics are off an evo, somebody in here will know for sure. My 82 FXR had the old prestolite shovel starter.
