Default ECM Location on 2010 Sportster with PICS!

Well, here they are. Since no body with a 2010 could post the pics, here they are. Enjoy!

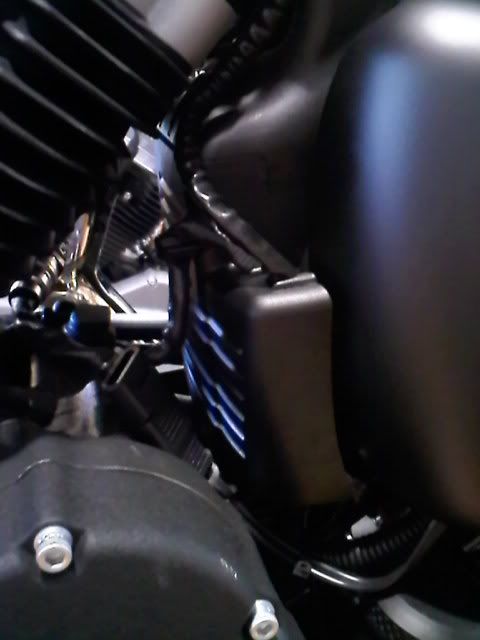

Left Side
Click the image to open in full size.
Right Side
Click the image to open in full size.
Left Side
Click the image to open in full size.

Man they turned out pretty good for the cell phone!
__________________
I used to get mad at deadbeats. Now I understand, they're smarter than I am.

Life's a trip son, always enjoy the ride, but never forget the way home.

Last edited by UPSBROWN; 09-18-2009 at 02:40 AM..
Reply With Quote
  #2
Old 09-18-2009, 07:01 AM
1200efi 1200efi is offline
Senior Rider
Join Date: Mar 2008
Location: east of albany, ny
Posts: 369
Talking Ecm

Well, Mister UPSBROWN, thank you very much, and thanks for taking your time to do it. It does look a little crowded in there. Do you think the heat from the rear pipe will bother it ? Now I don't know if this makes you a "biker" or a "motorcyclist", But I really don't care which you are, you did a good thing. Hell I don't even know which one I am. Scott never got back to us. Thanks again. Ride safe.
Reply With Quote
  #3
Old 09-18-2009, 07:08 AM
Fear Night's Avatar
Fear Night Fear Night is offline
Senior Rider
Join Date: Aug 2008
Location: Alabama
Posts: 308
Default

Wow, sure is close to the exhaust. Also looks like the header pipe may need to be taken off to get in there. Is there still a cubby hole under the seat to store something like a PowerCommander?
__________________
2009 Sportster 1200 Custom
SE Stage 1, V&H Straight-shots w/ BCT baffles, PCIII
Reply With Quote
  #4
Old 09-18-2009, 12:39 PM
UPSBROWN's Avatar
UPSBROWN UPSBROWN is offline
Senior Rider
Join Date: Jun 2008
Location: Illinois
Posts: 434
Default

Quote:
Originally Posted by Fear Night View Post
Wow, sure is close to the exhaust. Also looks like the header pipe may need to be taken off to get in there. Is there still a cubby hole under the seat to store something like a PowerCommander?
Your welcome guys. I'm not sure about the cubby. I'm thinking no since they moved the ECM to allow for Harley's new spring seat kit. I took these at the dealer and don't really want to bother with asking them to remove the seat. The dealer is pretty particular with their bikes, as many problem are.
__________________
I used to get mad at deadbeats. Now I understand, they're smarter than I am.

Life's a trip son, always enjoy the ride, but never forget the way home.
Reply With Quote
  #5
Old 09-18-2009, 12:49 PM
Xenomorph's Avatar
Xenomorph Xenomorph is offline
Senior Rider
Join Date: Jul 2009
Posts: 340
Default

Now all we need is part numbers on that damn little plastic box...

We already have the lid number: 73227-10
Now gotta hunt down the box.
__________________
2009 XL1200N
Long Live Harley Davidson!!!
Reply With Quote
  #6
Old 09-18-2009, 02:16 PM
UPSBROWN's Avatar
UPSBROWN UPSBROWN is offline
Senior Rider
Join Date: Jun 2008
Location: Illinois
Posts: 434
Default

Quote:
Originally Posted by Xenomorph View Post
Now all we need is part numbers on that damn little plastic box...

We already have the lid number: 73227-10
Now gotta hunt down the box.
Good luck, I've searched and asked high and low through the 2010 parts catalog/service manuals, etc.
__________________
I used to get mad at deadbeats. Now I understand, they're smarter than I am.

Life's a trip son, always enjoy the ride, but never forget the way home.
Reply With Quote
  #7
Old 09-18-2009, 02:42 PM
Xenomorph's Avatar
Xenomorph Xenomorph is offline
Senior Rider
Join Date: Jul 2009
Posts: 340
Default

Quote:
Originally Posted by UPSBROWN View Post
Good luck, I've searched and asked high and low through the 2010 parts catalog/service manuals, etc.
Hmmm... I'm surprised it's not mentioned in the service manual.

I mean what happens if someone with a 2010 needs a new box because theirs cracked or something? How in the hell would HD order one without a part number for it?

When I take my next trip to my local dealer I'm gonna play 20 questions about this ECM disaster.

*When I say disaster, it's only because I wish mine was located like the 2010's and not in the damn rear fender.
__________________
2009 XL1200N
Long Live Harley Davidson!!!
Reply With Quote
  #8
Old 09-18-2009, 10:16 PM
Steve0's Avatar
Steve0 Steve0 is offline
Prospect
Join Date: Jul 2009
Posts: 171
Default

dont be fooled guys...its an 09

Order in the court!
__________________
Reply With Quote
  #9
Old 09-18-2009, 10:31 PM
1200Cdriver 1200Cdriver is offline
Road Warrior
Join Date: Oct 2007
Location: Colonial Beach, Virginia
Posts: 1,579
Default

Sure is going to make a PCIII fun to install, I thought mine was bad enough.
__________________
Rider of Harley 125 Hummer in 1952 at age 10.
Reply With Quote
  #10
Old 09-18-2009, 10:39 PM
Certainteed's Avatar
Certainteed Certainteed is offline
Outstanding HDF Member
Join Date: May 2008
Location: Mount Holly, NC
Posts: 2,224
Default

um thats going to fail. you can put electronic equipment so close to an exhaust pipe. the capacitors will dry out in that kind of environment. hd engineers must be on crack.
__________________
