How to check engine codes on 02' Ultra
#1
11-10-2010, 11:51 AM
Join Date: Oct 2010
Location: Mesa, AZ
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts
How to check engine codes on 02' Ultra
This forum has been excellent. In the month since trading my Indian over to the Harley side you all have saved me big money. We took our first 200 mile ride the other day and while climbing the hills to Payson my check engine light would come on when under load and then off again when i backed off a bit. I have seen threads on checking the codes through the speedo but not clear directions on an 02'. CAn someone help with these so I can see what's going on.
#3
11-12-2010, 09:00 AM
Road Warrior
Join Date: Oct 2008
Location: Virginia
Posts: 1,536
Likes: 0
Received 0 Likes
on
0 Posts
Try this. I think it will work for your year.
The IM (instrument module) is capable of displaying DTC's (diagnostic trouble codes).
Speedometer Self Diagnostics: The speedometer is capable of displaying and clearing speedometer, tachometer, TSM/TSSM and ICM/ECM Diagnostic Trouble Codes (DTC).
1- Turn Ignition switch to OFF & Run/Stop switch is to Run.
2- Push odometer reset button in & hold.
3- Turn ignition switch to Ignition and release odometer reset button. Background lighting should illuminate, speedometer needle should sweep its full range and indicator lamps (battery, security, low fuel, check engine and cruise) should illuminate. The word “diag” should then appear.
4 - Push the odometer reset button once and you will see the selection menu "PSSPt" with the first P flashing.
5 - Each letter represents an area of the diagnostics module. The module that is flashing is the one you are going to check. To move from one letter (module) to the next, you push the odometer reset button one time. (from P to S to SP to t and back to P, etc.)
P = ECM/ICM (Electronic Control Module [EFI] / Ignition Control Module [Carbureted)
S = TSM/TSSM (Turn Signal/ Turn Signal Security Module)
SP = speedometer
T = tachometer
6 - To get the DTC within an area of diagnostics, push and hold the odometer reset button in for 5 seconds and release. If there are any DTC’s the code will be displayed or the word “none” will appear if there are no DTC’s. Push the odometer reset button again to view additional codes if they exist.
7 - Record the codes.
8 - If DTC’s are not to be cleared, Press and release the odometer reset button. Part number of module will be displayed.
NOTE: To determine if a code is current or historic, clear the displayed code by pushing in and holding the odometer reset button ( longer than 5 seconds) until 'clear' comes up. Release the odometer reset button. Turn OFF the ignition switch. Run your bike and shut it down then recheck the DTC’s again by repeating steps 1 to 9. If the code is current it will reappear.
9 – Press and release the odometer reset button to continue to the next module.
10 – Turn Ignition switch to OFF.
On models not equipped with a tachometer "No Rsp" will appear when the tachometer identifier is selected.
"No Rsp" will also appear if the run/off switch is in the off position when doing this procedure.
Also if the code set is a historic code (not a constant light) after 50 start and run cycles of at least 30 seconds each in duration, the light will extinguish itself as long as the error hasn't occurred again.
If it were a current code, the light would remain lit while running.
The IM (instrument module) is capable of displaying DTC's (diagnostic trouble codes).
Speedometer Self Diagnostics: The speedometer is capable of displaying and clearing speedometer, tachometer, TSM/TSSM and ICM/ECM Diagnostic Trouble Codes (DTC).
1- Turn Ignition switch to OFF & Run/Stop switch is to Run.
2- Push odometer reset button in & hold.
3- Turn ignition switch to Ignition and release odometer reset button. Background lighting should illuminate, speedometer needle should sweep its full range and indicator lamps (battery, security, low fuel, check engine and cruise) should illuminate. The word “diag” should then appear.
4 - Push the odometer reset button once and you will see the selection menu "PSSPt" with the first P flashing.
5 - Each letter represents an area of the diagnostics module. The module that is flashing is the one you are going to check. To move from one letter (module) to the next, you push the odometer reset button one time. (from P to S to SP to t and back to P, etc.)
P = ECM/ICM (Electronic Control Module [EFI] / Ignition Control Module [Carbureted)
S = TSM/TSSM (Turn Signal/ Turn Signal Security Module)
SP = speedometer
T = tachometer
6 - To get the DTC within an area of diagnostics, push and hold the odometer reset button in for 5 seconds and release. If there are any DTC’s the code will be displayed or the word “none” will appear if there are no DTC’s. Push the odometer reset button again to view additional codes if they exist.
7 - Record the codes.
8 - If DTC’s are not to be cleared, Press and release the odometer reset button. Part number of module will be displayed.
NOTE: To determine if a code is current or historic, clear the displayed code by pushing in and holding the odometer reset button ( longer than 5 seconds) until 'clear' comes up. Release the odometer reset button. Turn OFF the ignition switch. Run your bike and shut it down then recheck the DTC’s again by repeating steps 1 to 9. If the code is current it will reappear.
9 – Press and release the odometer reset button to continue to the next module.
10 – Turn Ignition switch to OFF.
On models not equipped with a tachometer "No Rsp" will appear when the tachometer identifier is selected.
"No Rsp" will also appear if the run/off switch is in the off position when doing this procedure.
Also if the code set is a historic code (not a constant light) after 50 start and run cycles of at least 30 seconds each in duration, the light will extinguish itself as long as the error hasn't occurred again.
If it were a current code, the light would remain lit while running.
#4
11-12-2010, 09:06 AM
Seasoned HDF Member

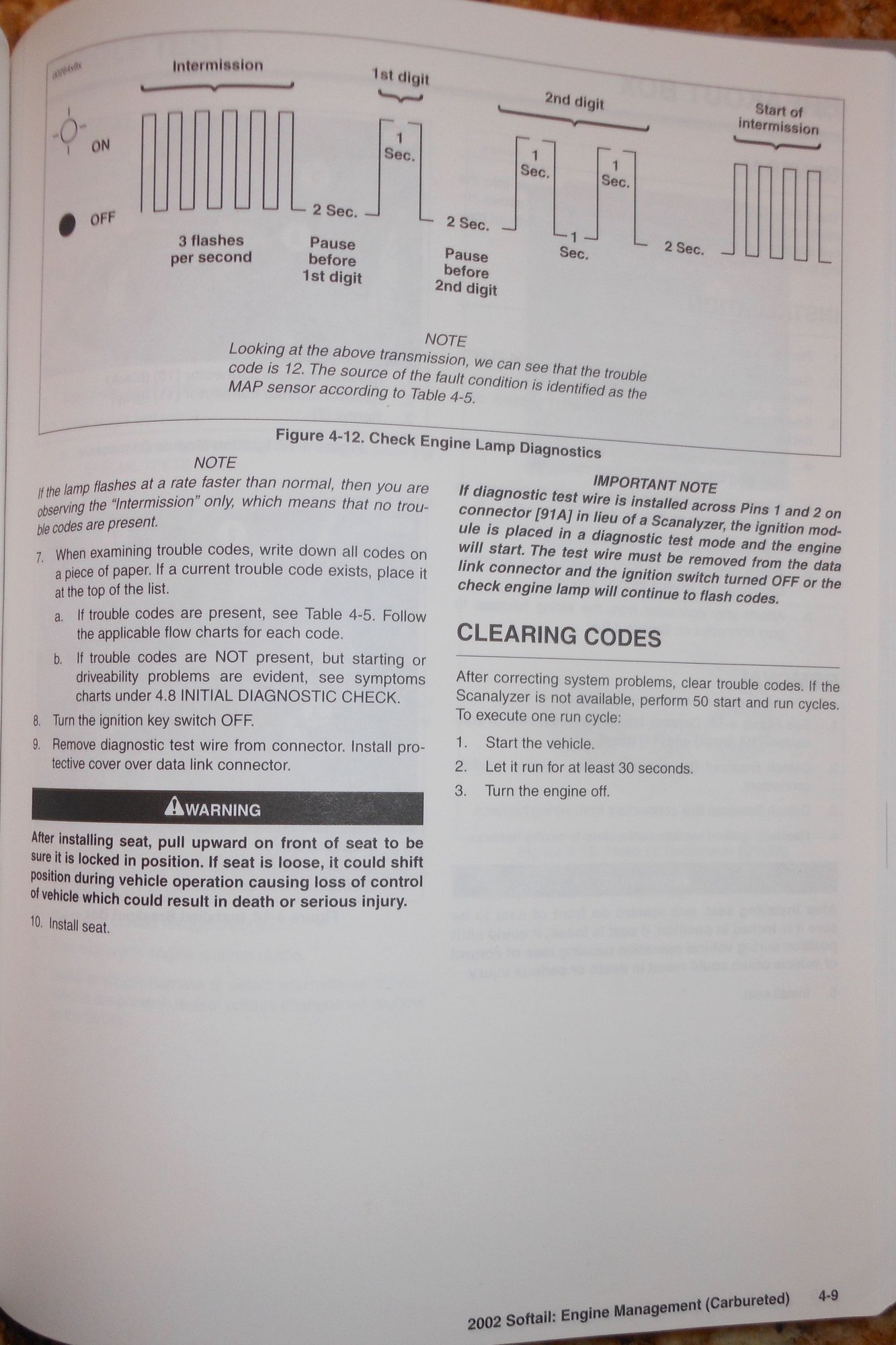

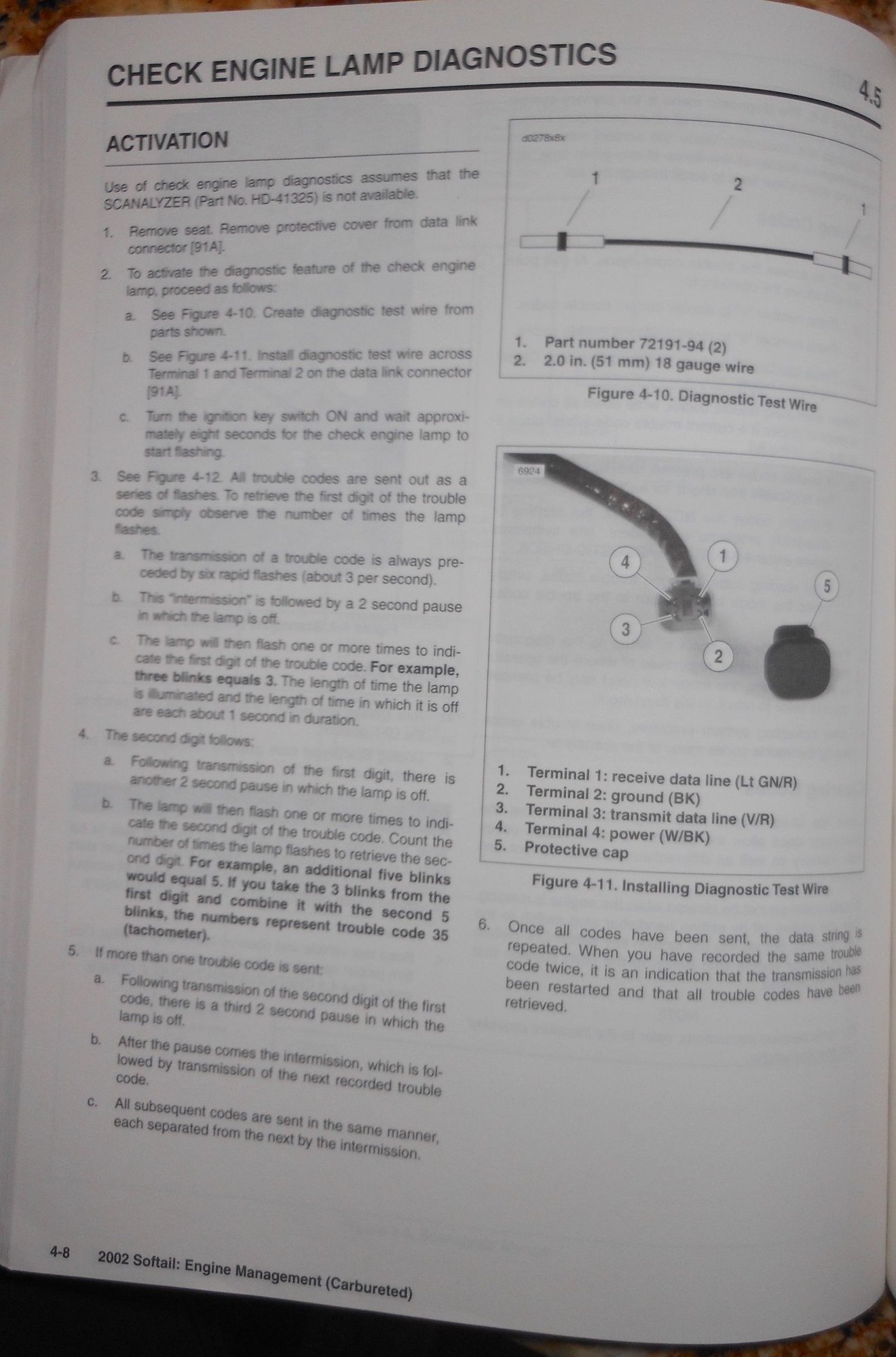

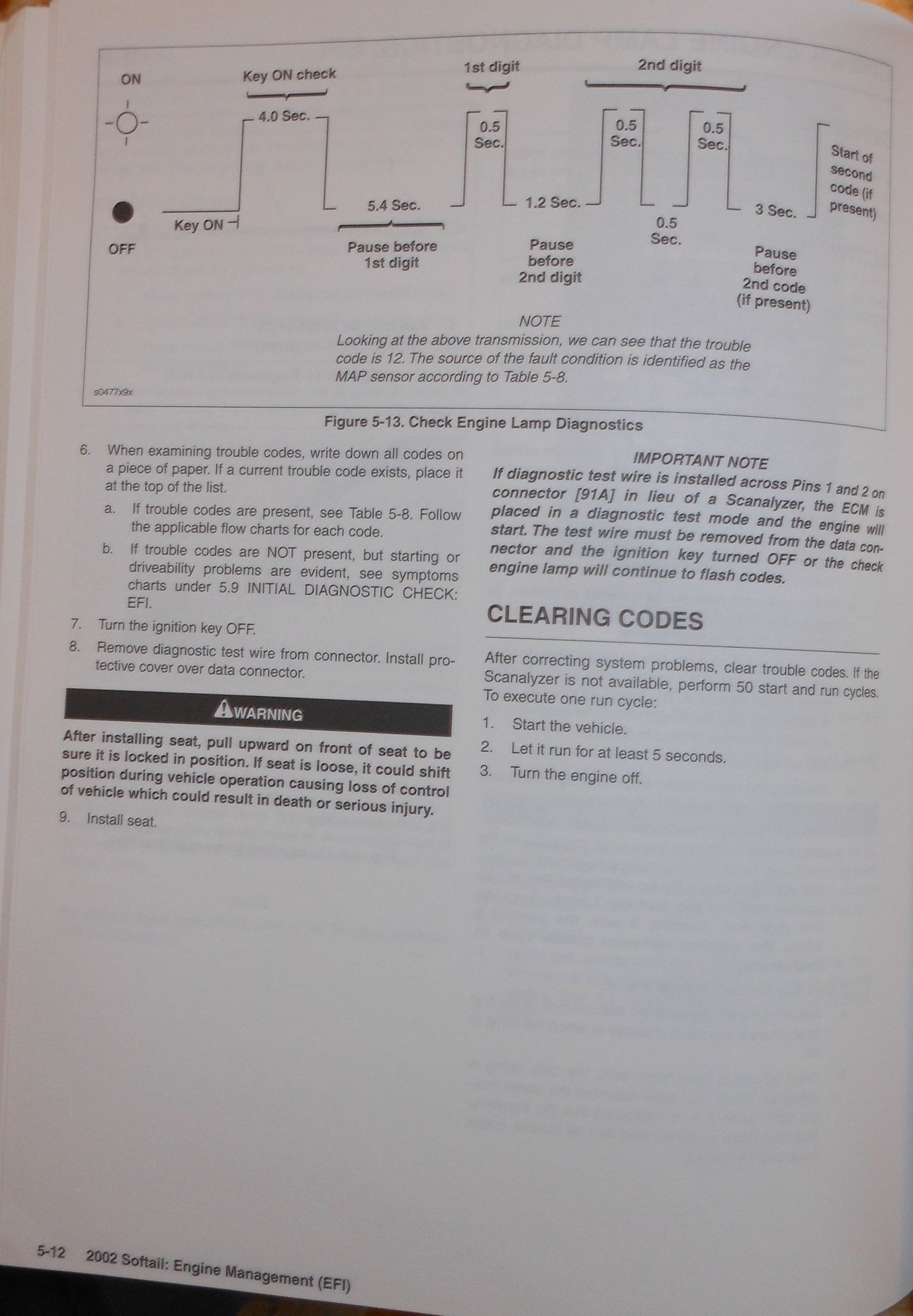

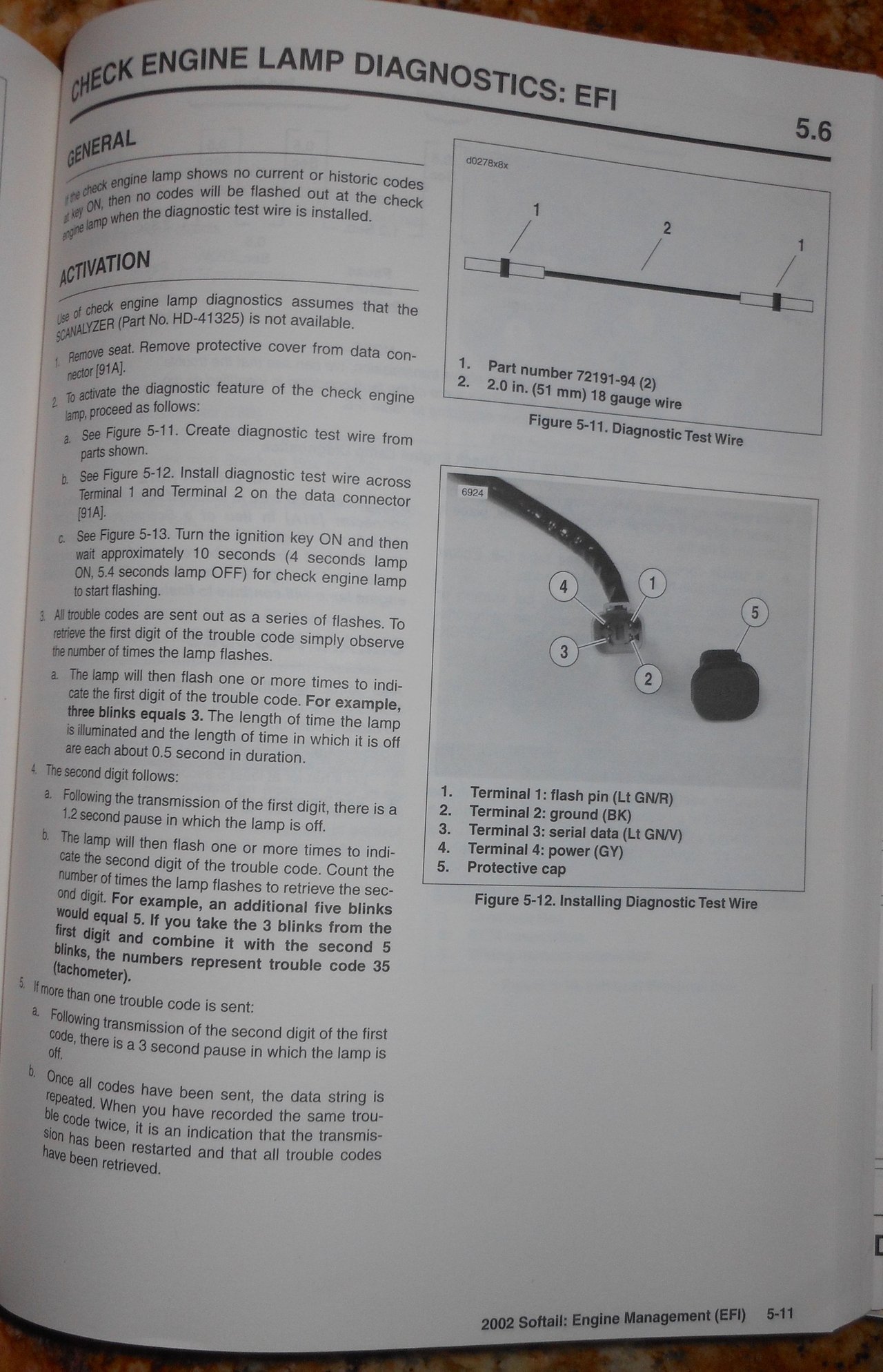

1. Remove right side saddlebag and side cover if so equipped. Remove protective plug from data link connector.
2. To activate the diagnostic feature, proceed as follows:
a. Create diagnostic test wire or use a female spade clip.
b. Install diagnostic test wire across Terminals 1 and 2 on the data link connector.
c. Turn Ignition/Light Key Switch to IGNITION and wait approximately 10 seconds (4 seconds lamp ON, 6 seconds lamp OFF) for check engine lamp to start flashing.
3. All trouble codes are sent out as a series of flashes. To retrieve the first digit of the trouble code simply observe the number of times the lamp flashes.
a. The lamp will then flash one or more times to indicate the first digit of the trouble code.
b. The length of time the lamp is illuminated and the length of time in which it is off are each about 0.5 second in duration.
4. The second digit follows:
a. Following the transmission of the first digit, there is a 1.2 second pause in which the lamp is off.
b. The lamp will then flash one or more times to indicate the second digit of the trouble code. Count the number of times the lamp flashes to retrieve the second digit.
5. If more than one trouble code is sent:
a. Following transmission of the second digit of the first code, there is a 3 second pause in which the lamp is off.
b. Once all codes have been sent, the data string is repeated. When you have recorded the same trouble code twice, it is an indication that the transmission has been restarted and that all trouble codes have been retrieved.
IMPORTANT NOTE ..If diagnostic test wire is installed across Pins 1 and 2 on connector in lieu of a Scanalyzer, the ECM is placed in a diagnostic test mode and the engine will start. The test wire must be removed from the data connector and the ignition switch turned OFF or the check engine lamp will continue to flash codes. A historic trouble code resides in the memory of the ECM until the code is cleared by use of the Scanalyzer or a total of 50 trips has elapsed. A trip consists of a start and run cycle, the run cycle lasting at least 30 seconds. After the 50 trip retention period, the trouble code is automatically erased from memory (that is, assuming no subsequent faults of the same type are detected in that period). The numbers after the 'historic' or 'current' is the speedo code number, but without the electrical diagnostics manual you're peeing into the wind.
1 Current 53 ECM flash error
2 Historic 53 ECM flash error
3 Current 54 ECM EEPROM error
4 Historic 54 ECM EEPROM error
5 Current 63 ECM serial data low
6 Current 63 ECM serial data open/high
7 Current 63 TSSM serial data low
8 Current 63 TSSM serial data open/high
9 Current 61 Loss of TSM/TSSM serial data
10 Current 14 Loss of all ECM serial data (state of health)
10 24 Loss of vehicle speed
10 33 Loss of vehicle inhibit motion
10 43 Loss of power train security status
11 Current 33 System relay contacts open
12 Current 33 System relay coil high/shorted
13 Current 33 System relay coil open/low
14 Current 33 System relay contacts closed
15 Current 99 Incorrect password
16 Current 99 Missing password
17 Current 41 CKP sensor intermittent
18 Current 41 CKP sensor synch error
19 Current 11 TP sensor open/low
20 Current 11 TP sensor high
21 Current 12 MAP sensor open/low
22 Current 12 MAP sensor high
23 Current 14 ET sensor voltage low
24 Current 14 ET sensor open/high
25 Current 15 IAT sensor voltage low
26 Current 15 IAT sensor open/high
27 Current 24 Front ignition coil open/low
28 Current 25 Rear ignition coil open/low
29 Current 24 Front ignition coil high/shorted
30 Current 25 Rear ignition coil high/shorted
31 Current 24 Front cylinder combustion intermittent
32 Current 25 Rear cylinder combustion intermittent
33 Current 23
2. To activate the diagnostic feature, proceed as follows:
a. Create diagnostic test wire or use a female spade clip.
b. Install diagnostic test wire across Terminals 1 and 2 on the data link connector.
c. Turn Ignition/Light Key Switch to IGNITION and wait approximately 10 seconds (4 seconds lamp ON, 6 seconds lamp OFF) for check engine lamp to start flashing.
3. All trouble codes are sent out as a series of flashes. To retrieve the first digit of the trouble code simply observe the number of times the lamp flashes.
a. The lamp will then flash one or more times to indicate the first digit of the trouble code.
b. The length of time the lamp is illuminated and the length of time in which it is off are each about 0.5 second in duration.
4. The second digit follows:
a. Following the transmission of the first digit, there is a 1.2 second pause in which the lamp is off.
b. The lamp will then flash one or more times to indicate the second digit of the trouble code. Count the number of times the lamp flashes to retrieve the second digit.
5. If more than one trouble code is sent:
a. Following transmission of the second digit of the first code, there is a 3 second pause in which the lamp is off.
b. Once all codes have been sent, the data string is repeated. When you have recorded the same trouble code twice, it is an indication that the transmission has been restarted and that all trouble codes have been retrieved.
IMPORTANT NOTE ..If diagnostic test wire is installed across Pins 1 and 2 on connector in lieu of a Scanalyzer, the ECM is placed in a diagnostic test mode and the engine will start. The test wire must be removed from the data connector and the ignition switch turned OFF or the check engine lamp will continue to flash codes. A historic trouble code resides in the memory of the ECM until the code is cleared by use of the Scanalyzer or a total of 50 trips has elapsed. A trip consists of a start and run cycle, the run cycle lasting at least 30 seconds. After the 50 trip retention period, the trouble code is automatically erased from memory (that is, assuming no subsequent faults of the same type are detected in that period). The numbers after the 'historic' or 'current' is the speedo code number, but without the electrical diagnostics manual you're peeing into the wind.
1 Current 53 ECM flash error
2 Historic 53 ECM flash error
3 Current 54 ECM EEPROM error
4 Historic 54 ECM EEPROM error
5 Current 63 ECM serial data low
6 Current 63 ECM serial data open/high
7 Current 63 TSSM serial data low
8 Current 63 TSSM serial data open/high
9 Current 61 Loss of TSM/TSSM serial data
10 Current 14 Loss of all ECM serial data (state of health)
10 24 Loss of vehicle speed
10 33 Loss of vehicle inhibit motion
10 43 Loss of power train security status
11 Current 33 System relay contacts open
12 Current 33 System relay coil high/shorted
13 Current 33 System relay coil open/low
14 Current 33 System relay contacts closed
15 Current 99 Incorrect password
16 Current 99 Missing password
17 Current 41 CKP sensor intermittent
18 Current 41 CKP sensor synch error
19 Current 11 TP sensor open/low
20 Current 11 TP sensor high
21 Current 12 MAP sensor open/low
22 Current 12 MAP sensor high
23 Current 14 ET sensor voltage low
24 Current 14 ET sensor open/high
25 Current 15 IAT sensor voltage low
26 Current 15 IAT sensor open/high
27 Current 24 Front ignition coil open/low
28 Current 25 Rear ignition coil open/low
29 Current 24 Front ignition coil high/shorted
30 Current 25 Rear ignition coil high/shorted
31 Current 24 Front cylinder combustion intermittent
32 Current 25 Rear cylinder combustion intermittent
33 Current 23
