Throttle Body 6 Pin Connector
#1
Throttle Body 6 Pin Connector
I am trying to take it apart to install a rubber boot. I have the back off and trying to use a paper clip on the front of each pin location to remove the wires but no joy. Any suggestions? This is on a 2009 FLHTCU.
Last edited by ssgunny; 05-18-2017 at 08:23 PM.
#4
#5

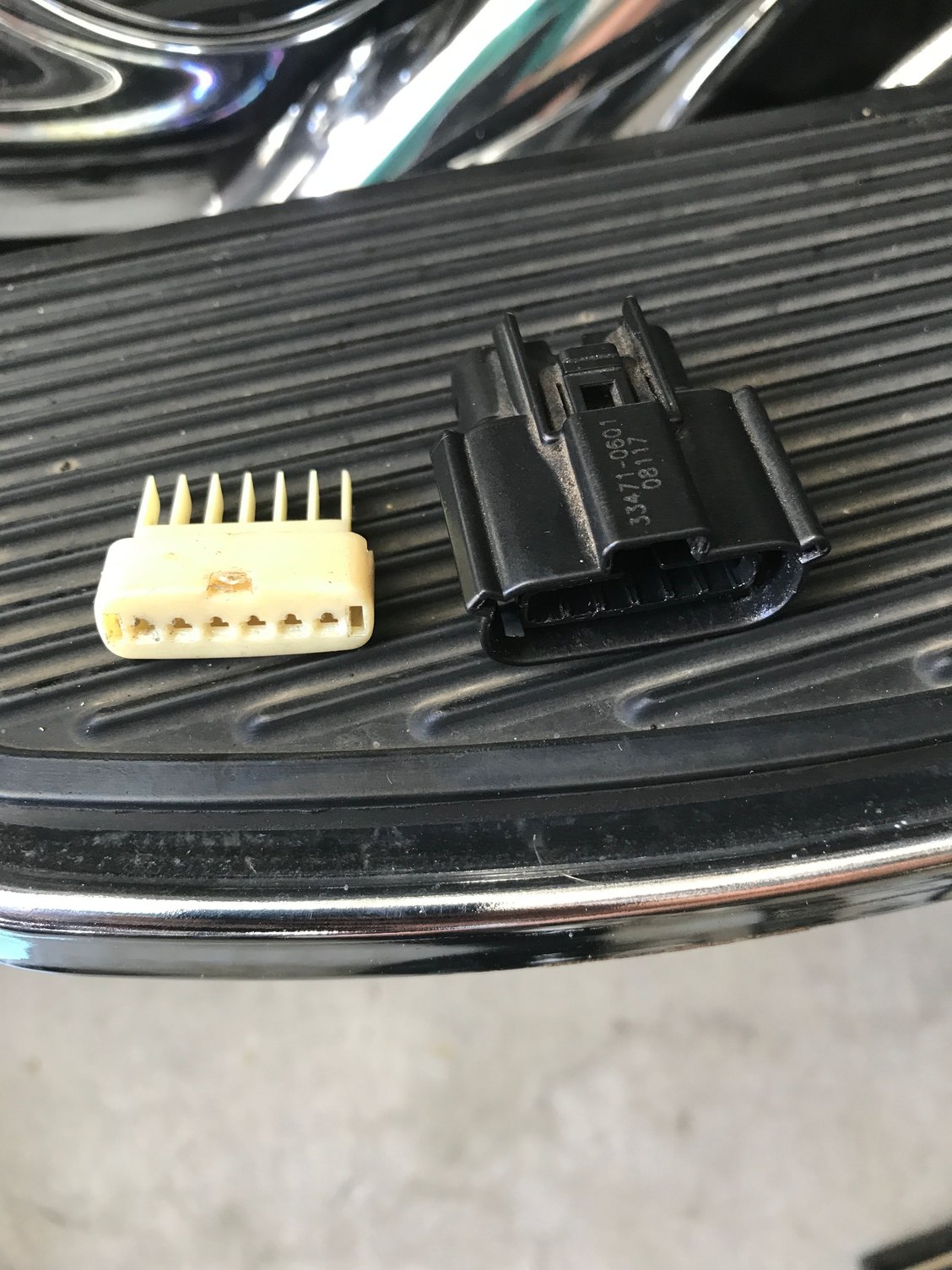

In case you did not realize it that white part is a secondary lock. You can't remove the pins with it in place. You need to pull it out a 1/8" or so to unlock it. After that a safety pin or some such pointed object will pop the pins loose.
Now that you have it apart take a real good look for future reference.
Now that you have it apart take a real good look for future reference.
#6
I see what you mean. I was able to get the secondary lock to move out 1/8" or so and then proceeded to gently remove it entirely since I didn't know how it worked. Removing the secondary lock caused me to have to turn each pin a 1/4 turn to easily remove them. I will reinstall the secondary lock so the pins can be reinserted the correct way and much easier I am sure. Thanks!
#7
Trending Topics
#8
Harley davidson pre-wired throttle body 6 pin control actuator connector plug
Here is the pigtail.
https://www.ebay.com/itm/224498949405
THIS PRODUCT FITSHARLEY DAVIDSONElectra Glide Classic FLHTC/I 2008-2013Electra Glide Standard FLHT/I 2008, 2009Electra Glide Ultra Classic FLHTCU/I 2008-2016Road King Classic FLHRC/I 2008-2013Road King FLHR/I 2008-2016
https://www.ebay.com/itm/224498949405
THIS PRODUCT FITSHARLEY DAVIDSONElectra Glide Classic FLHTC/I 2008-2013Electra Glide Standard FLHT/I 2008, 2009Electra Glide Ultra Classic FLHTCU/I 2008-2016Road King Classic FLHRC/I 2008-2013Road King FLHR/I 2008-2016
