Default Minor Enhancement


Surprised to see this much corrosion on 6,000 mile stud, over washed & under ridden?

The much favored Torrington & OEM.

The controversial rollers? Hey I know they don't add ponies but l like them.

Plastic or steel, my own experiment & miles will tell.

Spiral locks on JE's. Spirals often loved or loathed.

OEM breather gear required thicker spacer between carb & manifold, sorry, just didn't like S & S hose.

  #2
Old 06-14-2019, 05:46 PM
WesternNSW's Avatar
WesternNSW
WesternNSW is offline
Club Member
Thread Starter
Join Date: Jun 2018
Location: NSW
Posts: 36
Received 3 Likes on 3 Posts
Default

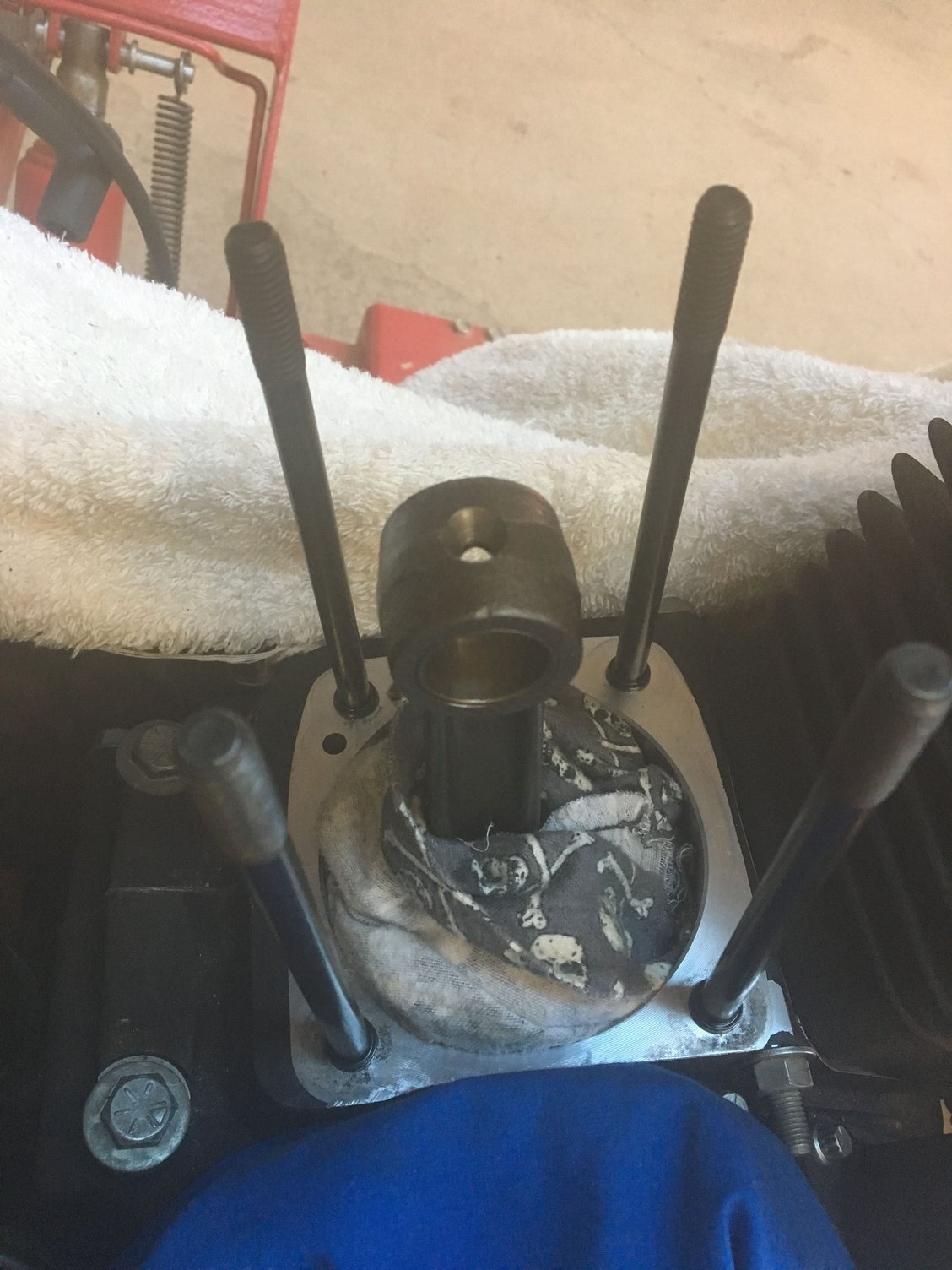

Yes, its home made.

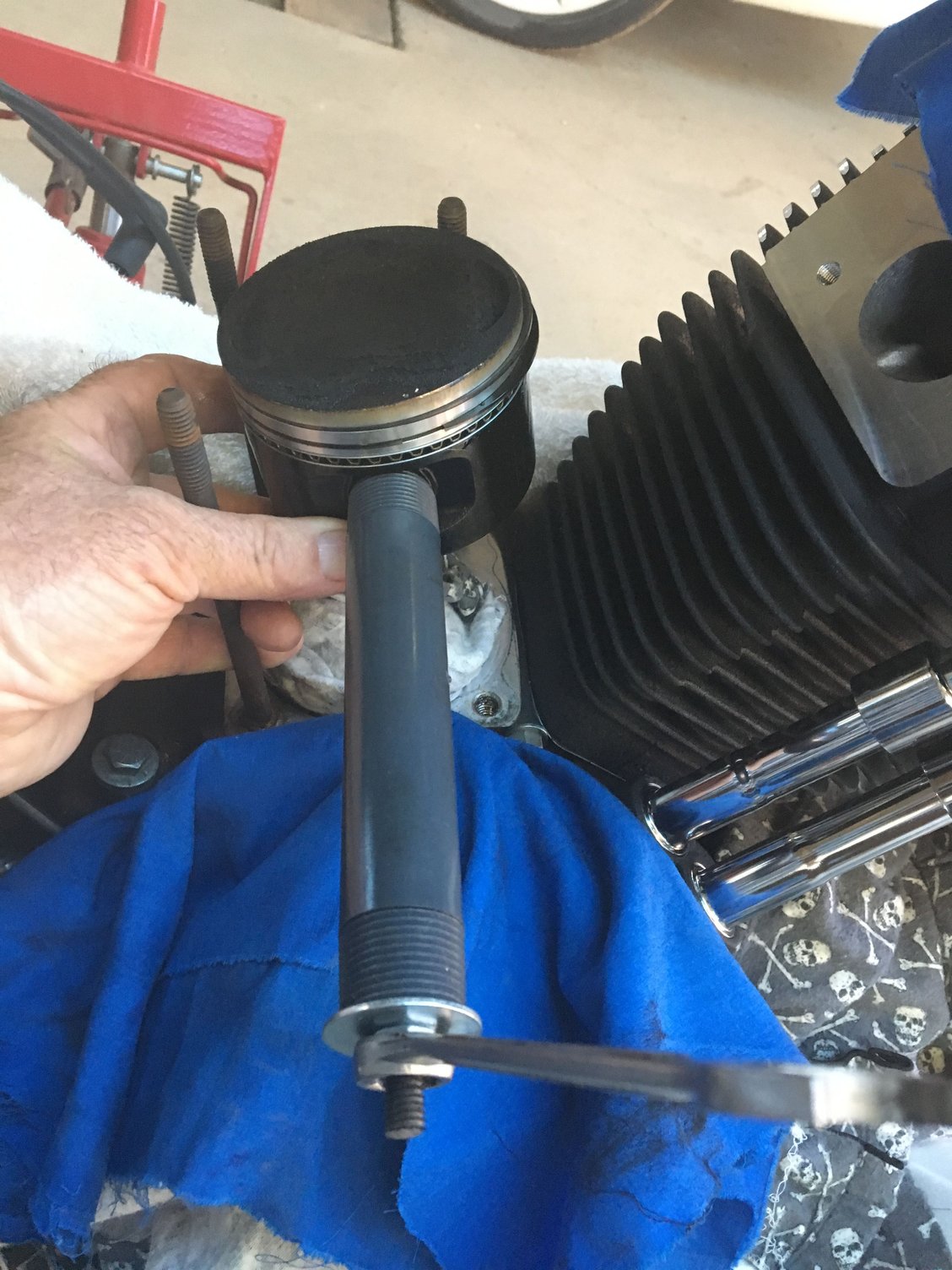

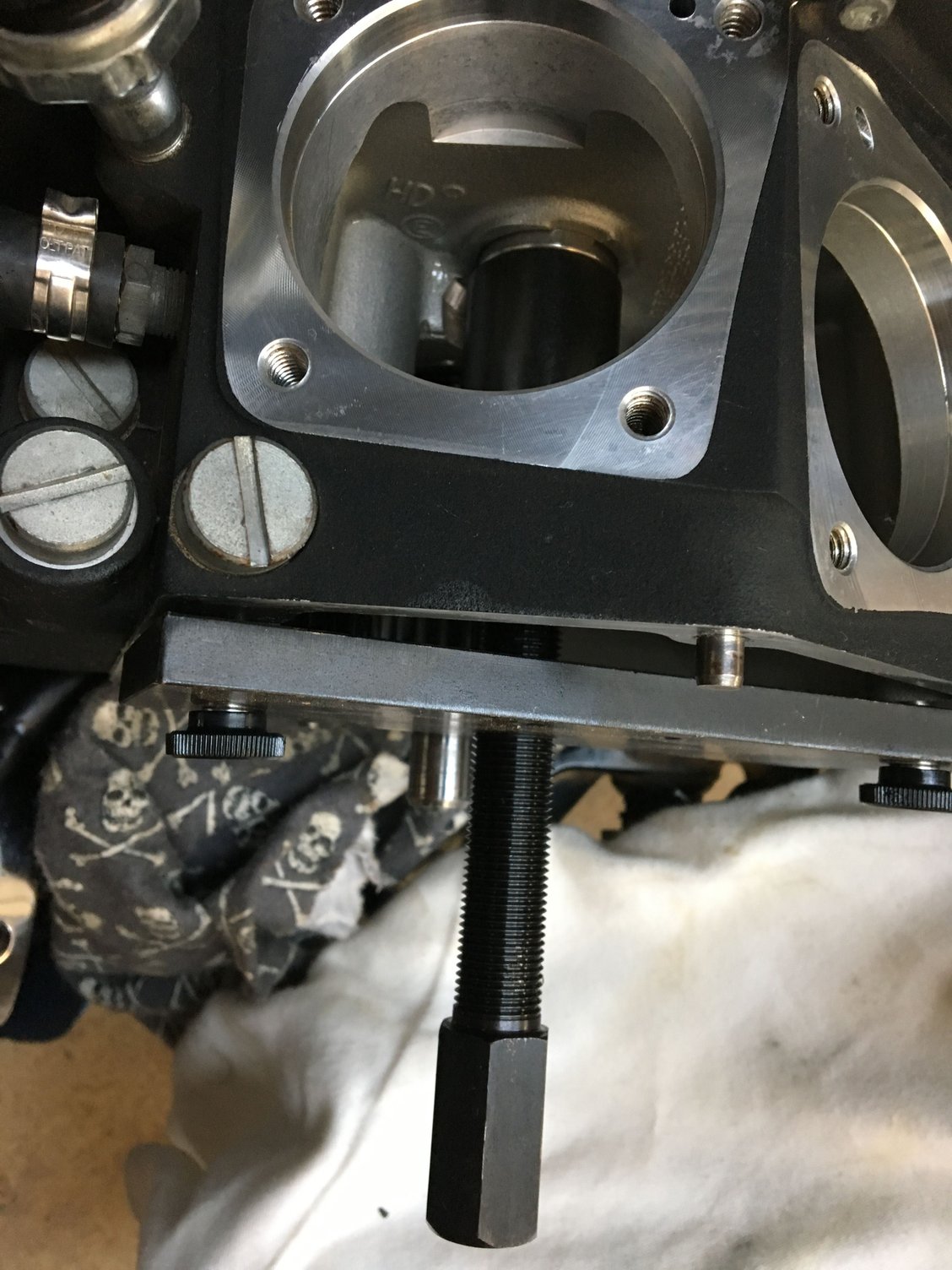

Purchased some cool tools too.

Good quality, American made & works well.

Ended up with 160 PSI when assembled, bit shy of the 165 l anticipated with .030 H/gasket.

New studs front & rear.

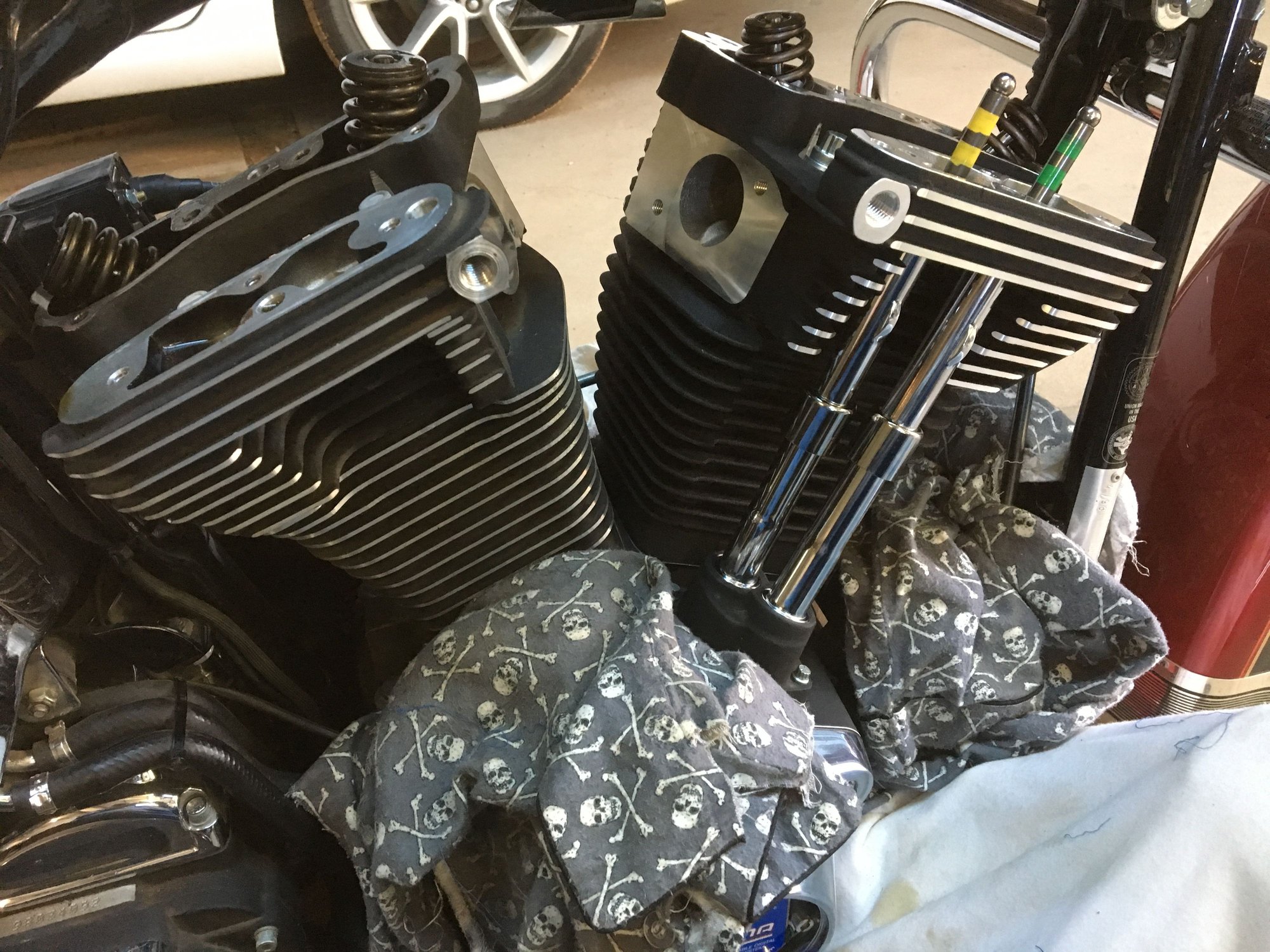

OEM & Axtell with S & S

The following users liked this post:
daven9113 (06-14-2019)
  #3
Old 06-14-2019, 05:54 PM
WesternNSW's Avatar
WesternNSW
WesternNSW is offline
Club Member
Thread Starter
Join Date: Jun 2018
Location: NSW
Posts: 36
Received 3 Likes on 3 Posts
Default


Assembled, cleaned & a few hundred miles, still no leaks, weeps or scorched pistons

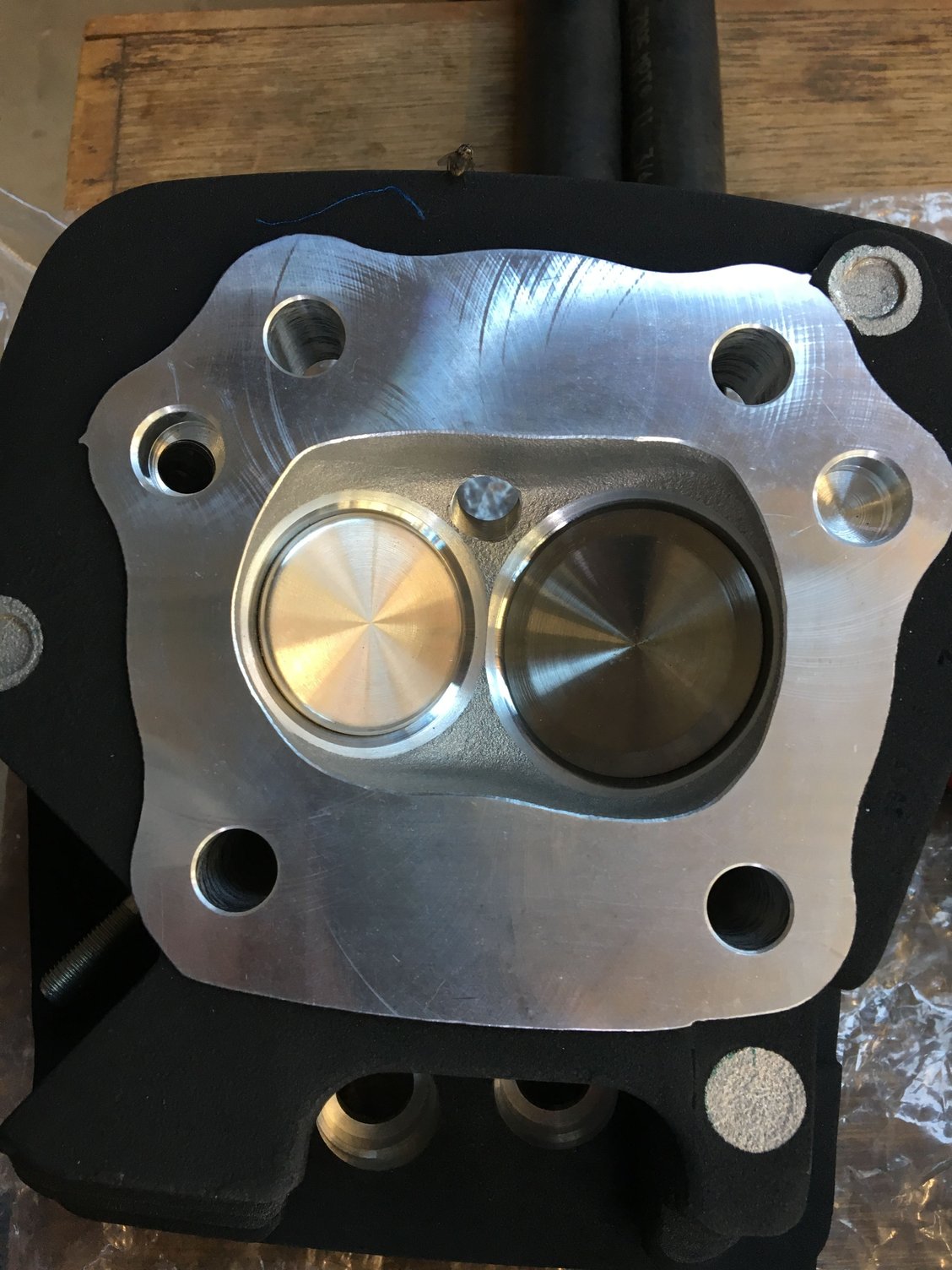

I'm no engineer, just an old greaser, but l like the S & S chambers.

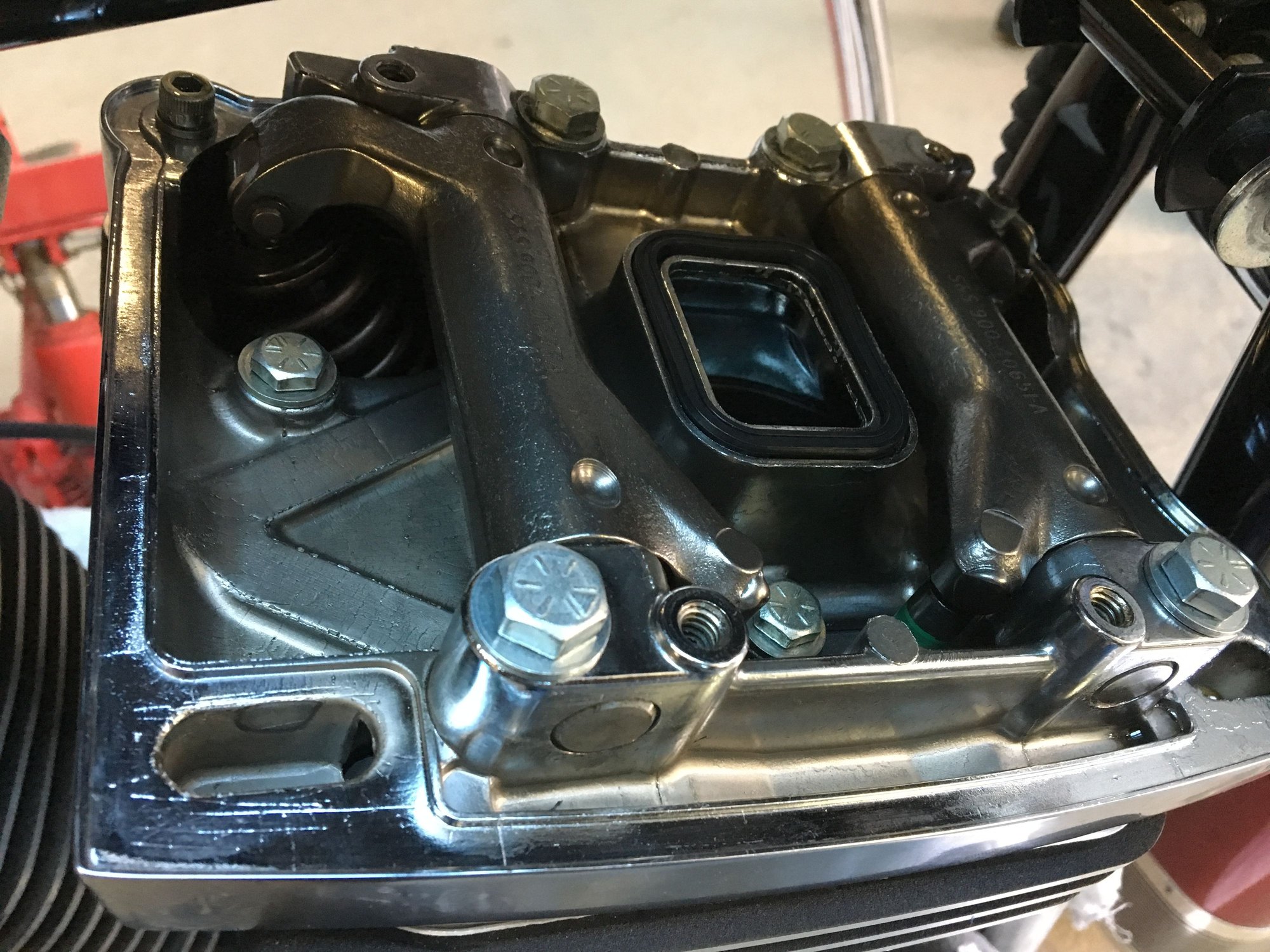

The tubs for the new breather set up, though nothing comes out? Just air.

  #4
Old 06-14-2019, 05:59 PM
Mountainkowboy's Avatar
Mountainkowboy
Mountainkowboy is offline
Outstanding HDF Member
Join Date: Jan 2006
Location: Socal/NE Oregon
Posts: 2,801
Received 128 Likes on 93 Posts
Default

Nice and pretty too!

  #5
Old 06-14-2019, 06:01 PM
WesternNSW's Avatar
WesternNSW
WesternNSW is offline
Club Member
Thread Starter
Join Date: Jun 2018
Location: NSW
Posts: 36
Received 3 Likes on 3 Posts
Default

Also used new S & S lifters & stock push rods. Thank you to those that helped me when thread started as a cam swap, especially Hotrod, hope your well Bob and back on the road soon man.

The following users liked this post:
98hotrodfatboy (06-15-2019)
  #6
Old 06-14-2019, 06:04 PM
WesternNSW's Avatar
WesternNSW
WesternNSW is offline
Club Member
Thread Starter
Join Date: Jun 2018
Location: NSW
Posts: 36
Received 3 Likes on 3 Posts
Default

Thanks Mountainkowboy, I'm following your rebuild, you got some really nice tin for your bike, looking forward to the process & end result.






  #7
Old 06-15-2019, 11:47 AM
BB.No8's Avatar
BB.No8
BB.No8 is offline
One Of The Regulars
Join Date: Sep 2018
Location: Phoenix
Posts: 128
Received 24 Likes on 23 Posts
Default

Good looking Bike, and nice work on the motor. I'm curious about the mod's that you made to the motor, are those cylinders Axtel 85"? What Cam are you running? The S&S heads, are they 76 cc or 83 cc?

  #8
Old 06-15-2019, 04:01 PM
WesternNSW's Avatar
WesternNSW
WesternNSW is offline
Club Member
Thread Starter
Join Date: Jun 2018
Location: NSW
Posts: 36
Received 3 Likes on 3 Posts
Default

Thanks BB.No8.
The cylinders are Axtell 85" with flat top pistons 9.5:1
Heads are 82cc chamber volume.
Cam is an Andrews EV13, which is good cruising at 55-65 mph however overall l find it a little underwhelming.
Ignition is Dynatek 2000i.
Carb (E) and manifold are S & S.
I wasn't looking for a massive boost in ponies just a nice improvement.

  #9
Old 06-15-2019, 08:53 PM
98hotrodfatboy's Avatar
98hotrodfatboy
98hotrodfatboy is offline
Ultimate HDF Member
Join Date: Mar 2010
Location: Poolville
Posts: 9,445
Received 753 Likes on 696 Posts
Default

Thanks Paul, mentally doing ok ... I think ..... You did A great job on that build... Very nice... Believe it or not that extra spacer you used for the carb will actually give you a tad more torque. Nice job man, Ride safe ..


Last edited by 98hotrodfatboy; 06-15-2019 at 08:56 PM.
  #10
Old 06-15-2019, 10:22 PM
WesternNSW's Avatar
WesternNSW
WesternNSW is offline
Club Member
Thread Starter
Join Date: Jun 2018
Location: NSW
Posts: 36
Received 3 Likes on 3 Posts
Default

Thanks man, you'll get there with the rehab brother, give it time.
