SAE or metric?

  #1
Old 11-04-2018, 12:12 AM
handirifle
handirifle is offline
One Of The Regulars
Thread Starter
Join Date: Sep 2018
Location: Central Coast of CA
Posts: 175
Thanks: 0
Thanked 6 Times in 6 Posts
Default SAE or metric?

So far working on my bike it seems I have had ro use both. Which is is supposed to be, SAE or metric sizes?

While I am at it, anyone know what size and thread pitch the bolts that hold the muffler to the crossover pipe is on a 2007 Sportster? Switching my foot controls out, I came across one that the head of the bolt was rounded, and I need to replace it. I am referring to the ones that bolt from underneath, and are slightly larger than a 1/4-20 bolt. About 1" long.

  #2
Old 11-04-2018, 02:31 AM
mmesa005's Avatar
mmesa005
mmesa005 is offline
Outstanding HDF Member
Join Date: Aug 2010
Location: Northern California
Posts: 2,255
Thanked 302 Times in 289 Posts
Default

Here is the parts catalog that has the part number to the size reference you are looking for
https://serviceinfo.harley-davidson....portster+parts

  #3
Old 11-04-2018, 03:59 AM
Madnss
Madnss is offline
Outstanding HDF Member
Join Date: Dec 2012
Location: river
Posts: 2,325
Thanked 146 Times in 100 Posts
Default

Originally Posted by handirifle View Post
So far working on my bike it seems I have had ro use both. Which is is supposed to be, SAE or metric sizes?

While I am at it, anyone know what size and thread pitch the bolts that hold the muffler to the crossover pipe is on a 2007 Sportster? Switching my foot controls out, I came across one that the head of the bolt was rounded, and I need to replace it. I am referring to the ones that bolt from underneath, and are slightly larger than a 1/4-20 bolt. About 1" long.

its supposed to be all SAE, the previous owner must have sabotaged the bike with mystery metric sizes.

  #4
Old 11-04-2018, 04:04 AM
Andy from Sandy
Andy from Sandy is offline
Senior Rider
Join Date: Sep 2017
Location: Bedfordshire
Posts: 346
Thanked 16 Times in 16 Posts
Default

Brake calipers might be metric.
I have just been messing with a 2008 Custom and the stock muffler to transfer pipe are 1/2" AF and the muffler to header clamp are 9/16" AF. What the actual thread size is I don't know.

  #5
Old 11-04-2018, 05:19 AM
grbrown's Avatar
grbrown
grbrown is offline
Club Member
Join Date: Jun 2007
Location: Bedford UK
Posts: 40,918
Thanked 1,429 Times in 1,324 Posts
Exclamation

Originally Posted by Madnss View Post
its supposed to be all SAE, the previous owner must have sabotaged the bike with mystery metric sizes.
Not true - metric stuff is slowly creeping onto our Harleys and not before time. My new 1974 Harley had 10mm battery terminal bolts! Your Government signed off a metric Law back in 1975, but forgot to say when it should start! In the meantime be aware that some metric tools may be required when servicing our bikes.

The Following User Says Thank You to grbrown For This Useful Post:
skypeace (11-08-2018)
  #6
Old 11-04-2018, 06:13 AM
FreedomRider
FreedomRider is offline
Road Captain
Join Date: Nov 2006
Location: Northeastern Indiana
Posts: 551
Thanked 103 Times in 95 Posts
Default

You will need both SAE and Metric, but will use SAE the most … I have three different 1996 models and find both types on all three … an excuse to buy more tools ...

  #7
Old 11-04-2018, 07:13 AM
barneyboy's Avatar
barneyboy
barneyboy is offline
Road Captain
Join Date: Dec 2017
Location: Plover, WI
Posts: 655
Thanks: 0
Thanked 178 Times in 119 Posts
Default

Originally Posted by handirifle View Post
So far working on my bike it seems I have had ro use both. Which is is supposed to be, SAE or metric sizes?

While I am at it, anyone know what size and thread pitch the bolts that hold the muffler to the crossover pipe is on a 2007 Sportster? Switching my foot controls out, I came across one that the head of the bolt was rounded, and I need to replace it. I am referring to the ones that bolt from underneath, and are slightly larger than a 1/4-20 bolt. About 1" long.
Are you talking about #2 in the diagram?




  #8
Old 11-04-2018, 12:09 PM
handirifle
handirifle is offline
One Of The Regulars
Thread Starter
Join Date: Sep 2018
Location: Central Coast of CA
Posts: 175
Thanks: 0
Thanked 6 Times in 6 Posts
Default

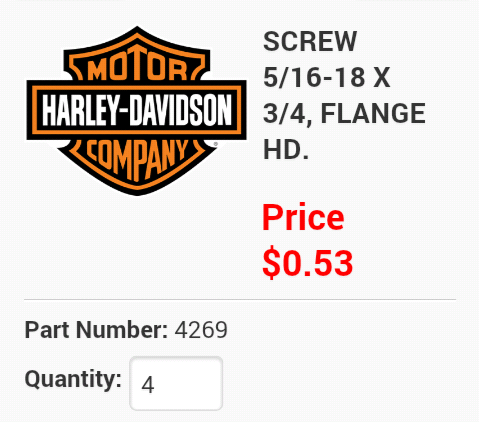

Wow lots of good responses. You guys are great. I looked through the catalog and got the bolt number and size, lol. Ut now see it posted. I will stop at hardware store after church. HD dealer is 45 miles away.

Catalog is good to have.

The odd metric I found was the ball screw for the rear brake actuator rod. It was metric, but all the others were sae. Unless it was some real oddball sae size. I couldn't see well enough yesterday to see what size metric.

I need to save that catalog to my ipad so I will have it in the future.

  #9
Old 11-04-2018, 12:15 PM
Andy from Sandy
Andy from Sandy is offline
Senior Rider
Join Date: Sep 2017
Location: Bedfordshire
Posts: 346
Thanked 16 Times in 16 Posts
Default

On a 2007 year bike with the master cylinder under the back isolator the brake rod assembly I think you will find is a T30 torx. Or do you have some kind of Chinese knock-off?

http://partsfinder.onlinemicrofiche....R%20W/%20PEDAL


Last edited by Andy from Sandy; 11-04-2018 at 12:16 PM.
  #10
Old 11-04-2018, 12:25 PM
handirifle
handirifle is offline
One Of The Regulars
Thread Starter
Join Date: Sep 2018
Location: Central Coast of CA
Posts: 175
Thanks: 0
Thanked 6 Times in 6 Posts
Default

LOL well I told you guys I couldn't see very well. Amazing I got the think off without stripping it. Didn't even slip.

Thats funny. Duh!
