883 XLH 1990 Alternator Magnets


  #1
Old 03-14-2019, 10:04 AM
hathazy
hathazy is offline
New Member
Thread Starter
Join Date: Mar 2019
Location: Cluj-Napoca
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Default 883 XLH 1990 Alternator Magnets

Hi mates, I have a 883 XLH Sportster from 1990, and my big issue is the magnets from alternator, I had loose magnets but none were broken.To buy another alternator rotor what is with the clutch system, in Romania(i'm, from Romania) is very expensive, more than 600$.
I wan to re-glue the magnets, but I don't know the magnets position(pole).
If somebody re-glue the magnets, or know the magnets pole position, please tell me.

​​​​​​​Thanks a lot.

  #2
Old 03-15-2019, 01:58 PM
TStephen's Avatar
TStephen
TStephen is offline
Road Warrior
Join Date: Mar 2016
Location: SC
Posts: 1,495
Thanked 229 Times in 200 Posts
Default

Originally Posted by hathazy View Post
Hi mates, I have a 883 XLH Sportster from 1990, and my big issue is the magnets from alternator, I had loose magnets but none were broken.To buy another alternator rotor what is with the clutch system, in Romania(i'm, from Romania) is very expensive, more than 600$.
I wan to re-glue the magnets, but I don't know the magnets position(pole).
If somebody re-glue the magnets, or know the magnets pole position, please tell me.

Thanks a lot.
$600 seems like a good deal.

I'm not even sure what sort of "glue" you would use to re-bed them. They should only go in one way though. But if one came loose when riding, it could really tear up your stator and clutch I would think.

How did you realize they were loose? Were you taking out the stator and had a magnet fall out of the clutch basket?

  #3
Old 03-15-2019, 03:14 PM
apache snow's Avatar
apache snow
apache snow is online now
Road Master
Join Date: Sep 2017
Location: over the mountain
Posts: 782
Thanked 166 Times in 142 Posts
Default

Here the stator is $112.00, The rotor clutch shell is $511.99. Never tried to glue them in. Good luck.

http://partsfinder.onlinemicrofiche....GE%20REGULATOR

  #4
Old 03-15-2019, 03:17 PM
RIPSAW's Avatar
RIPSAW
RIPSAW is online now
Extreme HDF Member
Join Date: Mar 2010
Location: Bates Motel, Fairville U.S.A.
Posts: 19,450
Thanked 638 Times in 551 Posts
Default

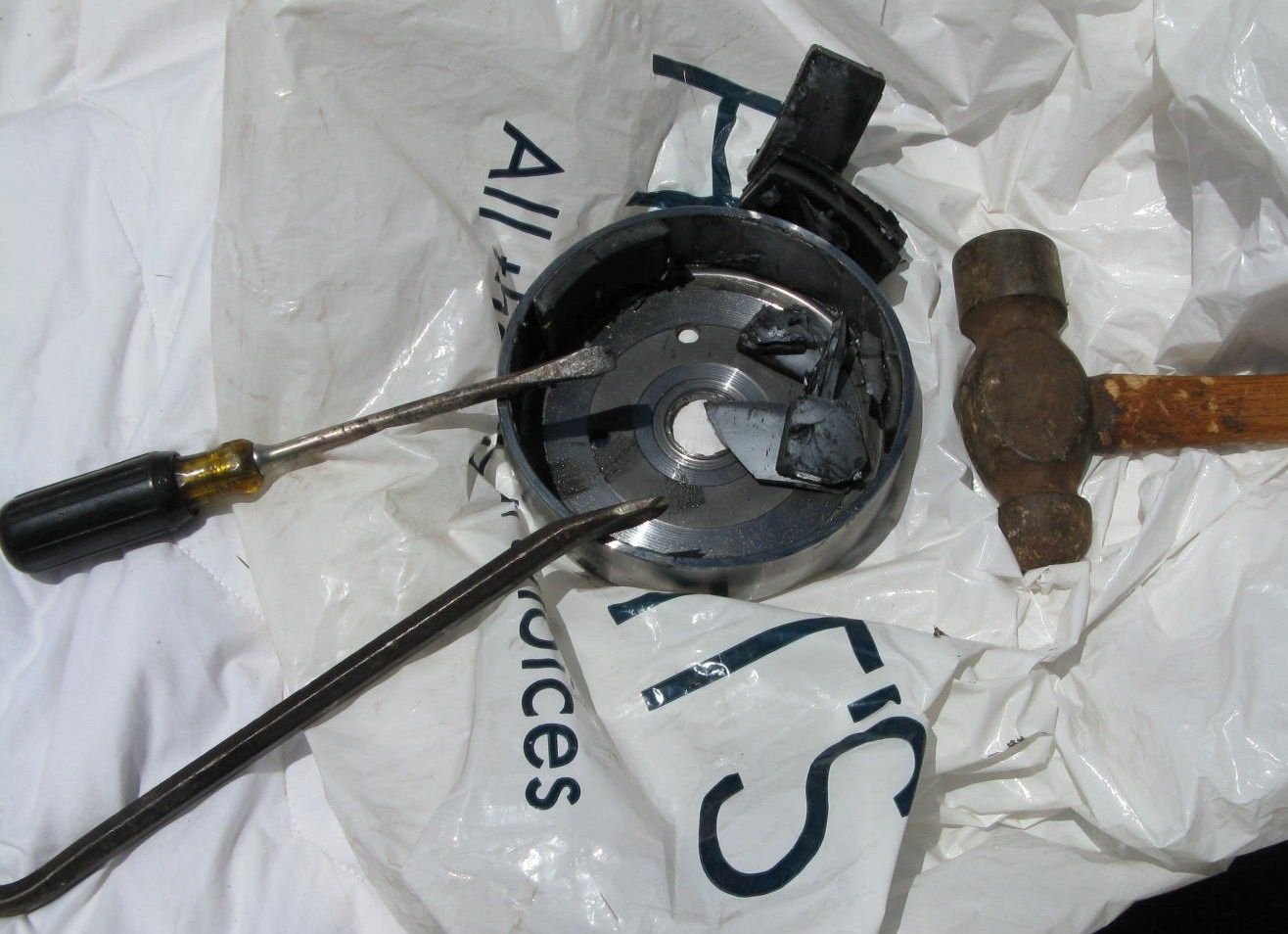

Are they all broken loose? I had one that drive spline was stripped. I decided the magnets may come in handy. Tried to break one out and it was like bulletproof till I struck the outer shell. They literally exploded out of there.

https://www.google.com/search?q=alte...w=1474&bih=762


Last edited by RIPSAW; 03-15-2019 at 03:23 PM.
  #5
Old 03-15-2019, 05:27 PM
John Harper
John Harper is offline
Elite HDF Member
Join Date: Dec 2011
Location: Carlsbad
Posts: 3,887
Thanked 202 Times in 173 Posts
Default

I guess that warning about "no sharp blows" on the rotor is there for a reason.

John

  #6
Old 03-15-2019, 05:51 PM
RIPSAW's Avatar
RIPSAW
RIPSAW is online now
Extreme HDF Member
Join Date: Mar 2010
Location: Bates Motel, Fairville U.S.A.
Posts: 19,450
Thanked 638 Times in 551 Posts
Default

Originally Posted by John Harper View Post
I guess that warning about "no sharp blows" on the rotor is there for a reason.

John
I am pretty sure that means on OD. As long as you lock up the drive, a impact wrench will not hurt it. I hit them with a 3/4 drive one.


Last edited by RIPSAW; 03-15-2019 at 05:53 PM.
  #7
Old 03-15-2019, 11:25 PM
badmotorscooter80
badmotorscooter80 is offline
New Member
Join Date: Jun 2016
Location: Indy
Posts: 76
Thanks: 0
Thanked 4 Times in 4 Posts
Default

The magnets in there should be standard ceramic variety, and they are super fragile. A smack with a screwdriver could crack them. I don't see how they could come loose without breaking unless it happened in a static position. Did all of them come loose, or do you have any still in position? A two part epoxy that is impervious to gas/oil (and high temp) will be required, and should work well to fix them in position. All surfaces must be in pristine condition for bonding. I believe each magnet should be fixed in equal spacing position as such that each "set" repels the other.

  #8
Old 03-16-2019, 11:00 AM
RIPSAW's Avatar
RIPSAW
RIPSAW is online now
Extreme HDF Member
Join Date: Mar 2010
Location: Bates Motel, Fairville U.S.A.
Posts: 19,450
Thanked 638 Times in 551 Posts
Default

I would be very concerned about a repair of this part. If if came loose at speed, it could lockup motor and cause a wreck.
