Connector pin help
Thread Starter
|
Tourer
Joined: Jan 2008
Posts: 359
Likes: 1
From: Rockwall, TX
Connector pin help
I'm installing new bars and cables on my Street Glide. Need help with getting the pins out of the connectors to run wires internally on the bars. Anyone have a good video on how to do it? I've tried the paper clip and can't get the pins to release out of the connector. Needing help asap, please!
Elite HDF Member
Joined: Jul 2008
Posts: 4,741
Likes: 45
From: Indian Land, SC
I'm installing new bars and cables on my Street Glide. Need help with getting the pins out of the connectors to run wires internally on the bars. Anyone have a good video on how to do it? I've tried the paper clip and can't get the pins to release out of the connector. Needing help asap, please!
Stellar HDF Member
Joined: Apr 2011
Posts: 2,445
Likes: 1,553
From: Central Wisconsin
I bought the pin removal tool. It was expensive for what it is but got a good discount on it and it works like a charm. As stated in previous post, you need to pull the center part back to unlock wires or you will never get them out. Ask me how I know.
Elite HDF Member
Joined: Jul 2008
Posts: 4,741
Likes: 45
From: Indian Land, SC
I bought the tool also but snapped the wire off the handle....Used the snapped off piece and vise grips and it worked out. The vendor refunded my money, so all is well.
Road Warrior
Joined: Aug 2012
Posts: 1,553
Likes: 36
From: Four Corners
Here is what worked for me... go and buy (if you don't already have somewhere) some diaper pins. The bigger the plastic head on it the better. Now, take the needle end and put a slight bend in the last 1/8th inch of the needle. Slide the end cap and the rubber spacer a couple inches back up the wires. Insert the diaper/safety pin into the wire end of the plug on top of (as opposed to the center portion) underneath the wire and pull both the needle and the wire out at the same time. Forget trying to stick it into that little hole on the pin side of the plug. That is nothing but aggravation. Using a safety pin works easier and you don't need to buy that stupid friggin' $$$ tool.
Last edited by yzergod; Jan 26, 2014 at 11:43 AM.
Elite HDF Member
Joined: Nov 2013
Posts: 4,377
Likes: 647
From: Santa Clarita
I use the hexagonal pin tool, has worked well for me, not perfect, but then I use some of the other methods described to get the job done... good tool to have, if you're gonna do any wiring, having the proper tools pays dividends in time and frustration!
Trending Topics
Seasoned HDF Member
Joined: Jan 2013
Posts: 10,637
Likes: 1,246
From: Lake, Ms

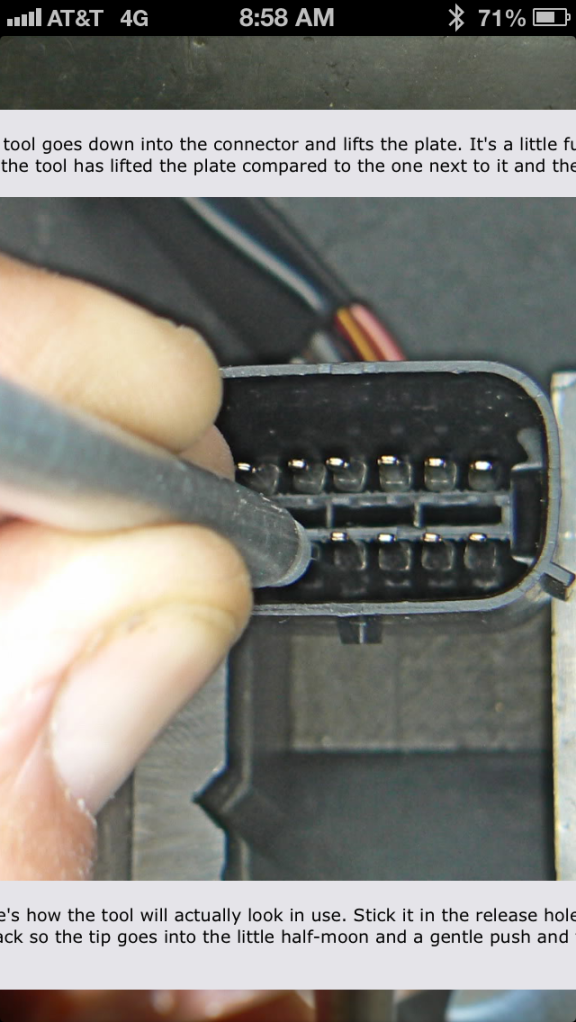

Here are some pics to help see what you are dealing with. I pull the white piece out, it's not necessary but it makes it easier. The other pics show how the locking tabs work. This is a different connector but same principal.
