Mama_Tried October 1, 2018

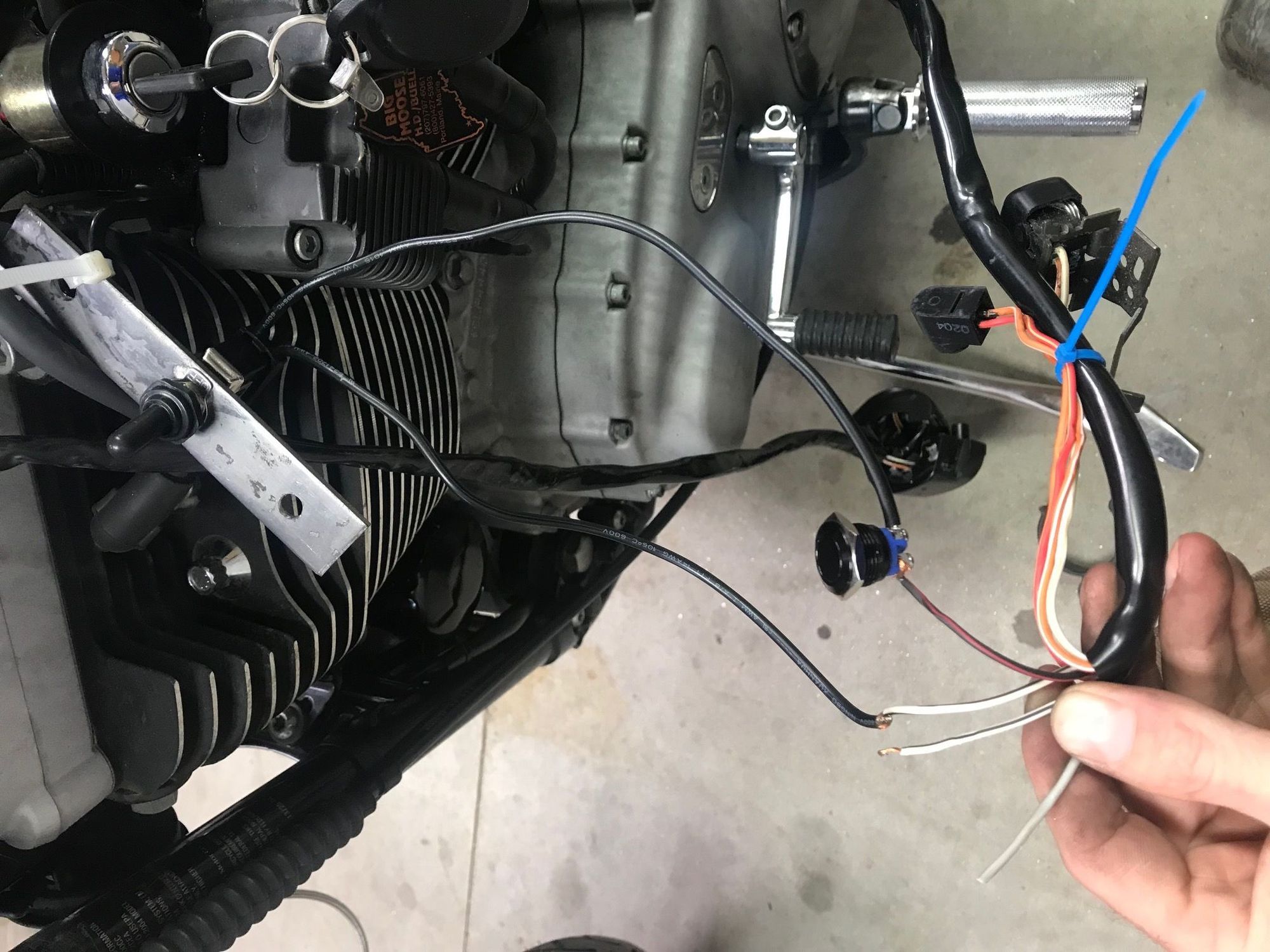

One white/black wire hooked to starter switch. From the switch I connected the black wire (that came installed on the switch) to the push button starter. The other terminal on the push button has the black/red wire that runs to the starter relay.
