SE-254E Cams Install (10) »
O-Town D June 4, 2013

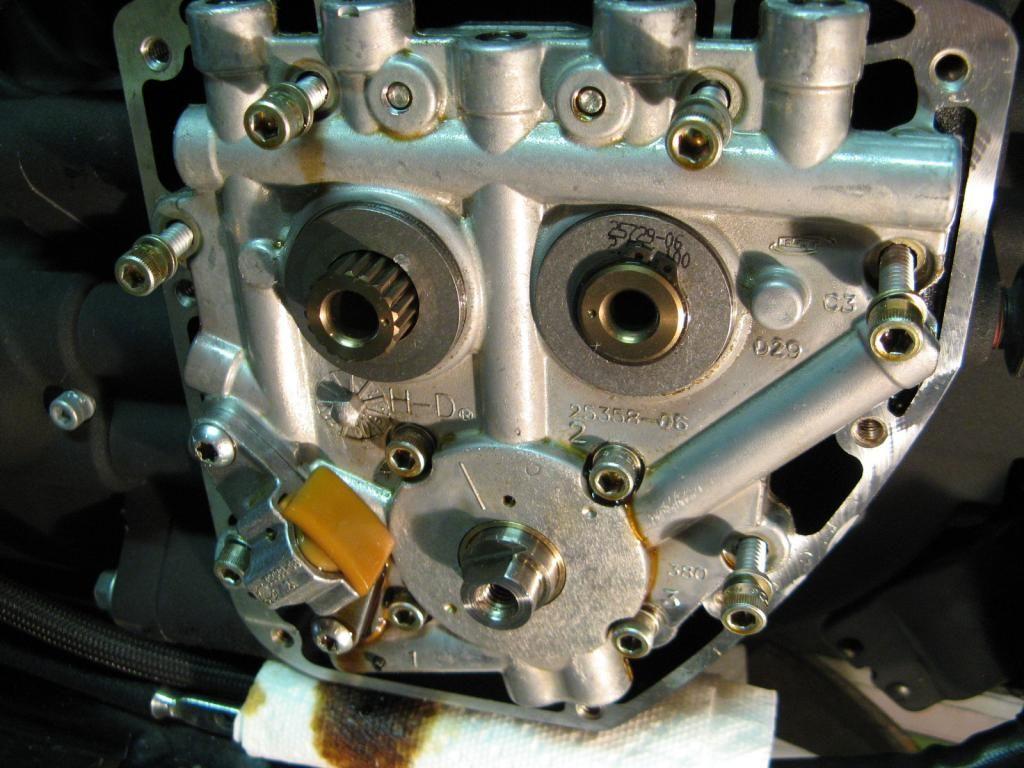

With both sprockets removed you can see large spacer washer on rear cam - purchased $8 bag of different thickness MoCo washers for new cam install. Remove 6 allen bolts that secure cam plate to motor (do not need to touch bolts on oil pump or chain tensioner). Now is a good time to inspect chain rubbing blocks, front and rear.
