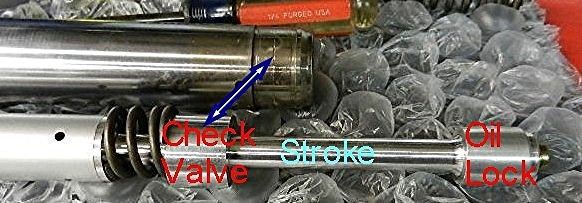

The check valve is located inside of the bottom of the fork. Do not remove it, I am just showing what it looks like. The top out spring is above & resting on the check valve and the shaft goes through the fork tube/check valve and the oil lock is installed on the end of the shaft.
