Taillight Wiring

I am looking for a taillight wiring diagram for my 2005 Wide Glide. The previous owner did a hack job of installing a taillight. Not to mention the hack they did with load resistors, this is a bigger issue than I thought...

Reply

Old

Apr 3, 2021 | 07:26 PM

#2

R_Einan

Road Master

Joined: Jan 2007

Posts: 1,196

Likes: 110

From: Pacific NW

Default

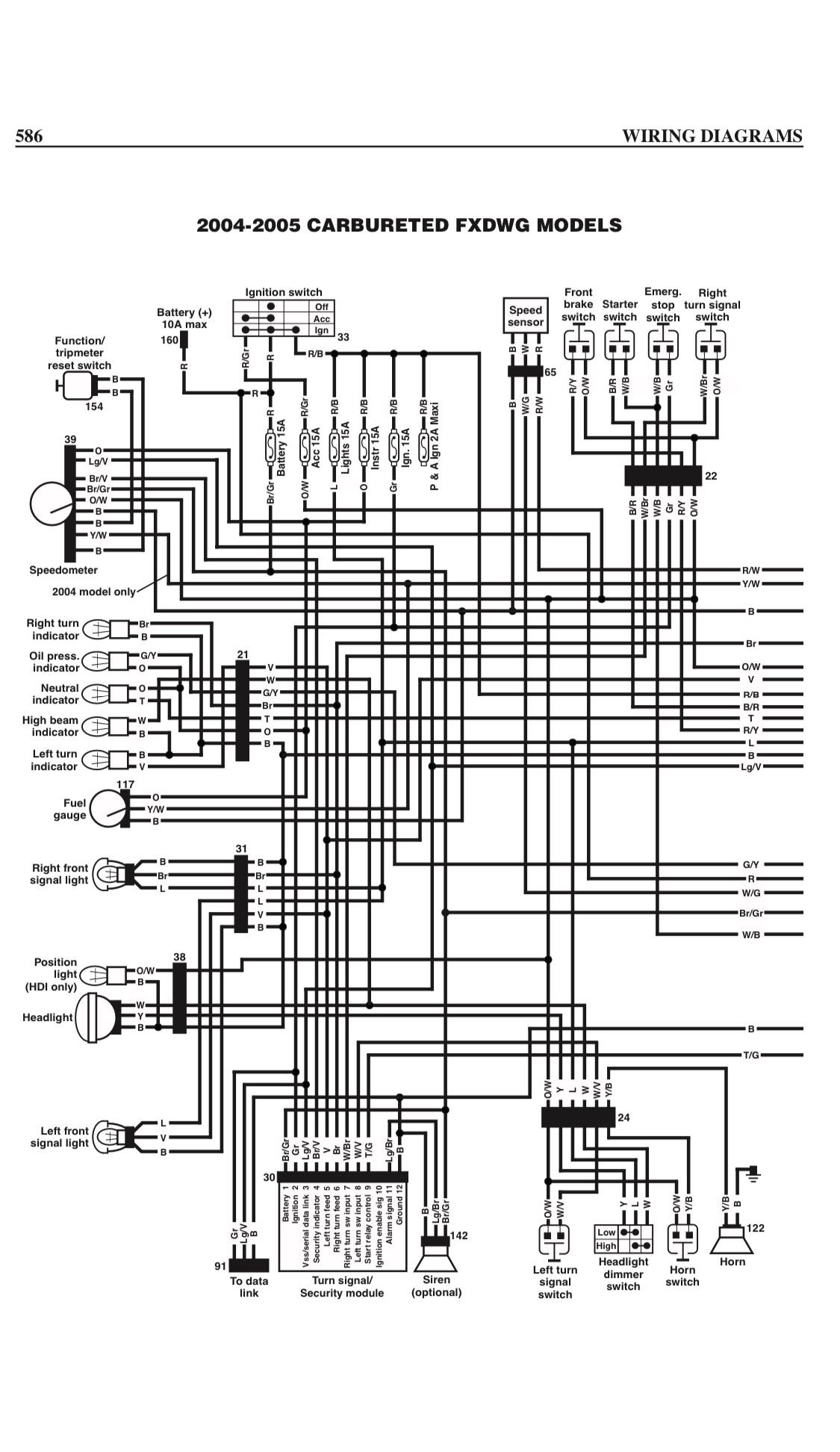

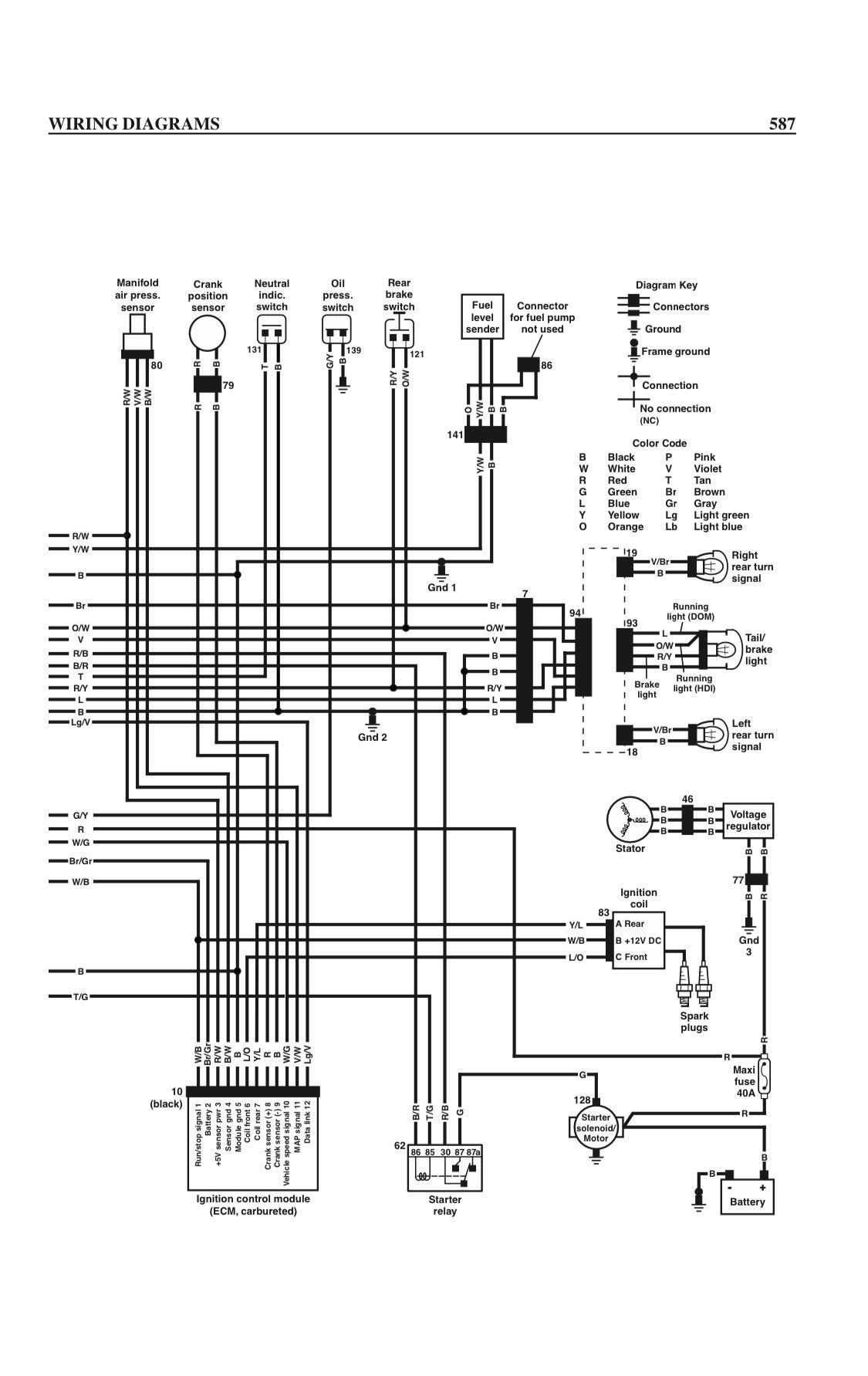

Hope that helps, it’s from a 99-05 manual I found online.

Reply

Old

Apr 4, 2021 | 01:18 PM

#3

FXD2003Rider

Administrator Emeritus

Joined: Feb 2007

Posts: 9,190

Likes: 965

From: Harmelen (The Netherlands, Europe)

Riders Club Member

Default

Here's a link to the MOcO's wiring diagrams at their Service Information Portal...
