Default 1999 dyna tachometer connector type

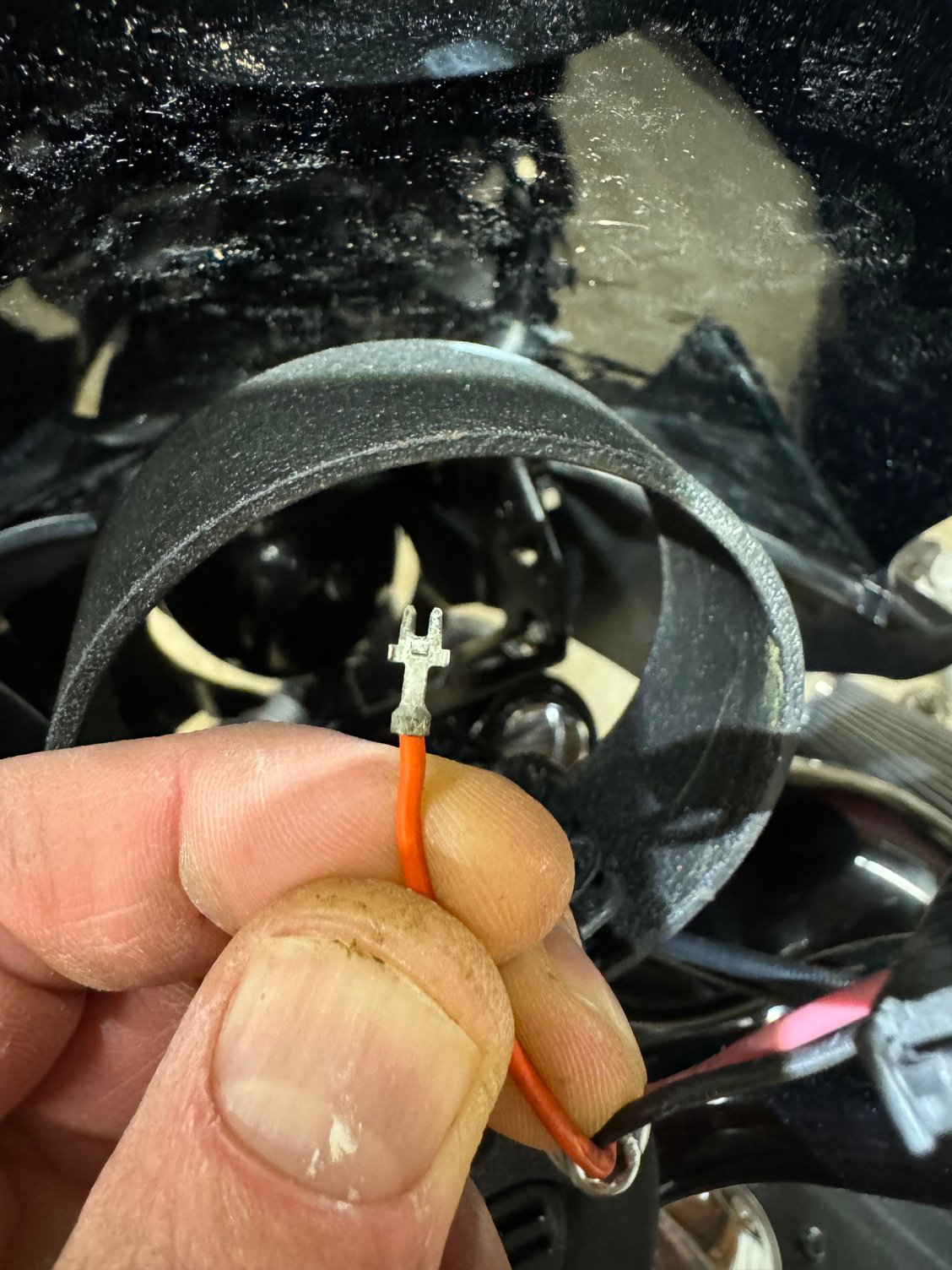

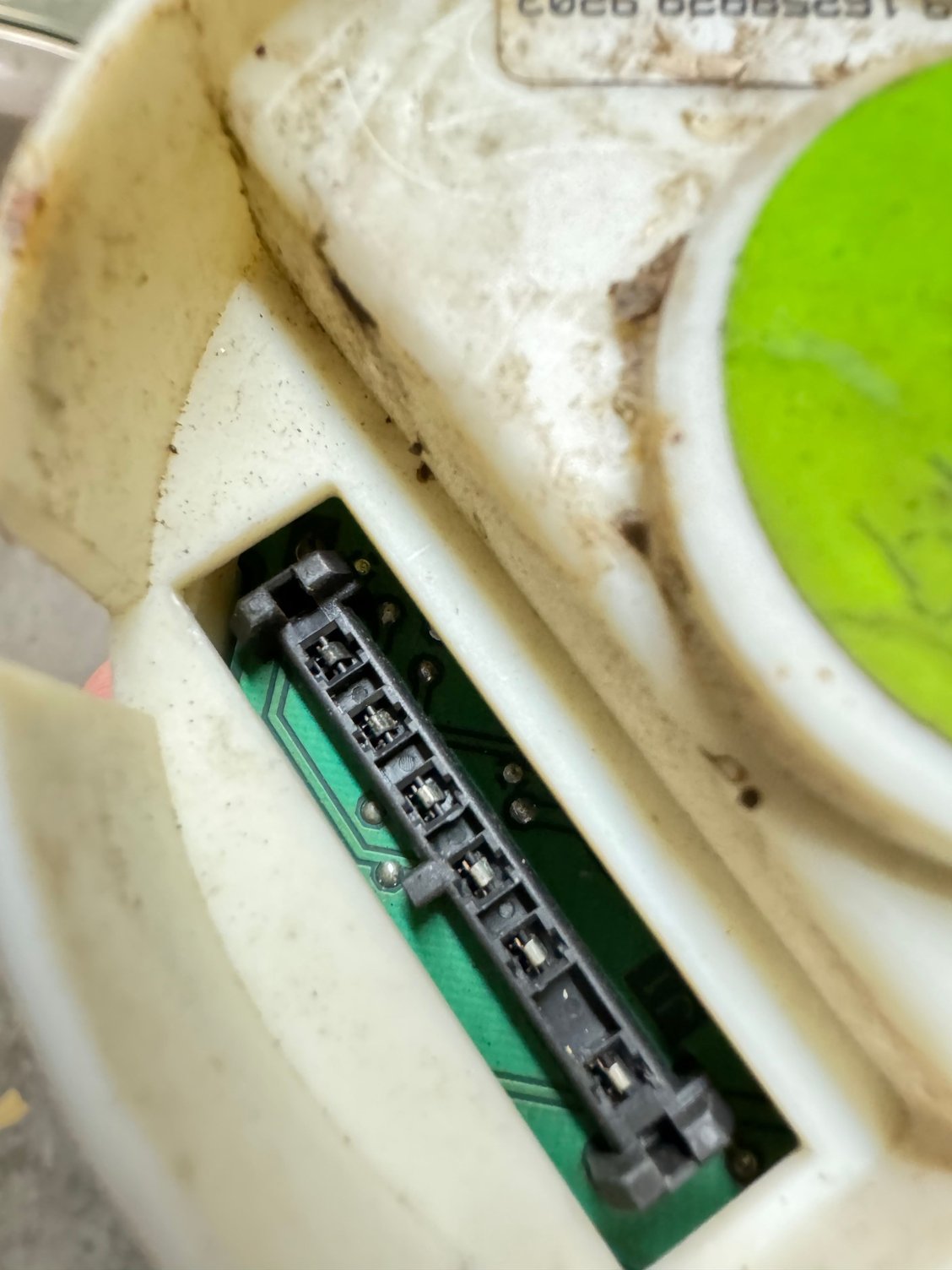

Does anybody know what this connector type is? It goes in a 6 pin block in the back of my tach. I broke a wire and lost the terminal pin. I cannot find a match anywhere online




Reply
0
Old Nov 1, 2024 | 11:19 AM
Share
  #2
FXD2003Rider's Avatar
FXD2003Rider
Administrator Emeritus
Veteran: Army
15 Year Member
Liked
Community Favorite
Joined: Feb 2007
Posts: 9,192
Likes: 965
From: Harmelen (The Netherlands, Europe)
Riders Club Member
Default
See the info in the attachment. The wires shown in figure 8 connect to the 67419-99 socket housing (see image of service parts list for the p/n's).

Attached Files
File Type: pdf
-J01522.PDF (143.0 KB, 206 views)
Reply
0
Old Nov 7, 2024 | 02:33 PM
Share
  #3
FXD2003Rider's Avatar
FXD2003Rider
Administrator Emeritus
Veteran: Army
15 Year Member
Liked
Community Favorite
Joined: Feb 2007
Posts: 9,192
Likes: 965
From: Harmelen (The Netherlands, Europe)
Riders Club Member
Default
@Betard_foosier

Did some research at the WWW and found this info for you:

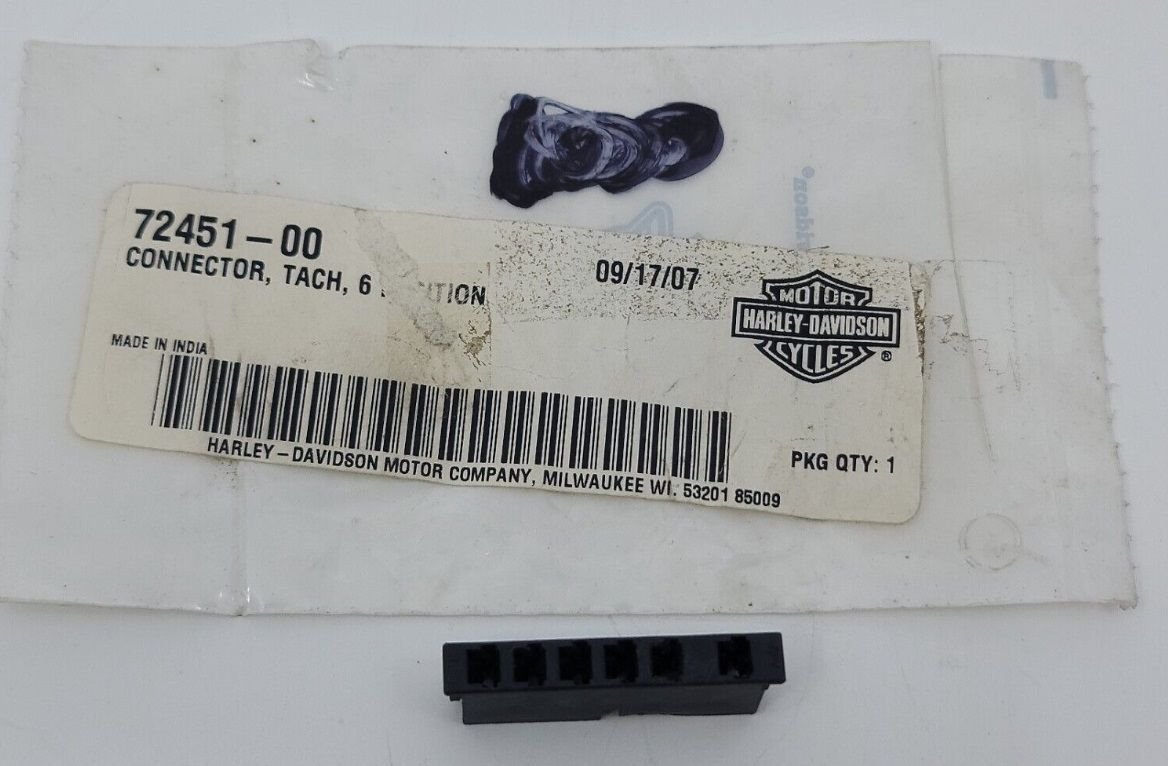

- connector, 6-way - tachometer p/n is 72451-00

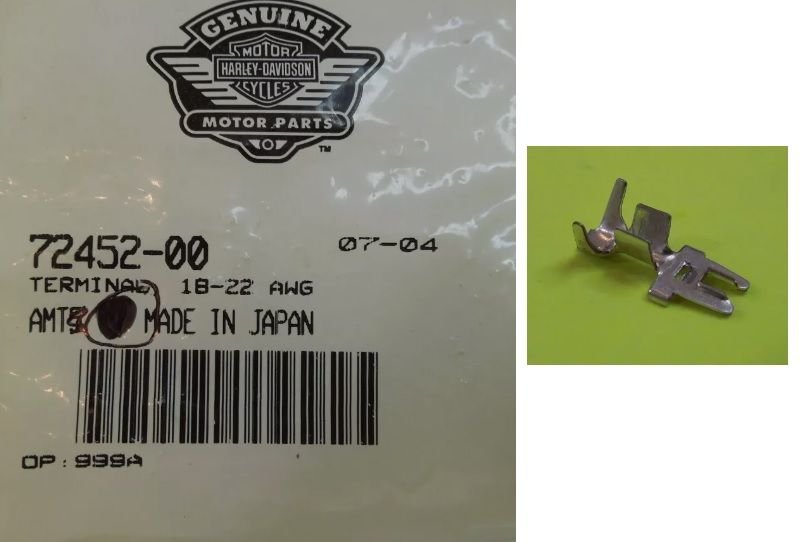

- 3 terminals 18-22 ga. -tachometer p/n 72452-00

The connector and terminals + wiring come in a kit p/n 67419-00






Reply
0
Old Nov 7, 2024 | 02:56 PM
Share
  #4
Betard_foosier's Avatar
Betard_foosier
Thread Starter
|
6th Gear
Joined: Aug 2024
Posts: 12
Likes: 4
From: Springfield, mo
Default
Thank you so much! I guess that’s a Harley-specific pin, not an industry common part. With that part number I was able to find just the blade terminal on eBay and ordered several!

Reply
1
