Nickd2689 February 5, 2017

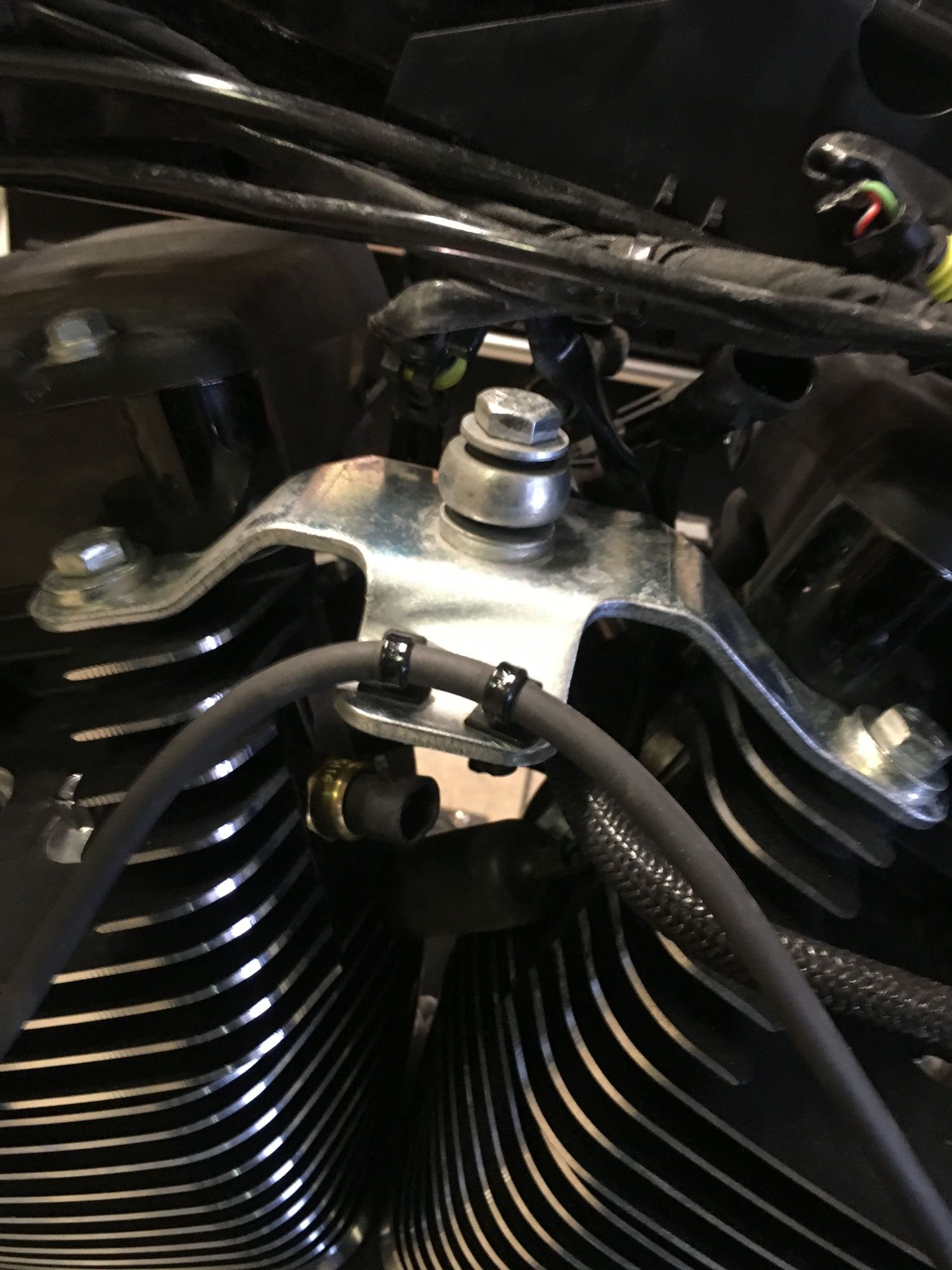

Remove the spark plug wires from the motor mount and it's ready to come out. At this point I disconnected every connector. Acr's, throttle body connector (the larger one on the left side of the throttle body has a push pin zip tie to secure the harness on the right side), fuel injector connectors, etc. the rear acr connector clips on to the wire loom on the left side of the upper frame, just above the engine, so remember to remove it before you try to remove the head.
