Nickd2689 February 5, 2017

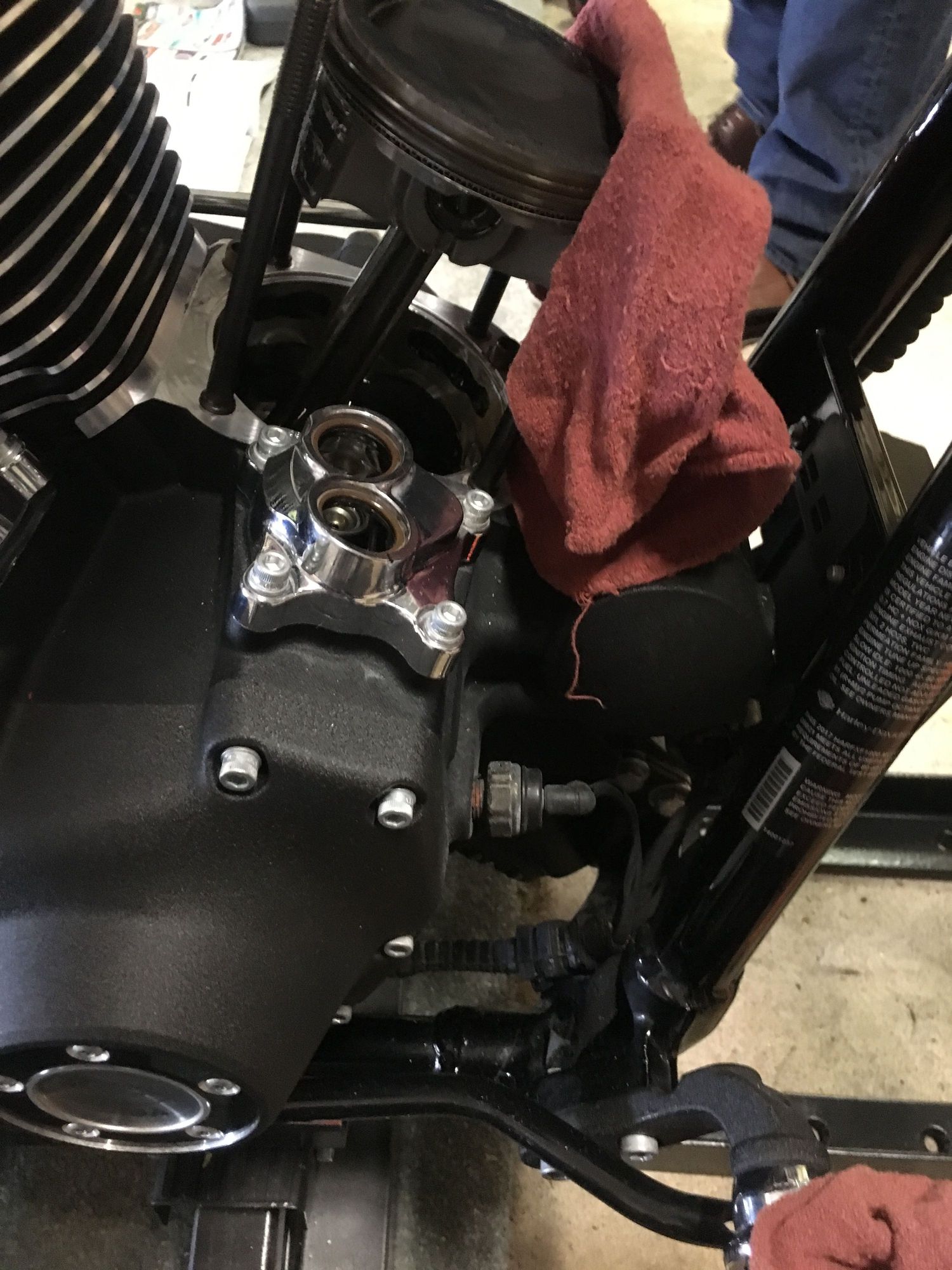

Once you remove the head, the cylinder will slide off. There's an oring deal under the cylinder, and a smaller oring on each cylinder bottom that fits on to an opening on the crank case. Cover the cylinder studs with fuel line of shop rags so you don't damage them or your Pistons. Next I tore down the rear cylinder following the same steps as the front cylinder.
