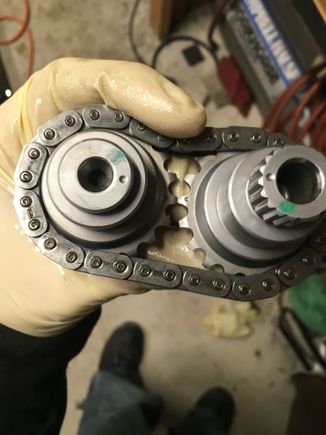

The new cams have timing marks on the ends and the gears. Very nice. Slip em on the chain and line up the timing marks. Then install into the cam plate with spacers, and the snap ring. Check the SM for this as you have to check clearance of the snap ring ears with a feeler gage
