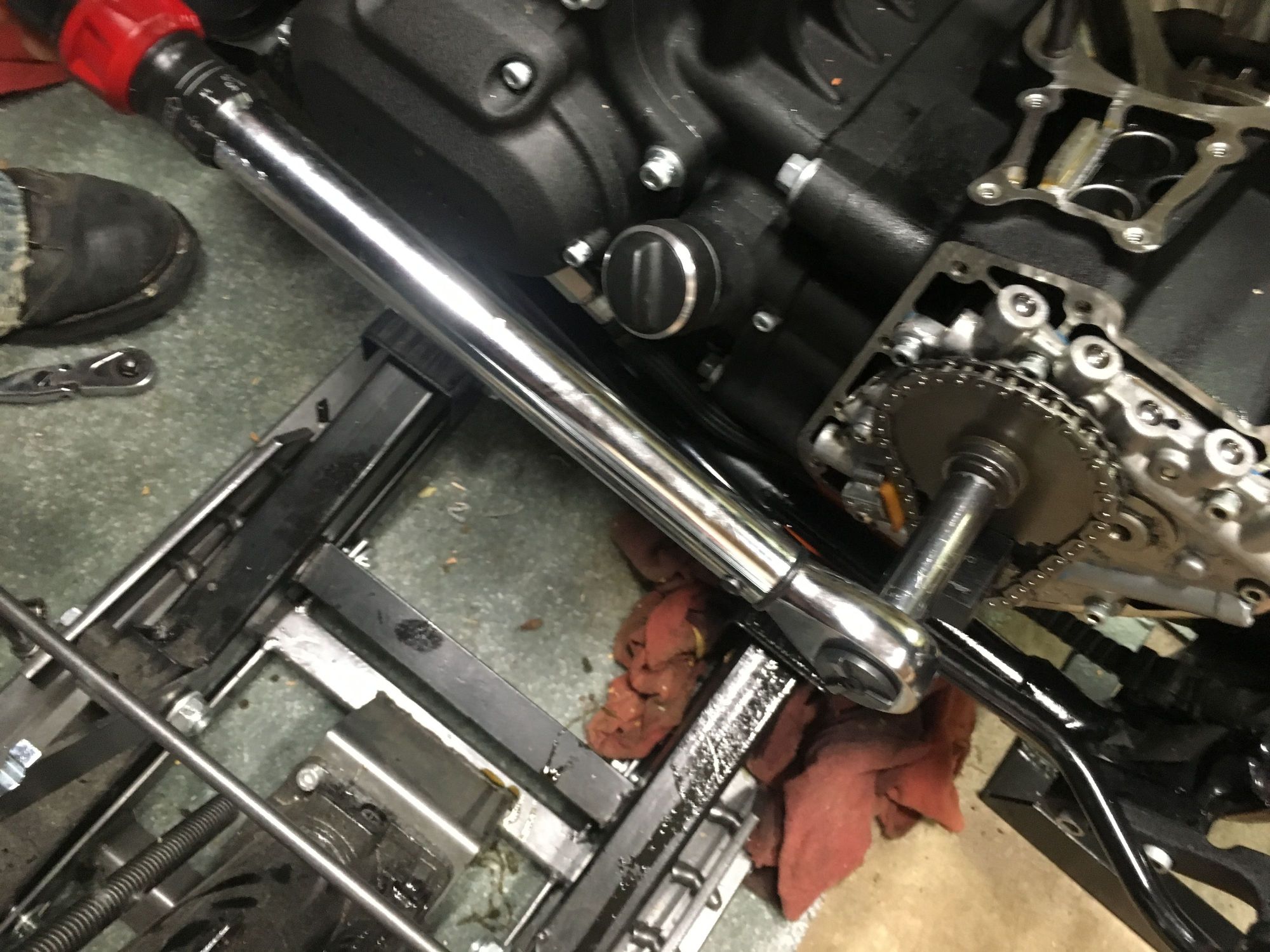

Torque specs-use em or pay the price. These gears have initial torque, and final torque specs. Each gets torqued to 15 ft lbs, then the crank bolt (smaller 1/2 head) gets torqued to 24 ft lbs and the cam (larger 9/16 head) gets torqued to 34 ft lbs.
Vote
Enlarge | Flag Picture

Also In This Album

My Post Pictures (25) »
Nickd2689 February 5, 2017
Torque specs-use em or pay the price. These gears have initial torque, and final torque specs. Each gets torqued to 15 ft lbs, then the crank bolt (smaller 1/2 head) gets torqued to 24 ft lbs and the cam (larger 9/16 head) gets torqued to 34 ft lbs.

Original Thread

my fxdls se 117 install step by step
