Softail floorboard on a Dyna - photos
Thread Starter
|
Elite HDF Member
Joined: Apr 2007
Posts: 4,919
Likes: 23
From: Seattle, WA
Softail floorboard on a Dyna - photos

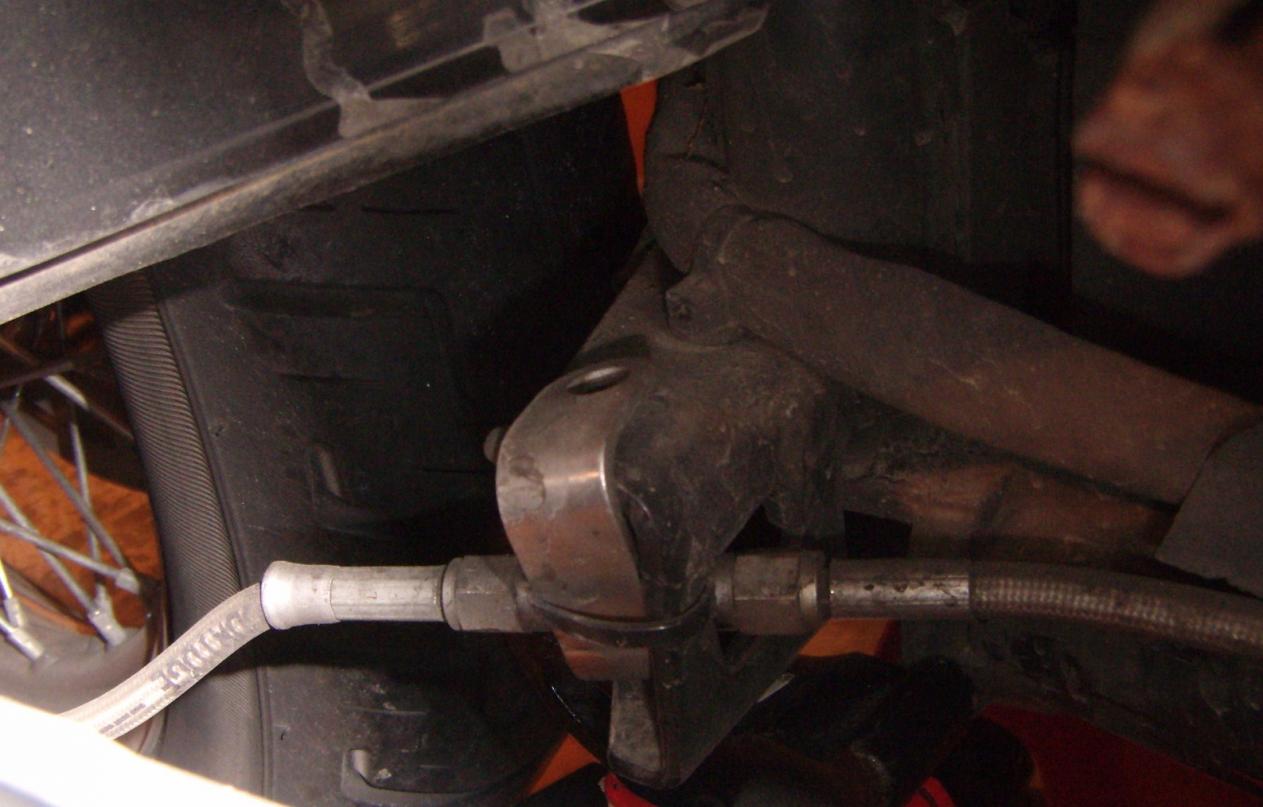

Took a few photos of my floorboards since I have the front end off. The photos are pretty poor quality, but give you the idea.
I used Cycle Vision's "go forward" 2-inch floorboard extension kit and drilled and countersunk one hole to align with upper forward control mounting hole on my Dyna frame.
I used all Softail floorboard shift components (with heel and toe shifters) and the brake parts (except came up with my own brake lines).
Feel free to post or PM questions. Wish I had gone this route initially when I decided I couldn't use mid controls. The overall cost is only a little higher than the retail price for forward controls ....
R/
Priest
I used Cycle Vision's "go forward" 2-inch floorboard extension kit and drilled and countersunk one hole to align with upper forward control mounting hole on my Dyna frame.
I used all Softail floorboard shift components (with heel and toe shifters) and the brake parts (except came up with my own brake lines).
Feel free to post or PM questions. Wish I had gone this route initially when I decided I couldn't use mid controls. The overall cost is only a little higher than the retail price for forward controls ....
R/
Priest
Elite HDF Member
Joined: Aug 2006
Posts: 3,863
Likes: 21
From: Kennewick, WA
Hey buddy, maybe you should have left the pics to the boy.
Just ribbin' ya good job on the write up. I see you have the shift levers in the stock locations. I swapped mine so the heel shifter is on the shaft first and then the toe shifter. Gives a bunch more room for the heel and a more natural foot position.
Just ribbin' ya good job on the write up. I see you have the shift levers in the stock locations. I swapped mine so the heel shifter is on the shaft first and then the toe shifter. Gives a bunch more room for the heel and a more natural foot position.
Last edited by ackman1968; Feb 15, 2009 at 05:30 PM. Reason: spelling
Cruiser
Joined: Nov 2009
Posts: 210
Likes: 7
From: Nor Cal
Took a few photos of my floorboards since I have the front end off. The photos are pretty poor quality, but give you the idea.
I used Cycle Vision's "go forward" 2-inch floorboard extension kit and drilled and countersunk one hole to align with upper forward control mounting hole on my Dyna frame.
I used all Softail floorboard shift components (with heel and toe shifters) and the brake parts (except came up with my own brake lines).
Feel free to post or PM questions. Wish I had gone this route initially when I decided I couldn't use mid controls. The overall cost is only a little higher than the retail price for forward controls ....
R/
Priest
I used Cycle Vision's "go forward" 2-inch floorboard extension kit and drilled and countersunk one hole to align with upper forward control mounting hole on my Dyna frame.
I used all Softail floorboard shift components (with heel and toe shifters) and the brake parts (except came up with my own brake lines).
Feel free to post or PM questions. Wish I had gone this route initially when I decided I couldn't use mid controls. The overall cost is only a little higher than the retail price for forward controls ....
R/
Priest
Road Captain
Joined: Aug 2008
Posts: 631
Likes: 6
From: Utopia
Trending Topics
Thread Starter
|
Elite HDF Member
Joined: Apr 2007
Posts: 4,919
Likes: 23
From: Seattle, WA
The same effect could be had using my set-up by simply drilling the hole two inches forward (the back part of the mounting block would simply 'hang' off the rear of the mount) ... since I used the countersunk bolts and countersunk the hole I bored it would fit beneat the Softail mounting bracket ....
It occurs to me, using this logic, you could actually use the 'extensions' in reverse to move the floorboards 2" aft of the Dyna forward mount attachment point and actually move the boards 2" closer to the rider! For the 'vertically challenged' rider who wants floorboards .... (only possible issue would be clearing the primary)
If you search floorboard and ackman1968, you can see where he has posted photos of his set-up ....
R/
'Chop
Last edited by SURFOR Chop; May 14, 2010 at 10:20 PM.
Thread Starter
|
Elite HDF Member
Joined: Apr 2007
Posts: 4,919
Likes: 23
From: Seattle, WA
Took a couple new photos today while I had the front end off ....
Photo36-37 show pretty clear photos of the Cycle Vision 'go forward' 2" extension that I used to mount the Softail floorboards (brake side anyway ... you can see the shifter side a little in the background) ....
Photo38 shows the inside of the Softail bracket ... everything is already attached ... I just took them off to snap a couple photos but didn't totally disassemble them ... master cylinder, brake pedal and floorboard ....
Photo39 shows how the bracket goes on ... Photo40 is of the attached floorboards from the front looking to the rear ....
