DYNA frame question

Thread Tools

Search this Thread

Old Apr 30, 2020 | 03:27 PM
  #11
F86's Avatar
F86
Outstanding HDF Member
Joined: Mar 2015
Posts: 2,840
Likes: 900
From: Philly Suburbs
Default

There are also significant differences during different year ranges... Every Dyna frame changed in 2006, getting heavier and bulkier. For example, much of the frame (but not all) went from 1.25" diameter to 1.5". Something changed in the rear as well to allow for wider rear tire fitment.

Reply
Old Apr 30, 2020 | 06:55 PM
  #12
multihdrdr's Avatar
multihdrdr
Club Member
10 Year Member
Joined: Oct 2011
Posts: 11,179
Likes: 2,490
From: Nor Cal
Default

Dyna Frame Rakes

1991
32° - FXDB Sturgis

1992
32° - FXDB Daytona ... FXDC Super Glide Custom

1993 - 2005
28° - All (except FXDL & FXDWG)
32° - FXDL Low Rider ... FXDWG Wide Glide

2006 - Later
29° - All (except FXDWG)
34° - FXDWG Wide Glide


.

Reply
Old Apr 30, 2020 | 07:01 PM
  #13
Mchad's Avatar
Mchad
Club Member
10 Year Member
Shutterbug
Joined: Dec 2014
Posts: 10,737
Likes: 3,756
From: SWFL
Riders Club Member
Default

Originally Posted by multihdrdr
Dyna Frame Rakes

1991
32° - FXDB Sturgis

1992
32° - FXDB Daytona ... FXDC Super Glide Custom

1993 - 2005
28° - All (except FXDL & FXDWG)
32° - FXDL Low Rider ... FXDWG Wide Glide

2006 - Later
29° - All (except FXDWG)
34° - FXDWG Wide Glide


.
I thought my Special was 30.5?

Reply
Old Apr 30, 2020 | 07:18 PM
  #14
multihdrdr's Avatar
multihdrdr
Club Member
10 Year Member
Joined: Oct 2011
Posts: 11,179
Likes: 2,490
From: Nor Cal
Default

The List above is for Frame neck rake (angle) ... NOT Total Fork Angle which includes Tree Rake

You have 1.5° Tree Rake

Reply
Old Apr 30, 2020 | 07:33 PM
  #15
Mchad's Avatar
Mchad
Club Member
10 Year Member
Shutterbug
Joined: Dec 2014
Posts: 10,737
Likes: 3,756
From: SWFL
Riders Club Member
Default

Originally Posted by multihdrdr
The List above is for Frame neck rake (angle) ... NOT Total Fork Angle which includes Tree Rake

You have 1.5° Tree Rake
Right, my fork angle is 32 deg, isn’t it? Or am I not understanding the whole topic?

Reply
Old Apr 30, 2020 | 07:43 PM
  #16
multihdrdr's Avatar
multihdrdr
Club Member
10 Year Member
Joined: Oct 2011
Posts: 11,179
Likes: 2,490
From: Nor Cal
Default



You have a 29° Frame with 1.5° Trees (Low Rider Trees) = 30.5° Total Fork Angle


.


Last edited by multihdrdr; Apr 30, 2020 at 07:45 PM.
Reply
Old Apr 30, 2020 | 07:48 PM
  #17
Mchad's Avatar
Mchad
Club Member
10 Year Member
Shutterbug
Joined: Dec 2014
Posts: 10,737
Likes: 3,756
From: SWFL
Riders Club Member
Default

Originally Posted by multihdrdr


You have a 29° Frame with 1.5° Trees (Low Rider Trees) = 30.5° Total Fork Angle


.
Hmm. Ok. I read otherwise.

Reply
Old Apr 30, 2020 | 07:52 PM
  #18
multihdrdr's Avatar
multihdrdr
Club Member
10 Year Member
Joined: Oct 2011
Posts: 11,179
Likes: 2,490
From: Nor Cal
Default

Show it ... if you're motivated.

Otherwise we'll just leave it at that you digested some Bad Info ... It's everywhere out there you know




.


Last edited by multihdrdr; Apr 30, 2020 at 08:03 PM.
Reply
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

10 Most Awkward-Looking Motorcycles Ever Built

 Verdad Gallardo
story-1

Jason Momoa Is Turning Classic Harleys Into PHEVs

 Verdad Gallardo
story-2

Harley-Davidson Fat Boy Becomes a Dark, Decepticon-Inspired Custom

 Verdad Gallardo
story-3

6 Weirdest Harley-Davidsons Ever Sold to the Public

 Verdad Gallardo
story-4

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-5

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-6

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-7

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-8

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-9

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
Old Apr 30, 2020 | 08:09 PM
  #19
Mchad's Avatar
Mchad
Club Member
10 Year Member
Shutterbug
Joined: Dec 2014
Posts: 10,737
Likes: 3,756
From: SWFL
Riders Club Member
Default

Take it easy Multi. No one Is challenging your authority. :-) It was only on third party spec lists. Which are not necessarily worth the pixels they are displayed on.

https://ultimatemotorcycling.com/201...e-specs-price/

https://www.totalmotorcycle.com/moto...on-Low-Rider-S


Reply
Old Apr 30, 2020 | 08:19 PM
  #20
multihdrdr's Avatar
multihdrdr
Club Member
10 Year Member
Joined: Oct 2011
Posts: 11,179
Likes: 2,490
From: Nor Cal
Default

I can't take it any easier ... really


Yeah, First one is totally wrong...
  • Rake: 30.5 degrees
  • Fork angle: 32 degrees

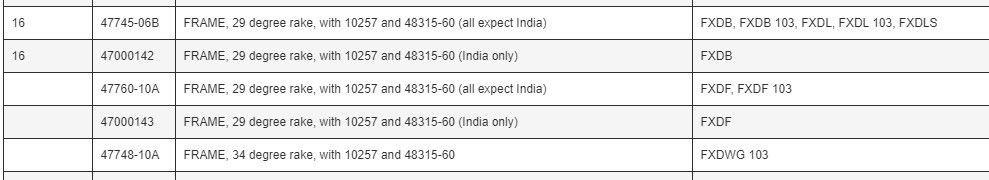

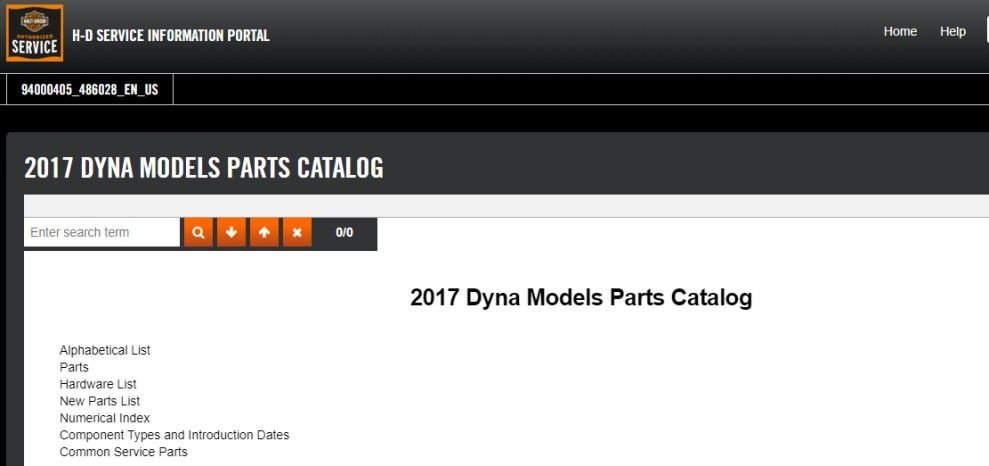

So here's from Harley 2017 Dyna Parts Catalog, which just shows the Frame spec, but disproves the premise of 32° Total ... find your bike in there

https://serviceinfo.harley-davidson....18306690567385










Last edited by multihdrdr; Apr 30, 2020 at 08:49 PM.
Reply
