Harley Davidson Forums

EVO All Evo Model Discussion

Lighting problem

Thread Tools

Search this Thread

Old May 23, 2020 | 09:19 PM
Share
  #11
evotrike's Avatar
evotrike
Thread Starter
|
Road Master
Photogenic
Photoriffic
Shutterbug
Top Answer: 1
Joined: Jan 2019
Posts: 1,126
Likes: 923
From: Texas
Default
Originally Posted by Dan89FLSTC
Does that model year have a keyswitch ignition relay?

It powers the lights circuit and also the instrument circuit on the `99...(don`t have a `98 schematic).
. Don't know, Dan. I will definitely be looking into that in the morning. Thanks for the tip. Damn, probably under fairing...

Reply
0
Old May 23, 2020 | 09:28 PM
Share
  #12
evotrike's Avatar
evotrike
Thread Starter
|
Road Master
Photogenic
Photoriffic
Shutterbug
Top Answer: 1
Joined: Jan 2019
Posts: 1,126
Likes: 923
From: Texas
Default
Originally Posted by Superdog3:16
Gotchya! When ya get a chance, pic?!

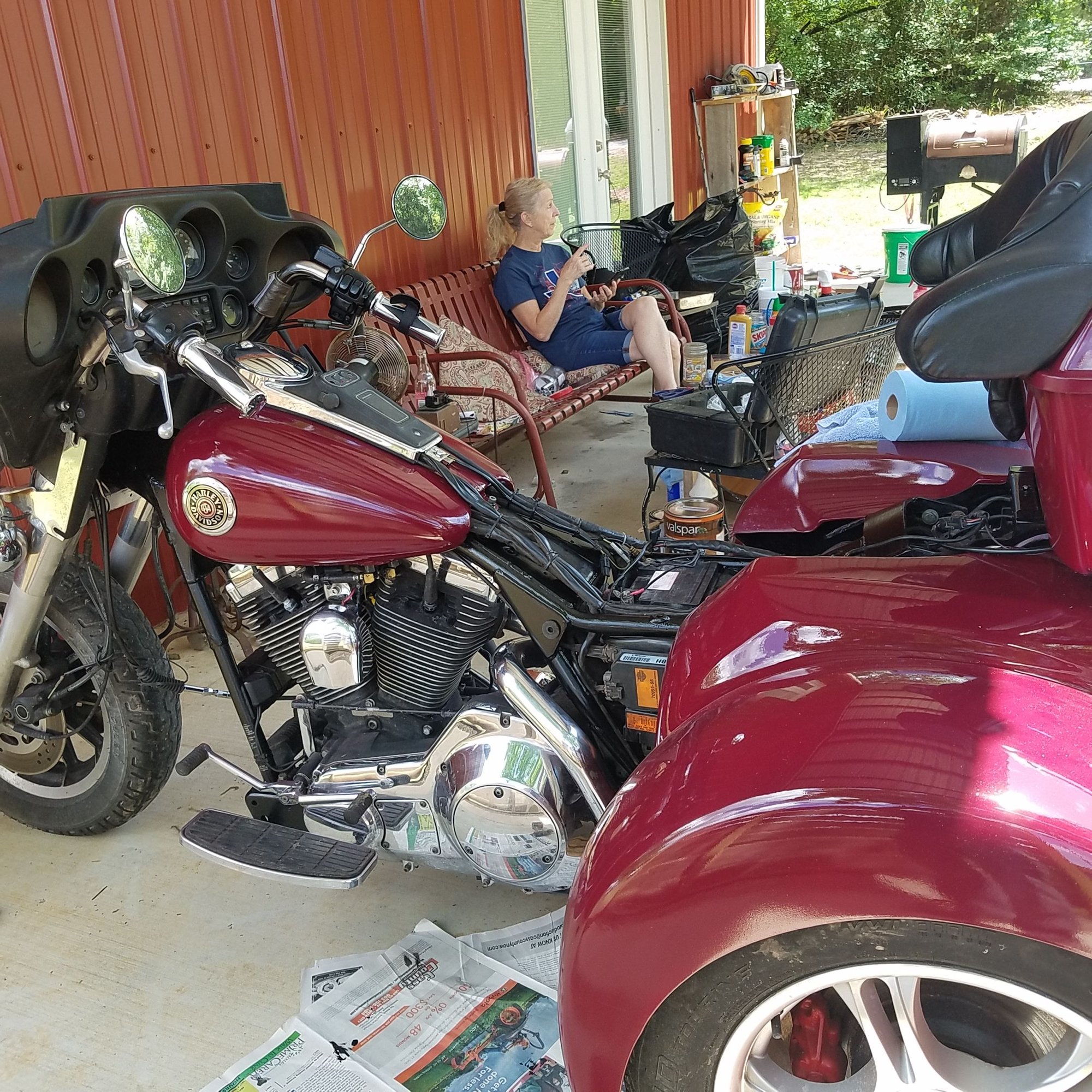

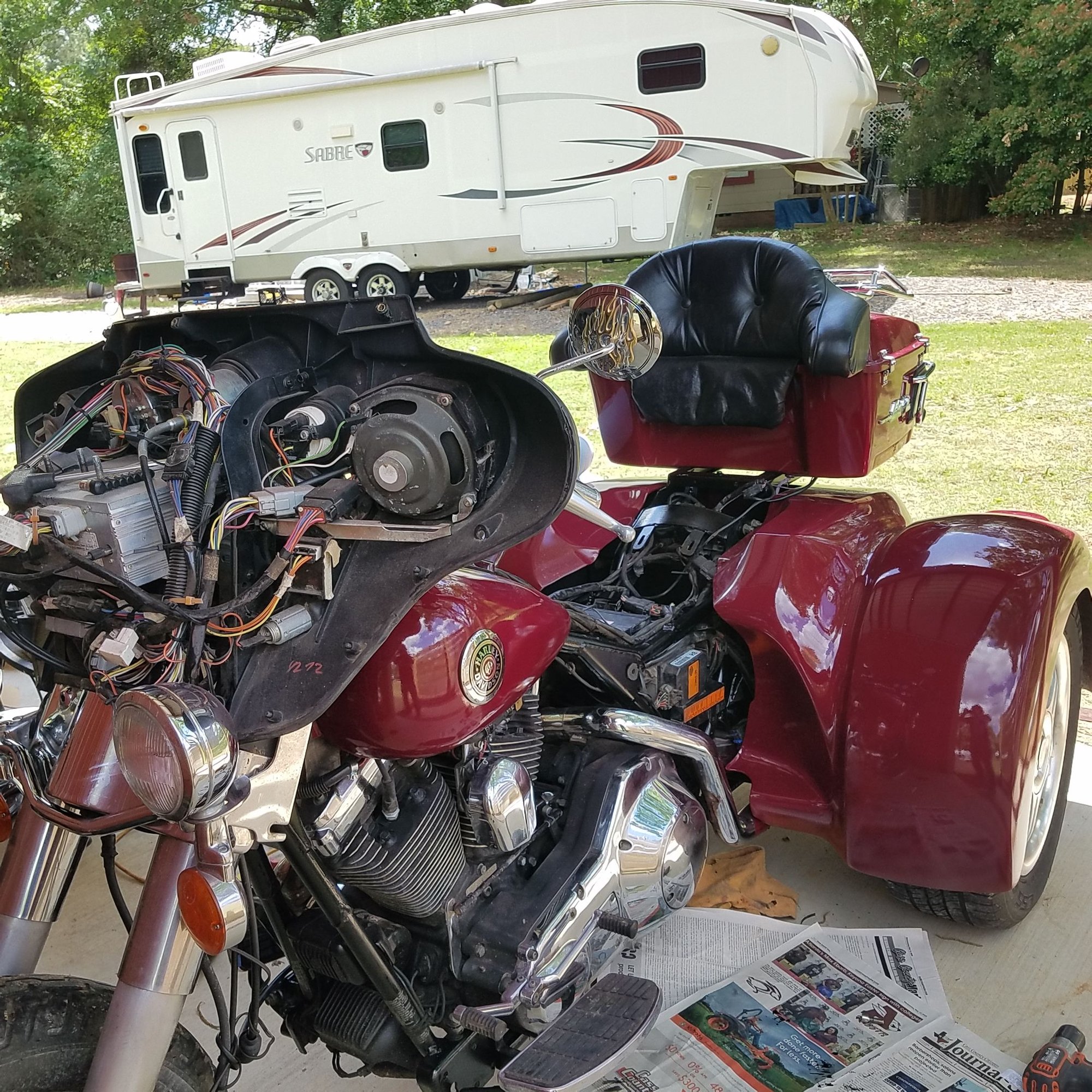

Here's a couple for ya!




Reply
0
Old May 23, 2020 | 09:33 PM
Share
  #13
evotrike's Avatar
evotrike
Thread Starter
|
Road Master
Photogenic
Photoriffic
Shutterbug
Top Answer: 1
Joined: Jan 2019
Posts: 1,126
Likes: 923
From: Texas
Default
Originally Posted by evotrike
Here's a couple for ya!

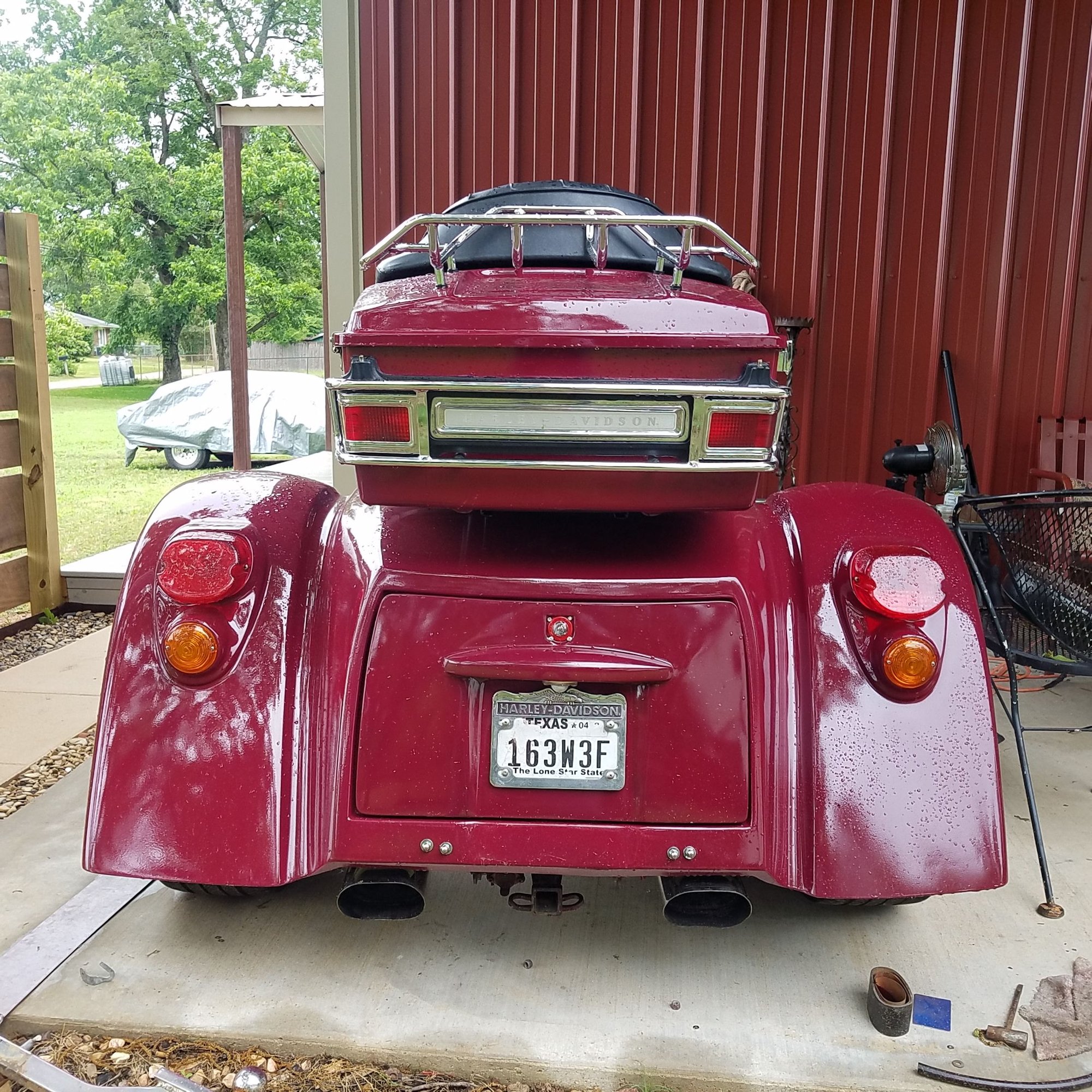

1 more

Reply
0
Old May 23, 2020 | 09:40 PM
Share
  #14
Superdog3:16's Avatar
Superdog3:16
Outstanding HDF Member
Joined: Nov 2018
Posts: 3,421
Likes: 726
From: Tiffin,Oh
Default
Thanx! That's badass!

Reply
0
Old May 23, 2020 | 11:05 PM
Share
  #15
Beemervet's Avatar
Beemervet
Ultimate HDF Member
Veteran: Army
Joined: May 2006
Posts: 6,590
Likes: 444
From: Ohio
Default
This is why we love pics!

Reply
0
Old May 24, 2020 | 04:01 PM
Share
  #16
evotrike's Avatar
evotrike
Thread Starter
|
Road Master
Photogenic
Photoriffic
Shutterbug
Top Answer: 1
Joined: Jan 2019
Posts: 1,126
Likes: 923
From: Texas
Default
Originally Posted by evotrike
. Don't know, Dan. I will definitely be looking into that in the morning. Thanks for the tip. Damn, probably under fairing...
No, it does not
.

Reply
0
Old May 24, 2020 | 04:21 PM
Share
  #17
evotrike's Avatar
evotrike
Thread Starter
|
Road Master
Photogenic
Photoriffic
Shutterbug
Top Answer: 1
Joined: Jan 2019
Posts: 1,126
Likes: 923
From: Texas
Default
Well, after a lot of lookin' and cussin' ( and a couple of extremely cold Shiner Bocks in the bottles), found the problem. Instead of testing back-to-front, decided to start at the source. Pulled all ground stud and main circuit breaker wires and battery cables and cleaned up. Then went to ignition switch and tested according to the manual.

2 wires come out hot on ignition setting, both tested hot. Followed both to interconnect harness plug-in. Tested both wires on other side of plug....one had no juice. Plug pin was green. Cleaned all of them, and now have all lights.
. Thanks for all the replies, folks. Appreciate the Evo guys. Back on the road again after rain stops.... been 1 1/2 months. Ken

Reply
1
Old May 24, 2020 | 05:16 PM
Share
  #18
Dan89FLSTC's Avatar
Dan89FLSTC
Seasoned HDF Member
Veteran: Navy
Active Streak: 30 Days
Top Answer: 3
Top Answer: 5
Joined: May 2008
Posts: 21,221
Likes: 12,815
From: South Carolina
Default
Excellent job, thanks for the follow up.

Reply
0
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

10 Most Awkward-Looking Motorcycles Ever Built

 Verdad Gallardo
story-1

Jason Momoa Is Turning Classic Harleys Into PHEVs

 Verdad Gallardo
story-2

Harley-Davidson Fat Boy Becomes a Dark, Decepticon-Inspired Custom

 Verdad Gallardo
story-3

6 Weirdest Harley-Davidsons Ever Sold to the Public

 Verdad Gallardo
story-4

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-5

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-6

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-7

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-8

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-9

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
Old May 24, 2020 | 07:51 PM
Share
  #19
evotrike's Avatar
evotrike
Thread Starter
|
Road Master
Photogenic
Photoriffic
Shutterbug
Top Answer: 1
Joined: Jan 2019
Posts: 1,126
Likes: 923
From: Texas
Default
Thanks for the help, Dan.

Reply
0
Old May 25, 2020 | 08:02 AM
Share
  #20
86glider's Avatar
86glider
Road Warrior
Liked
Loved
Community Favorite
Joined: Apr 2016
Posts: 1,529
Likes: 933
From: Long Island
Default
I found if u can get access to a quality printer, get that wiring diagram blown up.Makes the job easy.Then just follow the route.

Reply
0
