Default ignition box

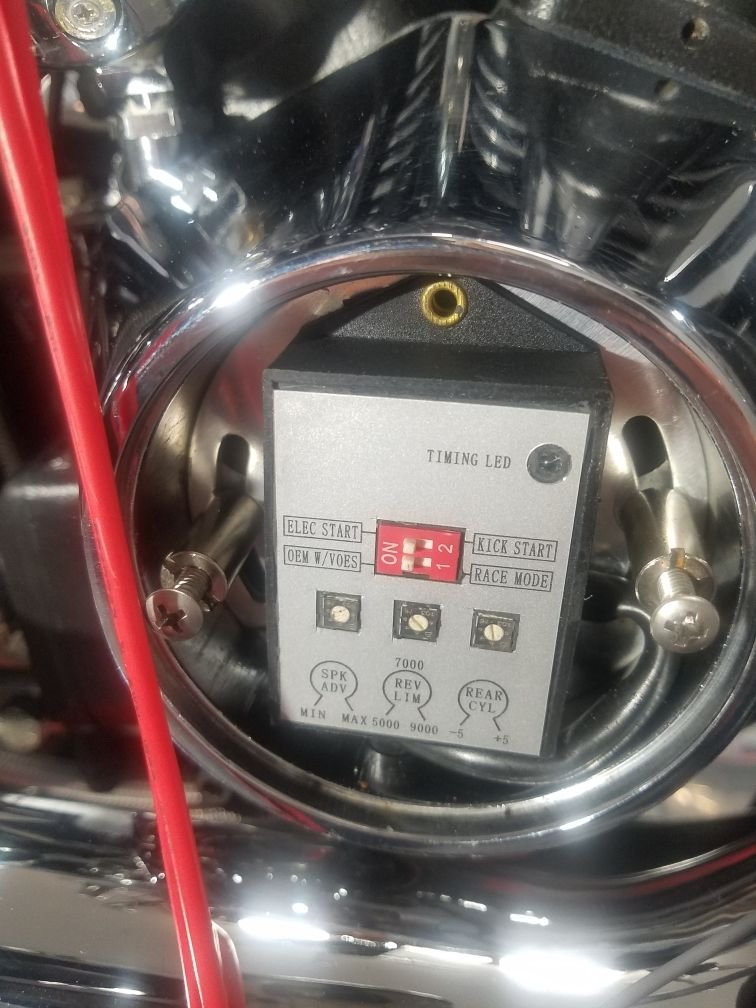

Does any one know who made this ignition unit can't find a name. I need a wiring digram to wire it


Reply
Old Feb 28, 2021 | 07:37 PM
  #2
yellowstone kelly's Avatar
yellowstone kelly
Tourer
15 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2009
Posts: 410
Likes: 127
From: Iowa
Default

It looks like it's a V-Factor Single Fire Ignition module -- 17571.

And it looks like Dennis Kirk sold them, but they appear to be out of stock now:

https://www.denniskirk.com/v-factor/...prd/209439.sku

This instruction manual from Dennis Kirk's website has a wiring diagram, but the pic in the wiring diagram is different than the pic of the module:

https://www.denniskirk.com/dk/pdf/in...0/dk209439.pdf

Good luck!
