Where does this go?
Hi,

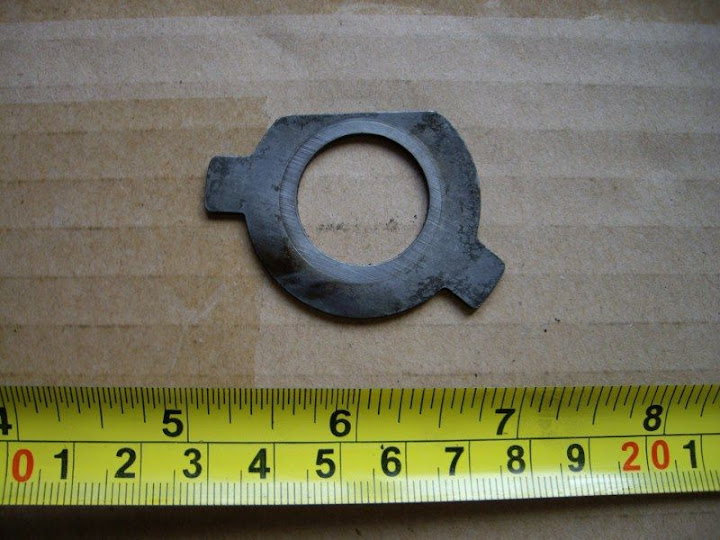

Can anybody identify this part? Its off a 90 Electraglide that I'm rebuilding.
I thought I'd labelled everything but no.
Help greatfully received
Paul
Can anybody identify this part? Its off a 90 Electraglide that I'm rebuilding.
I thought I'd labelled everything but no.
Help greatfully received
Paul
Road Warrior
Joined: Apr 2007
Posts: 1,354
Likes: 1
From: S.W. Florida
Yup,
That's the locking plate for your cam. It goes against the case and there should also be some shim(s). between that plate and the cam itself. A search here will tell you how to set the cam end play and gear lash up correctly.
That's the locking plate for your cam. It goes against the case and there should also be some shim(s). between that plate and the cam itself. A search here will tell you how to set the cam end play and gear lash up correctly.
Cruiser
Joined: Dec 2008
Posts: 234
Likes: 4
From: Courtenay, BC, Canada
If you don't have a parts manual you can check out this website. Lot's of good pictures.
http://www.bikebandit.com/1990-harle...-flhtc/o/m1142
Hope this helps.
Nigel
http://www.bikebandit.com/1990-harle...-flhtc/o/m1142
Hope this helps.
Nigel
Thread Starter
|
Novice
Joined: Mar 2010
Posts: 22
Likes: 0
From: Hessle, East Yorkshire.
Thanks for the info
I have a manual, the problem is I stripped the whole bike, down to the frame, to rebuild it. I did take photo's as I went.
I came to put the rear caliper on this weekend, and there is that washer in with the rear brake/axle parts.
How it got there I don't know.
Still at least I didn't just throw it away, and...... its the only part I've left out (I hope).
Cheers
Paul
I have a manual, the problem is I stripped the whole bike, down to the frame, to rebuild it. I did take photo's as I went.
I came to put the rear caliper on this weekend, and there is that washer in with the rear brake/axle parts.
How it got there I don't know.
Still at least I didn't just throw it away, and...... its the only part I've left out (I hope).
Cheers
Paul
