I guess I’m an idiot. I’m trying to install the smart siren to my 2015 breakout but can’t find the damn screws to remove the splash guards. Can someone take a pic of where they are please?

Reply
0
Old Dec 14, 2019 | 11:27 PM
Share
  #2
MyFavRk's Avatar
MyFavRk
Seasoned HDF Member
Joined: Nov 2018
Posts: 10,833
Likes: 6,485
From: Canada Flats
Default
I'm sorry I can't help you but possibly reading through this thread may help you figure it out . Sounds like the mud guard is located under the rear fender and you may have to remove the rear tire to access it . Have a look under the seat , from the instructions it looks like the 2 screws that need to be removed are under there towards the rear of the bike . Hopefully someone who has done it will chime in and give you further assistance . Good luck !

https://www.hdforums.com/forum/softa...-breakout.html




Reply
1
Old Dec 15, 2019 | 07:52 PM
Share
  #3
WKNDS's Avatar
WKNDS
Seasoned HDF Member
Joined: Nov 2012
Posts: 5,003
Likes: 2,086
From: Newport,TN area
Default
Originally Posted by cruisn
I guess I’m an idiot. I’m trying to install the smart siren to my 2015 breakout but can’t find the damn screws to remove the splash guards. Can someone take a pic of where they are please?
Typical softail splash guard has a single screw at the bottom of the splashguard. Remove it and the splashguard
can be removed after it is "unsnapped" at the top. It's a press-fit at the top & take a some pressure to disconnect it.

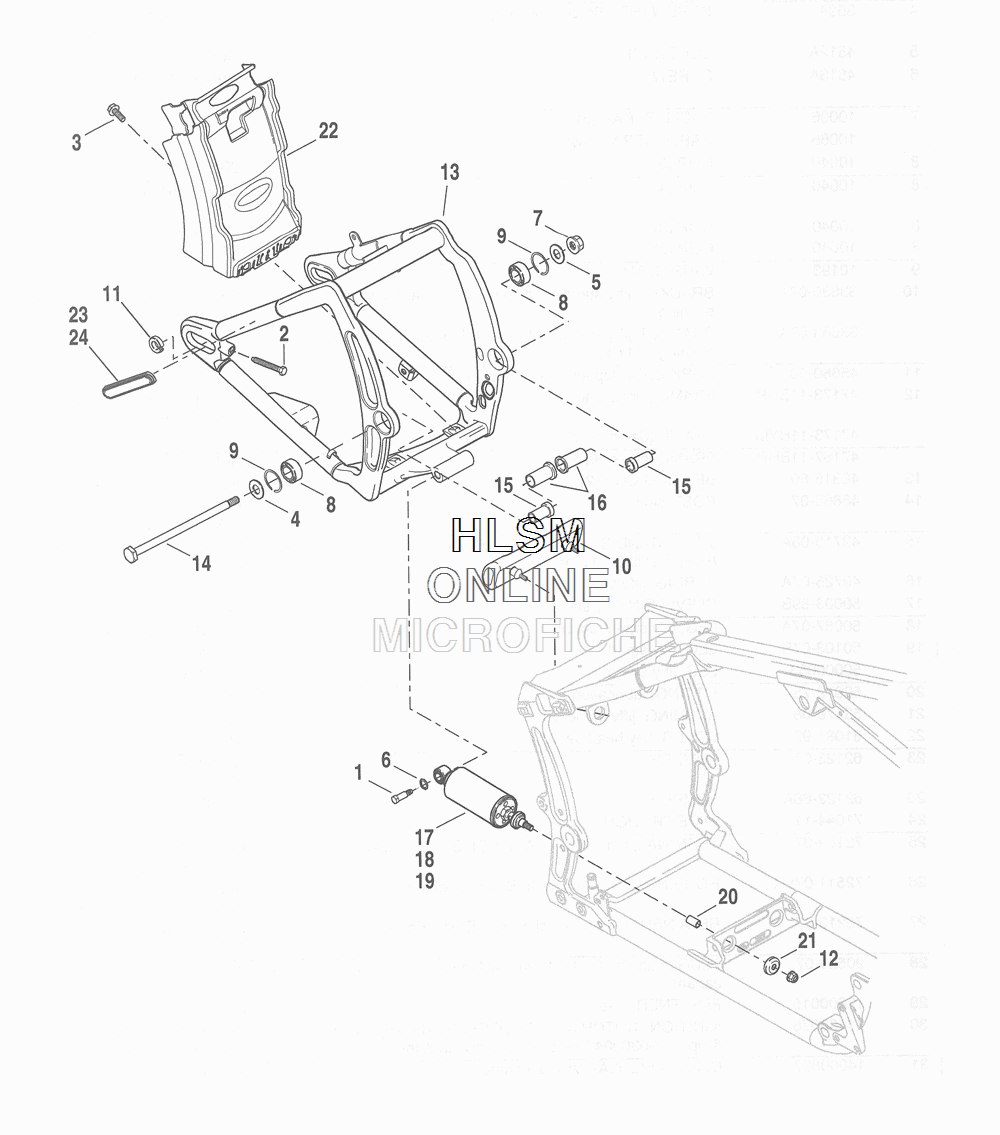

Here's the pic from RonniesHD microfiche...



hth,

T.

Reply
1
Old Dec 16, 2019 | 02:01 PM
Share
  #4
cruisn's Avatar
cruisn
Thread Starter
|
Tourer
Joined: Mar 2019
Posts: 397
Likes: 140
From: Houston, TX
Default
Originally Posted by MyFavRk
I'm sorry I can't help you but possibly reading through this thread may help you figure it out . Sounds like the mud guard is located under the rear fender and you may have to remove the rear tire to access it . Have a look under the seat , from the instructions it looks like the 2 screws that need to be removed are under there towards the rear of the bike . Hopefully someone who has done it will chime in and give you further assistance . Good luck !

https://www.hdforums.com/forum/softa...-breakout.html
Thanks for this link. It sounds like it's a bigger PITA on the Breakout due to the size of the tire. I wish H-D instructions were a little more specific depending on the model of the bike and not just the category.

Reply
0
Old Dec 16, 2019 | 02:29 PM
Share
  #5
WKNDS's Avatar
WKNDS
Seasoned HDF Member
Joined: Nov 2012
Posts: 5,003
Likes: 2,086
From: Newport,TN area
Default
Originally Posted by cruisn
Thanks for this link. It sounds like it's a bigger PITA on the Breakout due to the size of the tire. I wish H-D instructions were a little more specific depending on the model of the bike and not just the category.
The image I posted above is from the HD microfiche for a 2015 Breakout.
Check it out for yourself....

http://partsfinder.onlinemicrofiche.....asp?make=hdmc

T.

Reply
0
Old Dec 20, 2019 | 07:01 AM
Share
  #6
cocky's Avatar
cocky
Stellar HDF Member
Photogenic
Photoriffic
Shutterbug
Liked
Joined: Jun 2014
Posts: 2,062
Likes: 153
From: Midlands of SC
Default
I think all softails have this type of guard.

Reply
1
Old Dec 20, 2019 | 11:53 AM
Share
  #7
WKNDS's Avatar
WKNDS
Seasoned HDF Member
Joined: Nov 2012
Posts: 5,003
Likes: 2,086
From: Newport,TN area
Default
Originally Posted by cocky
I think all softails have this type of guard.
Agreed - and its not that hard to remove either....

T.

Reply
