Easy 19" front wheel for FXFBS

Reply Subscribe

Thread Tools

Search this Thread

Nov 17, 2021 | 06:00 AM

#61

24v

Elite HDF Member

Joined: Apr 2012

Posts: 3,986

Likes: 709

From: San Diego

Yes I do have abs. I do not have any spacer between the wheel and the rotor but I am running Lyndall rotors so they don't have the little buttons to interfere with the wheel. I also have a small spacer between the ABS sensor and the brake mount arm. The brake caliper is slightly inboard compared to where it normally sits but it still catches the little shelf on the swing arm.

Nov 17, 2021 | 06:10 AM

#62

SmithyFB

1st Gear

Joined: Oct 2021

Posts: 5

Likes: 2

From: Perth

Thanks for the info, I’m wondering if the ABS will be effected if we machine a spacer between the bearing and sensor, I take it your pulley side spacer didn’t need modifying.

Last edited by SmithyFB; Nov 17, 2021 at 06:14 AM.

Nov 17, 2021 | 06:13 AM

#63

24v

Elite HDF Member

Joined: Apr 2012

Posts: 3,986

Likes: 709

From: San Diego

None of the spacers are the same dimension as the stock ones. I have three spacers now. One on each side like it is stock and then one in between the ABS sensor and the brake arm. If you put a spacer between the sensor and the wheel bearing it will not work. You need to have the sensor directly against the bearing.

Nov 17, 2021 | 03:32 PM

#64

SmithyFB

1st Gear

Joined: Oct 2021

Posts: 5

Likes: 2

From: Perth

Thanks, I’ll look at removing the spacer behind the disc and set up with the sensor on the bearing.

Nov 17, 2021 | 03:55 PM

#65

24v

Elite HDF Member

Joined: Apr 2012

Posts: 3,986

Likes: 709

From: San Diego

Quote:

Originally Posted by SmithyFB

Thanks, I’ll look at removing the spacer behind the disc and set up with the sensor on the bearing.

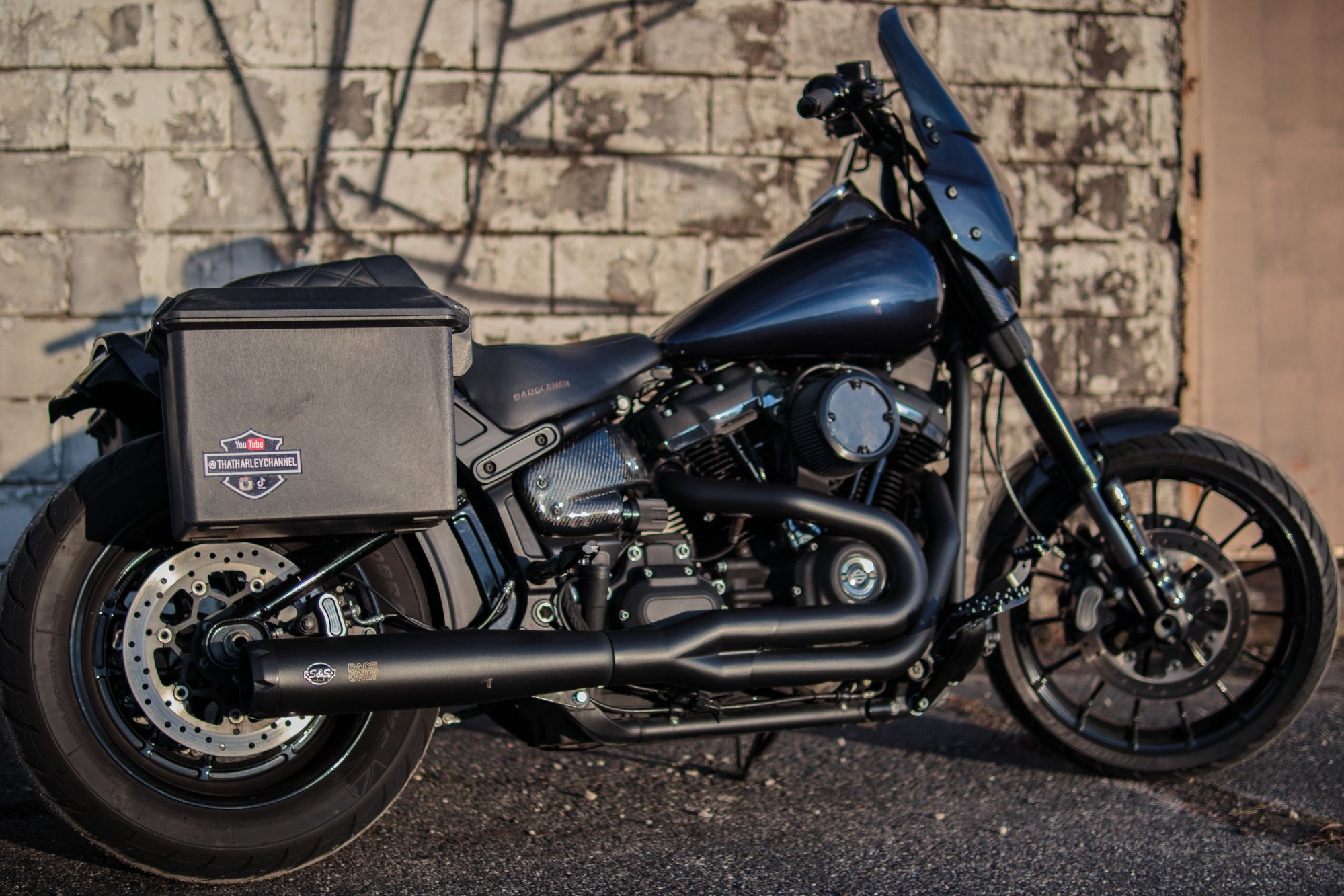

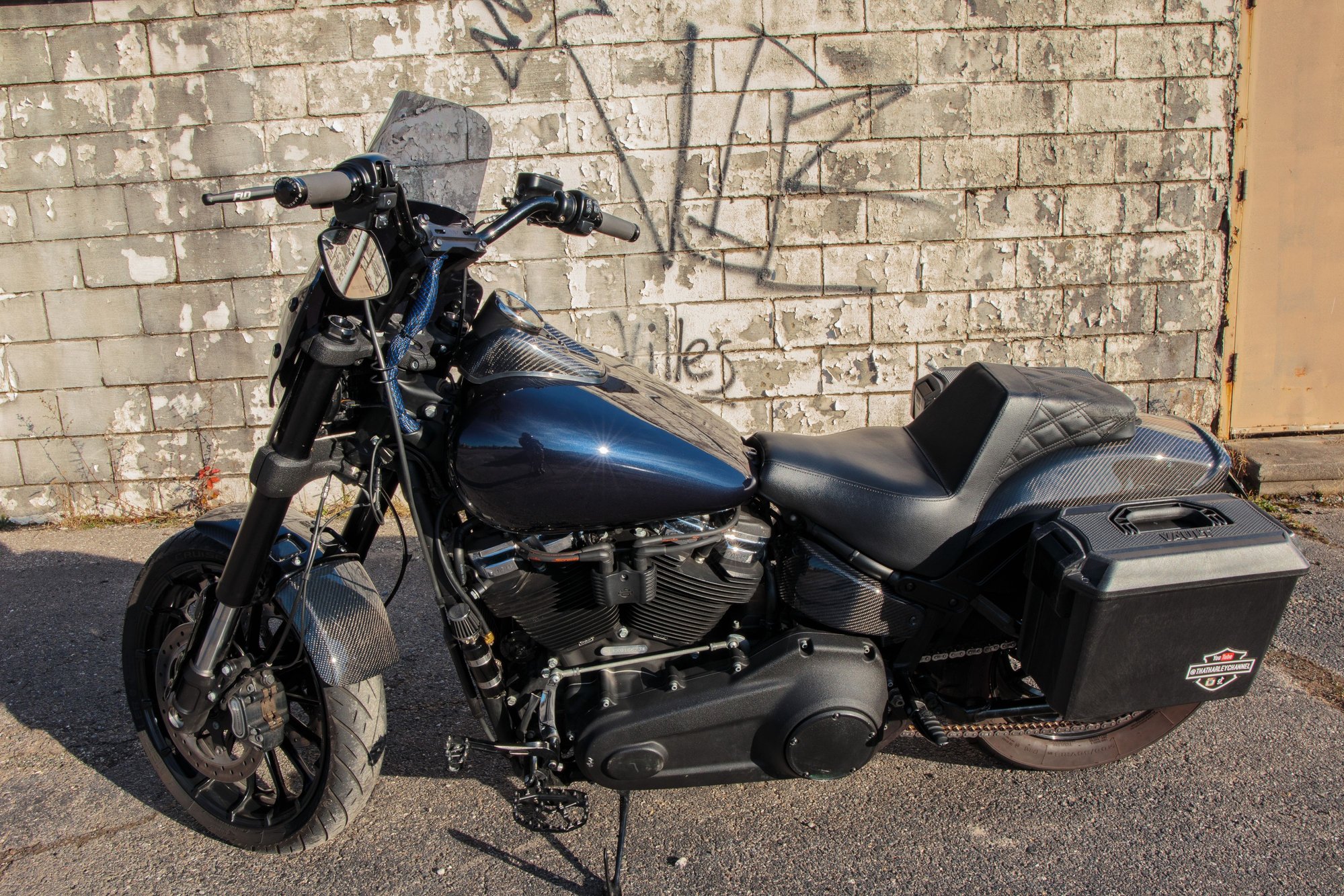

This is what mine looks like.

Dec 4, 2021 | 04:39 AM

#66

SmithyFB

1st Gear

Joined: Oct 2021

Posts: 5

Likes: 2

From: Perth

All but done, just need to modify the spacers and she’s good to go 👍

Dec 29, 2021 | 04:47 PM

#67

CVAB

Stage I

Joined: Dec 2018

Posts: 1

Likes: 1

From: Shithole Maryland

Winter Project

I'm so gonna do this. Wish I had all the parts right now. I have been waiting for awhile for someone to do this. Thanks for sharing.

Dec 29, 2021 | 05:22 PM

#68

SmithyFB

1st Gear

Joined: Oct 2021

Posts: 5

Likes: 2

From: Perth

Well worth the effort, as an FYI the spacer on the pulley side Is 8mm shorter than the original, depending on how much you machine off the cushion drive will determine the width of the 2 new spacers on the brake side.
