On my 2013 Street Bob, I have rear bullet turn signals with Custom Dynamics LEDs that have RTB functionality. I just bought a Cycle Visions license plate frame that also has RTB. It was designed to replace the side signals, but I want to use them in addition to the side signals.
I have no idea if I have a RTB module, but I do have a wire harness (Part#:69200424). I want to splice them together, but I need to know which wires are which. To make it more complicated I have 2 new sets of turn signals and need to pick. One pair has the 3 wires, like the signals I have now. The other has 4 wires.

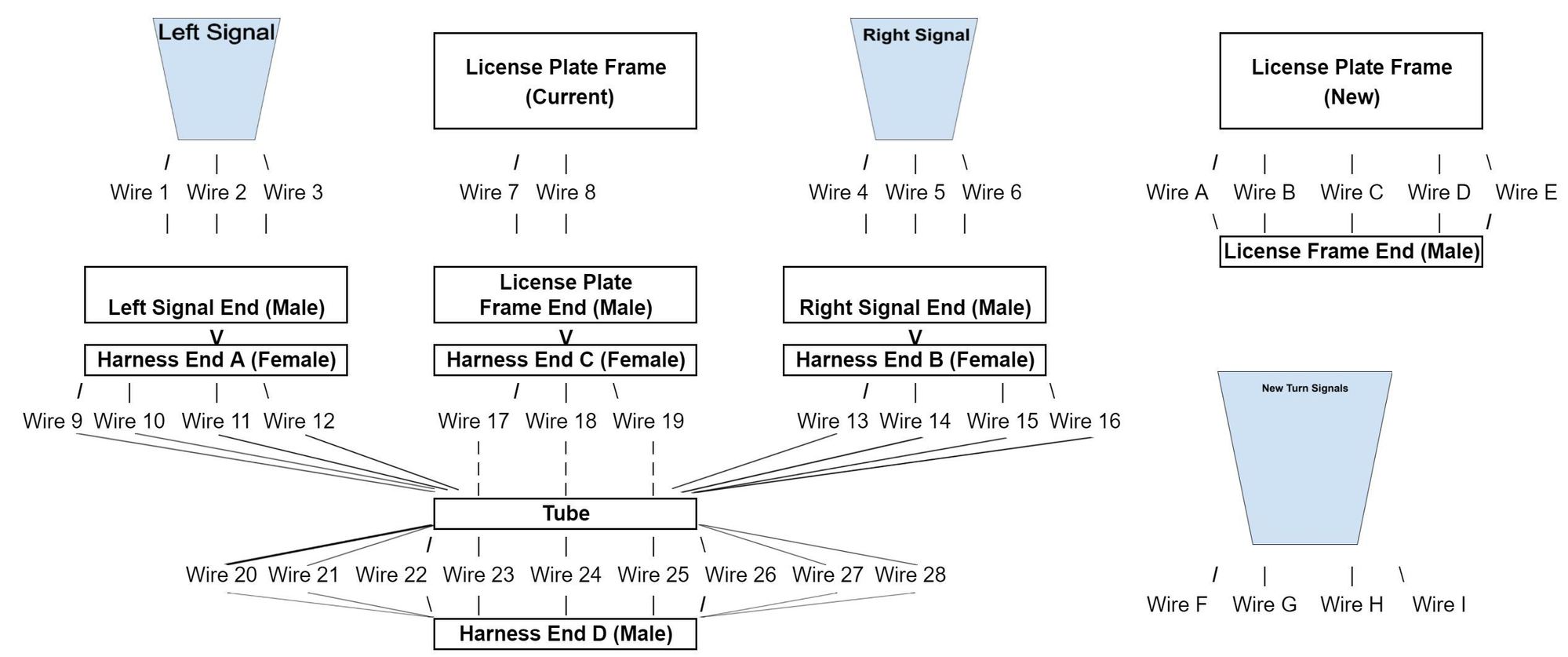

Can you check out the diagram I made below and let me know which wires I need to combine? I get confused, because I don't know which wire does what and the number of wires at each level changes. Thanks for your help in advance.
*As a side note I’m color blind, so telling them apart that way is kind of tough.
~ Blaq
