Need help identifying missing bolts for 2009 street bob



Here is a link to a parts finder:

https://partsfinder.onlinemicrofiche....asp?make=hdmc

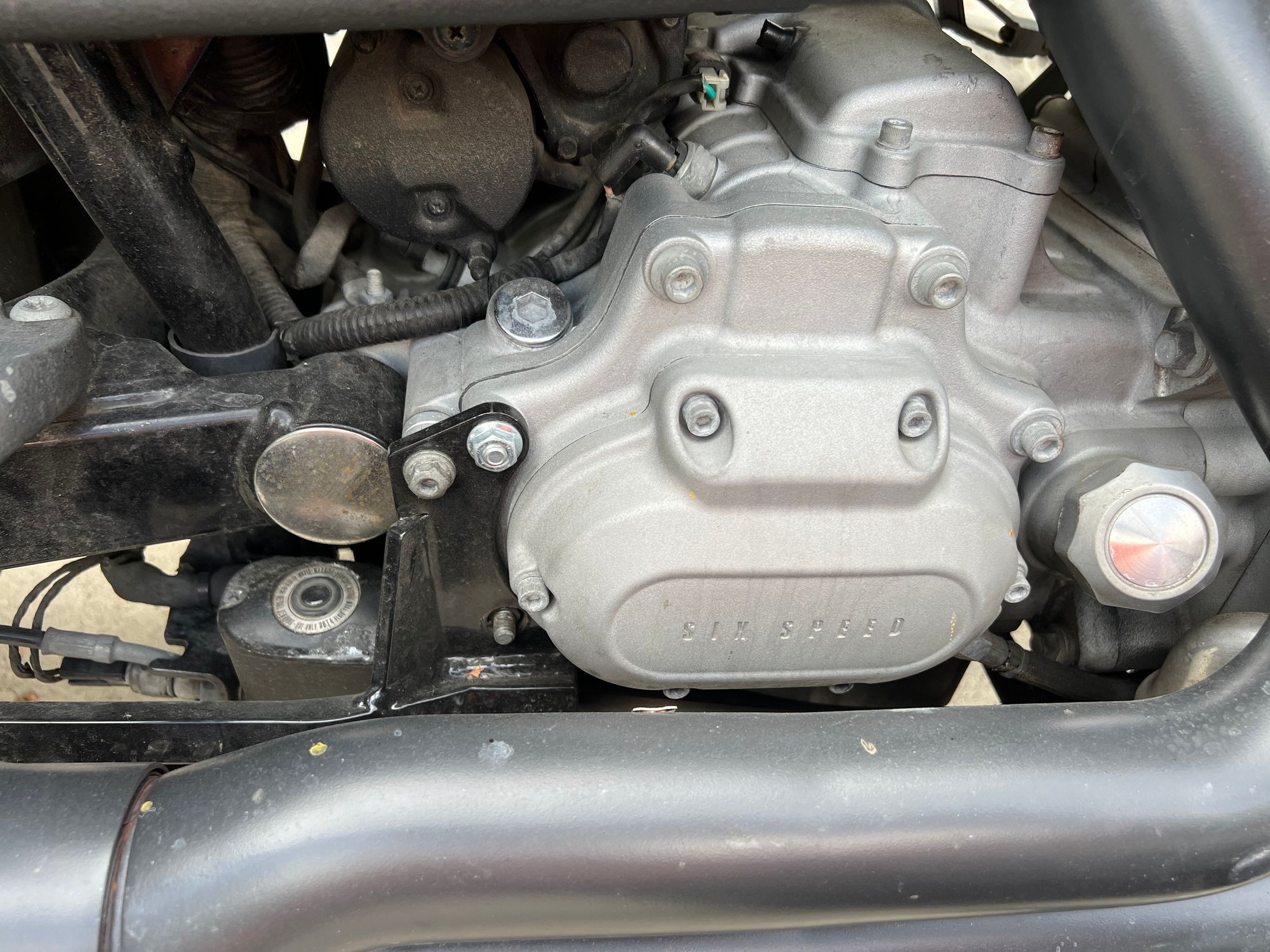

looks to be transmission bolts but there is smaller set and bigger set and don’t know how to find the bigger set I need.

and the other bolt I think is for the exhaust bracket?



How can that be a Street Bob with a blonde engine and tranny? Some one chime in, but it must be a Super Glide or a swap.

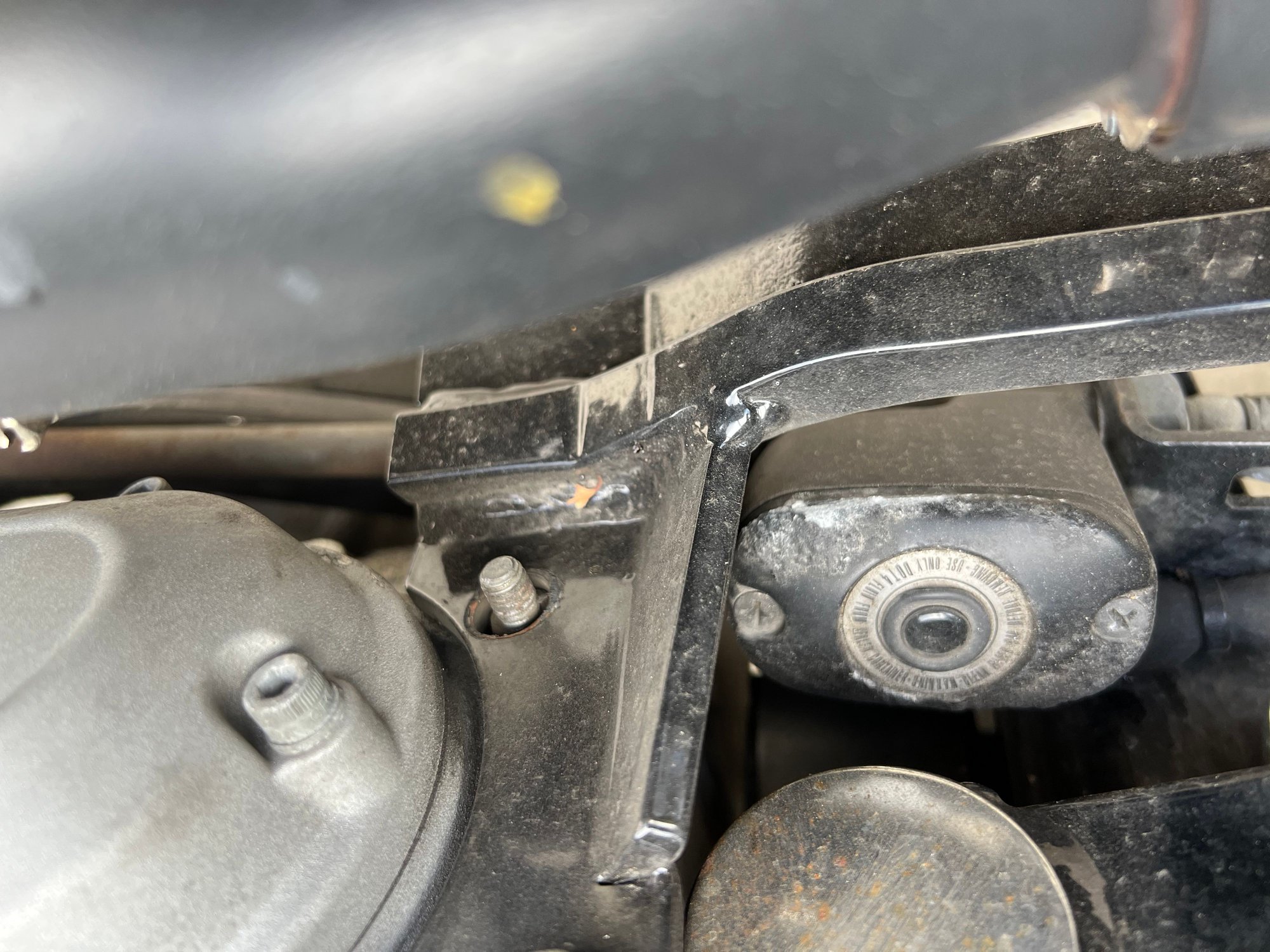

Also the exhaust bracket "bolt" you need is a nut that fastens to the end of the protruding stud.

Did you even look at the diagrams that were linked? The bolt you need is below (from a '09 FXD) and I'm guessing the nut is 7531.



I strongly suggest you just go to the parts counter at your local dealership. Show him the same pictures, he can look it up and sell them to you on the spot. Sometimes it can be easy, good luck.



[QUOTE=snake_eyes;20906441]How can that be a Street Bob with a blonde engine and tranny? Some one chime in, but it must be a Super Glide or a swap.
2009 was a one year thing where the motor and trans cases were not black like all other Street Bobs before and after that year.



[QUOTE=nevil;20906659]Thanks for the correction I never knew that.

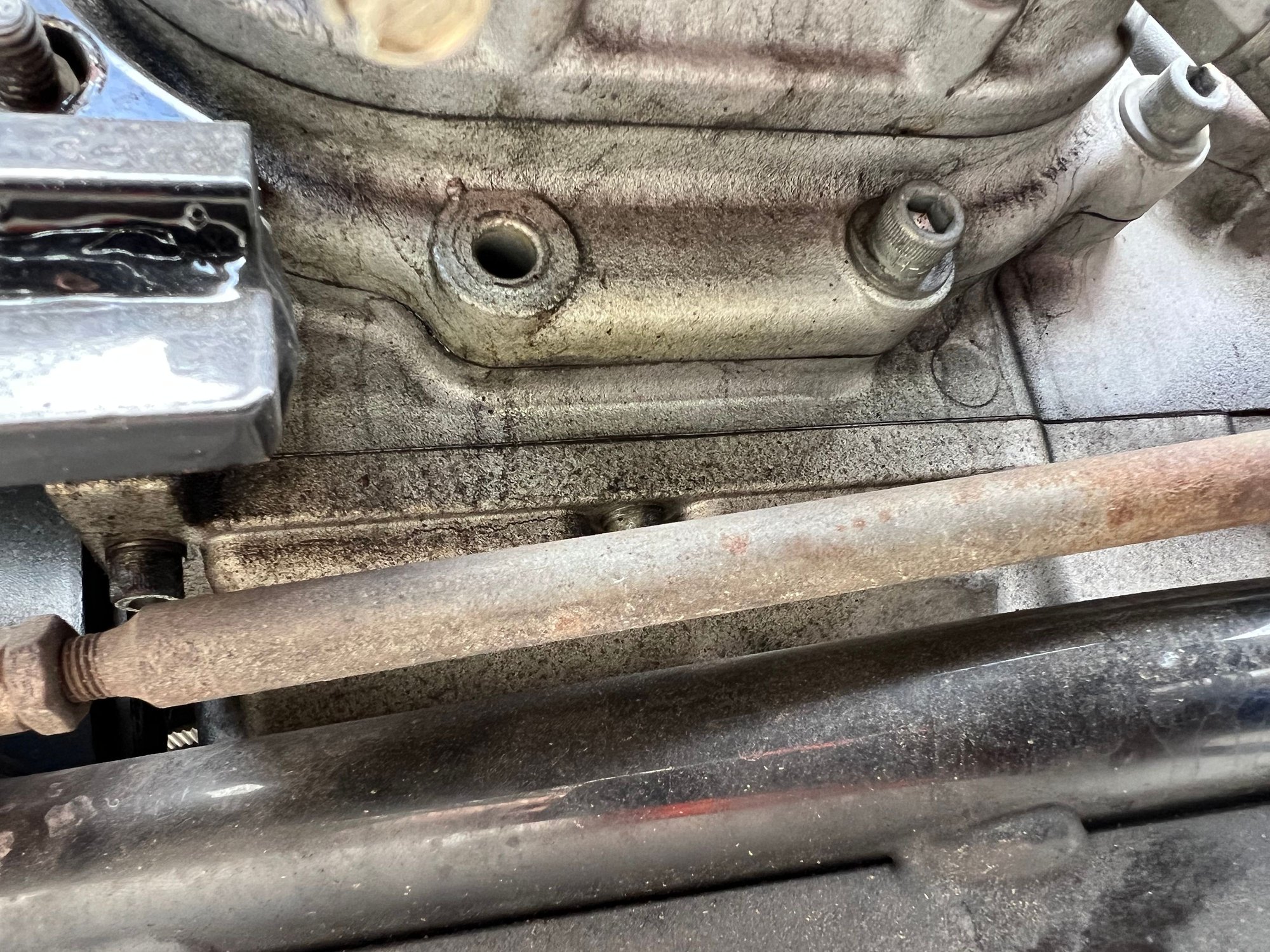

What Architect said about a visit to the dealer. It's likely that the missing flange nut is either a 5/16-18 or 3/8-16. The Allen head transmission bolt is likely a 5/16-18. If you want to try a hardware store it would be best to remove the bolt next to the missing one to check for length. But as mentioned, the dealer would be best.

I used to go to the dealer but it's 20 miles one way for me and at $7.00 per gallon here in CA, I don't hardly go anywhere anymore. LOL.



5/19-18 flange nut for the exhaust bracket lower mount, and a 5/16-18 x1.25 allen bolt with washer for the lower hole. Use a drop of Loctite & proper torque to help them stay where you put them.
