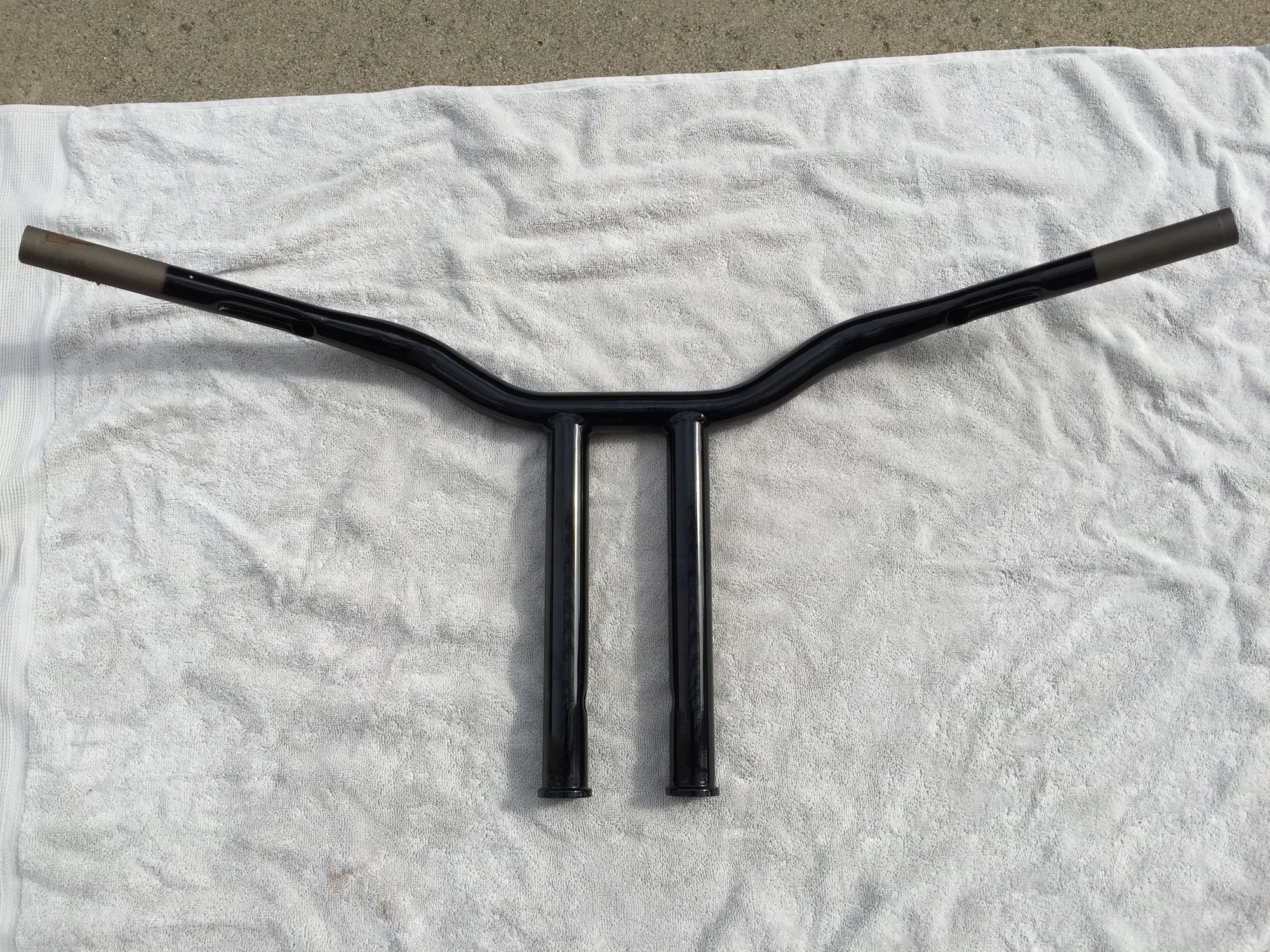

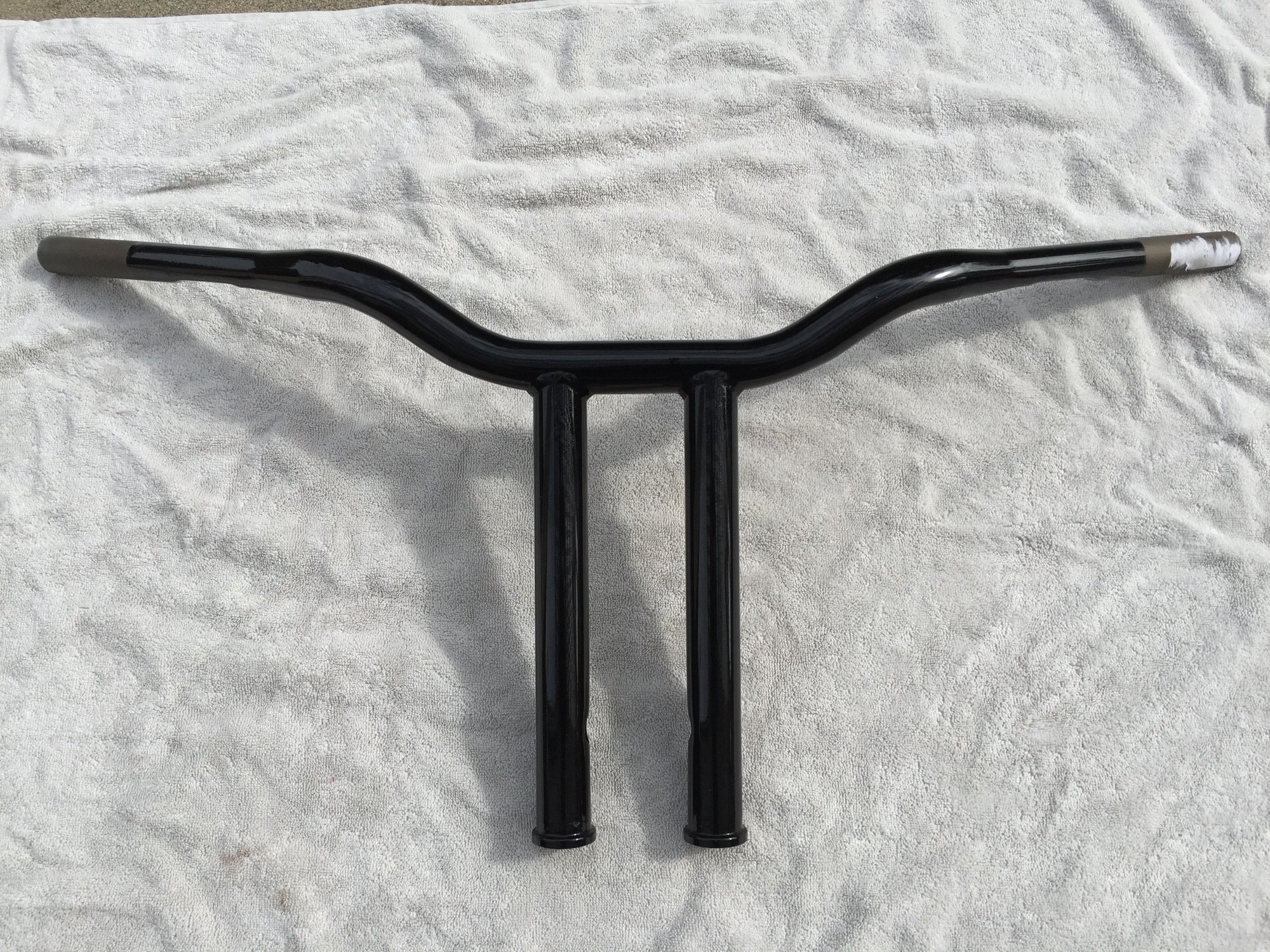

12 inch WEST COAST MX-TBARS POWDERCOAT BLACK $200.00
A very highly used pair of West Coast MX-TBARS. $200.00(plus shipping) Details as follows:
Features of your 12" Westcoast-Mxtbars
Metal: 1080 mild gauge steel tubing with .125 wall thickness
Coating: POWDERCOATED Color: BLACK
*Powdercoating ends 4 inches before each side for easier installation of your controls
Fitment: Universal
Throttle by wire and Throttle cable applications.
(Throttle or Fly by wire means having an electronic throttle)
Top Crossbar:
- 5 1/2" spread in the middle of the handlebar. Then bends and rises up 2" and then the 1-1/4" tubing is swaged (tapered) down to 1"diameter. (Fits conventional controls)
- Both sides have 1/2" holes punched for internal wiring.
- Cross width is 31 1/2" across and pullback is 3 1/2".
- Your Wrist angle will be at a 18 degree angle Cross bar is welded to sit flat on a 28 degree rake
- The (2) - 3/4" holes in middle of the bar are made to be centered for the 3 1/2 spacing of the risers.
The throttle side tubing at 1" is honed out and notched for fly by wire.
Risers: 3 1/2" spacing between risers. (Fits conventional top triple tree clamps). 1/2" x 5/8" oval holes are 1 7/8" up from the bottom for internal wiring.
