I have 3 questions about functions of connectors and hoses
Can somebody please help me and advise what it is
Many thanks

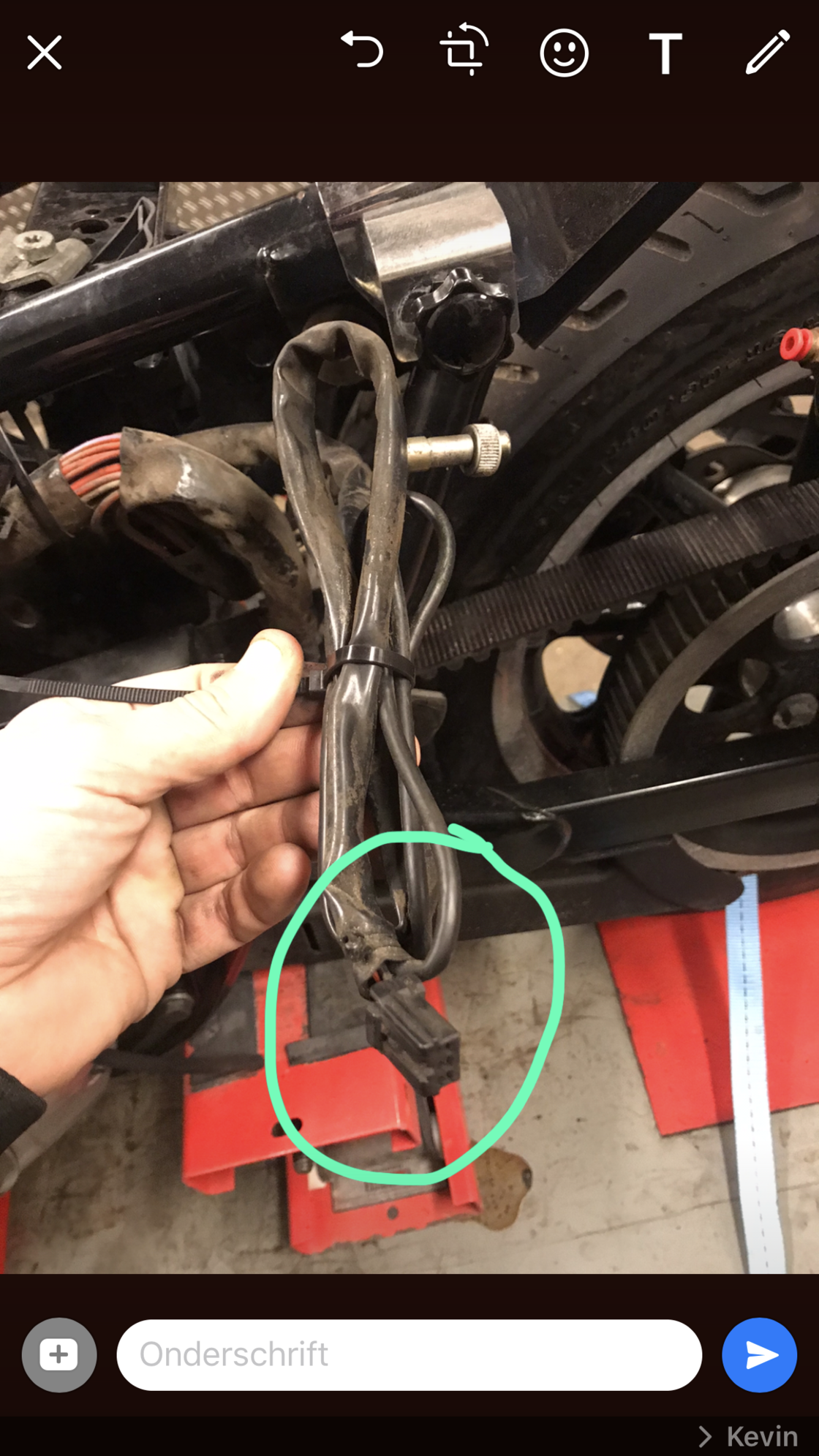

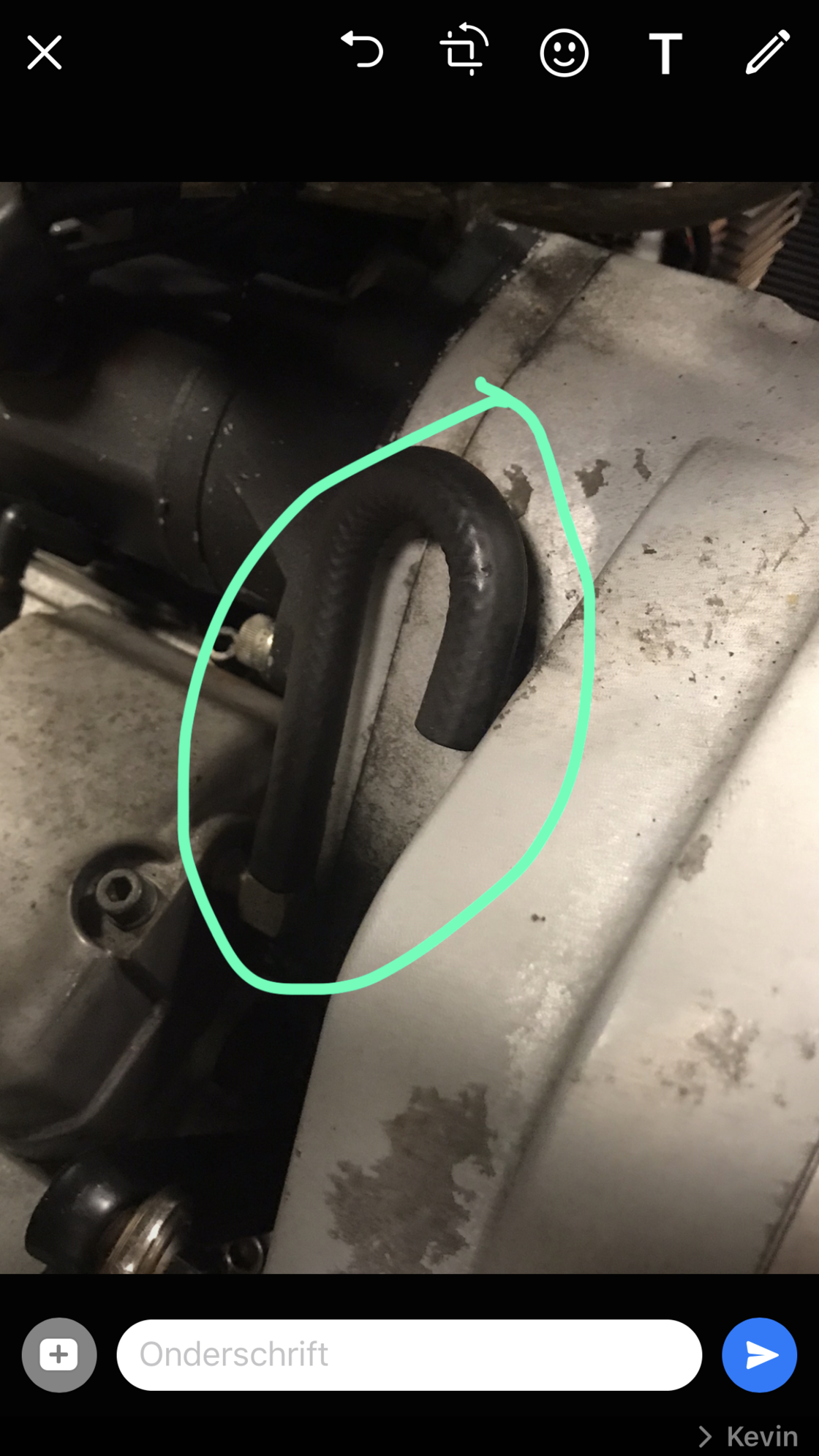

this is by the battery tray this hose is coming from the engine this hose is coming from the engine this connector is at the same point as the antenna this connector is at the same point as the antenna

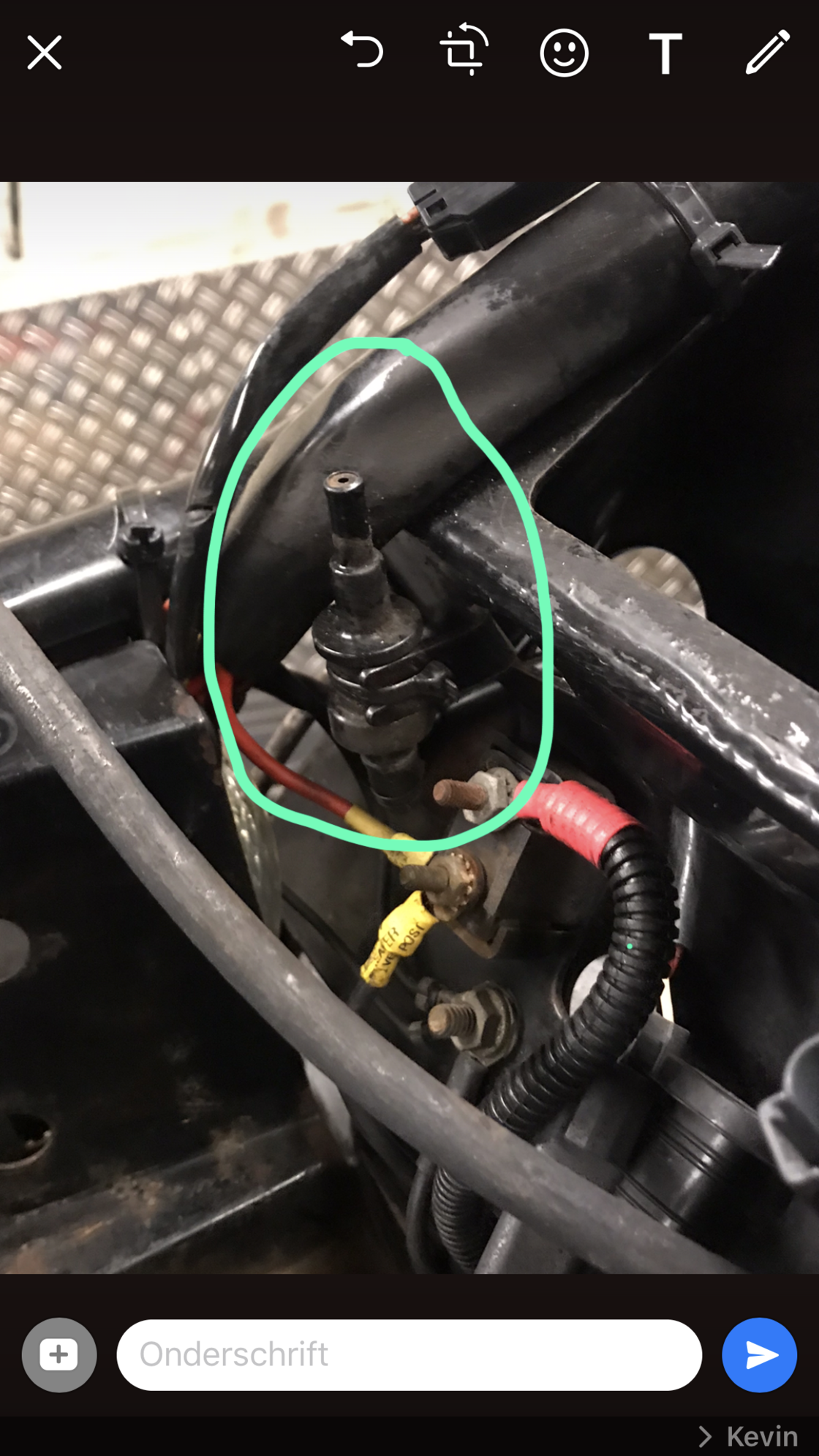

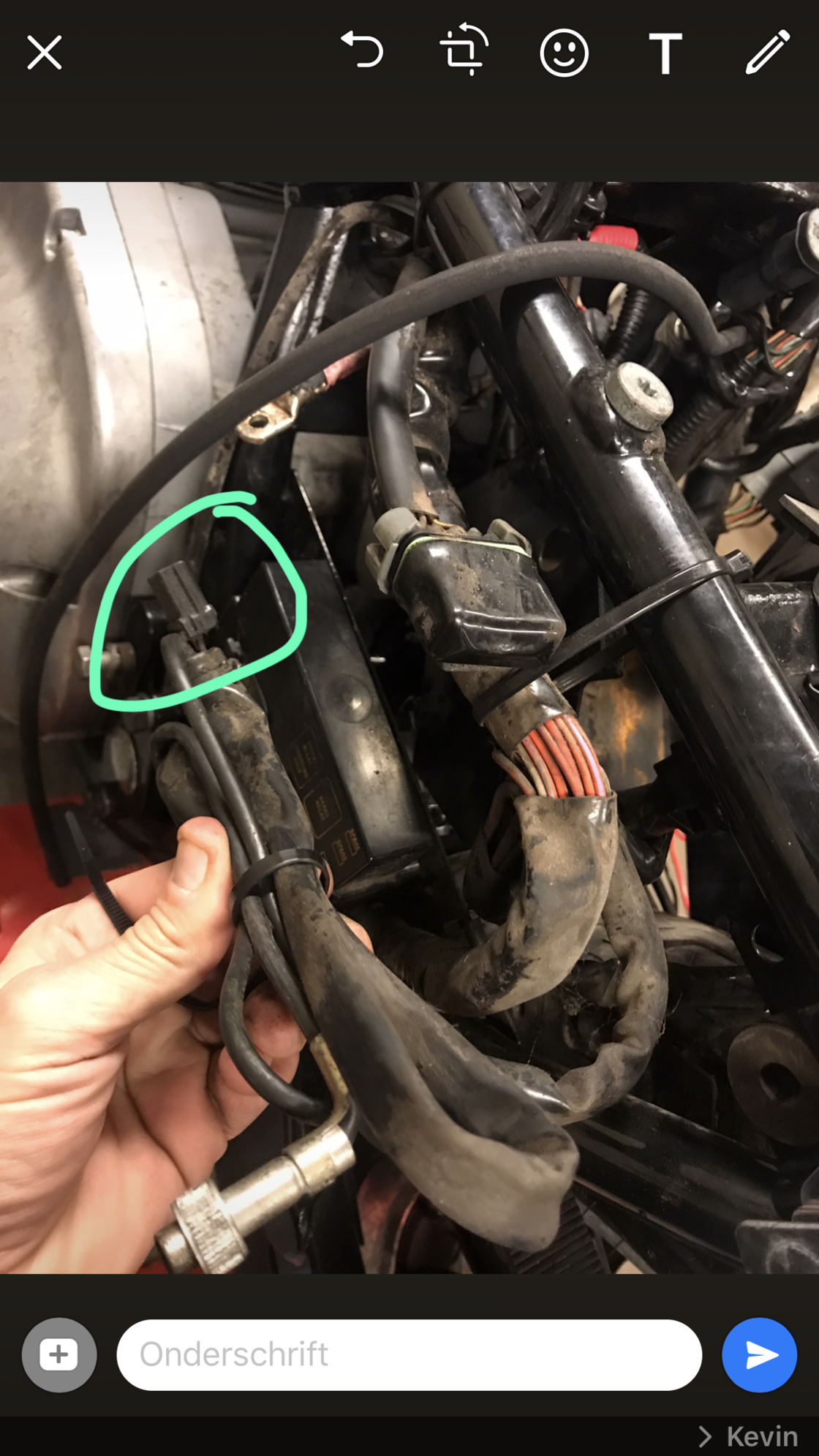

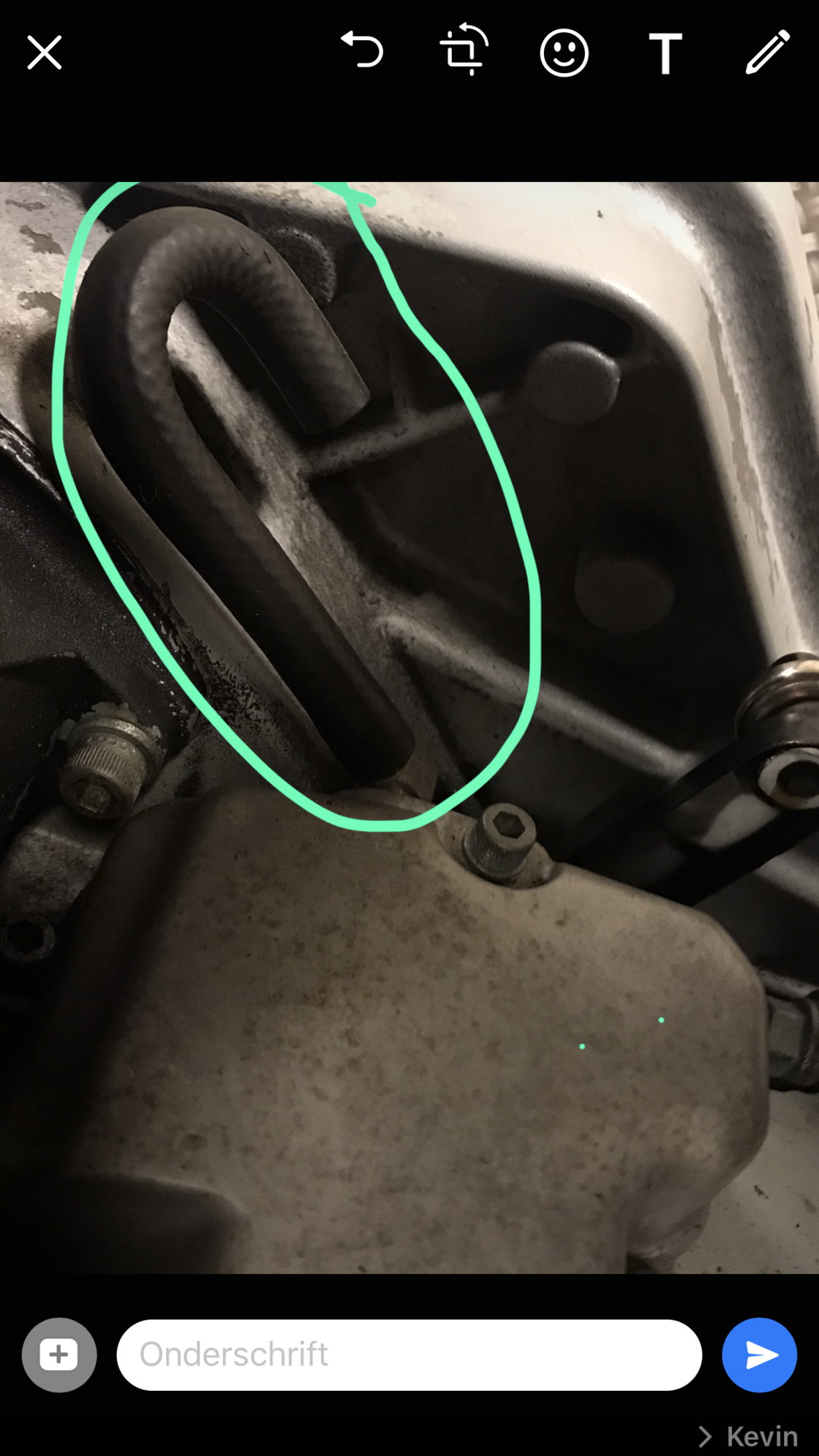

It would be helpful to know the year and model or the bike you're talking about. I'm taking a guess on picture #1 - a one way valve for the gas tank vent. Pic #2 & 3 - transmission vent hose. Pic 4 & 5 - guessing wires for the tour-pak lights seeing that it's wire tied to an antenna lead. I'm assuming the tour-pak has been removed. A picture of the wire colors would also help so that it could be checked against a wiring diagram.
Hi Mark,
I looked at your other posts and saw you have a 2002 EG.
I think part #15, Vapor Valve may be the first picture. The clean spot on the top looks like it had a hose on it. Can't tell from the pictures but can the hose in the other picture hook to the valve? http://partsfinder.onlinemicrofiche....-%20CARBURETED
Do you have a tour pak? Looks like the connector could be #65 in the drawing
