Can someone tell me why this dyno chart looks the way it does? I always thought the HP and torque lines should converge at 5200 RPM.

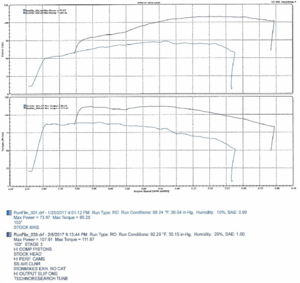

Attached Thumbnails Dyno Chart Question-103stage3.png
Reply Like
  #2
Old 03-27-2018, 07:40 AM
ROCKOUT Rocker Products's Avatar
ROCKOUT Rocker Products
ROCKOUT Rocker Products is offline
Sponsor
Join Date: Jul 2015
Location: SF Bay area
Posts: 8,530
Received 1,632 Likes on 1,177 Posts
Default
It looks like they do cross at 5200, it's just that for some reason your dyno guy put before & after HP on one chart, before & after torque on the other



__________________________________________________ ____
For ROCKOUT information & purchasing please click HERE For all Twin Cams and Evo Big Twins & Sportsters

__________________
NO, they DON'T all do that!
ROCKOUT rocker shaft inserts... make the tapping STOP! From the guy that FOUND and CURED the problem NO ONE ELSE COULD, thank you for your support!
Ordering & info http://www.rockout.biz On ebay! ... CLICK HERE
Also on amazon.com...
Imitated, never equaled... ROCKOUTS!


Reply Like
The following users liked this post:
GalvTexGuy (03-27-2018)
  #3
Old 03-27-2018, 07:54 AM
EL in NH's Avatar
EL in NH
EL in NH is offline
Cruiser
Join Date: Apr 2010
Location: south western New Hampshire
Posts: 146
Received 18 Likes on 15 Posts
Default
one has two torque and the other two HP curves. If you laid the one over the other they would indeed cross at the rpm as you are used to seeing.


a little to slow typing I see..now where did the delete option go

Last edited by EL in NH; 03-27-2018 at 07:57 AM.
Reply Like
The following users liked this post:
GalvTexGuy (03-27-2018)
  #4
Old 03-27-2018, 08:08 AM
GalvTexGuy's Avatar
GalvTexGuy
GalvTexGuy is online now
Seasoned HDF Member

Thread Starter
Join Date: Apr 2015
Location: SE Tejas
Posts: 8,192
Received 3,965 Likes on 2,181 Posts
Default
Originally Posted by ROCKOUT Rocker Products
It looks like they do cross at 5200, it's just that for some reason your dyno guy put before & after HP on one chart, before & after torque on the other



__________________________________________________ ____
For ROCKOUT information & purchasing please click HERE For all Twin Cams and Evo Big Twins & Sportsters
Oh, okay, I see it now. He's a local indy I use for tires. He's been trying to get me to have my bike dyno'ed, so I was looking at some of the dyno runs on his website. That's why I asked why his dyno sheets look different than every dyno sheet I've ever seen. Weird...

Anyway, thanks!
