Need help asap! Please.
I have a 1995 Harley Fatboy. I started removing all the switches and wiring from my handlebars when I swapped bars. Now I am having problems.... I need to know what wires go to kill switch, and which wires go to the starter button.... can anyone help me with this? I think I have the starter button wired right, but I get no spark now. Help!
Why did you take everything apart without labeling everything!?!?
This really calls for a service manual. They have complete wiring diagrams. I don't know if their diagrams are accurate, but the ones in Haynes manuals are printed in color and much easier to read than the ones in the FSM.
This really calls for a service manual. They have complete wiring diagrams. I don't know if their diagrams are accurate, but the ones in Haynes manuals are printed in color and much easier to read than the ones in the FSM.
Grand HDF Member
Joined: Apr 2007
Posts: 3,712
Likes: 3,030
From: Brighton, MI
On my 94 dyna, the start switch has one black wire that become black/red and goes to pin 86 on starter relay, there is also a white wire jumper going from the start switch to the stop switch.
The stop switch has that one white wire that jumps directly over to the start switch, and then another white wire that goes to ignition module white, then also a gray wire from the switch that goes to the ignition 15 amp breaker. Again, this is for a 94 dyna. YD
The stop switch has that one white wire that jumps directly over to the start switch, and then another white wire that goes to ignition module white, then also a gray wire from the switch that goes to the ignition 15 amp breaker. Again, this is for a 94 dyna. YD
Thread Starter
|
Advanced
Joined: Sep 2014
Posts: 96
Likes: 1
From: moncton
Why did you take everything apart without labeling everything!?!?
This really calls for a service manual. They have complete wiring diagrams. I don't know if their diagrams are accurate, but the ones in Haynes manuals are printed in color and much easier to read than the ones in the FSM.
This really calls for a service manual. They have complete wiring diagrams. I don't know if their diagrams are accurate, but the ones in Haynes manuals are printed in color and much easier to read than the ones in the FSM.
Outstanding HDF Member
Joined: Nov 2013
Posts: 2,358
Likes: 34
If its any help I could take pictures of the wiring diagrams from my 98 dyna manual, not sure if that would help or not. I'm sure this isn't it, but did you check for pinched wires shorting?
Dirt don't hurt
Joined: Jan 2011
Posts: 21,062
Likes: 4,547
From: Haslet Texas
I have a 1995 Harley Fatboy. I started removing all the switches and wiring from my handlebars when I swapped bars. Now I am having problems.... I need to know what wires go to kill switch, and which wires go to the starter button.... can anyone help me with this? I think I have the starter button wired right, but I get no spark now. Help!
One white wire mounted toward the rocking part of the switch
Kill switch: The white wire from the start switch joins up with another white wire and both are mounted toward the rocking part of the switch
One grey wire mounted toward the base of the switch
That said why in hell did you take the wires off your switches???????
I have changed a lot of bars but I've never messed with the wires on the switches.
Trending Topics
Thread Starter
|
Advanced
Joined: Sep 2014
Posts: 96
Likes: 1
From: moncton
Start switch: One black wire mounted toward the base of the switch
One white wire mounted toward the rocking part of the switch
Kill switch: The white wire from the start switch joins up with another white wire and both are mounted toward the rocking part of the switch
One grey wire mounted toward the base of the switch
That said why in hell did you take the wires off your switches???????
I have changed a lot of bars but I've never messed with the wires on the switches.
One white wire mounted toward the rocking part of the switch
Kill switch: The white wire from the start switch joins up with another white wire and both are mounted toward the rocking part of the switch
One grey wire mounted toward the base of the switch
That said why in hell did you take the wires off your switches???????
I have changed a lot of bars but I've never messed with the wires on the switches.
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider
Verdad Gallardo
The Best and Worst Harley-Davidson Moves of 2025
Verdad Gallardo
Club Member
Joined: Aug 2008
Posts: 22,839
Likes: 17,865
From: Lafayette, Louisiana

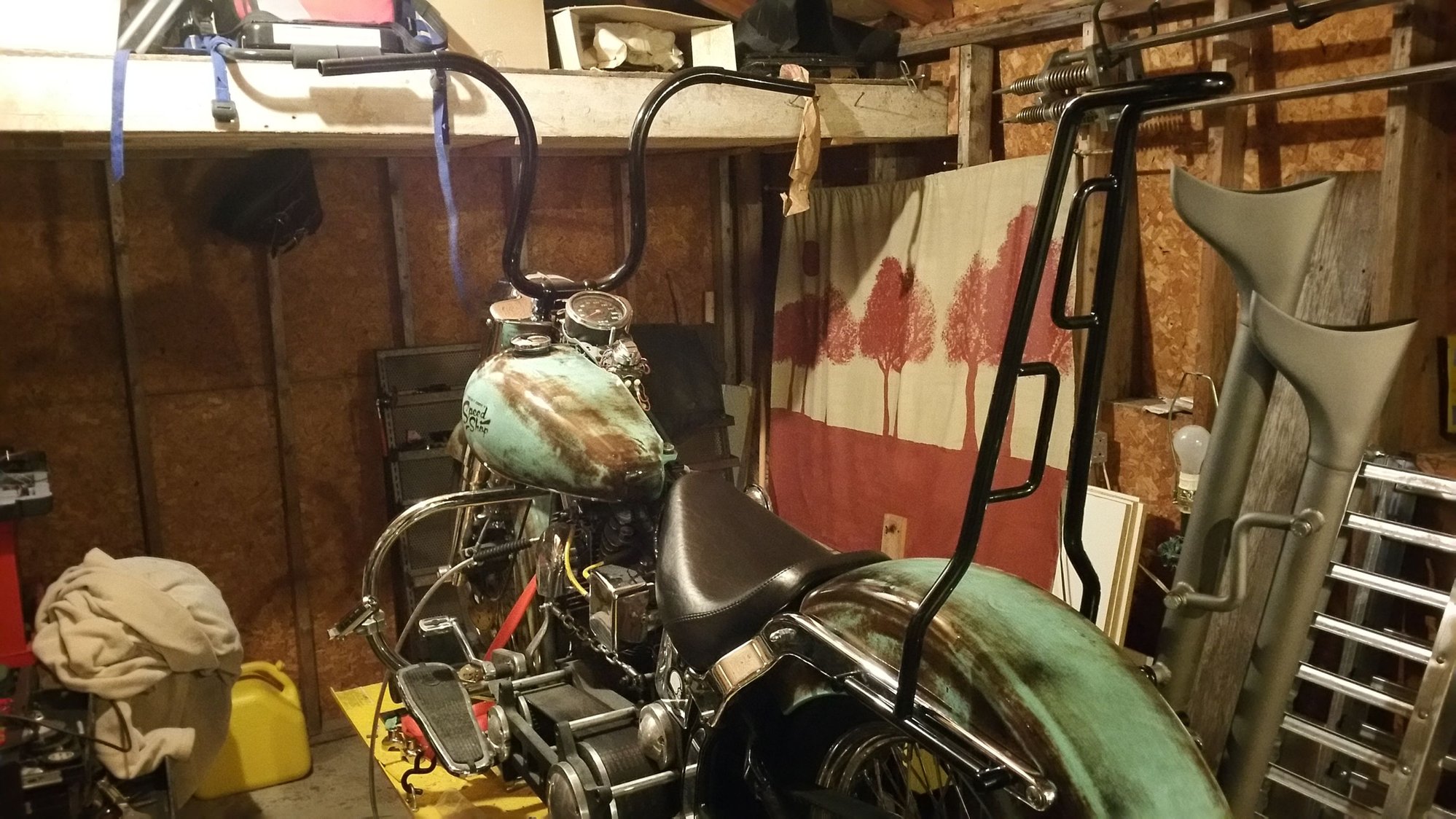

Originally Posted by Hey Man
I really dig the looks of the bike but, are you sure those bars are in the same galaxy as what you have going on with the rest of the bike?
