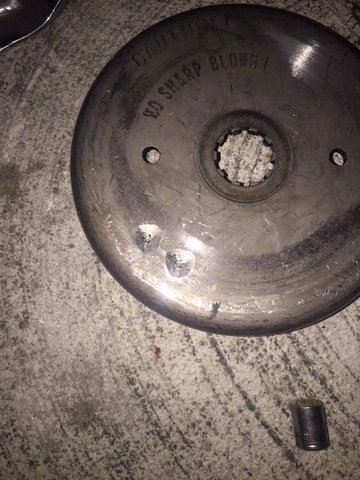

This is a repost from the electrical forum. I have a somewhat new to me 1991 FLHS. I've been having some electrical issues, mainly with the battery. One morning it just wouldn't start. I had lights and a slow crank, then nothing. Took the battery out and it was bulging and dead. Did some research and found that it must be the regulator. So what the hell, It's an old bike I'll just change out the whole charging system. Got an Accel 32 amp charging system. Rotor, stator and regulator. And a new battery. I found these nice divots in my old rotor. Nice huh. After I hooked it all up it started right up and sounded great. (I was having some noise in the primary from the rotor). Strangely I found nothing loose in the primary or in the drained oil. Hmmmm. Well the next day I went to go to work and the same thing. Lights for a second and a slow crank and.....dead. Took the battery out and it's bulging. WTF? It's brand new. What do I do? I don't want to hook another battery to it and test if it's going to ruin another battery. Any suggestions? Do I bite the bullet and take it to the stealership?



First off the divots are normal as they are how the factory balances the rotor.
Next your battery could have been on it's way out when you replaced all that other stuff.

Get a good battery (not some wal-mart brand) and charge it up before installing then after you get it installed put a voltmeter across the posts when you have the bike running at around 2k and see what it says.



I'd reuse the old rotor if the magnets look good , some of the stuff that comes with those " kits " are junk splines go away fast.



I put in a new and charged battery after I changed out the charging system. The new battery was in the bike for about 8 hours sitting off when I noticed it was bulging too. I'll do the 2k rpm check and report back. Hopefully I don't fry another battery



You should do the complete check, starting at the beginning and continuing through until you find something that is not right, then report back.



You replaced the rotor, the stator, the regulator AND the battery and the new battery failed almost immediately in the exact same way as the old one? Did I read that right?

Does everything electrical on the bike work properly? (Lights, etc)

Not out of the question that your new regulator was DOA, but really not likely.

First thing I'd do is get the battery charged somewhere (hopefully it will hold one), get it back in the bike and then run through Dr Hess' charging diagnostic procedure in the sticky.

I'm trying to decide if it's possible that you have a bad short circuit somewhere that is overloading the regulator and causing it to dump a bunch of high voltage DC or AC into the battery.



He said he got an Accel 32 amp charging system. Accel doesn't have the best reputation these days. Quite possible the new regulator is shot. Anyway, he was just throwing parts at the problem in the first place.



I had a battary that did that and the battary still worked. It was 8 years old and never used a tender and put a new one in checked charging system everything good. What I thought what happen was the heat from all those years next to the exhaust what caused the plastic to expand



Be sure when you check that output at 2000 rpm, be sure to throw your meter over on AC. Your problem is the regulator probably unless you have a big wire grounded hard against the frame that is not fused.

Those balance marks have fooled a lot of people. My 2004 had them. That part is dynamically balanced. My last one I got from Harley is some how machined and more precisely made since they appear to no longer balance that way. Or they simply think a little out of balance won't hurt anything. That cost some time doing that back then.

Read down to about checking..

Rev. 03-29-17
Some electrical 101 and a little more..

Remember, the best made brand new battery that has been on a maintenance charger for 3 days that has a loose or bad connection is no better then a boat anchor with a loose rope. The connection can get loose after one ride if the battery is not anchored and the wires are short and get tugged in a direction that can unscrew the bolts.

After a good 24+ hour maintenance low amperage (never over 2 amp) charge, with the charge light in the solid green and the battery has set about 24 hours off charge, voltage should be about 12.8 volts.
You can speed up this process by turning on the ignition key (headlight comes on) for ~3 seconds and then switch it back off. This is enough of a load to bleed off the excess residual charge from the charger and then you can measure the battery voltage.

12.8 = fully charged
12.6 = 75% charged
12.3 = 50% charged (Lot of new modern cars with system protection will not even click at this point but will have good headlight beams showing)
12.0 =25% charged

Always check both the terminals at the battery lead and also at the terminal on the wire. That helps to verify connection. With a DC volt meter (one that has a feature to lock high and low reading is best) hooked across the battery terminals and reading 12.8 or so, crank motor and while its cranking it should not drop below about 9.6 volts and as soon as it starts and throttled up to 2000 rpm, voltage should read around 14.8 volts. The 2000 rpm is the bench mark standard. Ignore idle output. Ignore output above 2000rpm unless it exceeds 14.9 volts. That is a sure indication that regulator is bad.

The crank check shows a rough check of the reserve amperage capacity of the battery while cranking with a 150-200 amp load on it. The 14.8 shows a good alternator and if you leave it on a while as the regulatory will drop the voltage a little showing itself working. However, with the lights and stuff always on, it will never drop back much. If you have a lot of options, most modern bikes will not show 14.8 charging volts at idle but stock newer bikes will be close. Older bikes with lower amperage output not so much. However, 2000 rpm is the bench mark for the standard 14.8 volts.

If the voltage is only about 13 volt DC at 2000 RPM, the AC volts stator may be shorted or bad. Unlike the regulator, this is an easy check with an AC meter. Check that the two or three legs do not go to frame ground and that the ohm resistance across all combinations of checks are within an ohm of what is called out in the service manual. Also check the AC volts coming from them at 2000 rpm.
Be cautious here since you can kill yourself with this much AC volts. You need a service manual or look you spec up on line for your unique bike. I have seen about 3 verations over the last 20 years of Harleys due to ever increasing output.

If you think battery is good and something is draining it sitting, now would be a good time to check for drain problems. Go to Harbor Freight and get you a AC/DC meter for under $25 or so. http://www.harborfreight.com/ac-dc-d...ter-37772.html Make sure it has DC amps draw, DC voltage, resistance and AC voltage. Key off. Remove the negative cable off the battery. Set meter on DC amps. Hook the meter lead to cable and the other to battery. !!Key off.do not turn on!! Ignore that first draw as the alarm trims back and stuff charges for 1 minute. Now, how many milliamps (mA) is it drawing? It should be no more then 6 mA which is the ECM (1), speedometer (1), tac, TSSM (1), HFSM (1) and voltage regulator (1)


When a battery wears out, a good charge will show fairly good voltage, but the battery can still have very low amperage capacity which will show in the crude crank test above, but it really should be checked after a good charge by removing it from bike and getting a free check at a place like AutoZone that has a fancy load meter check that gives you a print out of the battery health. Battery MUST BE CHARGED to check it. Be sure they set their meter to correct cold cranking amperage stated on the battery. Never charge the AGM absorbed glass mat battery with a regular car battery charger unless it is a newer one that says safe with this type of battery. Also, by taking battery out you now know you have good connections. Vibration tends to loosen the connections or a little corrosion will prevent charging or cause starting problems. Be forwarned, these checks quite often are incorrect due to the low amperage of these small batteries and junk checking equipment. If bike is charging, no load on battery when key is off and you are still having problems…REPLACE THE BATTERY. If battery is more then 3-4 years old.. REPLACE THE BATTERY.

Using the maintenance charger can get more years from a battery but be careful here. You do not want the last start 5 miles from home. If it still grunts when you first hit starter or kicks back with a bang, replace it. After a few years, charge and pull battery and have it checked for cold cranking amperage ever spring. Even then, if it grunts most ever start, I would replace it. Most battery checkers at AutoZone and places like that do not do really well on the low amperage setting on small batteries. Not sure why but they tend to say they are OK when they are weak. If they have one that fits your bike, Wal-Mart's AGM absorbed glass mat battery is just as good as any for one third to half the money of a Harley Battery. My last 4 years befor it started grunting. And out it came. Do not put an old fashion one with vent tubes on a modern TC Harley. Do not jump, push start or run bike with a half dead battery except in a real emergency. If a bike battery is down and you jump it, throwing all that amps to it from a big car battery especially one that is running can wreck a bike regulator or charging system. Charging a worn out battery can kill alternator stator or the voltage regulator or both. Probably ending in a big dollar repair in parts alone.

It is also a good idea to always check your battery at 2000 RPM with your meter set to AC. If by chance, the regulator goes bad, sometimes it will let AC come thru. That is a sure sign of a bad regulator. Older 2 wire stators have a single-phase output while the newer stators with 3 wires have a 3 phase output. The 3 phase system provides a more consistent and higher current output to the voltage regulator. The voltage regulator takes the AC from the alternator, rectifies it to DC and limits the voltage level to the battery depending on the voltage reading it gets back from the battery.

Also remember, when starting a Harley, hit the starter and hold it in till it is firing on both cylinders and running before letting up. If you let up before it’s running, quiet often, it actually take an FI motor longer to start. There is a fraction of a second more for a long stroke Harley then a multi-cylinder car for it to get going. If you do not do this, it will kick back with a bang, sneeze thru the intake or crank a lot longer the second time or shame on you the third time. Also, if you have a habit of doing this, the starter solenoid switch contact will only have half the life it could. You cannot hurt the starter. The starter gear has a sprag clutch. There are drive pins in it that as the gas motor catches and run, it outruns the starter motor drive and disengages it from the electric motor. If you hold it in a little too long and listen carefully, you will hear the sprag clutch run up the ramps and slip. Makes a sizzle hum. This will show you your starter sprag clutch is OK.

My batteries:
11-05-03 Originial Harley 3 years
08-07-06 Harley 6.5 years (nursed way too long and was grunting and banging often)
04-29-13 Walmart Ever Start 4 years (grunting)
03-25-17 AutoZone Duralast Gold



I'm curious to know what brand of new battery was purchased.


The usual causes of bulging batteries are too much charging current and/or voltage, or too much heat where the battery is.


Very strange if the new battery is already bulging and the bike has barely been run since it was installed...
