Default New Cases....

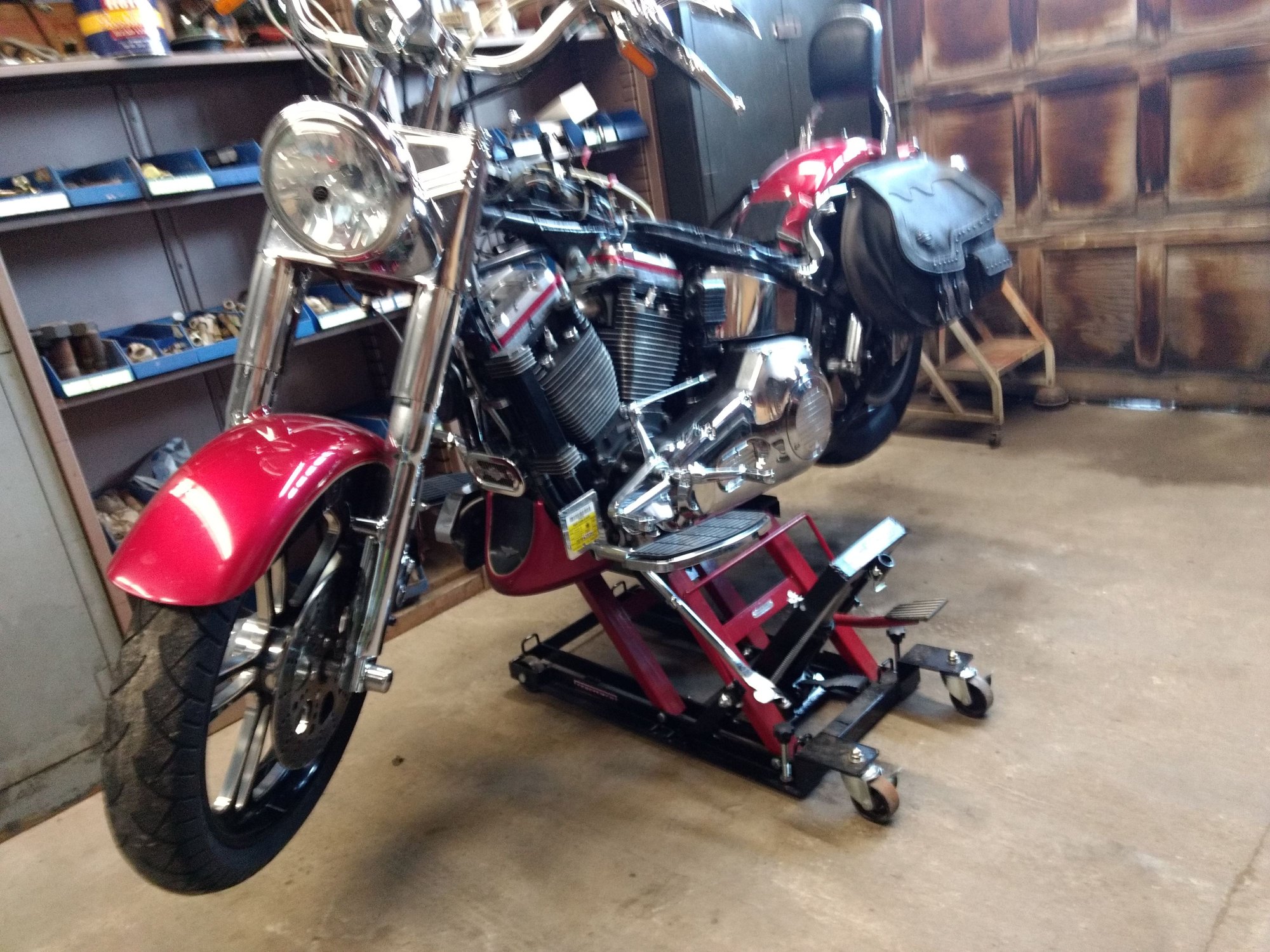

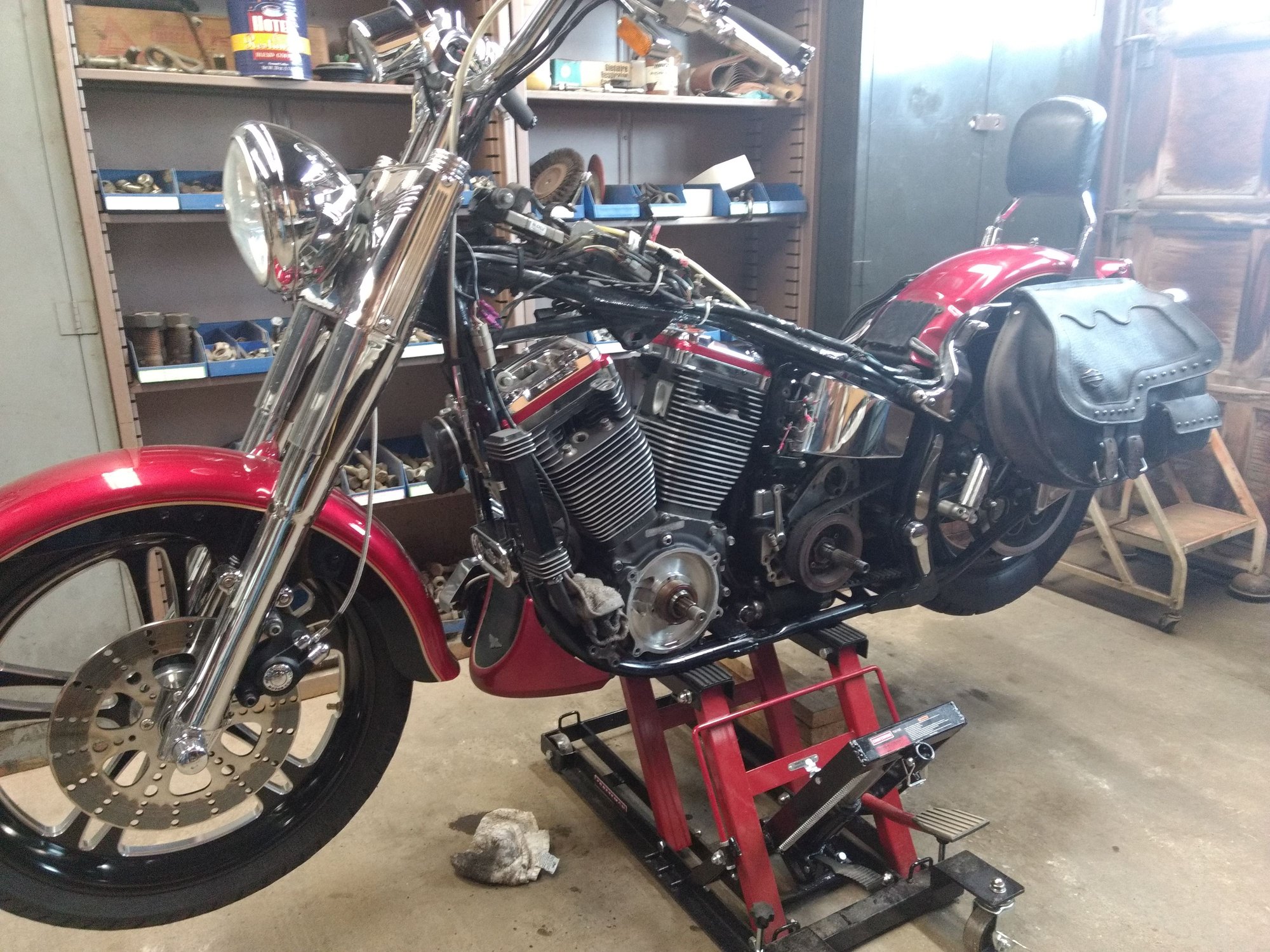

So after all the broken **** and vibrations, it's coming down to be cases and a balancing of the wheels... Probably should have done this when I initially sheared the crank pin a couple of years ago.... Any ways today wasn't to cold so I figured I'd start the tear down.. only took 4 1/2 hours, I was surprised. hopefully I'll have the new cases together by the end of January. Till then here's some pics...



​​​​​​

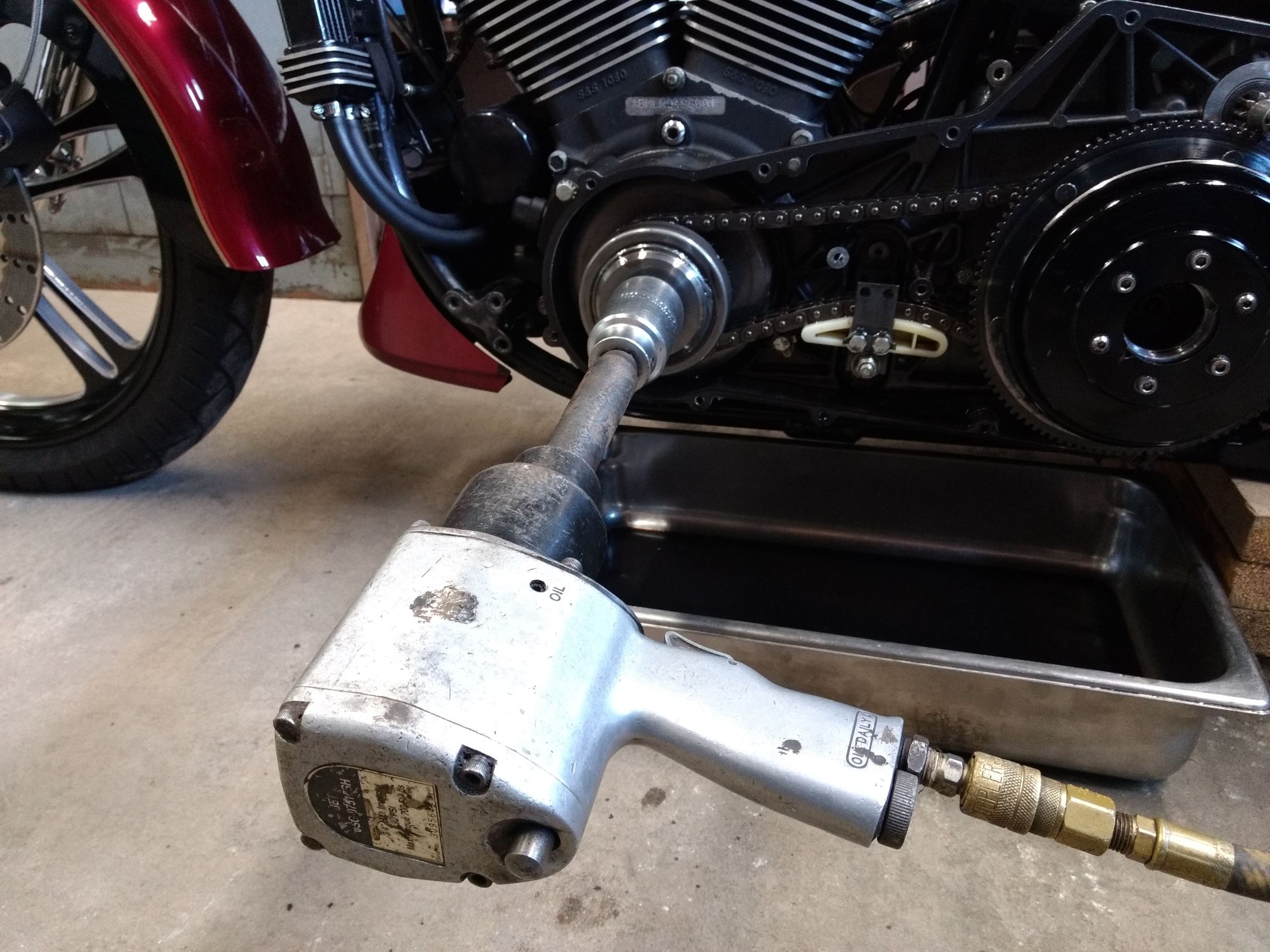

neededa little extra umph... 3/4” drive.. no problem..

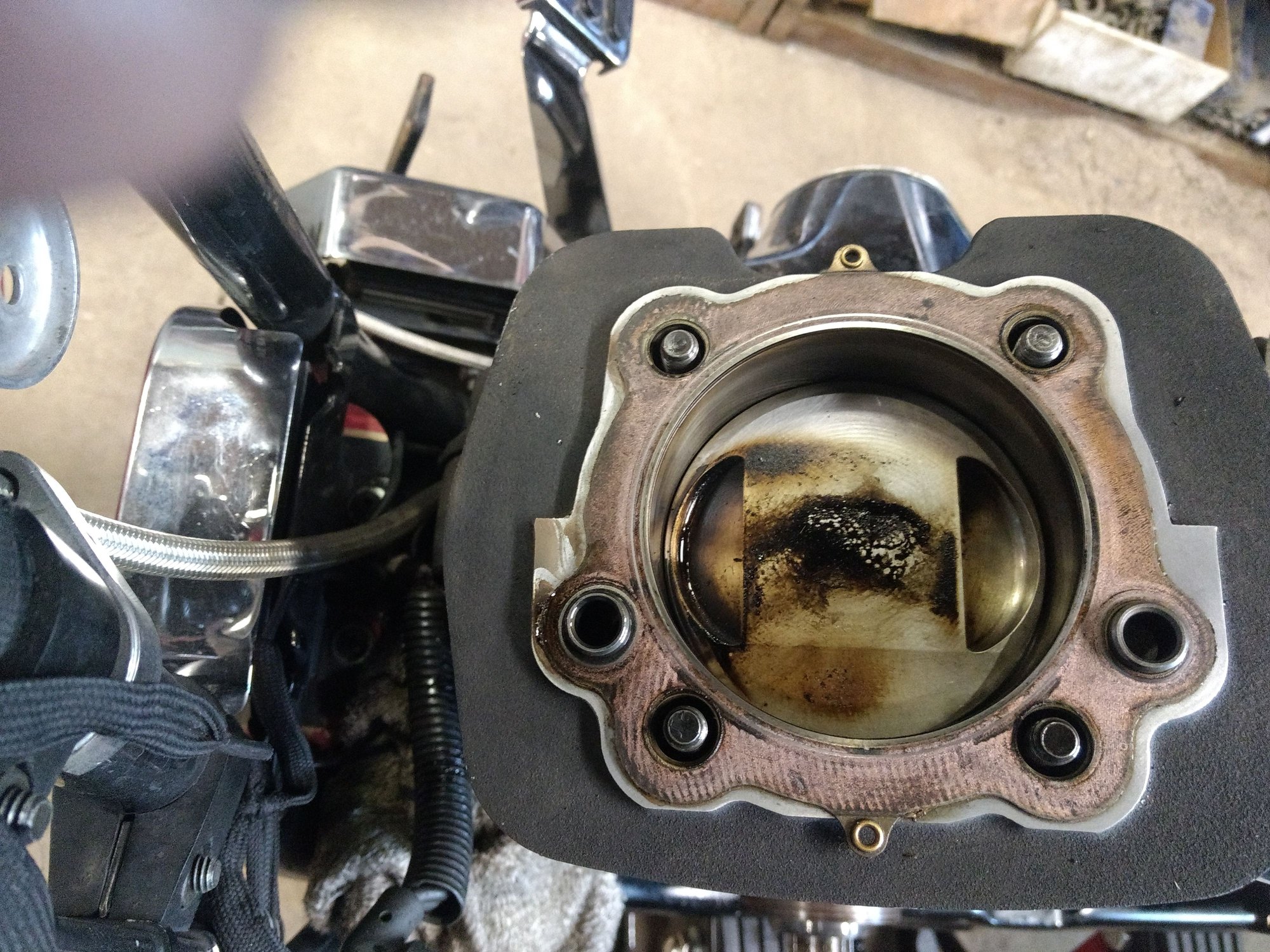

I was surprised to see how clean the Piston tops were.. I guess my Wego III IS doing it's job...

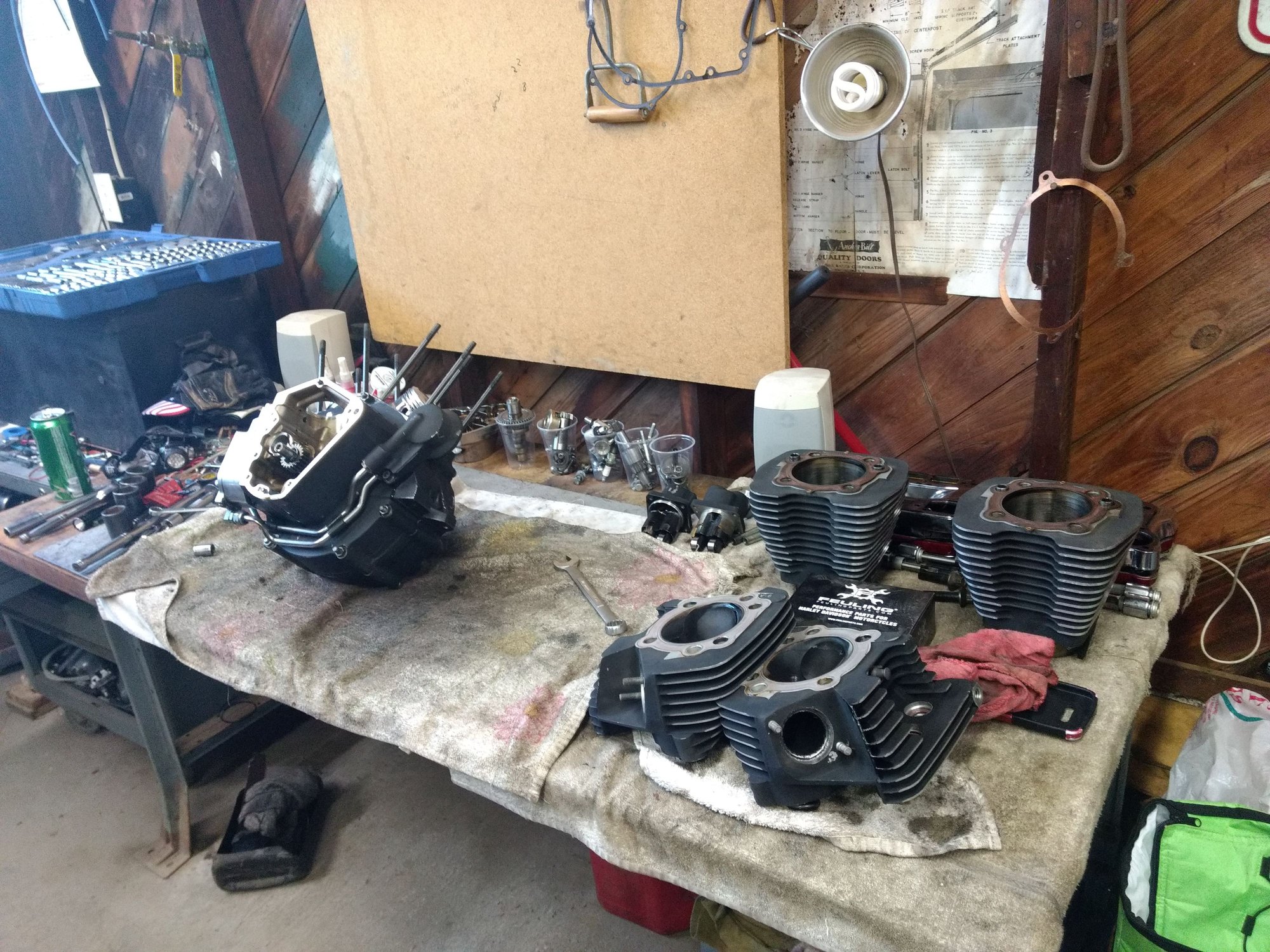

Everything's on the bench.. I was happy with the rear down...

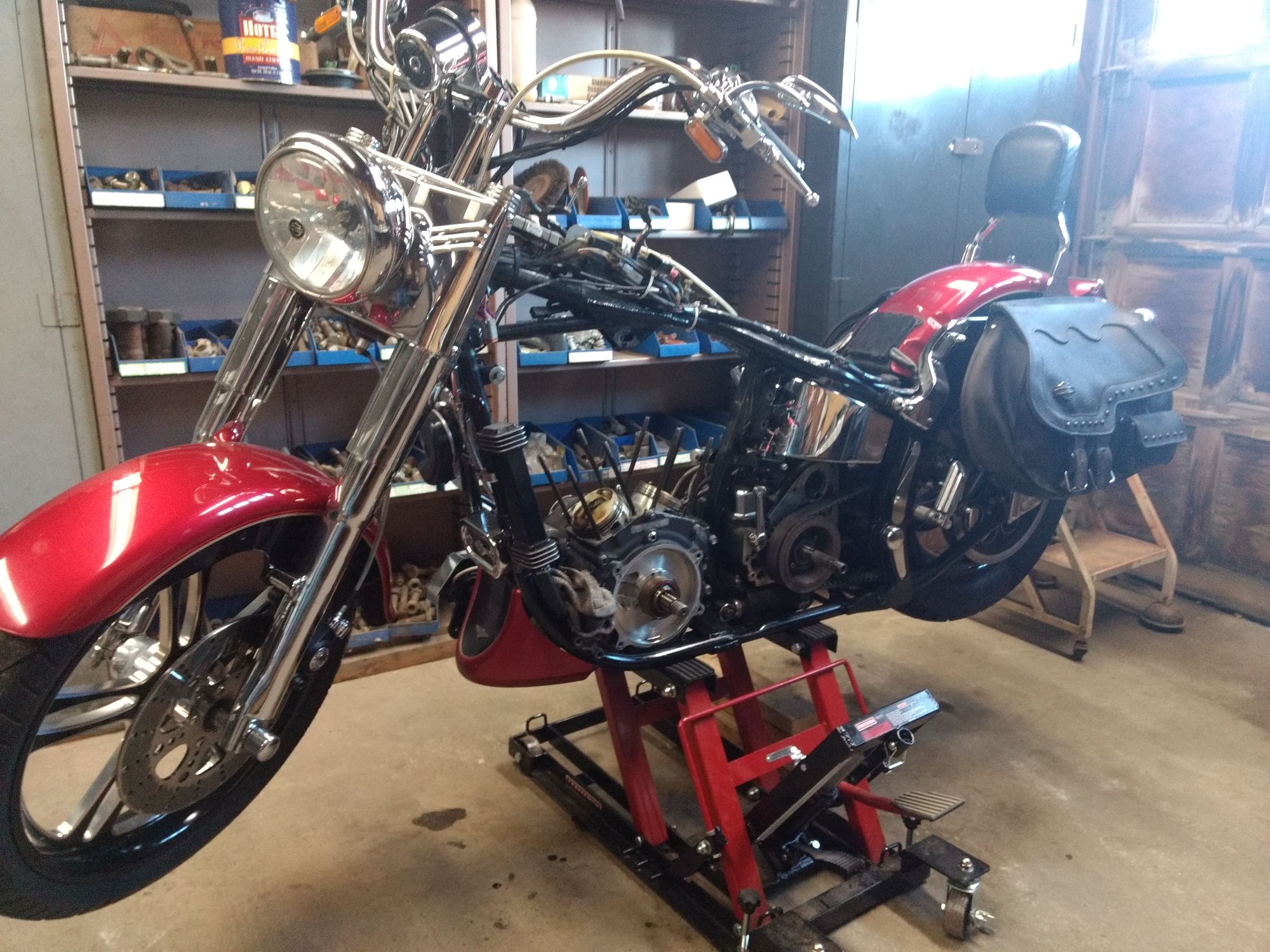

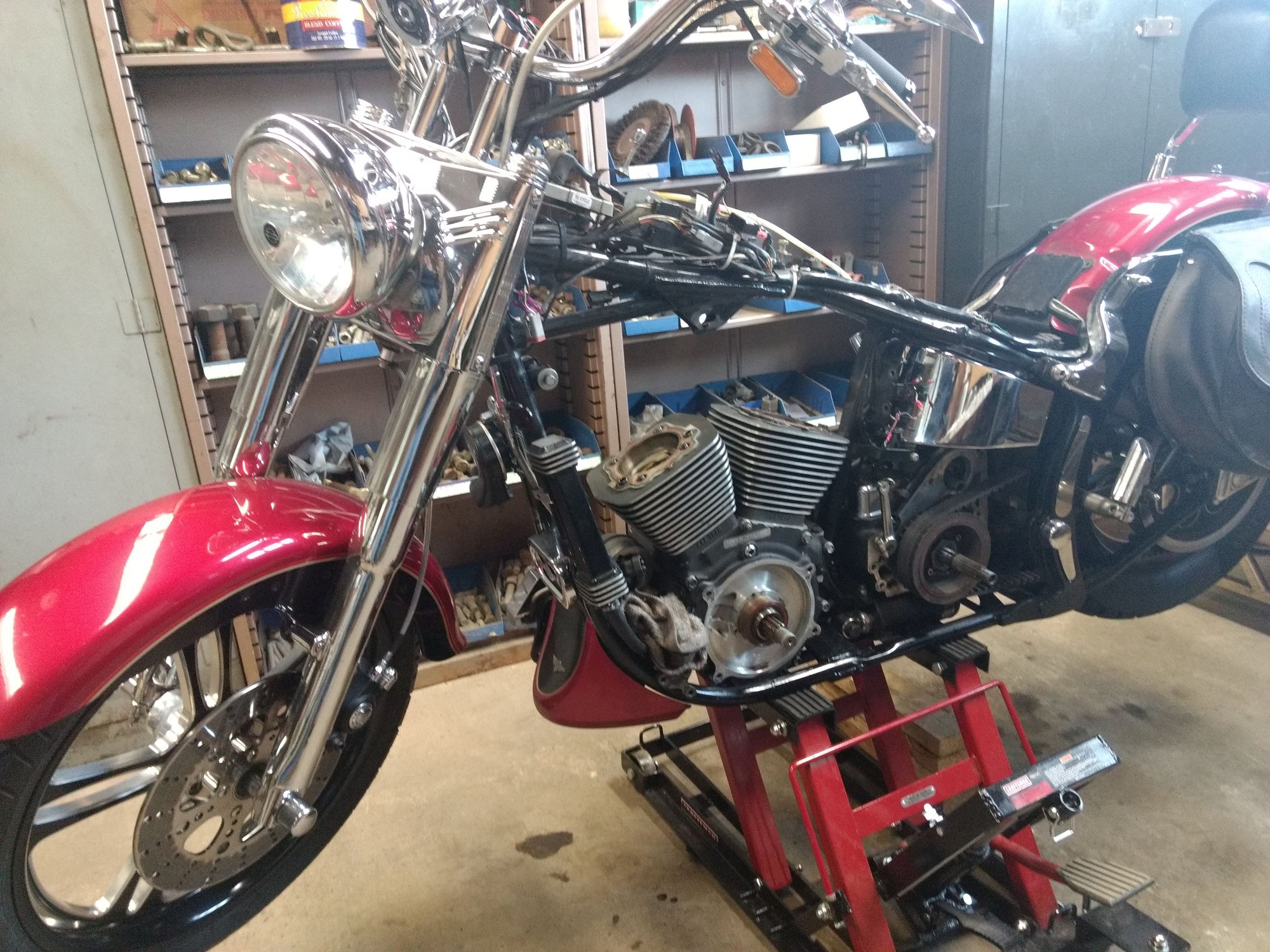

With everything out of the way it sure makes it easier to clean the frame.. lol....


Last edited by 98hotrodfatboy; Dec 22, 2018 at 04:42 PM.
Reply
Old Dec 22, 2018 | 05:17 PM
  #2
texashillcountry's Avatar
texashillcountry
Dirt don't hurt
Veteran: Navy
15 Year Member
Top Answer: 1
Top Answer: 3
Joined: Jan 2011
Posts: 21,065
Likes: 4,561
From: Haslet Texas
Default

Damn man how tight are you tightening that compensator nut that you need a 3/4" impact to get it off???????????

Reply
Old Dec 22, 2018 | 05:25 PM
  #3
98hotrodfatboy's Avatar
98hotrodfatboy
Thread Starter
|
Seasoned HDF Member
15 Year Member
Liked
Loved
Top Answer: 5
Joined: Mar 2010
Posts: 21,093
Likes: 7,622
From: Poolville
Default

Originally Posted by texashillcountry
Damn man how tight are you tightening that compensator nut that you need a 3/4" impact to get it off???????????
260 ft lbs. I believe that's what S&S wants.... Then I also use Red Loctite...

Reply
Old Dec 22, 2018 | 05:34 PM
  #4
texashillcountry's Avatar
texashillcountry
Dirt don't hurt
Veteran: Navy
15 Year Member
Top Answer: 1
Top Answer: 3
Joined: Jan 2011
Posts: 21,065
Likes: 4,561
From: Haslet Texas
Default

Originally Posted by 98hotrodfatboy
260 ft lbs. I believe that's what S&S wants.... Then I also use Red Loctite...
I wonder why they want that extra 100 ft lbs of torque....

Reply
Old Dec 22, 2018 | 07:57 PM
  #5
Tee&Vee's Avatar
Tee&Vee
Stellar HDF Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jul 2011
Posts: 2,583
Likes: 115
From: Boston, MA
Default

Originally Posted by 98hotrodfatboy
260 ft lbs. I believe that's what S&S wants.... Then I also use Red Loctite...
There is too much temptation to use lots of red loctite. The fsm says a drop.

What does s&s have to say? I figured somebody much smarter than me wrote the instructions....

Reply
Old Dec 22, 2018 | 08:33 PM
  #6
98hotrodfatboy's Avatar
98hotrodfatboy
Thread Starter
|
Seasoned HDF Member
15 Year Member
Liked
Loved
Top Answer: 5
Joined: Mar 2010
Posts: 21,093
Likes: 7,622
From: Poolville
Default

Originally Posted by texashillcountry
I wonder why they want that extra 100 ft lbs of torque....
my FSM says 160-210...

Originally Posted by Tee⋁17908589
There is too much temptation to use lots of red loctite. The fsm says a drop.

What does s&s have to say? I figured somebody much smarter than me wrote the instructions....
I'll have to check, I don't know of the top of my head..

Reply
Old Dec 22, 2018 | 09:49 PM
  #7
misfitJason's Avatar
misfitJason
Seasoned HDF Member
15 Year Member
Liked
Loved
Community Favorite
Joined: Dec 2010
Posts: 6,849
Likes: 1,389
From: Florida
Default

I know I've said it before, but, that's a great looking Fatboy!

Reply
Old Dec 22, 2018 | 10:33 PM
  #8
98hotrodfatboy's Avatar
98hotrodfatboy
Thread Starter
|
Seasoned HDF Member
15 Year Member
Liked
Loved
Top Answer: 5
Joined: Mar 2010
Posts: 21,093
Likes: 7,622
From: Poolville
Default

Originally Posted by misfitJason
I know I've said it before, but, that's a great looking Fatboy!
Thanks Jason.... With all the newer bikes around it does get some nice attention...

Reply
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-1

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-2

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-3

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-4

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-5

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
story-6

Harley-Davidson Reveals Super Cool Cafe Racer Concept

 Verdad Gallardo
story-7

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

 Verdad Gallardo
story-8

10 Motorcycles You Should Never Buy

 Joe Kucinski
story-9

10 Things Harley-Davidson Needs to Fix in 2026

 Verdad Gallardo
Old Dec 23, 2018 | 06:49 AM
  #9
texashillcountry's Avatar
texashillcountry
Dirt don't hurt
Veteran: Navy
15 Year Member
Top Answer: 1
Top Answer: 3
Joined: Jan 2011
Posts: 21,065
Likes: 4,561
From: Haslet Texas
Default

Originally Posted by 98hotrodfatboy
my FSM says 160-210...


I'll have to check, I don't know of the top of my head..
I just went and looked in my FSM and it rates the compensating nut at 150-165 ft lbs.
I wonder why they changed the rating so much in just 3 years.

Reply
Old Dec 23, 2018 | 08:37 AM
  #10
grbrown's Avatar
grbrown
Club Member
15 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2007
Posts: 45,429
Likes: 2,898
From: Bedford UK
Default

I don't know either, but earlier bikes, going back to the shovels, needed truck-sized tools to disturb or refit the Comp. That's where my aversion to disturbing the primary myself has its origins!

Reply
