Need Advice Please
Too much damage? I just dont know.

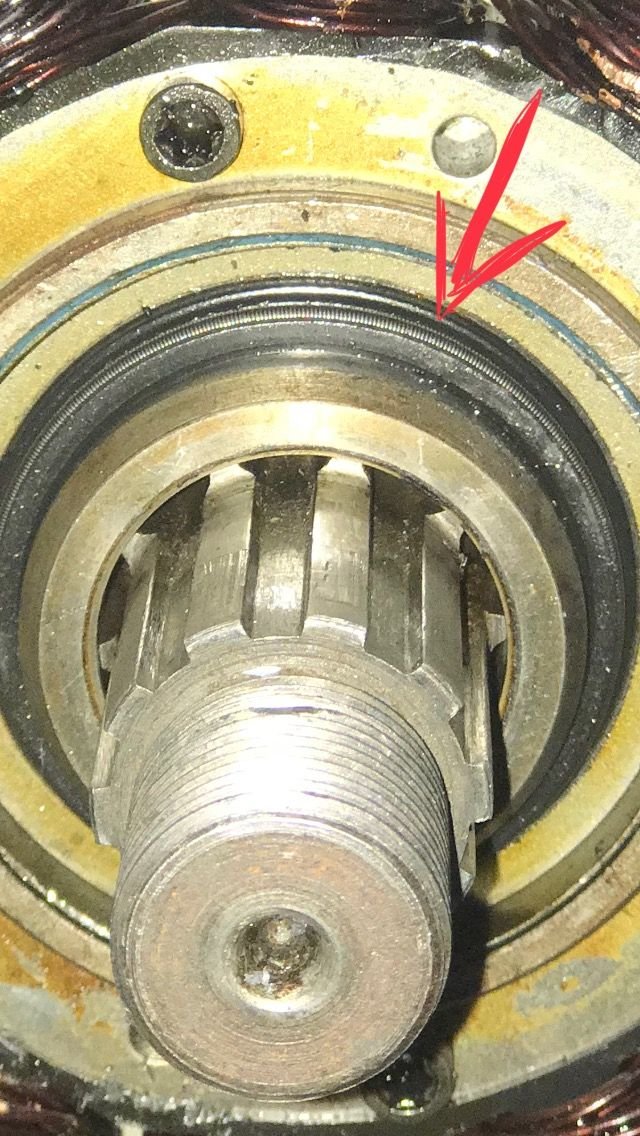

Oil seal look backwards?

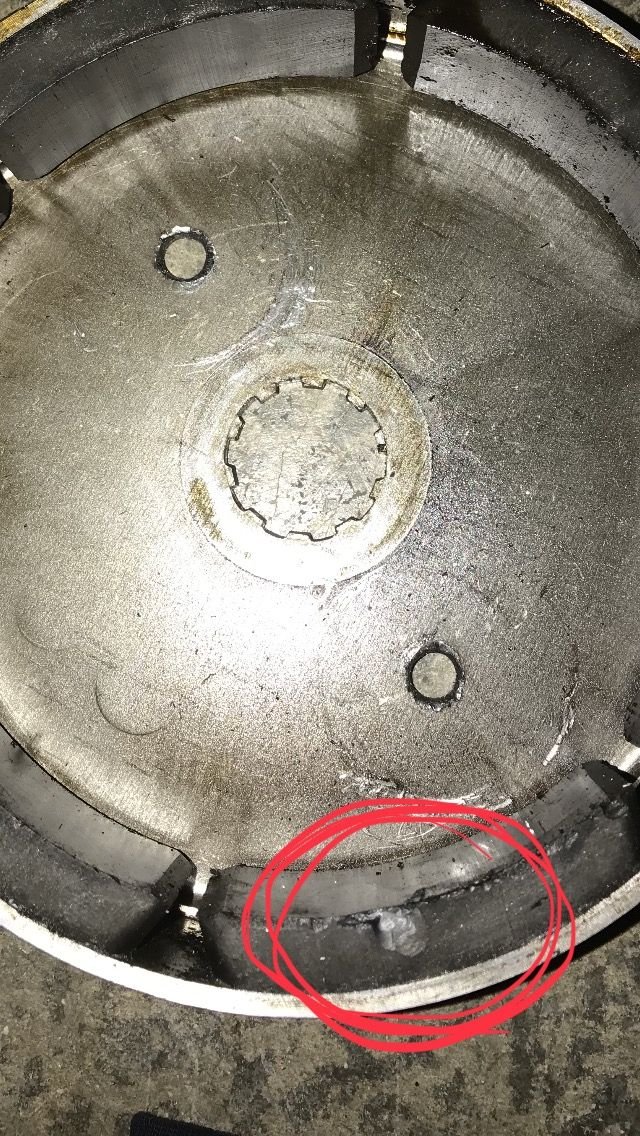

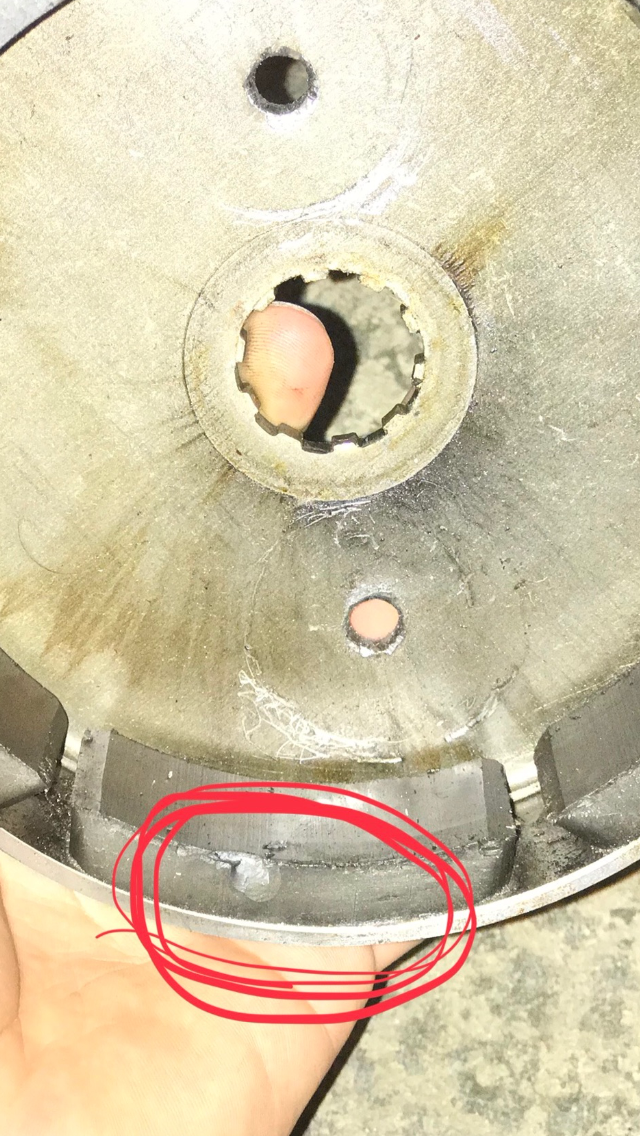

Knick

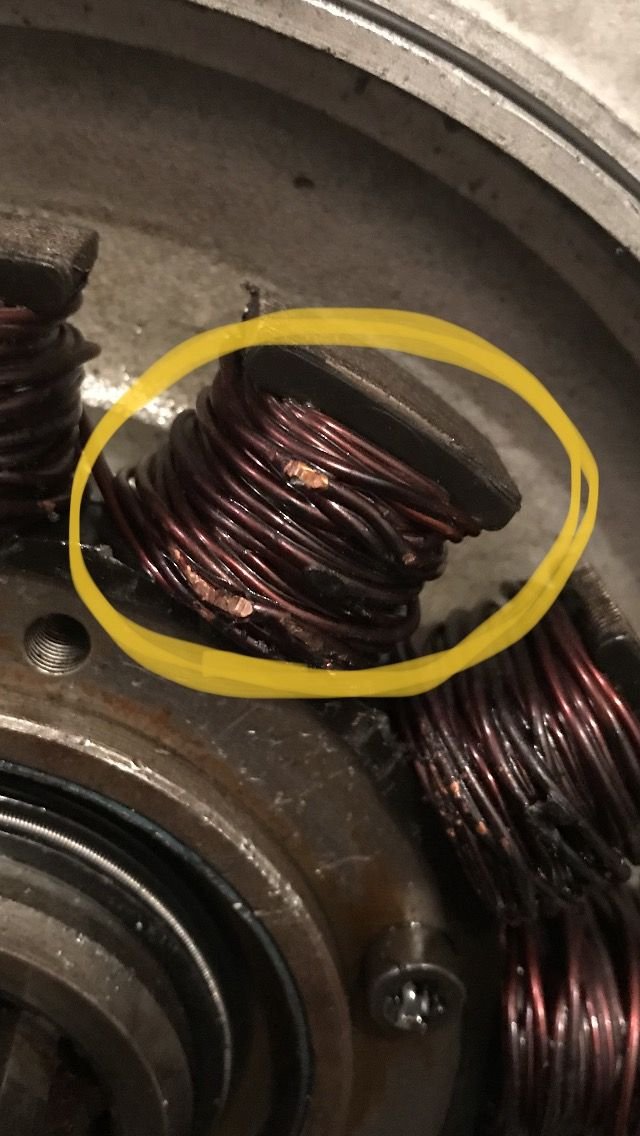

Knicks

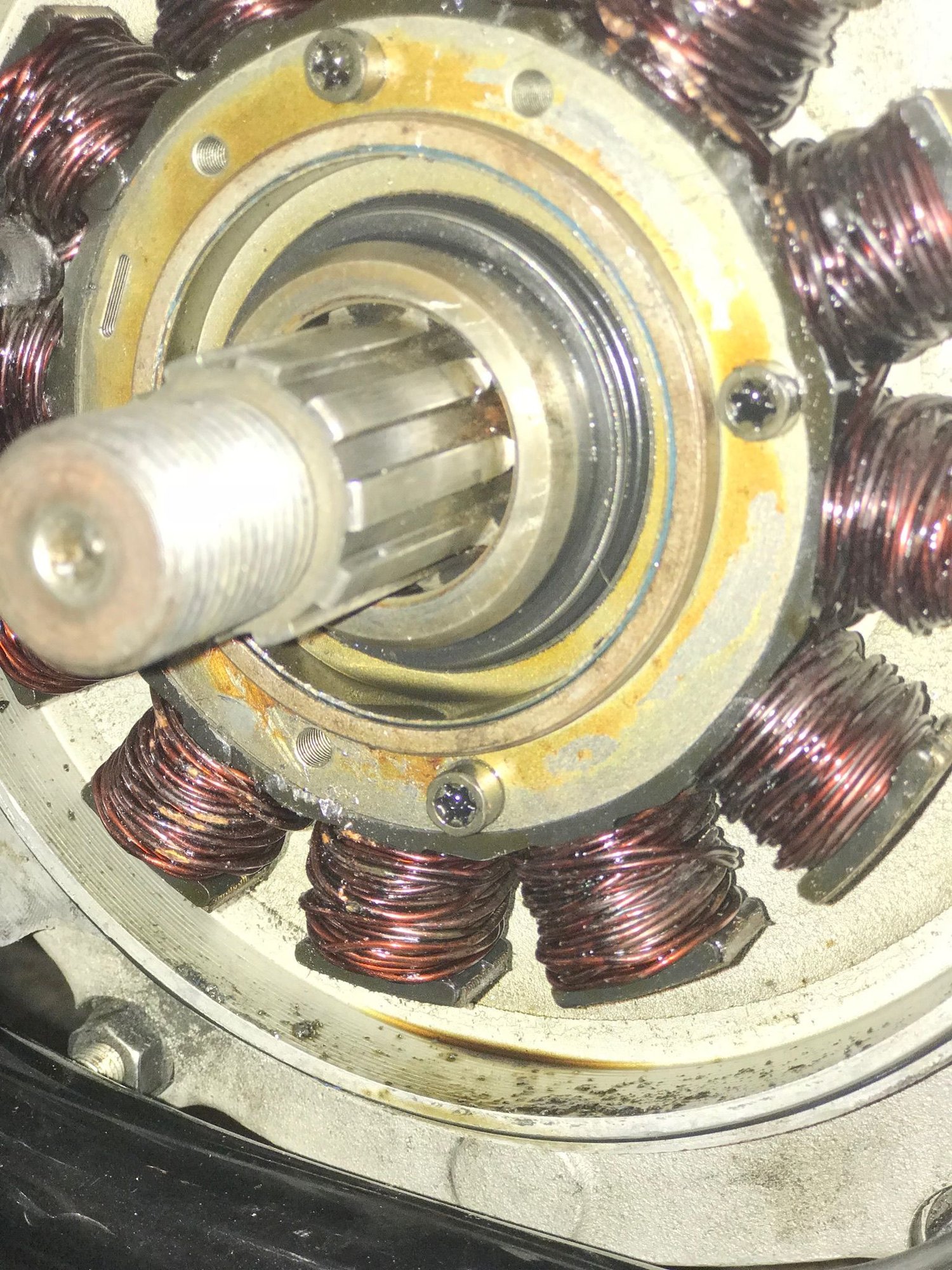

There is the leak

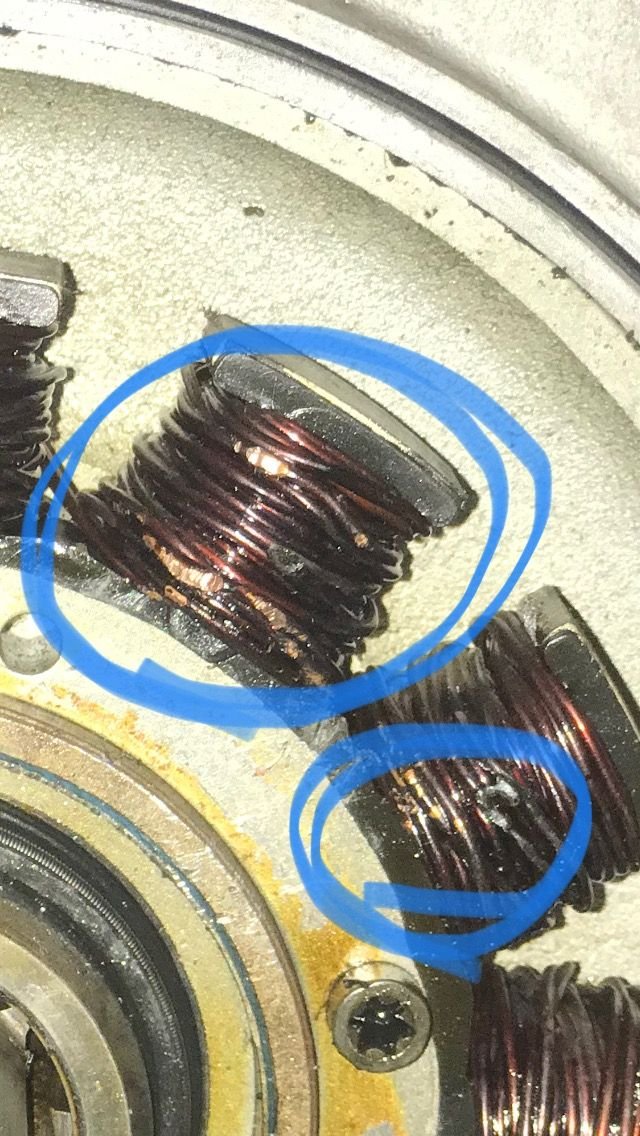

Same knick
Good morning! I have a 1980 FXE 1200. Leaking oil from Main shaft seal of motor (the one located in the middle of the stator). Had to FIGHT to get the alternator rotor aka stator cover off. In the process I may have knicked one of the magnets on the inside of the rotor/cover AND knicked one of the coils on the stator. I need advice on weather they are too damaged in which case I would need to replace the magnets and stator OR I am good to go to ignore it and reuse them. And on a side note I noticed the person who installed the seal installed it BACKWARDS!! Or so it seems.... must be why its leaking. Any advice on how to get that out would be appreciated as wells Thanks in advance! Pictures posted below.
Seasoned HDF Member
Joined: Jul 2014
Posts: 8,613
Likes: 3,380
From: Cental, MI
Oil seal is Not leaking... Leave it be... Gonna get alot of Internet Opinion on the Orientation of the Seal.. Long as yer staying pretty much stock... leave it alone!!!
Rotor?? That chip does Not concern me.. long as the Magnets are Secure.. and I mean Will Not Budge one tiny bit!!
Now, The Stator? I would Not reassemble with that one... Inexpensive to get the Correct one... and Do Not go Chiwanese, unless you enjoy disassembly!!
A good Quality Stator [I prefer O.E. if I can get 'em... Even Used] and Get on with it..
BTW if you call that tiny smear on the inside of the Rotor a leak... You need a Different Brand!!!
Rotor?? That chip does Not concern me.. long as the Magnets are Secure.. and I mean Will Not Budge one tiny bit!!
Now, The Stator? I would Not reassemble with that one... Inexpensive to get the Correct one... and Do Not go Chiwanese, unless you enjoy disassembly!!
A good Quality Stator [I prefer O.E. if I can get 'em... Even Used] and Get on with it..
BTW if you call that tiny smear on the inside of the Rotor a leak... You need a Different Brand!!!
Last edited by Racepres; May 17, 2018 at 08:55 AM.
Thread Starter
|
Cruiser
Joined: Aug 2013
Posts: 163
Likes: 1
From: Broomall
Oil seal is Not leaking... Leave it be... Gonna get alot of Internet Opinion on the Orientation of the Seal.. Long as yer staying pretty much stock... leave it alone!!!
Rotor?? That chip does Not concern me.. long as the Magnets are Secure.. and I mean Will Not Budge one tiny bit!!
Now, The Stator? I would Not reassemble with that one... Inexpensive to get the Correct one... and Do Not go Chiwanese, unless you enjoy disassembly!!
A good Quality Stator [I prefer O.E. if I can get 'em... Even Used] and Get on with it..
BTW if you call that tiny smear on the inside of the Rotor a leak... You need a Different Brand!!!
Rotor?? That chip does Not concern me.. long as the Magnets are Secure.. and I mean Will Not Budge one tiny bit!!
Now, The Stator? I would Not reassemble with that one... Inexpensive to get the Correct one... and Do Not go Chiwanese, unless you enjoy disassembly!!
A good Quality Stator [I prefer O.E. if I can get 'em... Even Used] and Get on with it..
BTW if you call that tiny smear on the inside of the Rotor a leak... You need a Different Brand!!!
Thanks!! And will do! by original equipment you mean from HD? They supposedly have them but Idk if they are American made anymore 😳
Seasoned HDF Member
Joined: Oct 2007
Posts: 8,852
Likes: 2,494
From: Decatur, Alabama
I replaced that seal on mine a couple of years ago and I can't for the life of me remember if it went in backwards or not. I "think" it is in there correctly but you need to consult the factory service manual about it. I would replace that stator while you are there. If you can't get OEM, Cycle Electric makes them (USA TOO) and I've read they were well regarded.
Your leak might be from that big *** O ring that's between the inner primary and the crankcase. Don't forget to take a good look at your inner primary bearing before you start buttoning it up. And if there are any burrs around your knicks, polish them out with fine sandpaper. There is a correct sequence to tighten down the inner primary to the crankcase and transmission, it's all explained in the manual.
carl
Your leak might be from that big *** O ring that's between the inner primary and the crankcase. Don't forget to take a good look at your inner primary bearing before you start buttoning it up. And if there are any burrs around your knicks, polish them out with fine sandpaper. There is a correct sequence to tighten down the inner primary to the crankcase and transmission, it's all explained in the manual.
carl
Thread Starter
|
Cruiser
Joined: Aug 2013
Posts: 163
Likes: 1
From: Broomall
Ok thanks gents!The Harley dealership said they can have one for me tomorrow. And as long as that magnet is tightly in there (which I believe it is) Ill go with re using that rotor. . I can reuse the regulator and assume its just a plug and go scenario? Thanks in advance!
