Stators
Difference between molded an unmolded stators? By the look, assuming its bare v covered wiring? Pros & cons for both?
Are there things to consider if I order a new charging system and it's 32 amp?
Are there things to consider if I order a new charging system and it's 32 amp?
Last edited by HellaGNARLY; Mar 14, 2024 at 12:48 PM.
Stellar HDF Member
Joined: Aug 2012
Posts: 2,664
Likes: 184
From: Indiana, USA
Just trying to keep this going, Not sure I have seen a molded stator to compare but... a stator is just a magnet wire winding with the magnet wire being coated to avoid shorts. The important part of the stator is the windings so assume a molded stator is more protected than an exposed magnet wire stator. As for amps higher is better as my shovel I think only has 25A but back then accessories were not common. I believe the voltage regulator needs to be matched to the stator.
Thread Starter
|
Tourer
Joined: Mar 2020
Posts: 339
Likes: 138
From: Bay Area/Valley, California
Just trying to keep this going, Not sure I have seen a molded stator to compare but... a stator is just a magnet wire winding with the magnet wire being coated to avoid shorts. The important part of the stator is the windings so assume a molded stator is more protected than an exposed magnet wire stator. As for amps higher is better as my shovel I think only has 25A but back then accessories were not common. I believe the voltage regulator needs to be matched to the stator.
Seasoned HDF Member
Joined: Feb 2016
Posts: 8,001
Likes: 6,901
From: NC
Look at Cycle Electrics. I have used them on my 1989 and 2002 ElectraGlides. Comparing the HD stock to the Cycle Electric one, while both are in your hands, will reveal huge differences.
Thread Starter
|
Tourer
Joined: Mar 2020
Posts: 339
Likes: 138
From: Bay Area/Valley, California
Stellar HDF Member
Joined: Aug 2012
Posts: 2,664
Likes: 184
From: Indiana, USA

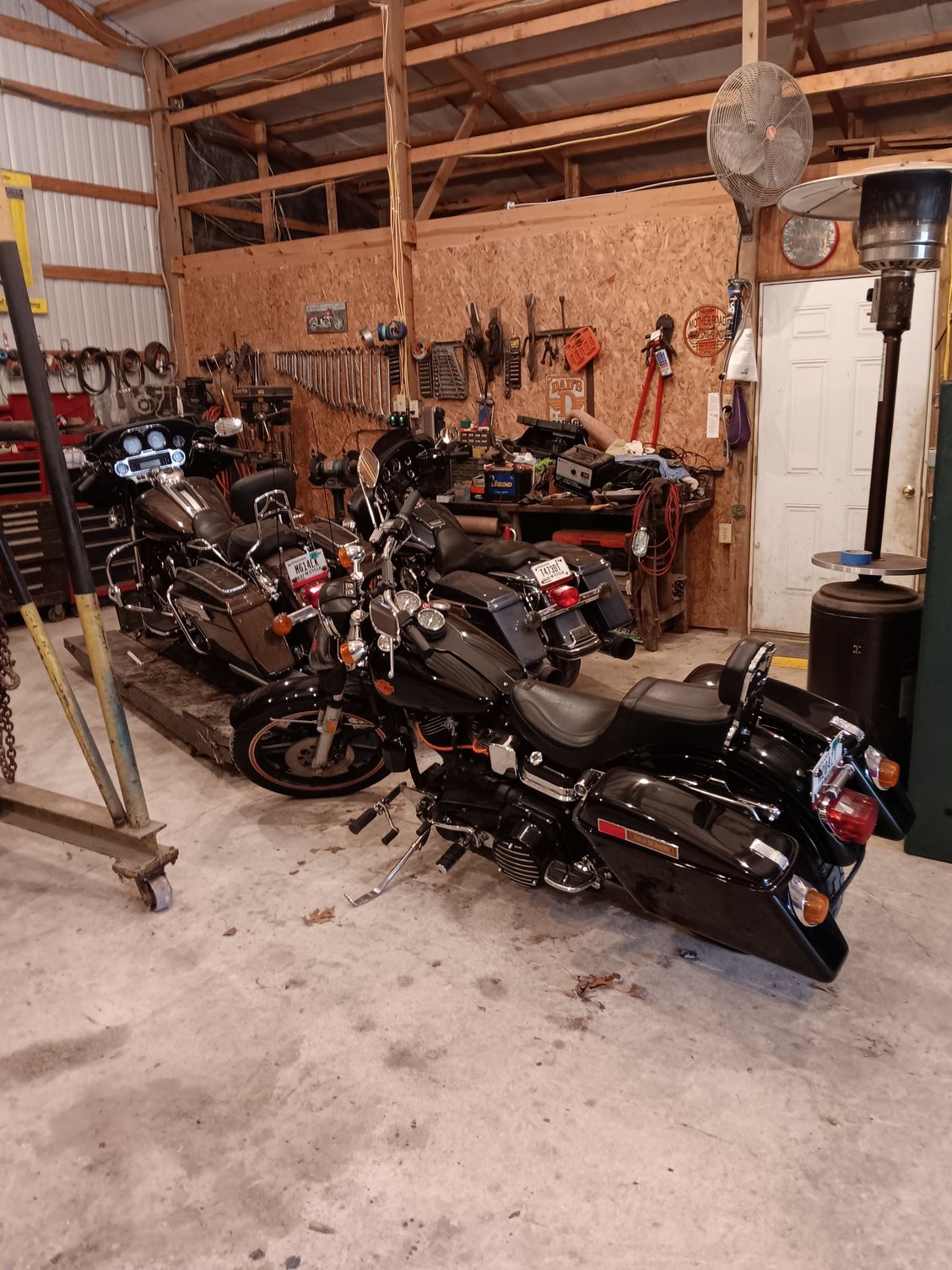

My Sturgis still has original stator, replaced regulator a few years ago. Gunmetal '03 has the aftermarket stator. No charging issues yet with '13 Limited
Trending Topics
Thread Starter
|
Tourer
Joined: Mar 2020
Posts: 339
Likes: 138
From: Bay Area/Valley, California
Can I bench test the regulator and stator to see if I have an issue or will I only know from the battery?
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Stellar HDF Member
Joined: Aug 2012
Posts: 2,664
Likes: 184
From: Indiana, USA
I do not know how to bench test regulator so usually test together. Regulator simply is 3 diodes that rectify Alternating current from Stator to Direct Current. AC to DC
I check regulator by check battery voltage engine off then start and check voltage again. You should see an increase at maybe 13.8 volts when running at the battery, only 12v when not running.
The stator is a winding, magnet wire that has the coating to stop shorts. You can disconnect the regulator at the case left front and with a multi meter check resistance between the pins. Its a winding, should have continuity unless it has a broken wire. Also should not have continuity from either pin to the case ground.
So if stator winding is not open the winding is in tact unless it is shorted to the case and grounded. Continuity between 2 stator pins but no continuity from either pin to ground. Hope this makes sense.
I check regulator by check battery voltage engine off then start and check voltage again. You should see an increase at maybe 13.8 volts when running at the battery, only 12v when not running.
The stator is a winding, magnet wire that has the coating to stop shorts. You can disconnect the regulator at the case left front and with a multi meter check resistance between the pins. Its a winding, should have continuity unless it has a broken wire. Also should not have continuity from either pin to the case ground.
So if stator winding is not open the winding is in tact unless it is shorted to the case and grounded. Continuity between 2 stator pins but no continuity from either pin to ground. Hope this makes sense.
