A voltage regulator knows how much to charge by constantly monitoring the system's voltage and adjusting the alternator's magnetic field strength by rapidly switching current to the field coils, aiming for a steady voltage (around 13.5-14.7V).
The voltage regulator on modern Harley Davidsons does not adjust the magnetic field strength.
Harley`s use a permanent magnet alternator system.
The voltage regulator controls voltage by shunting excess power and converting it to heat.
Can you suggest the author of the AI answer research it...
Harley's like you say don't have wire wound field coils. The rotor with magnets spins outside the stator. I assume, it doesn't need a battery to make current unlike a most car alternator, regulator system.
AI..

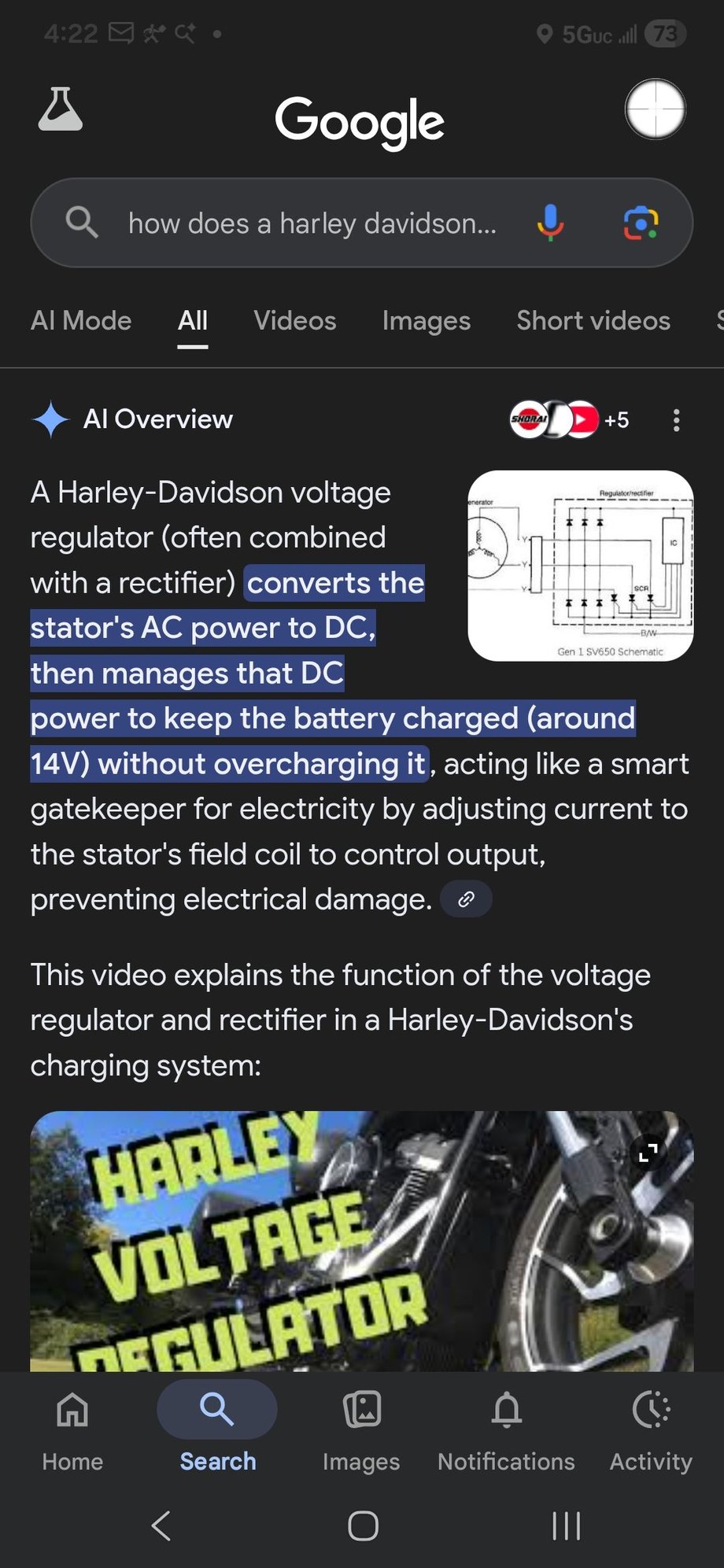

how does a harley davidson voltage regulator work
A Harley-Davidson voltage regulator (often combined with a rectifier) converts the stator's AC power to DC, then manages that DC power to keep the battery charged (around 14V) without overcharging it, acting like a smart gatekeeper for electricity by adjusting current to the stator's field coil to control output, preventing electrical damage.
This video explains the function of the voltage regulator and rectifier in a Harley-Davidson's charging system:
Last edited by Jackie Paper; Jan 22, 2026 at 04:33 PM.
Put the shovel away...You`ve piled it up high enough already.
The rotor spins outside the stator, not inside.
I don`t give a rat`s a$$ what AI says about this or any other subject.
The forum is a tool to get in contact with people who have actual knowledge and experience, not for their question to be sluffed off to an AI bot.
Actually, I made the clerical error on inside with the other details getting it down and Was pondering which is considered the armature, which is usually what spins.
My original post you corrected with your info is not even in my OEM service manual or the Electrical Diagnostic Manuals.
And I learned something from your post.
Then only way depth can get proper understanding sometimes is necessary to do it this way.
If you don't like it, that's tough. Don't let your secrets out.
Brandon does AI. He may be able to fix it. AI should not be that far off.
AI can summarize in a few paragraphs what's in a 1" thick manual. AI is created by people's input. It's obviously grabbing it from a car system.
That has a brush, and spinning wire wrapped armature and wire field coils. That requires a battery to make it start charging.
Last edited by Jackie Paper; Jan 22, 2026 at 04:55 PM.
This like Dan's is the proper path AI should take for Harleys system
Modern Harley-Davidson motorcycles utilize a permanent magnet alternator (PMA) system, which consists of a rotor with permanent magnets attached to the engine sprocket shaft and a fixed stator coil in the primary case. The voltage regulator/rectifier (VR) for this system typically controls the output voltage by shunting excess power to ground, converting it into heat.
How the System Operates
Permanent Magnet Alternator: Unlike car alternators that use electromagnets (field coils) to adjust output, Harleys use permanent magnets. This means the stator produces maximum power based on engine RPM, not on the electrical load requirements.
Voltage Regulation (Shunt Method): As the engine speed increases, the stator produces excessive AC voltage. To prevent overcharging the battery, the regulator uses components like Silicon Controlled Rectifiers (SCRs) or MOSFETs to "shunt" (short-circuit) the excess voltage/current to ground.
Heat Generation: The shunt method is a "lossy" system. Shorting the stator phases creates significant heat in the rectifier/regulator, which is why they are designed with cooling fins.
Alternative Systems: While the shunt type is common, some aftermarket, higher-efficiency regulators for Harleys use a series-based method, which blocks current rather than shunting it to ground, reducing heat and engine load.
Key Takeaways
Permanent Magnets: The rotor magnets are always active, so the stator always generates power.
Voltage Regulation: The regulator/rectifier converts AC to DC and limits voltage to approximately 14.5v.
Heat: Shunting excess power to ground converts it into heat, requiring proper cooling for the regulator.
Last edited by Jackie Paper; Jan 22, 2026 at 07:20 PM.
@Op...My $30 regulator/rectifier from ghina (#74711-08 for 07'-13' sporty) is working bigly, can't say abt longevity yet. Try it since ur budget is tight atm.
Suggets u go thought the wiring before putting everything back together.
Also if ur wanna geek out a bit more n replace smd components on the burned unit..here's one of my posts that would be helpful in testing/replacing the thyristors, diodes etc.
The voltage regulator on modern Harley Davidsons does not adjust the magnetic field strength.
Harley`s use a permanent magnet alternator system.
The voltage regulator controls voltage by shunting excess power and converting it to heat.
I thought about rigging up a Shindengen MOSFET regulator from Roadstercycle, but it
seemed to be a lot of work vs the Cycle Electric version which was just "plug-n-play".... https://roadstercycle.com/
