No lights
Club Member
Joined: Apr 2013
Posts: 7,681
Likes: 8,413
From: Utah

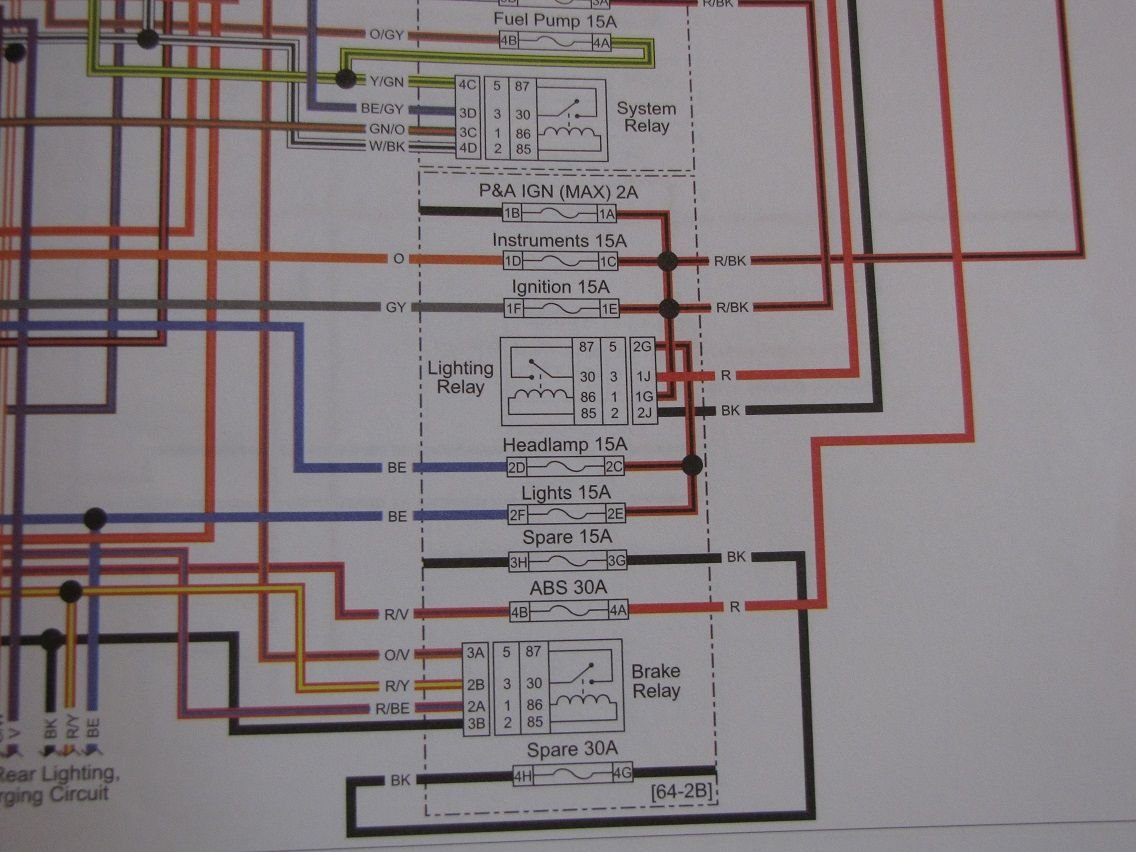

As Buelligan666 said the coil of the lighting relay gets 12V from the ignition switch. When the relay pulls in 12V from the battery goes through the relay contacts and supplies voltage to both the Headlamp fuse and the Lights fuse. You have headlight so you should have 12V to the Lights fuse, check the fuse again. Pull the headlight fuse and swap it with the Lights fuse and turn the Ignition on.
The ground stud for the lights is the same for the fuel pump and horn so if they work the ground may be ok.

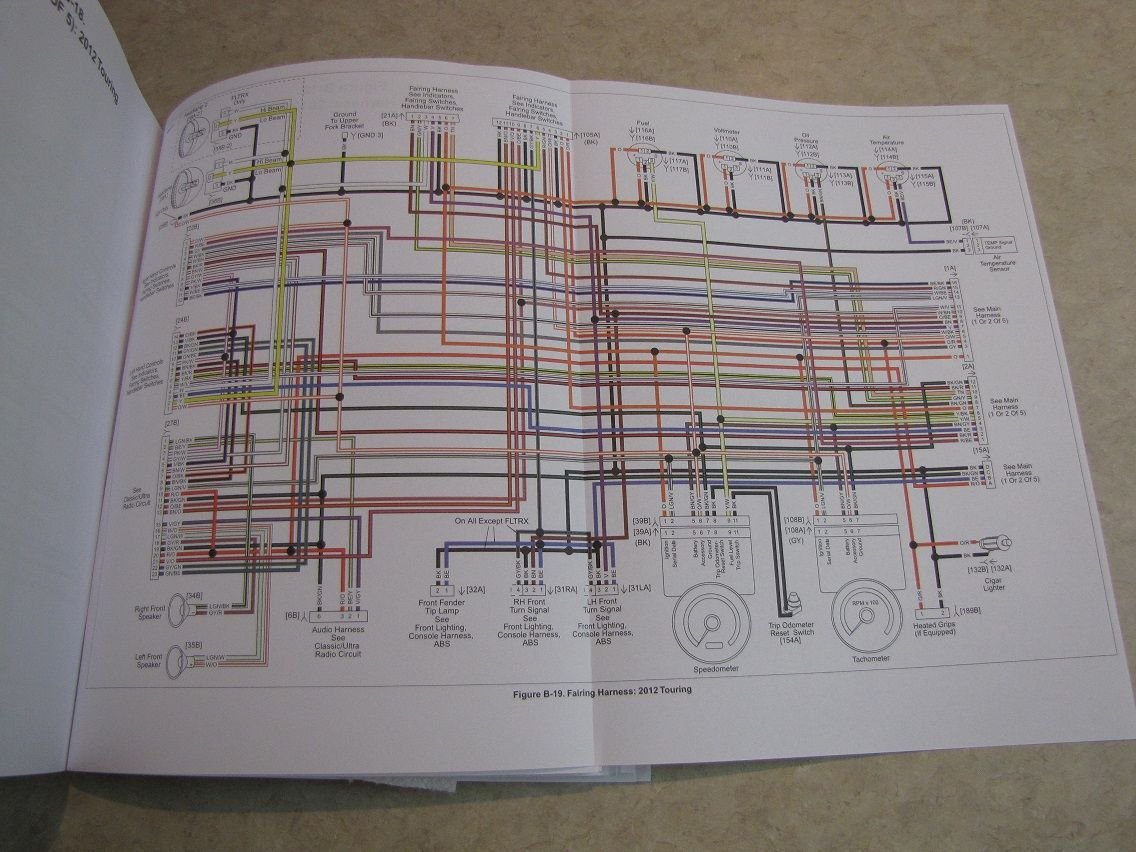

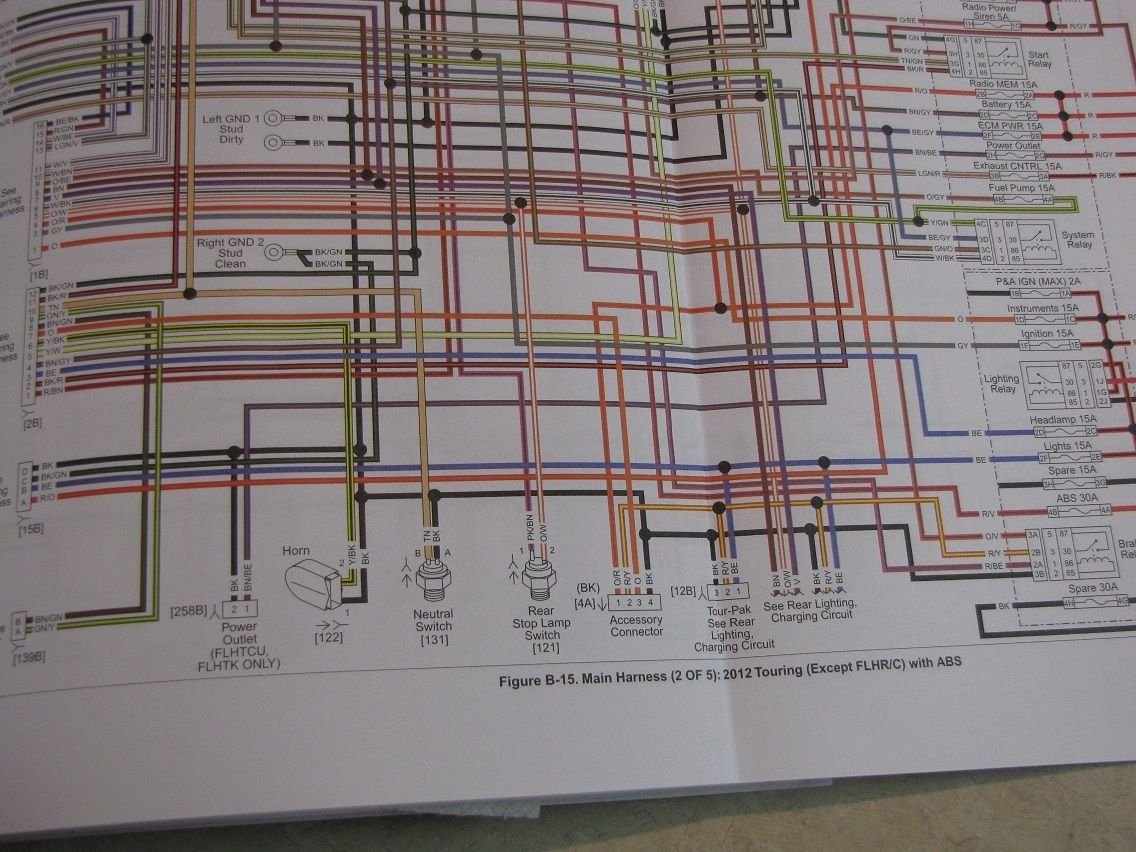

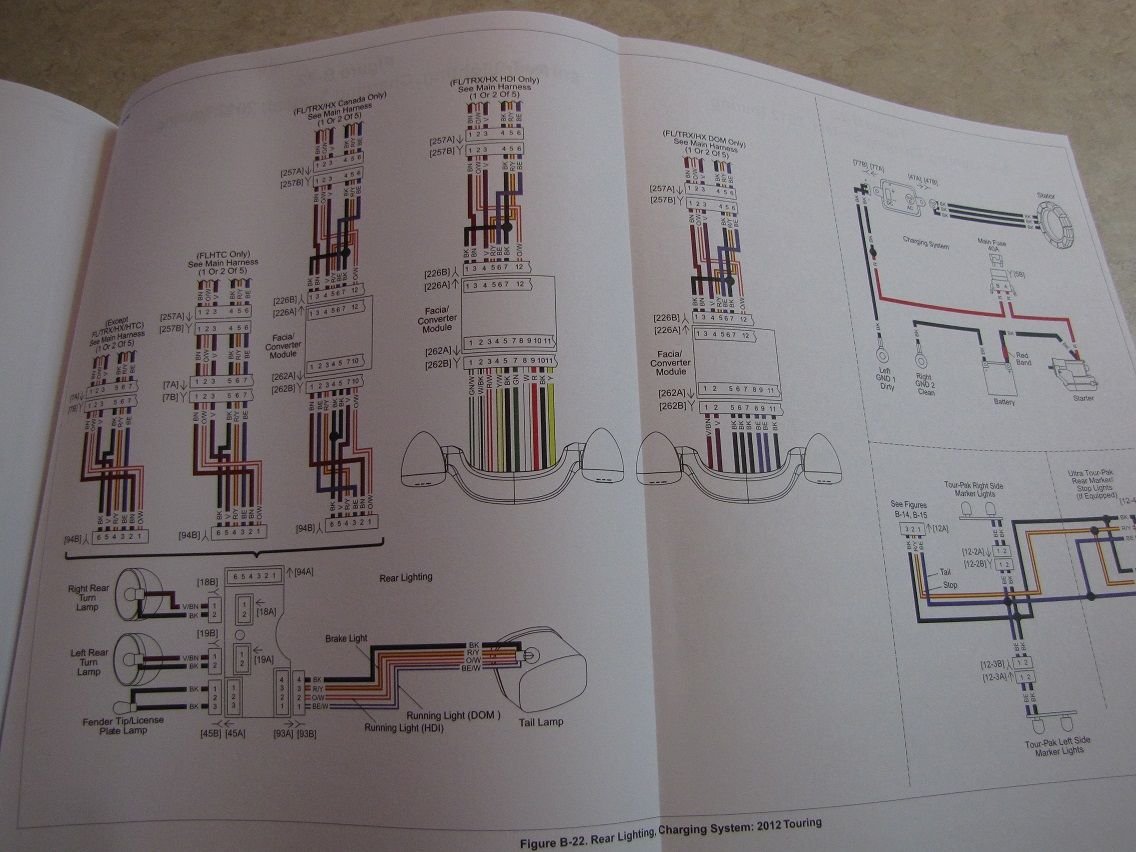

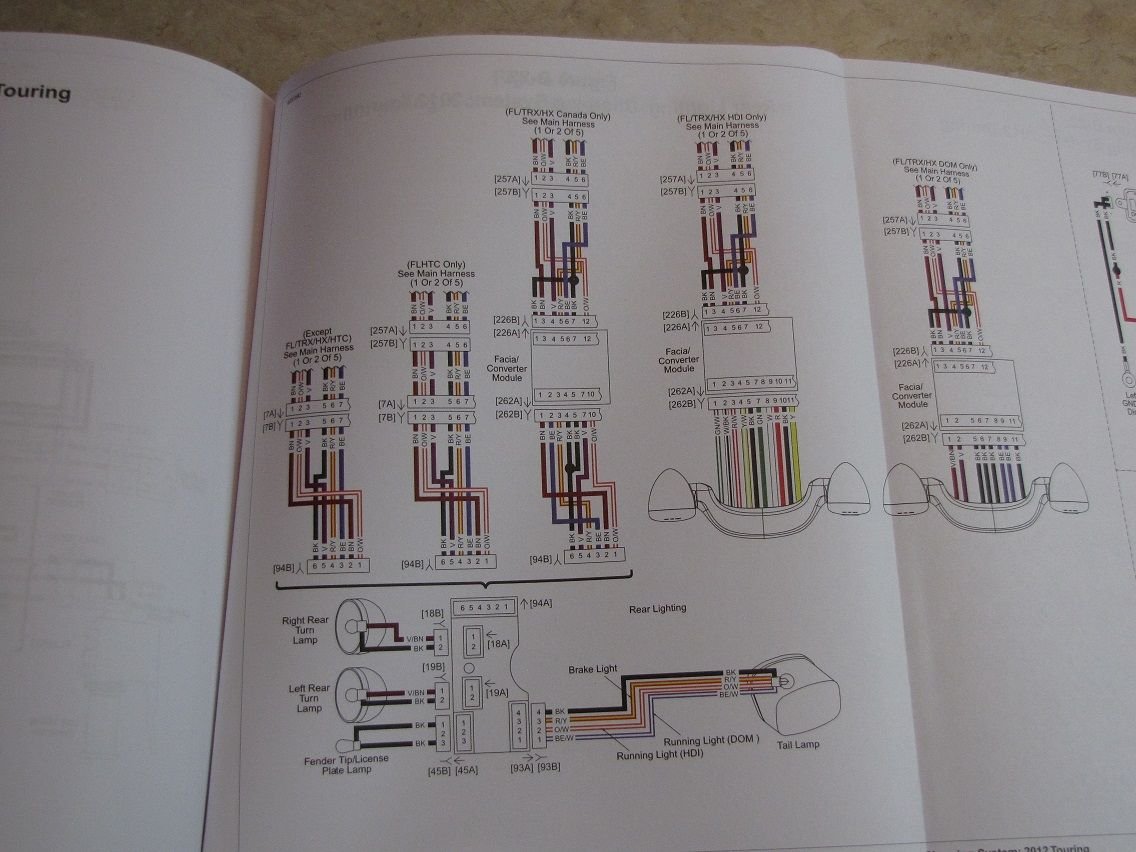

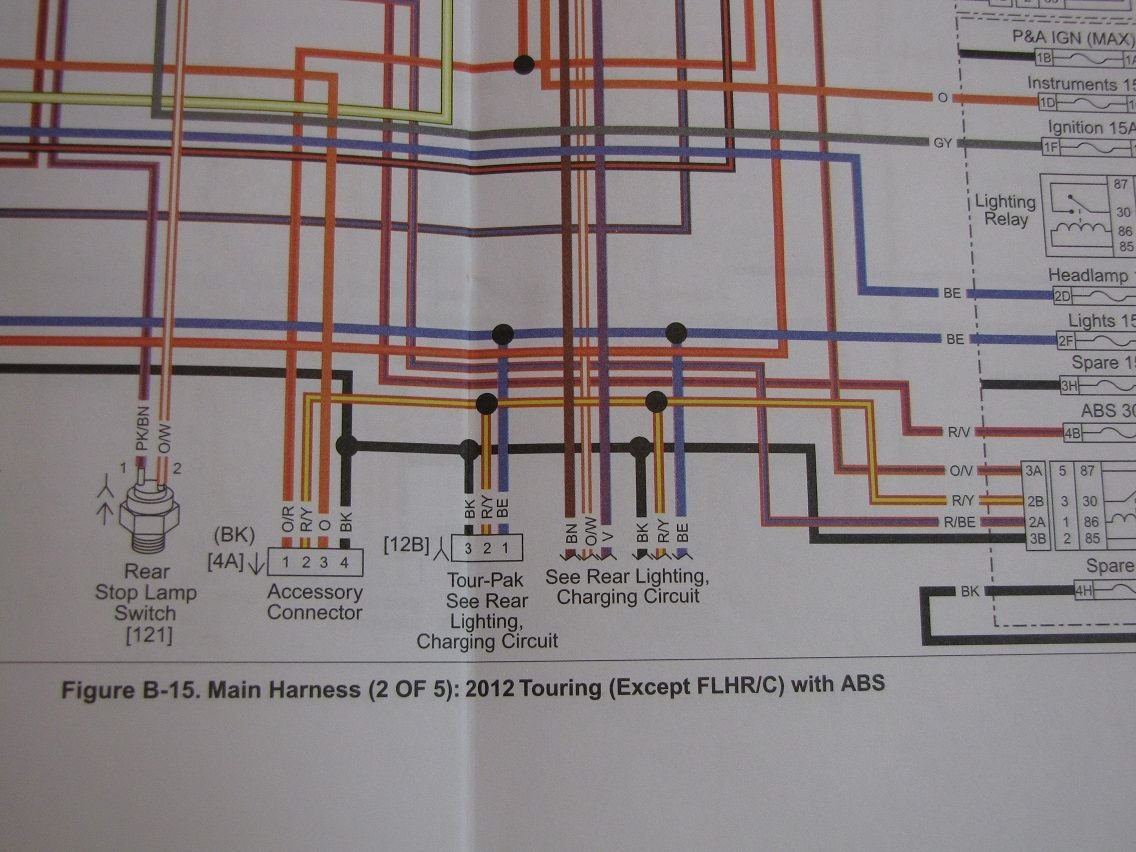

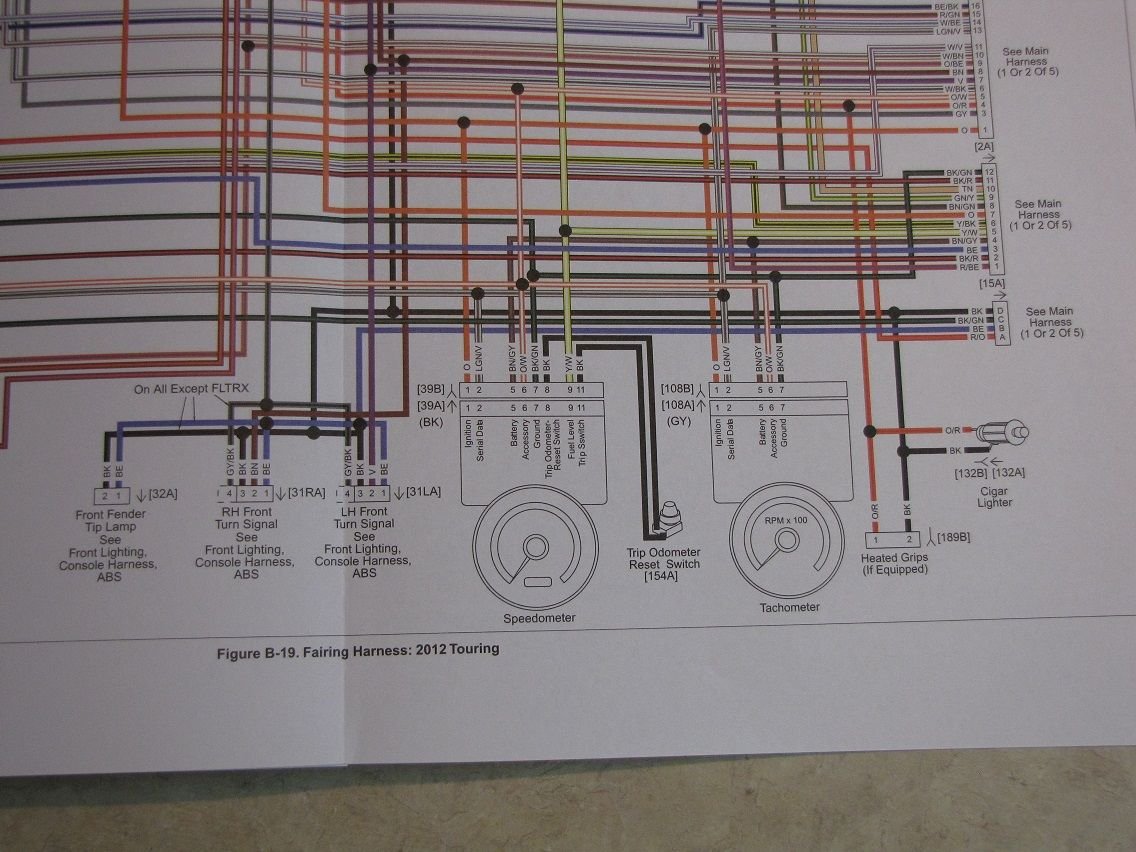

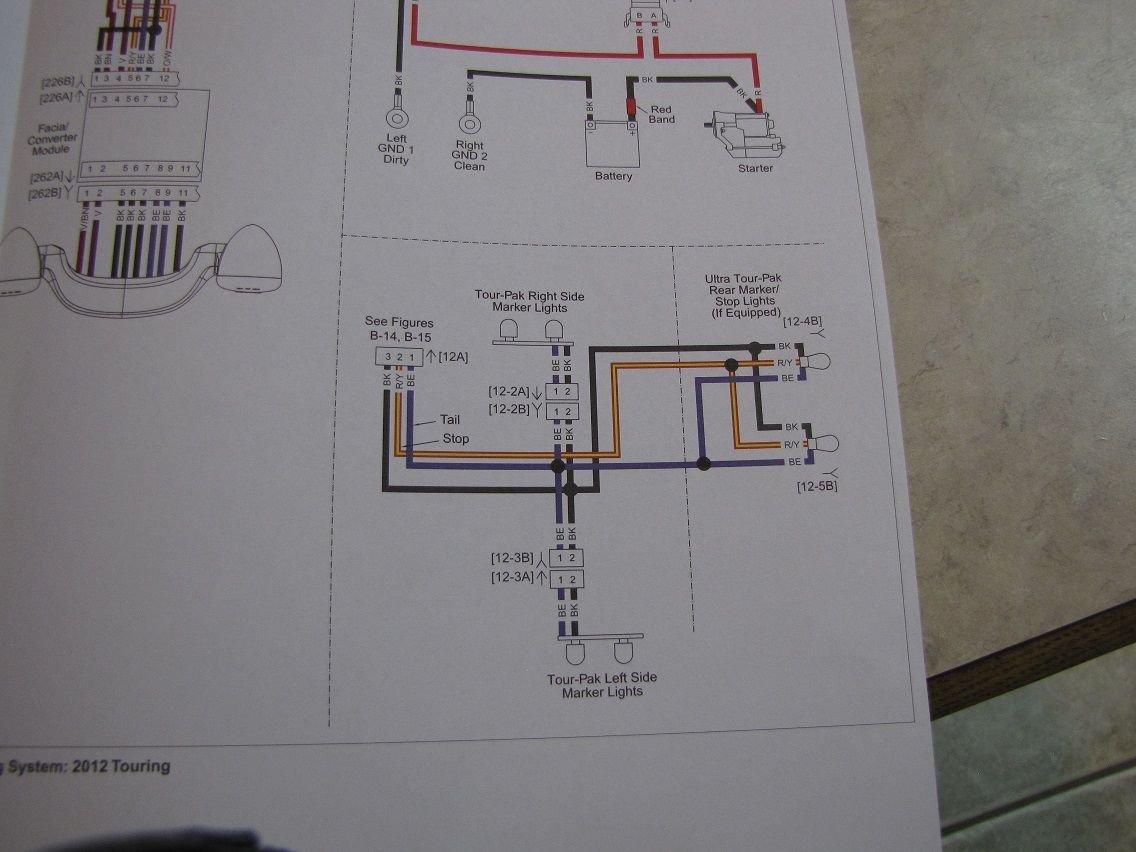

If the fuse is good then the Blue wire that supplies the Tour Pak, Rear and front lights should be hot 12V. Let me know if you want me to post pictures of the schematics.
Good Luck
The ground stud for the lights is the same for the fuel pump and horn so if they work the ground may be ok.
If the fuse is good then the Blue wire that supplies the Tour Pak, Rear and front lights should be hot 12V. Let me know if you want me to post pictures of the schematics.
Good Luck
Thread Starter
|
Outstanding HDF Member
Joined: Jun 2010
Posts: 2,015
Likes: 3
From: Moline, IL
checked all fuses and moved them around to verify the fuses were good. horn and fuel pump are working. replaced all the relays and that didnt help any thing either.
vernal feel free to share pix. it might help out. i have a guy coming over today to help me. an extra set of eyes and knowledge cant hurt.
vernal feel free to share pix. it might help out. i have a guy coming over today to help me. an extra set of eyes and knowledge cant hurt.
Club Member
Joined: Apr 2013
Posts: 7,681
Likes: 8,413
From: Utah
checked all fuses and moved them around to verify the fuses were good. horn and fuel pump are working. replaced all the relays and that didnt help any thing either.
vernal feel free to share pix. it might help out. i have a guy coming over today to help me. an extra set of eyes and knowledge cant hurt.
vernal feel free to share pix. it might help out. i have a guy coming over today to help me. an extra set of eyes and knowledge cant hurt.
Is it possible you have the polarity hooked up wrong on the LEDs?
Thread Starter
|
Outstanding HDF Member
Joined: Jun 2010
Posts: 2,015
Likes: 3
From: Moline, IL
i dont see how i could. they have been working all yr long until last week and have not touched them at all to get switched...
Club Member
Joined: Apr 2013
Posts: 7,681
Likes: 8,413
From: Utah
I'm not familiar with putting LEDs on a bike. Do you have to add anything to the circuit?
Take the fuse out of the lights and turn the ignition on, do you have 12v on one side where the fuse plugs in?
If you do and have the fairing off put the fuse back in and unplug the left or right light set, turn ignition on and check for 12V on the blue wire with the other meter lead on the frame. If you have 12 v on the blue wire check the bulb, you should have continuity in 1 direction , open circuit in the other. Make all checks for voltage using the frame for ground.

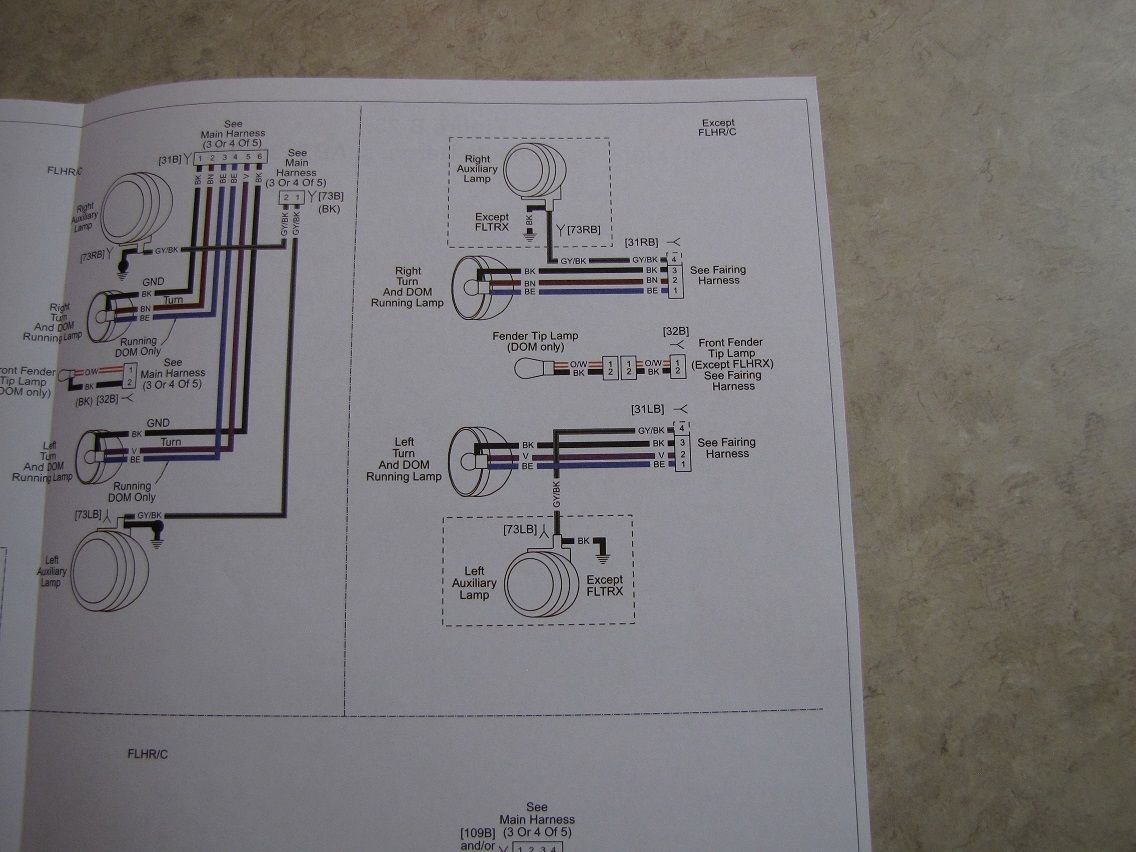

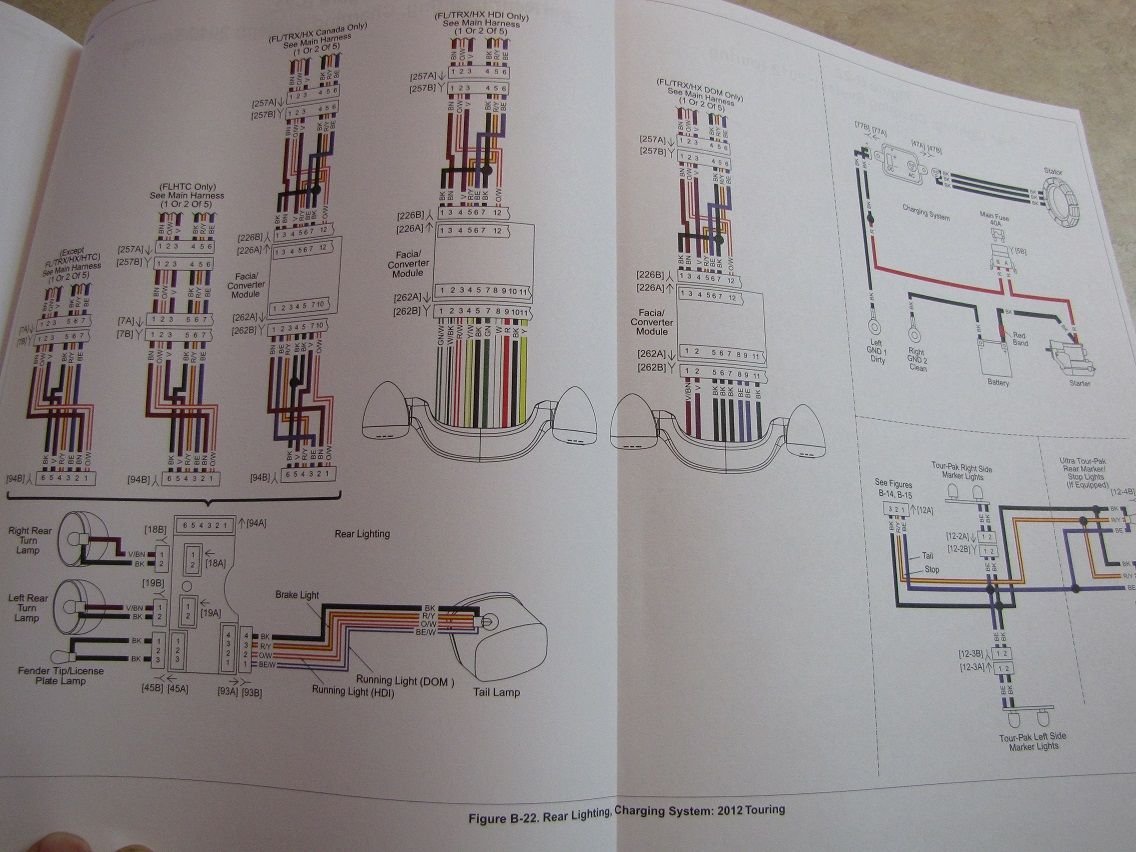

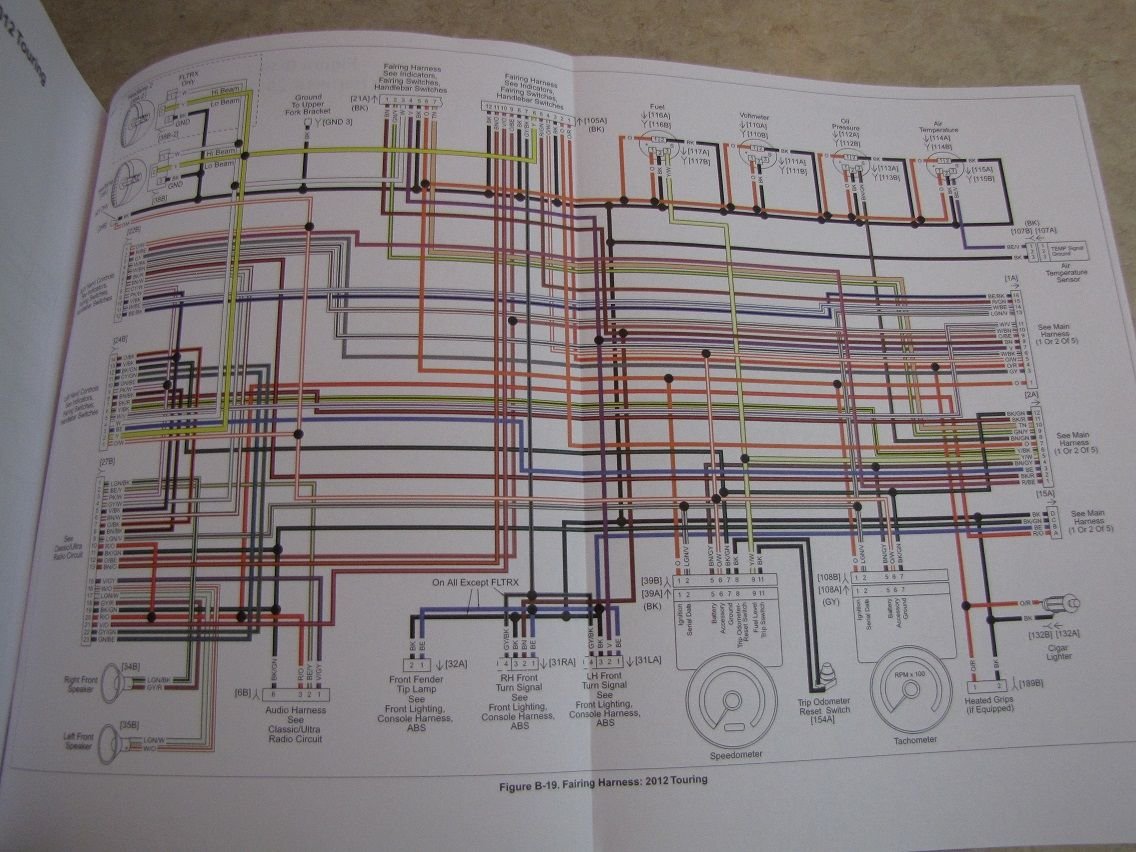

The first picture/schematic shows the front lights running and turn use the same ground so if one is working the other should.
Good Luck
Take the fuse out of the lights and turn the ignition on, do you have 12v on one side where the fuse plugs in?
If you do and have the fairing off put the fuse back in and unplug the left or right light set, turn ignition on and check for 12V on the blue wire with the other meter lead on the frame. If you have 12 v on the blue wire check the bulb, you should have continuity in 1 direction , open circuit in the other. Make all checks for voltage using the frame for ground.
The first picture/schematic shows the front lights running and turn use the same ground so if one is working the other should.
Good Luck
Seasoned HDF Member
Joined: Jan 2013
Posts: 10,637
Likes: 1,246
From: Lake, Ms
2010 Limited with some stuff
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Thread Starter
|
Outstanding HDF Member
Joined: Jun 2010
Posts: 2,015
Likes: 3
From: Moline, IL
controler the little box that mount on top of battery beside the ECM?
Seasoned HDF Member
Joined: Jan 2013
Posts: 10,637
Likes: 1,246
From: Lake, Ms
2010 Limited with some stuff
