Ok Help
Thread Starter
|
Cruiser
Joined: Apr 2015
Posts: 188
Likes: 1
From: Hattiesburg, MS
Ok Help
2008 street glide. Bought used a few months ago, have had no problems until now. The security system 😡😡. Neither fob works all of the sudden, I would assume both batteries didn't go bad at the same time but I will rule that out tomorrow, But I've searched and read on here and tried everything I've found, the ignition on and off deal and left blinker twice and right once in 2 seconds. Nothing. Tried to use all 1s and all 7s and nothing. He didn't have the Manual so I'm outta luck on That. Any suggestions on how to disable it if I can't get the fobs to work ?
Club Member
Joined: Apr 2013
Posts: 7,681
Likes: 8,413
From: Utah

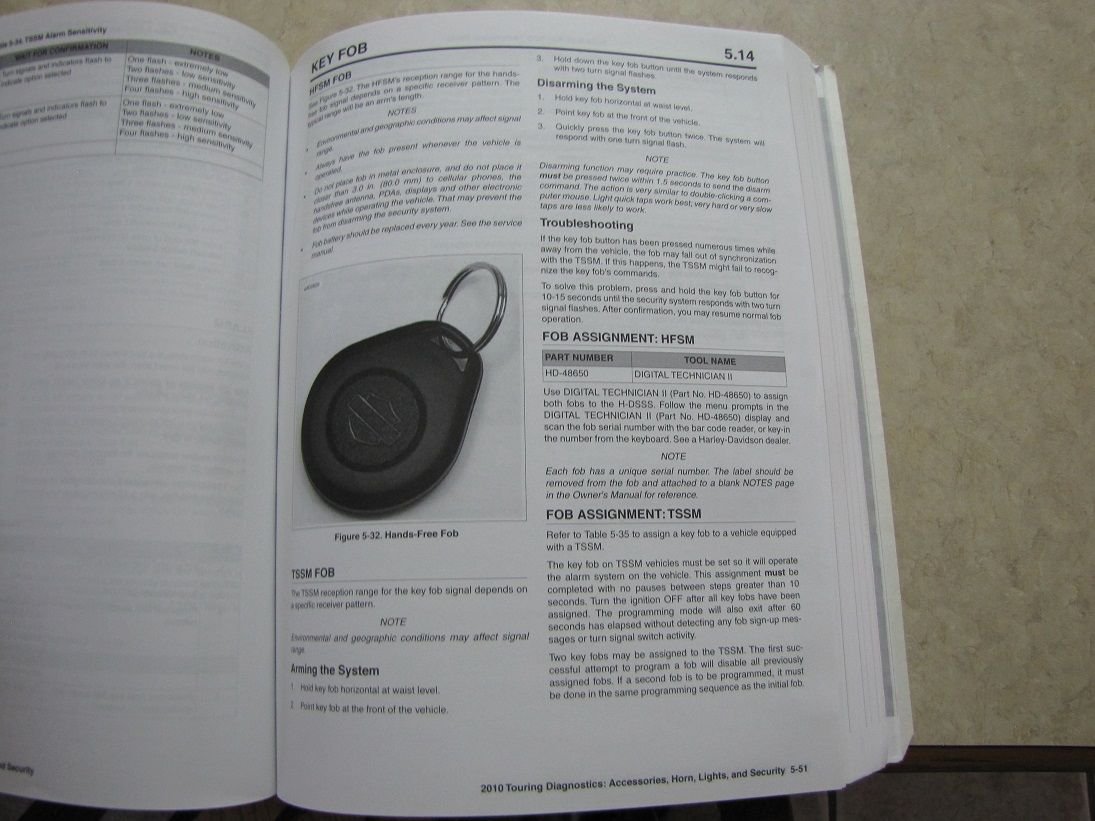

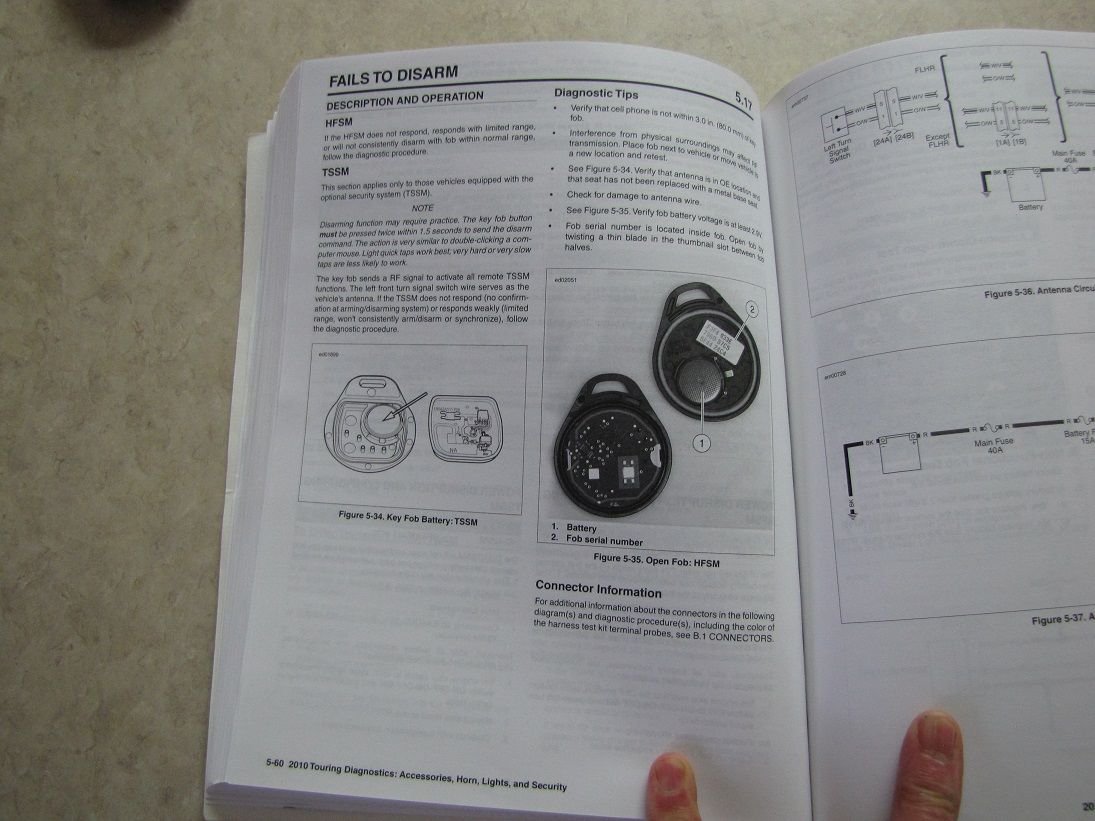

I have a 2010 Electrical Diagnostic manual and it states there are 2 ways to disarm the Security system:
1 Hands Free with the FOB
2: Using the pin
31313 is the code HD puts in the bike at the factory. If the previous owner didn't change it you may be in luck.
If he did change it A HD Shop may be able to read the PIN with the DigiTech.
Do your FOBs have buttons? Next to the bike push the button twice quickly to disarm the system.
In the troubleshooting section it say's if the fobs button has been pressed numerous times it may fall out of sync with the TSSM. If this happens press and hold the fob button for 10 -15 seconds until the security system responds with 2 turn signal flashes.
Good Luck
1 Hands Free with the FOB
2: Using the pin
31313 is the code HD puts in the bike at the factory. If the previous owner didn't change it you may be in luck.
If he did change it A HD Shop may be able to read the PIN with the DigiTech.
Do your FOBs have buttons? Next to the bike push the button twice quickly to disarm the system.
In the troubleshooting section it say's if the fobs button has been pressed numerous times it may fall out of sync with the TSSM. If this happens press and hold the fob button for 10 -15 seconds until the security system responds with 2 turn signal flashes.
Good Luck
Seasoned HDF Member
Joined: Jan 2007
Posts: 20,616
Likes: 4,440
From: anacoco, la
31313 is the code HD puts in the bike at the factory. If the previous owner didn't change it you may be in luck.
If he did change it A HD Shop may be able to read the PIN with the DigiTech.
Do your FOBs have buttons? Next to the bike push the button twice quickly to disarm the system.
In the troubleshooting section it say's if the fobs button has been pressed numerous times it may fall out of sync with the TSSM. If this happens press and hold the fob button for 10 -15 seconds until the security system responds with 2 turn signal flashes.
Good Luck
If he did change it A HD Shop may be able to read the PIN with the DigiTech.
Do your FOBs have buttons? Next to the bike push the button twice quickly to disarm the system.
In the troubleshooting section it say's if the fobs button has been pressed numerous times it may fall out of sync with the TSSM. If this happens press and hold the fob button for 10 -15 seconds until the security system responds with 2 turn signal flashes.
Good Luck
but all is not lost. first try the simple stuff, replace your batteries. and make sure that they are put in the fob oriented correctly. very common to put them in upside down.
if the security recognizes the fob and allows you to start the bike, then you'll be able to retrieve and reset your code. to do this:
turn your ignition on-off-on-off-on
immediately press left turn signal 2x
then right turn signal once
your existing code will now be displayed in the odometer window. to change it, just cycle through the digits 1-9 using your left turn signal switch, and enter it with your right. once you've changed all the numbers, just turn the ignition off.
Thread Starter
|
Cruiser
Joined: Apr 2015
Posts: 188
Likes: 1
From: Hattiesburg, MS
this info is for the 2006 and older fob that have buttons. 2007 and newer use the proximity fob, and have no buttons. also, that default is no longer valid either. seems the security is activated by the dealer during pdi and there are a multitude of 'defaults'. some use all ones, others the last 5 of the vin, etc.
but all is not lost. first try the simple stuff, replace your batteries. and make sure that they are put in the fob oriented correctly. very common to put them in upside down.
if the security recognizes the fob and allows you to start the bike, then you'll be able to retrieve and reset your code. to do this:
turn your ignition on-off-on-off-on
immediately press left turn signal 2x
then right turn signal once
your existing code will now be displayed in the odometer window. to change it, just cycle through the digits 1-9 using your left turn signal switch, and enter it with your right. once you've changed all the numbers, just turn the ignition off.
but all is not lost. first try the simple stuff, replace your batteries. and make sure that they are put in the fob oriented correctly. very common to put them in upside down.
if the security recognizes the fob and allows you to start the bike, then you'll be able to retrieve and reset your code. to do this:
turn your ignition on-off-on-off-on
immediately press left turn signal 2x
then right turn signal once
your existing code will now be displayed in the odometer window. to change it, just cycle through the digits 1-9 using your left turn signal switch, and enter it with your right. once you've changed all the numbers, just turn the ignition off.
Trending Topics
Club Member
Joined: Apr 2013
Posts: 7,681
Likes: 8,413
From: Utah
this info is for the 2006 and older fob that have buttons. 2007 and newer use the proximity fob, and have no buttons. also, that default is no longer valid either. seems the security is activated by the dealer during pdi and there are a multitude of 'defaults'. some use all ones, others the last 5 of the vin, etc.
.
.
Just trying to help
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Seasoned HDF Member
Joined: Jan 2007
Posts: 20,616
Likes: 4,440
From: anacoco, la
the button fobs referenced are the tssm, which are hdi versions. the hfsm (hands free security module) is the domestic version. I didn't know that they still used the button fobs (though I didn't really even think about it), learn something new everyday
this info is for the 2006 and older fob that have buttons. 2007 and newer use the proximity fob, and have no buttons. also, that default is no longer valid either. seems the security is activated by the dealer during pdi and there are a multitude of 'defaults'. some use all ones, others the last 5 of the vin, etc.
but all is not lost. first try the simple stuff, replace your batteries. and make sure that they are put in the fob oriented correctly. very common to put them in upside down.
if the security recognizes the fob and allows you to start the bike, then you'll be able to retrieve and reset your code. to do this:
turn your ignition on-off-on-off-on
immediately press left turn signal 2x
then right turn signal once
your existing code will now be displayed in the odometer window. to change it, just cycle through the digits 1-9 using your left turn signal switch, and enter it with your right. once you've changed all the numbers, just turn the ignition off.
but all is not lost. first try the simple stuff, replace your batteries. and make sure that they are put in the fob oriented correctly. very common to put them in upside down.
if the security recognizes the fob and allows you to start the bike, then you'll be able to retrieve and reset your code. to do this:
turn your ignition on-off-on-off-on
immediately press left turn signal 2x
then right turn signal once
your existing code will now be displayed in the odometer window. to change it, just cycle through the digits 1-9 using your left turn signal switch, and enter it with your right. once you've changed all the numbers, just turn the ignition off.
I did take the fob into the house and checked starting with just the pin number. It worked whoo hoo
