Flash2pass
Road Captain
Joined: Sep 2005
Posts: 558
Likes: 2
From: Richardson, Tx
I hate to say "read the directions" but you need to read the directions.
I just hooked my my second Flash2Pass transmitter. They work great. One wire goes to the ground. There are 2 other wires. The hook to the high beam and the low beam. It doesn't matter which wire goes to which. The instructions tell you it's the two vertical spades that you hook the wires to on the headlight plug. Hope this helps.
Thread Starter
|
Road Warrior
Joined: May 2009
Posts: 1,770
Likes: 34
From: Bluegrass State
I hate to say "read the directions" but you need to read the directions.
I just hooked my my second Flash2Pass transmitter. They work great. One wire goes to the ground. There are 2 other wires. The hook to the high beam and the low beam. It doesn't matter which wire goes to which. The instructions tell you it's the two vertical spades that you hook the wires to on the headlight plug. Hope this helps.
I just hooked my my second Flash2Pass transmitter. They work great. One wire goes to the ground. There are 2 other wires. The hook to the high beam and the low beam. It doesn't matter which wire goes to which. The instructions tell you it's the two vertical spades that you hook the wires to on the headlight plug. Hope this helps.
Road Captain
Joined: Sep 2005
Posts: 558
Likes: 2
From: Richardson, Tx
Hmmmm.. Maybe not but let me try again. I have installed two of them and would like to help you if I can.
Here is what you said:
-------------------
I have a 2015 Road glide special. Trying to hook up the flash2pass module to headlights. Anybody know what other wire besides the ground I need to tap into? They are all colored with a stripe.
It was very simple on my 2010 Street Glide.
------------------------
The Flash2Pass as I remember only has 2 wires coming out of the transmitter. As far as which wires to hook to for the other two wires just do as the instructions say. Look at the plug that goes into the headlight. There are three lugs that match up with the headlight bulb. Two go the same direction, we'll say vertical, and the other one is horizontal. You want to hook to the two vertical or maybe I should say the two that go the same direction. Look and see what color wires are hooked to those lugs. Follow them up in the harness a few inches or however far you want and hook the provided connectors to those 2 wires. I have one hooked up on my Street Glide and another on a Honda VTX. I don't remember the colors of the wires on the Harley but all you need to do is follow them up the harness. The harness does have a plastic tube for protection around it. Just cut the black tape and open it up to get to the wires. Tape everything back up when you are done.
I hope this helps. It's really the same answer as before so if this doesn't help please try to ask a different way. I am really trying to help. If you are looking for someone to tell you the exact color of the wires I can't do that but it's really easy if you just look at the plug.
Did that help or am I still not understasnding? I will be glad to PM you my cell number if that works better. Let me know.
Here is what you said:
-------------------
I have a 2015 Road glide special. Trying to hook up the flash2pass module to headlights. Anybody know what other wire besides the ground I need to tap into? They are all colored with a stripe.
It was very simple on my 2010 Street Glide.
------------------------
The Flash2Pass as I remember only has 2 wires coming out of the transmitter. As far as which wires to hook to for the other two wires just do as the instructions say. Look at the plug that goes into the headlight. There are three lugs that match up with the headlight bulb. Two go the same direction, we'll say vertical, and the other one is horizontal. You want to hook to the two vertical or maybe I should say the two that go the same direction. Look and see what color wires are hooked to those lugs. Follow them up in the harness a few inches or however far you want and hook the provided connectors to those 2 wires. I have one hooked up on my Street Glide and another on a Honda VTX. I don't remember the colors of the wires on the Harley but all you need to do is follow them up the harness. The harness does have a plastic tube for protection around it. Just cut the black tape and open it up to get to the wires. Tape everything back up when you are done.
I hope this helps. It's really the same answer as before so if this doesn't help please try to ask a different way. I am really trying to help. If you are looking for someone to tell you the exact color of the wires I can't do that but it's really easy if you just look at the plug.
Did that help or am I still not understasnding? I will be glad to PM you my cell number if that works better. Let me know.
Road Captain
Joined: Sep 2005
Posts: 558
Likes: 2
From: Richardson, Tx
Instructions

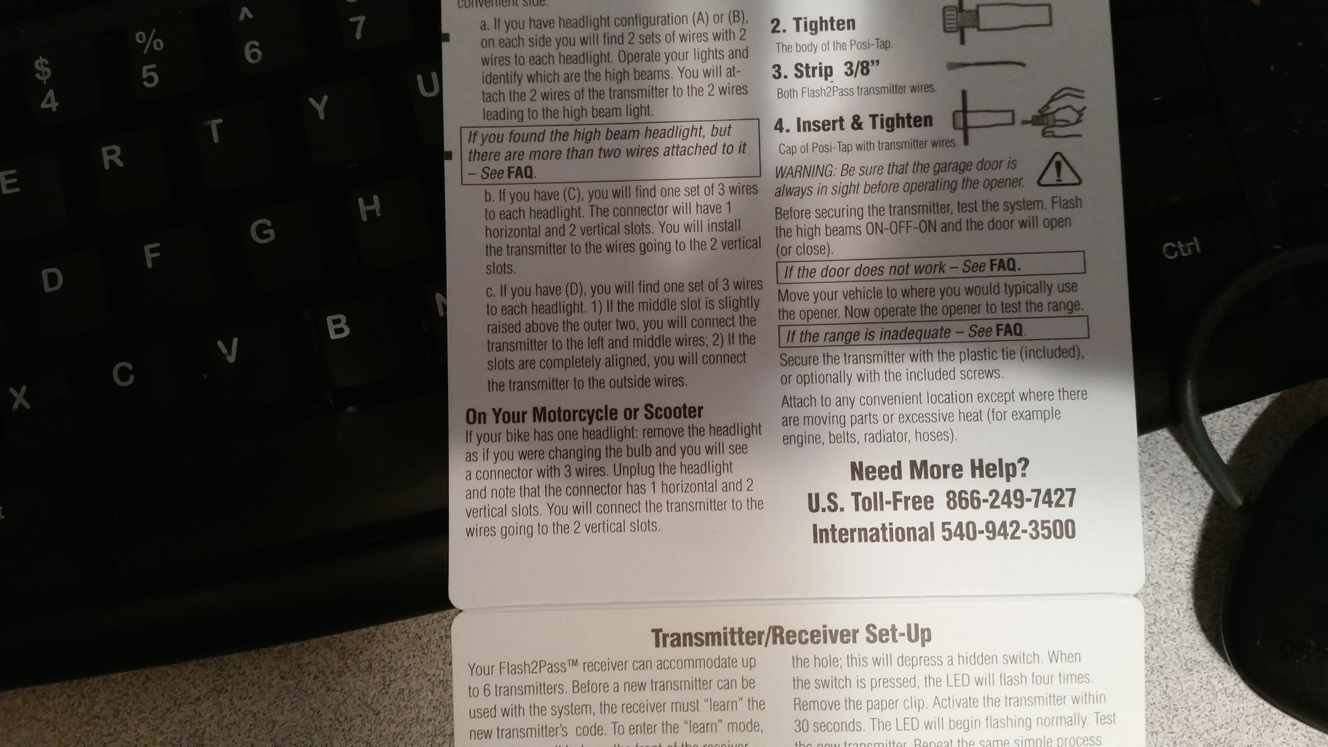

Sounds like you may have it figured out but just in case you misplaced your instructions I took a couple of pictures.
Hope they help.
Hope they help.
Last edited by PTAG; Oct 3, 2015 at 10:41 PM.
Thread Starter
|
Road Warrior
Joined: May 2009
Posts: 1,770
Likes: 34
From: Bluegrass State
Hmmmm.. Maybe not but let me try again. I have installed two of them and would like to help you if I can.
Here is what you said:
-------------------
I have a 2015 Road glide special. Trying to hook up the flash2pass module to headlights. Anybody know what other wire besides the ground I need to tap into? They are all colored with a stripe.
It was very simple on my 2010 Street Glide.
------------------------
The Flash2Pass as I remember only has 2 wires coming out of the transmitter. As far as which wires to hook to for the other two wires just do as the instructions say. Look at the plug that goes into the headlight. There are three lugs that match up with the headlight bulb. Two go the same direction, we'll say vertical, and the other one is horizontal. You want to hook to the two vertical or maybe I should say the two that go the same direction. Look and see what color wires are hooked to those lugs. Follow them up in the harness a few inches or however far you want and hook the provided connectors to those 2 wires. I have one hooked up on my Street Glide and another on a Honda VTX. I don't remember the colors of the wires on the Harley but all you need to do is follow them up the harness. The harness does have a plastic tube for protection around it. Just cut the black tape and open it up to get to the wires. Tape everything back up when you are done.
I hope this helps. It's really the same answer as before so if this doesn't help please try to ask a different way. I am really trying to help. If you are looking for someone to tell you the exact color of the wires I can't do that but it's really easy if you just look at the plug.
Did that help or am I still not understasnding? I will be glad to PM you my cell number if that works better. Let me know.
Here is what you said:
-------------------
I have a 2015 Road glide special. Trying to hook up the flash2pass module to headlights. Anybody know what other wire besides the ground I need to tap into? They are all colored with a stripe.
It was very simple on my 2010 Street Glide.
------------------------
The Flash2Pass as I remember only has 2 wires coming out of the transmitter. As far as which wires to hook to for the other two wires just do as the instructions say. Look at the plug that goes into the headlight. There are three lugs that match up with the headlight bulb. Two go the same direction, we'll say vertical, and the other one is horizontal. You want to hook to the two vertical or maybe I should say the two that go the same direction. Look and see what color wires are hooked to those lugs. Follow them up in the harness a few inches or however far you want and hook the provided connectors to those 2 wires. I have one hooked up on my Street Glide and another on a Honda VTX. I don't remember the colors of the wires on the Harley but all you need to do is follow them up the harness. The harness does have a plastic tube for protection around it. Just cut the black tape and open it up to get to the wires. Tape everything back up when you are done.
I hope this helps. It's really the same answer as before so if this doesn't help please try to ask a different way. I am really trying to help. If you are looking for someone to tell you the exact color of the wires I can't do that but it's really easy if you just look at the plug.
Did that help or am I still not understasnding? I will be glad to PM you my cell number if that works better. Let me know.
Thread Starter
|
Road Warrior
Joined: May 2009
Posts: 1,770
Likes: 34
From: Bluegrass State
Thank u!!
Sponsor
Joined: Jul 2015
Posts: 8,538
Likes: 1,646
From: SF Bay area
Works great on my '15 Limited Low.
__________________
NO, they DON'T all do that!
ROCKOUT rocker shaft inserts... make the tapping STOP! From the guy that FOUND and CURED the problem NO ONE ELSE COULD, thank you for your support!
Ordering & info http://www.rockout.biz On ebay! ... CLICK HERE
Also on amazon.com...
Imitated, never equaled... ROCKOUTS!
Ordering & info http://www.rockout.biz On ebay! ... CLICK HERE
Also on amazon.com...
Imitated, never equaled... ROCKOUTS!
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Thread Starter
|
Road Warrior
Joined: May 2009
Posts: 1,770
Likes: 34
From: Bluegrass State
http://www.easternperformance.com/flash-2-pass-motorcycle-garage-door-opener.html
Extreme HDF Member
Joined: Jul 2015
Posts: 12,499
Likes: 7,511
From: Edmond, OK
Originally Posted by Bikerscum Products
You can get the HD version for $116 + free shipping... http://www.boardtrackerharleyonline....tter-91558-01b
Works great on my '15 Limited Low.
Works great on my '15 Limited Low.
That puts it over 150 bucks!
