Is that gap supposed to be there

Reply Subscribe

Thread Tools

Search this Thread

Aug 26, 2016 | 11:47 PM

#11

jory434

Road Warrior

Joined: Jul 2012

Posts: 1,551

Likes: 519

From: San Angelo, Tx

Quote:

Originally Posted by kidn1980

Jory...the retainer what do you mean...nevermind I see thank you

And I could be mistaken on manual instructions for an 06, mine is a junky *** '13 model so that's all I've worked on. That gap might be there on an 06? As far as a wobble goes an "advanced search" will blow your hair back on that subject.

Aug 27, 2016 | 12:58 AM

#12

Jackie Paper

Seasoned HDF Member

Joined: Mar 2010

Posts: 38,523

Likes: 6,406

From: Honah Lee

Quote:

Originally Posted by kidn1980

Ripsaw....what do you mean take a pic of backside

Was a little confusing. 180 degrees on other side. Front view..

Aug 27, 2016 | 07:32 AM

#13

bagman1

Grand HDF Member

Joined: Dec 2007

Posts: 4,999

Likes: 55

From: Bay Area

Quote:

Originally Posted by EG-2006

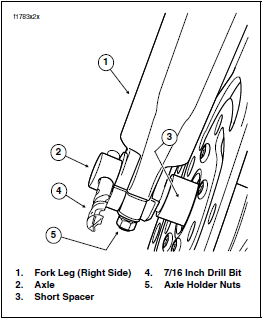

This diagram shows what looks like a gap, but in reality theres a slight step (shoulder) on the axle and it may just look like a gap. Again unless I could see it in person its hardto say for sure there actually is a gap. BUT for sure the lower axle cap looks like its in backwards. See hhow the diagram cap sits flush with fork bottom, now look at your picagain, its not looking right. Did you look at the bottom side and see if the word "OUT" is on the inside or outside?

Aug 27, 2016 | 07:50 AM

#14

kidn1980

Thread Starter

Cruiser

Joined: Jun 2016

Posts: 107

Likes: 2

From: TEXAS

Thank you and yes I will re-do it.

Aug 27, 2016 | 07:56 AM

#15

btsom

Grand HDF Member

Joined: Jan 2012

Posts: 4,456

Likes: 2,855

From: Oklahoma

For an 08, the manual specifies no gap between fork/retainer and spacer.

Aug 27, 2016 | 10:42 AM

#16

hdbob2006

Stellar HDF Member

Joined: Jan 2013

Posts: 3,466

Likes: 425

From: Illinois

Just looked at my '06-that's the axle 'step' showing between the fork and the spacer.Nothing wrong there. But that lower retainer sure looks backward.

Aug 27, 2016 | 10:45 AM

#17

kidn1980

Thread Starter

Cruiser

Joined: Jun 2016

Posts: 107

Likes: 2

From: TEXAS

It was backwards...fixed it thank you

Aug 27, 2016 | 11:06 AM

#18

Jackie Paper

Seasoned HDF Member

Joined: Mar 2010

Posts: 38,523

Likes: 6,406

From: Honah Lee

Quote:

Originally Posted by kidn1980

It was backwards...fixed it thank you

Cool. Be sure you tighten the correct nut first and then the other. (really should use a torque wrench on those)

HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

7 Times Harley-Davidson Chucked Tradition Out the Window

Verdad Gallardo

7 Surprising Harley-Davidson Products that Are Not Motorcycles

Verdad Gallardo

8 Best Harley-Davidson Motorcycles Ever

Pouria Savadkouei

10 Worst Harley-Davidson Motorcycles Ever

Pouria Savadkouei

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

Verdad Gallardo

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

Verdad Gallardo

Harley-Davidson Reveals Super Cool Cafe Racer Concept

Verdad Gallardo

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

Verdad Gallardo

10 Motorcycles You Should Never Buy

Joe Kucinski

10 Things Harley-Davidson Needs to Fix in 2026

Verdad Gallardo

Aug 27, 2016 | 08:16 PM

#19

EG-2006

Tourer

Joined: Jan 2012

Posts: 419

Likes: 60

From: Central IL

Agreed about the gap-it's really a gap between the spacer and the fork. The spacer is tight against the bearing on the wheel side and against the axle shoulder on the fork side.
