Looking for torque value

Thread Tools

Search this Thread

Old Feb 21, 2017 | 09:29 AM
Share
  #1
iMAK79's Avatar
iMAK79
Thread Starter
|
Cruiser
Joined: Feb 2012
Posts: 143
Likes: 1
From: Bahrain
Default Looking for torque value
Hey,

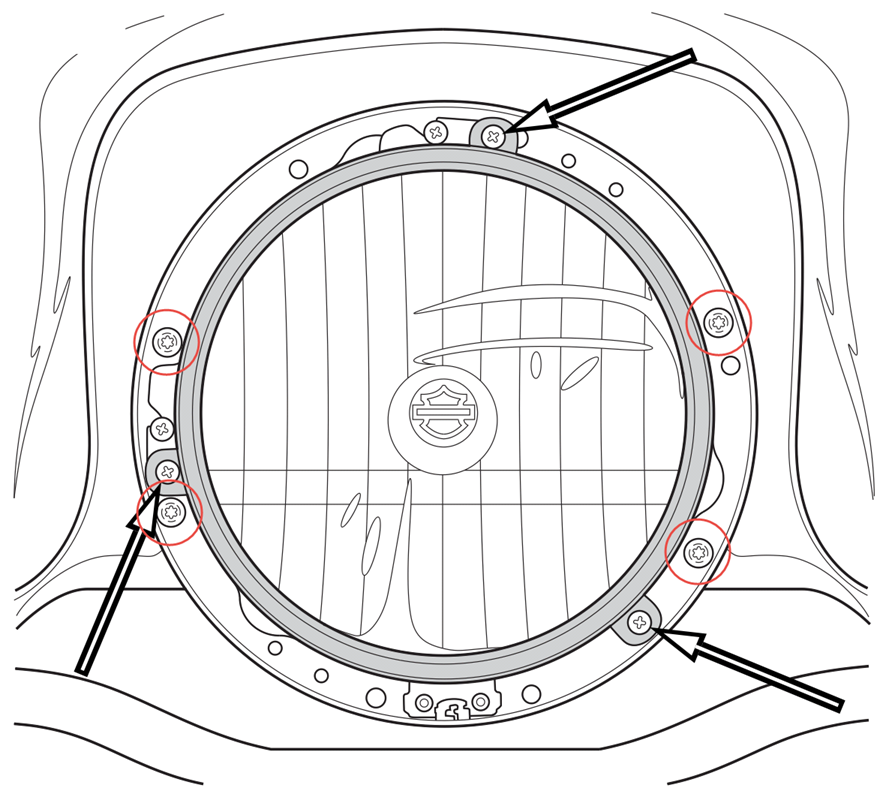

Anybody knows what is the Torque value for the torx screws circled with red? I searched in the service manual but I could not locate it.


Reply
0
Old Feb 21, 2017 | 09:56 AM
Share
  #2
Buelligan666's Avatar
Buelligan666
Grand HDF Member
10 Year Member
Joined: Aug 2014
Posts: 3,622
Likes: 1,625
From: Eastern Ohio
Default
I don't know the specific torque value. I use a 1/4 drive screw driver handle with the torx bit on the end. Hand tight was always adequate on my EGC.

like this one
Name: download.jpg Views: 348 Size: 3.7 KB

Reply
0
Old Feb 21, 2017 | 10:25 AM
Share
  #3
ORradtech's Avatar
ORradtech
Outstanding HDF Member
Joined: May 2015
Posts: 2,172
Likes: 377
From: Georgia
Default
That's just the retainer ring, right?
Never even considered torquing them. Hand tight has always held fine for me.

Reply
0
Old Feb 21, 2017 | 01:03 PM
Share
  #4
iMAK79's Avatar
iMAK79
Thread Starter
|
Cruiser
Joined: Feb 2012
Posts: 143
Likes: 1
From: Bahrain
Default
Originally Posted by Buelligan666
I don't know the specific torque value. I use a 1/4 drive screw driver handle with the torx bit on the end. Hand tight was always adequate on my EGC.

like this one
I did hand tight them, but I am more confident with following the specs.

Reply
0
Old Feb 21, 2017 | 01:06 PM
Share
  #5
iMAK79's Avatar
iMAK79
Thread Starter
|
Cruiser
Joined: Feb 2012
Posts: 143
Likes: 1
From: Bahrain
Default
Originally Posted by ORradtech
That's just the retainer ring, right?
Never even considered torquing them. Hand tight has always held fine for me.
No this is the headlamp assembly bracket attached to the outer fairing, the retainer ring screws are the three phillips screws with the arrows pointed to them.

Reply
0
Old Feb 21, 2017 | 01:21 PM
Share
  #6
Buelligan666's Avatar
Buelligan666
Grand HDF Member
10 Year Member
Joined: Aug 2014
Posts: 3,622
Likes: 1,625
From: Eastern Ohio
Default
Originally Posted by iMAK79
I did hand tight them, but I am more confident with following the specs.
Nothing wrong with that! I don't have a service manual handy. I looked at the installation instructions for the dual halogen headlight kit. They state in the instructions to "tighten the screws securely". Lol. Maybe they don't give a torque spec on those.

Link to instructions for dual halogen kit.
https://serviceinfo.harley-davidson....document/59770

Reply
0
Old Feb 21, 2017 | 06:44 PM
Share
  #7
diggerv's Avatar
diggerv
Tourer
15 Year Member
Liked
Loved
Community Favorite
Joined: May 2006
Posts: 464
Likes: 43
From: NC
Default
The standard torque for those screws are 22 to 32 inch lbs... not foot lbs.

Reply
0

Trending Topics

Old Feb 22, 2017 | 01:09 AM
Share
  #8
iMAK79's Avatar
iMAK79
Thread Starter
|
Cruiser
Joined: Feb 2012
Posts: 143
Likes: 1
From: Bahrain
Default
Originally Posted by Buelligan666
Nothing wrong with that! I don't have a service manual handy. I looked at the installation instructions for the dual halogen headlight kit. They state in the instructions to "tighten the screws securely". Lol. Maybe they don't give a torque spec on those.

Link to instructions for dual halogen kit.
https://serviceinfo.harley-davidson....document/59770
Thank you for the link mate.

Reply
0
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

10 Most Awkward-Looking Motorcycles Ever Built

 Verdad Gallardo
story-1

Jason Momoa Is Turning Classic Harleys Into PHEVs

 Verdad Gallardo
story-2

Harley-Davidson Fat Boy Becomes a Dark, Decepticon-Inspired Custom

 Verdad Gallardo
story-3

6 Weirdest Harley-Davidsons Ever Sold to the Public

 Verdad Gallardo
story-4

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-5

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-6

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-7

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-8

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-9

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
Old Feb 22, 2017 | 01:14 AM
Share
  #9
iMAK79's Avatar
iMAK79
Thread Starter
|
Cruiser
Joined: Feb 2012
Posts: 143
Likes: 1
From: Bahrain
Default
Originally Posted by diggerv
The standard torque for those screws are 22 to 32 inch lbs... not foot lbs.
Thanks but as per the service manual, this torque is for the retainer screws (3 phillips screws) pointed with arrows.

Last edited by iMAK79; Feb 22, 2017 at 06:40 AM.
Reply
0
Old Feb 22, 2017 | 11:45 AM
Share
  #10
MCSarge's Avatar
MCSarge
Stellar HDF Member
15 Year Member
Liked
Loved
Community Favorite
Top Answer: 1
Joined: Jul 2006
Posts: 3,029
Likes: 449
From: Michigan
Default
If I remember correctly those screws go into a nut with a rubber gasket that fits into a larger hole. If you tighten them to much you will tear the rubber gasket or strip them and you wont be able to get them back out. tighten them enough to compress the rubber and hold them firmly in the hole.

Kind of like the screws that hold the windshield on a touring bike.

Reply
0
