New member, 0 Oil Pressure 1997 Electra Glide

Thread Tools

Search this Thread

Old Sep 4, 2021 | 02:34 PM
Share
  #21
79josh81's Avatar
79josh81
Thread Starter
|
Intermediate
Joined: Sep 2021
Posts: 33
Likes: 4
From: sheboygan
Default
It gets worse…

Reply
0
Old Sep 4, 2021 | 02:35 PM
Share
  #22
79josh81's Avatar
79josh81
Thread Starter
|
Intermediate
Joined: Sep 2021
Posts: 33
Likes: 4
From: sheboygan
Default

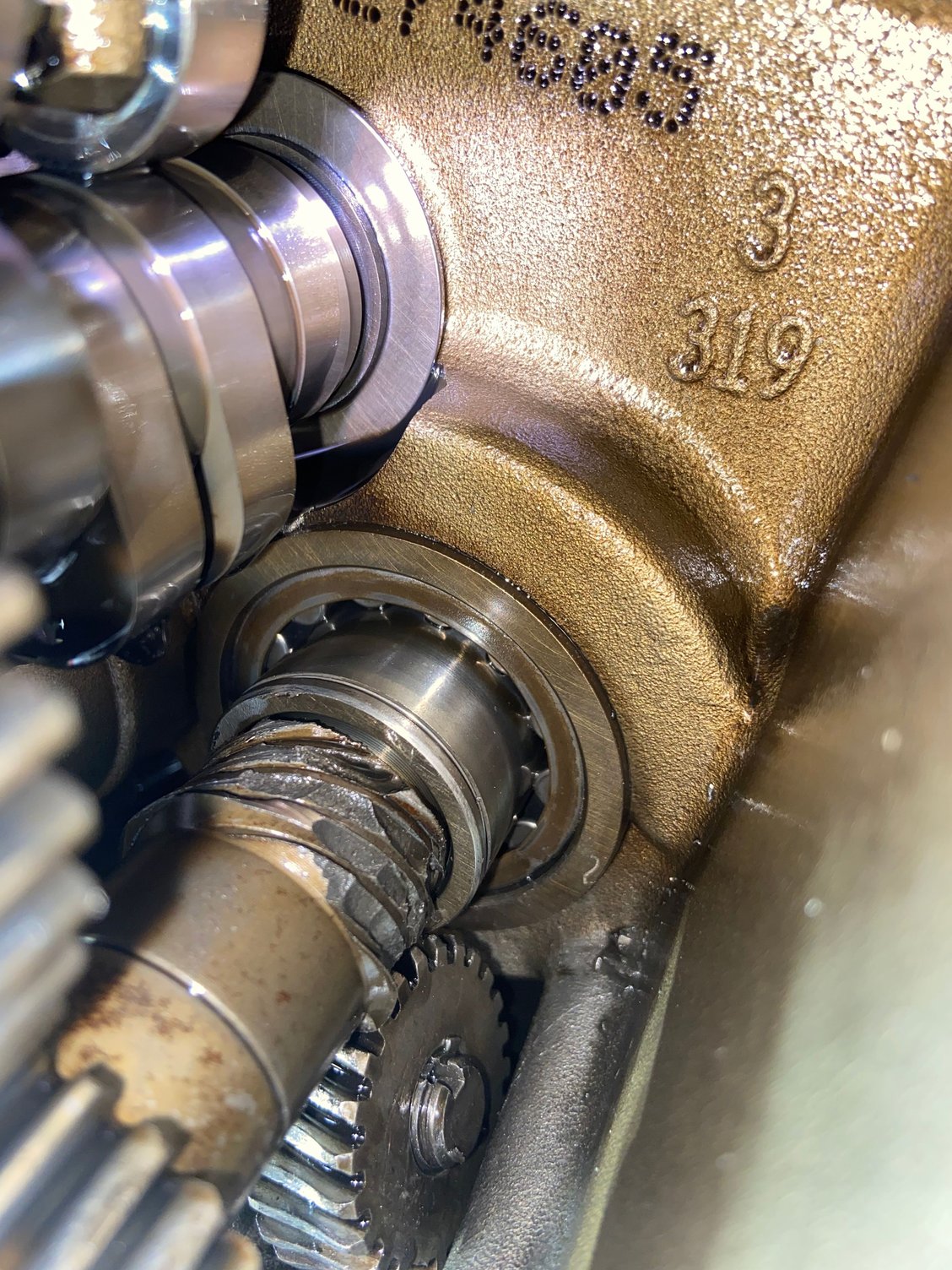

Now I know why my pump wasn’t spinning. 😕👎

Reply
0
Old Sep 4, 2021 | 07:20 PM
Share
  #23
79josh81's Avatar
79josh81
Thread Starter
|
Intermediate
Joined: Sep 2021
Posts: 33
Likes: 4
From: sheboygan
Default
Anyone know where the c-clip came from??

Reply
0
Old Sep 4, 2021 | 08:16 PM
Share
  #24
hardheaded's Avatar
hardheaded
Seasoned HDF Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Oct 2012
Posts: 11,210
Likes: 3,040
From: St.Louis Mo.
Default
That kinda looks like a piston c-clip, but don't know how it would ever get there. Hard to tell from pic's though. If you can find every piece of that gear and anything else that's tore up maybe get buy with just replacing broken gear and pump parts, but you would have to find every piece. I don't think there is any snap rings in the cam chest area.

Reply
0
Old Sep 4, 2021 | 08:37 PM
Share
  #25
79josh81's Avatar
79josh81
Thread Starter
|
Intermediate
Joined: Sep 2021
Posts: 33
Likes: 4
From: sheboygan
Default
Originally Posted by hardheaded
That kinda looks like a piston c-clip, but don't know how it would ever get there. Hard to tell from pic's though. If you can find every piece of that gear and anything else that's tore up maybe get buy with just replacing broken gear and pump parts, but you would have to find every piece. I don't think there is any snap rings in the cam chest area.

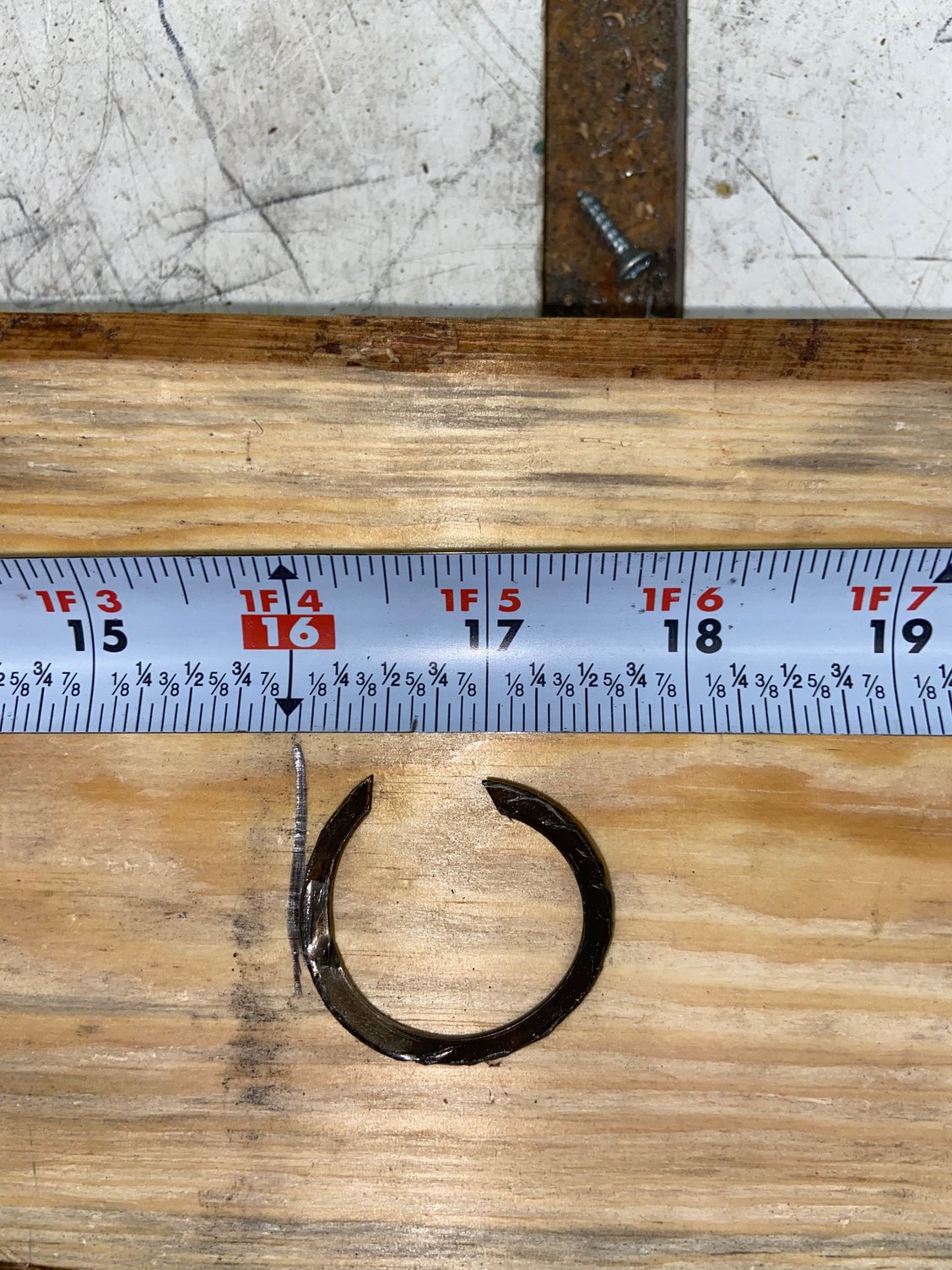

Here’s a better pic of the clip for sizing purposes. It was literally just laying in the bottom of the cam case after I removed the cover. The washer is for the breather valve gear so no worries there. I just have no idea what this clip is from.



Reply
0
Old Sep 4, 2021 | 08:46 PM
Share
  #26
79josh81's Avatar
79josh81
Thread Starter
|
Intermediate
Joined: Sep 2021
Posts: 33
Likes: 4
From: sheboygan
Default
The only gears that are tore up are the oil pump shaft gear and then the pinion gear that contacts the oil pump shaft gear. From what I can tell, I’m going to have to pull the motor to replace the oil pump shaft gear because I don’t have enough clearance to get the chewed up gear off the shaft. I removed the cir-clip from the end of the pump shaft by the gear but I still can’t get the gear out.

Reply
0
Old Sep 5, 2021 | 07:24 AM
Share
  #27
79josh81's Avatar
79josh81
Thread Starter
|
Intermediate
Joined: Sep 2021
Posts: 33
Likes: 4
From: sheboygan
Default
I literally can’t find any parts diagram that shows a c-clip of that size that’s even supposed to be in the cam case. I don’t know where it came from so if anyone has any ideas please let me know because I’m stumped right now.

Reply
0
Old Sep 5, 2021 | 08:59 AM
Share
  #28
Indawynd's Avatar
Indawynd
Grand HDF Member
5 Year Member
Liked
Loved
Community Favorite
Joined: Oct 2018
Posts: 4,162
Likes: 9,668
From: Flyover Country
Default
You might find something here.
https://partsfinder.onlinemicrofiche.../showmodel.asp

Reply
1
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-1

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-2

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-3

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-4

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
story-5

Harley-Davidson Reveals Super Cool Cafe Racer Concept

 Verdad Gallardo
story-6

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

 Verdad Gallardo
story-7

10 Motorcycles You Should Never Buy

 Joe Kucinski
story-8

10 Things Harley-Davidson Needs to Fix in 2026

 Verdad Gallardo
story-9

Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider

 Verdad Gallardo
Old Sep 5, 2021 | 09:15 AM
Share
  #29
79josh81's Avatar
79josh81
Thread Starter
|
Intermediate
Joined: Sep 2021
Posts: 33
Likes: 4
From: sheboygan
Default
Originally Posted by Indawynd
That’s the website I’ve been using for the parts diagrams and I can’t find that c-clip anywhere. Thanks for the reply though. 👍

Reply
0
Old Sep 5, 2021 | 09:23 AM
Share
  #30
79josh81's Avatar
79josh81
Thread Starter
|
Intermediate
Joined: Sep 2021
Posts: 33
Likes: 4
From: sheboygan
Default

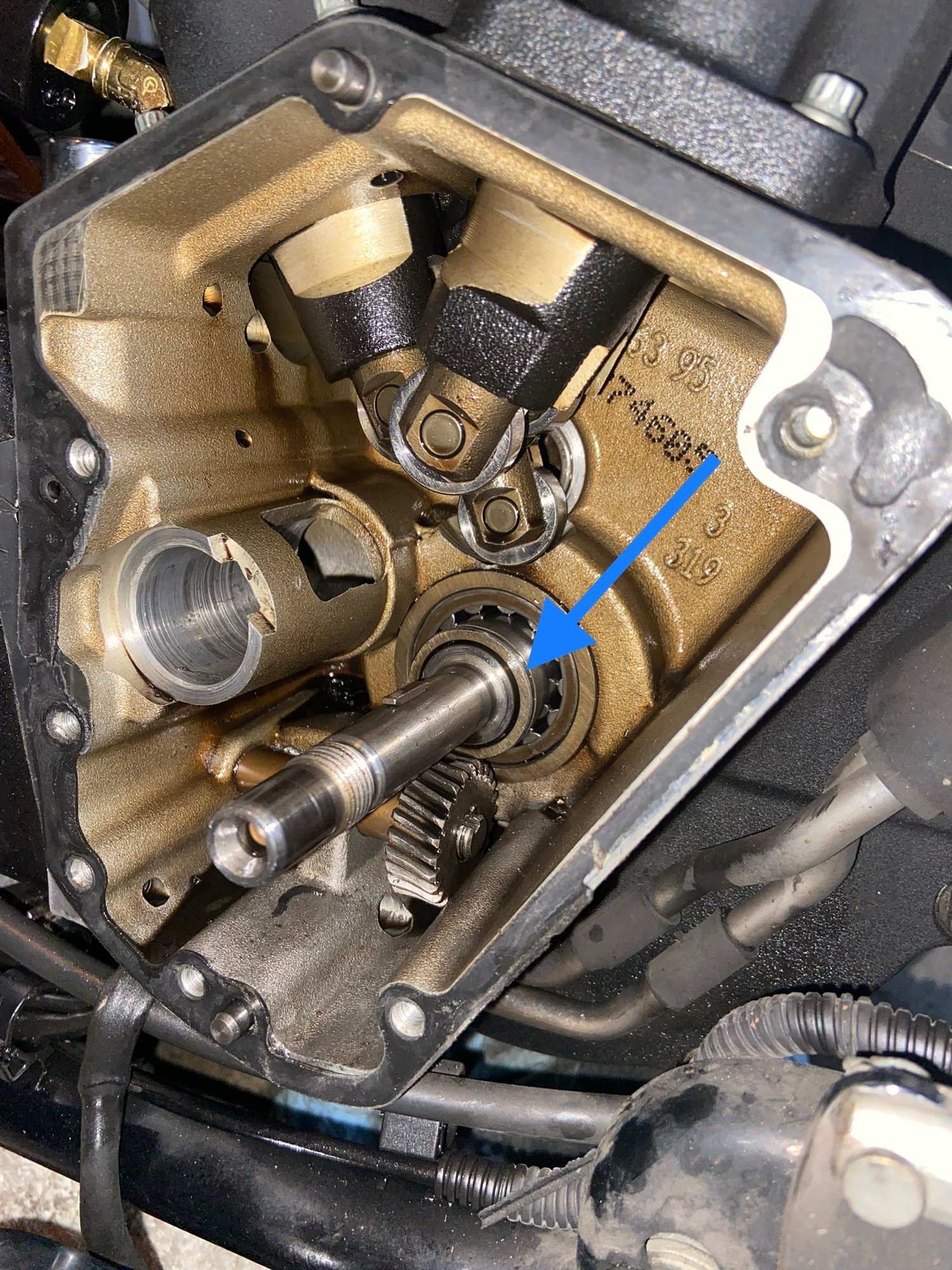

Is that clip potentially supposed to be in this groove (where I put the arrow) to keep the shaft from sliding in too far?
