On my bike the 20 amp P&A fuse isn’t part of the battery tender circuit, it’s a 7.5 amp fuse labeled “battery tender,” which I assume is the 5 amp fuse labeled “battery” on the previous generation bikes.

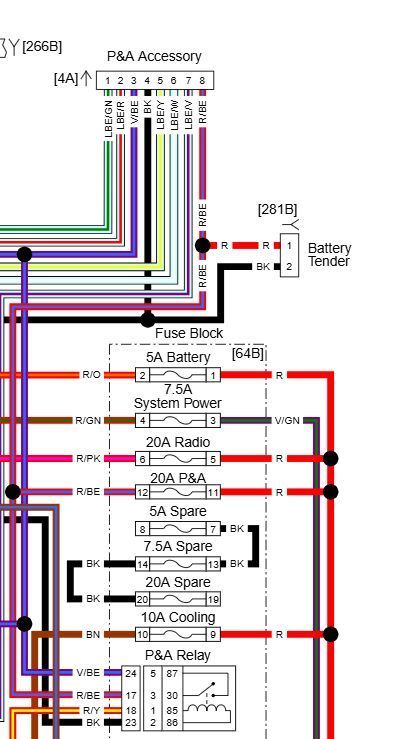

ETA: well, after looking closer at the wiring diagram in the link posted above, it looks like the tender harness does go through the P&A fuse on the previous generation touring bikes and not a separate fuse like the ‘24 and up models.
it doesn’t look like the relay would have any affect though because it looks to me like the voltage has a direct path from the battery to the harness without going through the relay.

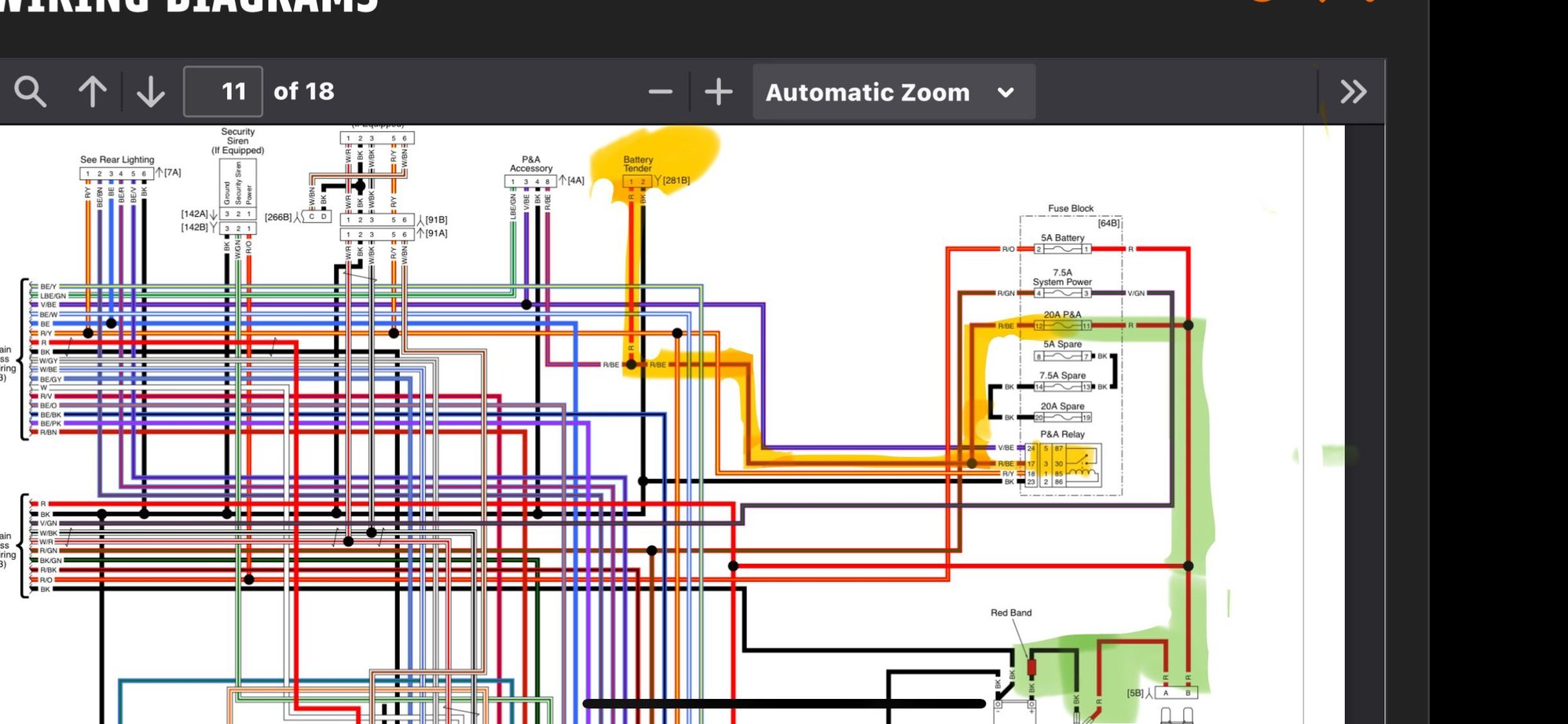

In the wiring diagram the tender goes via the P&A fuse and main fuse, not directly to the battery. As it's part of the loom it may even loop to the P&A relay first.
Last edited by Andy from Sandy; Jul 12, 2025 at 06:29 AM.
In the wiring diagram the tender goes via the P&A fuse and main fuse, not directly to the battery. As it's part of the loom it may even loop to the P&A relay first.
The power for the battery tender plug does not pass through the relay, look at the diagram...
The power for the battery tender plug does not pass through the relay, look at the diagram...
I never said it did I said the wire might go to the relay before going to the P&A fuse. There is a join somewhere and instead of half way along the route there might be two wires on connector 17 in the fuse box.
