I did this the other day to provide power to the heated grips that I also installed on my wifes 21 Heritage 114 at the same time. I thought I would share some pictures and information that might help others. Remember to run as much gas out of the bike as you can.



Pull your main fuse, then get started removing the gas tank --
Remove seat(s)
Loosen the front tank mount bolt, then remove the rear tank mount bolt.

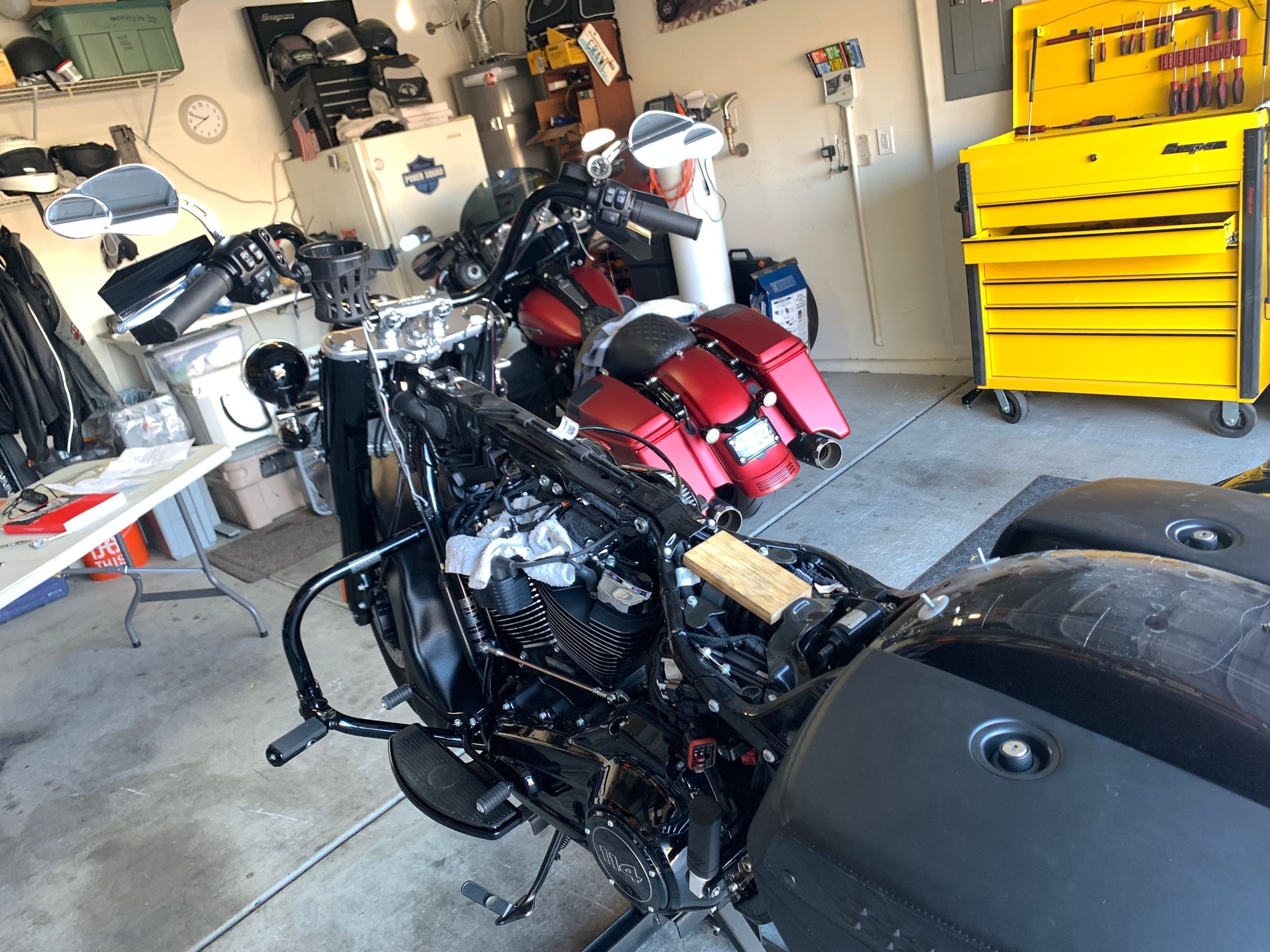

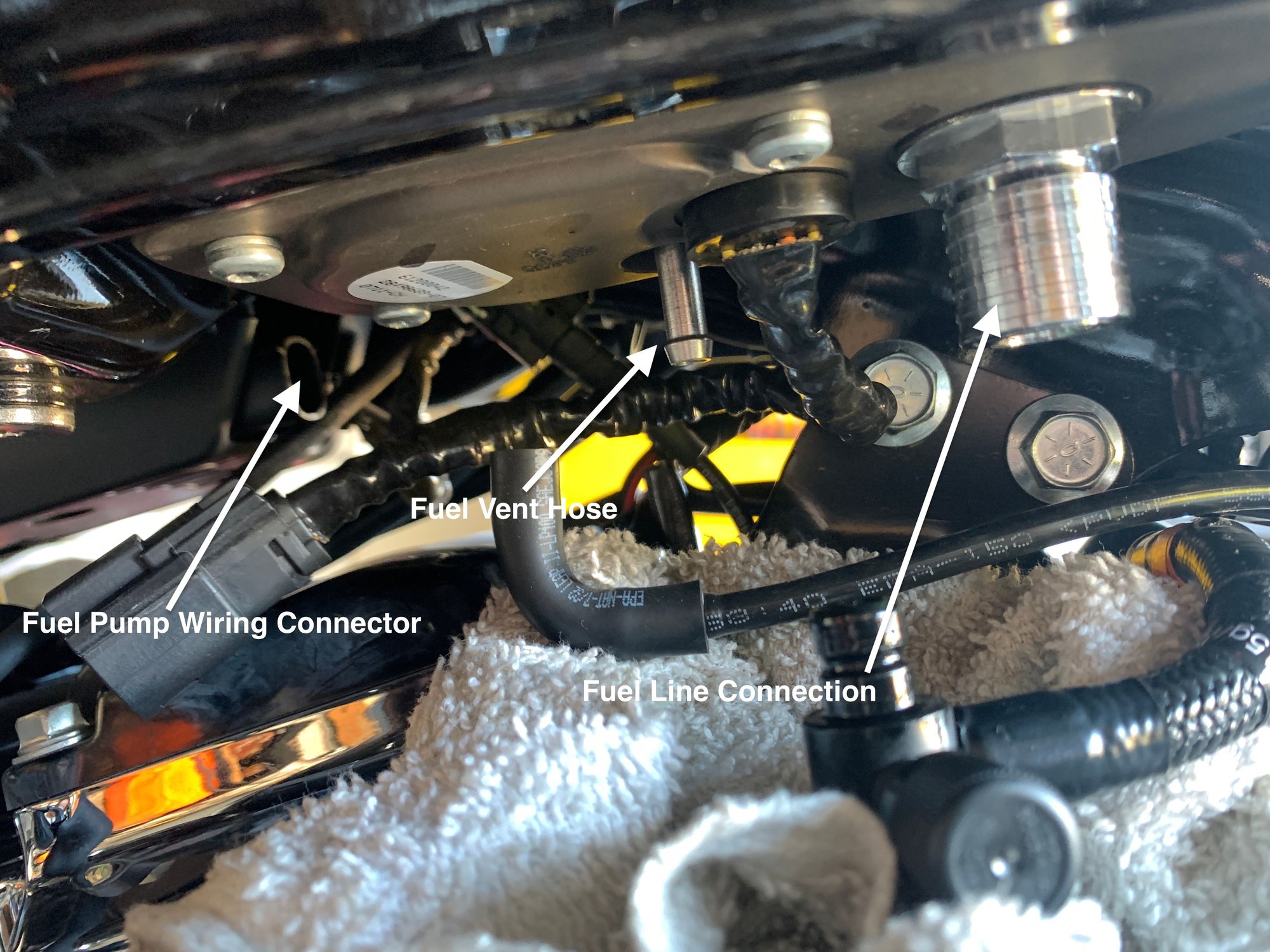

Lift the rear of the tank and support it with a piece of wood or a book between the tank and frame. This will expose these connections on the left side of bike. Disconnect them.



Remove whatever you're using to hold the rear of the tank up, and let the tank back down.
Remove front tank bolt.

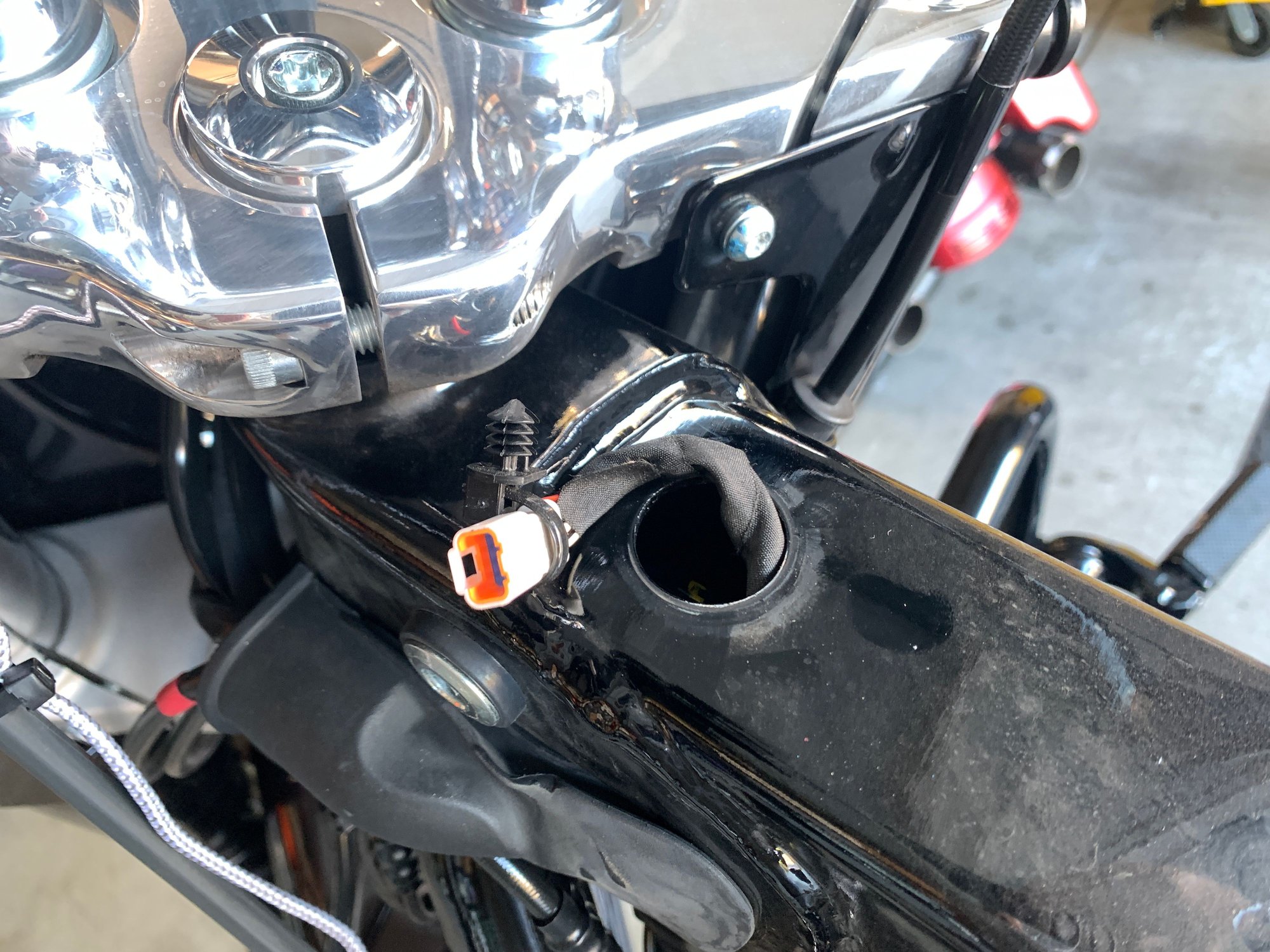

Lift the tank up enough to slide it rearward to expose this wire harness that runs through a rubber grommet. Remove remove the grommet to expose this connector and disconnect it.



You can now remove the tank and take it in the house and put it on the sofa to protect it. If she complains, tell her to make you a sammich.

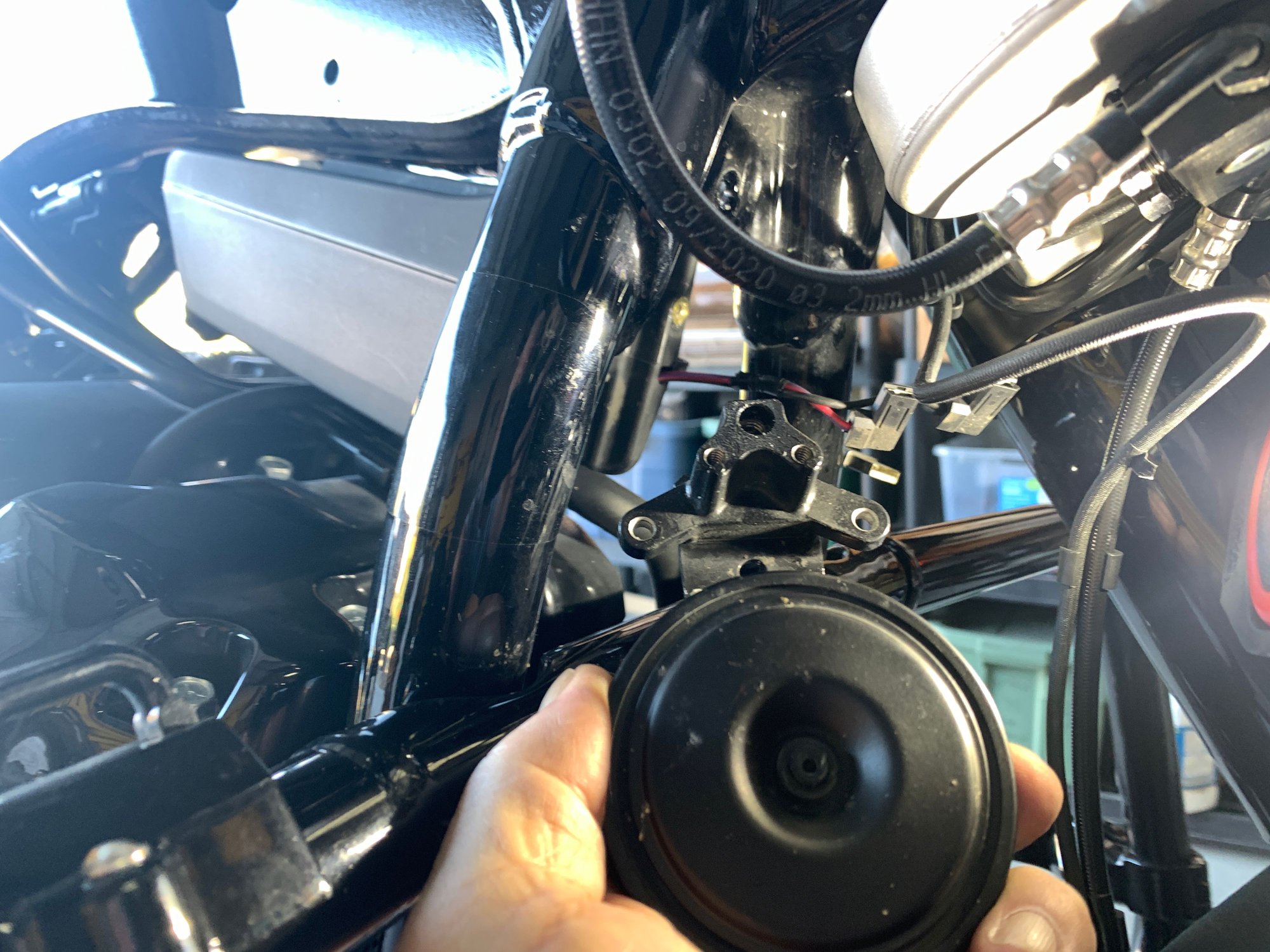

The USB caddy is supported at the front by the horn mounting bracket, so it comes off too.

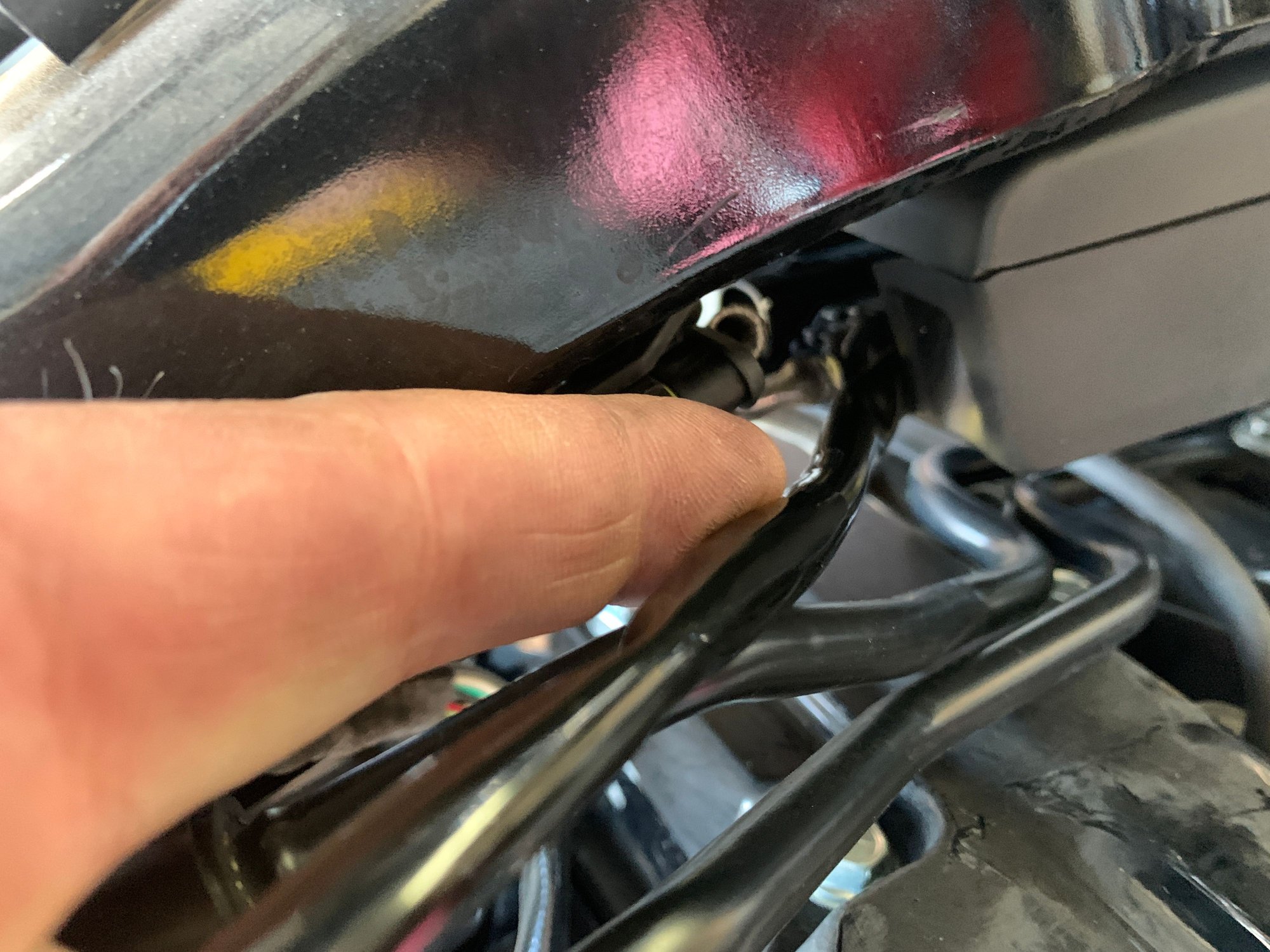

Now go to the left side rear of the USB caddy and remove this push pin mount.

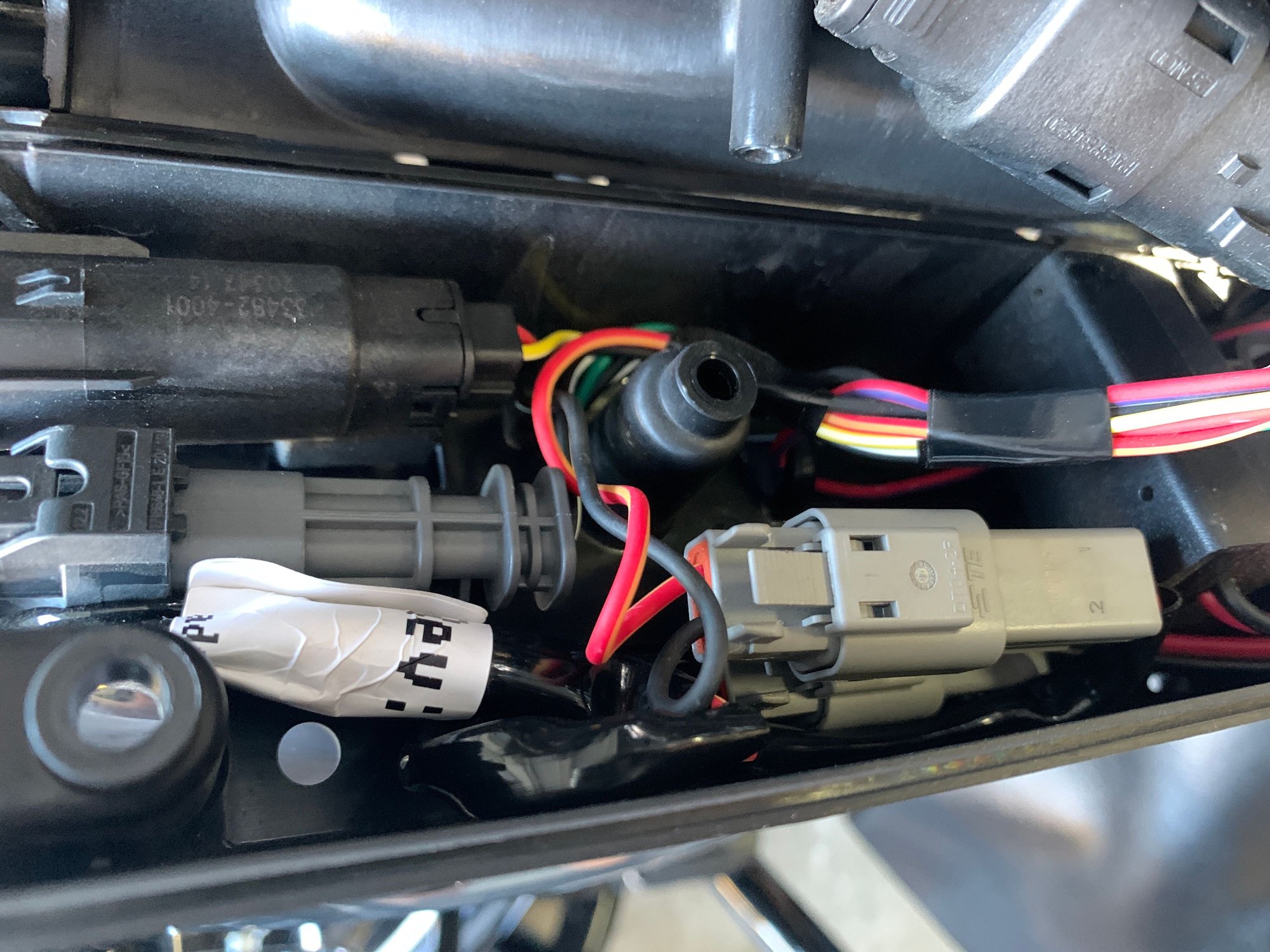

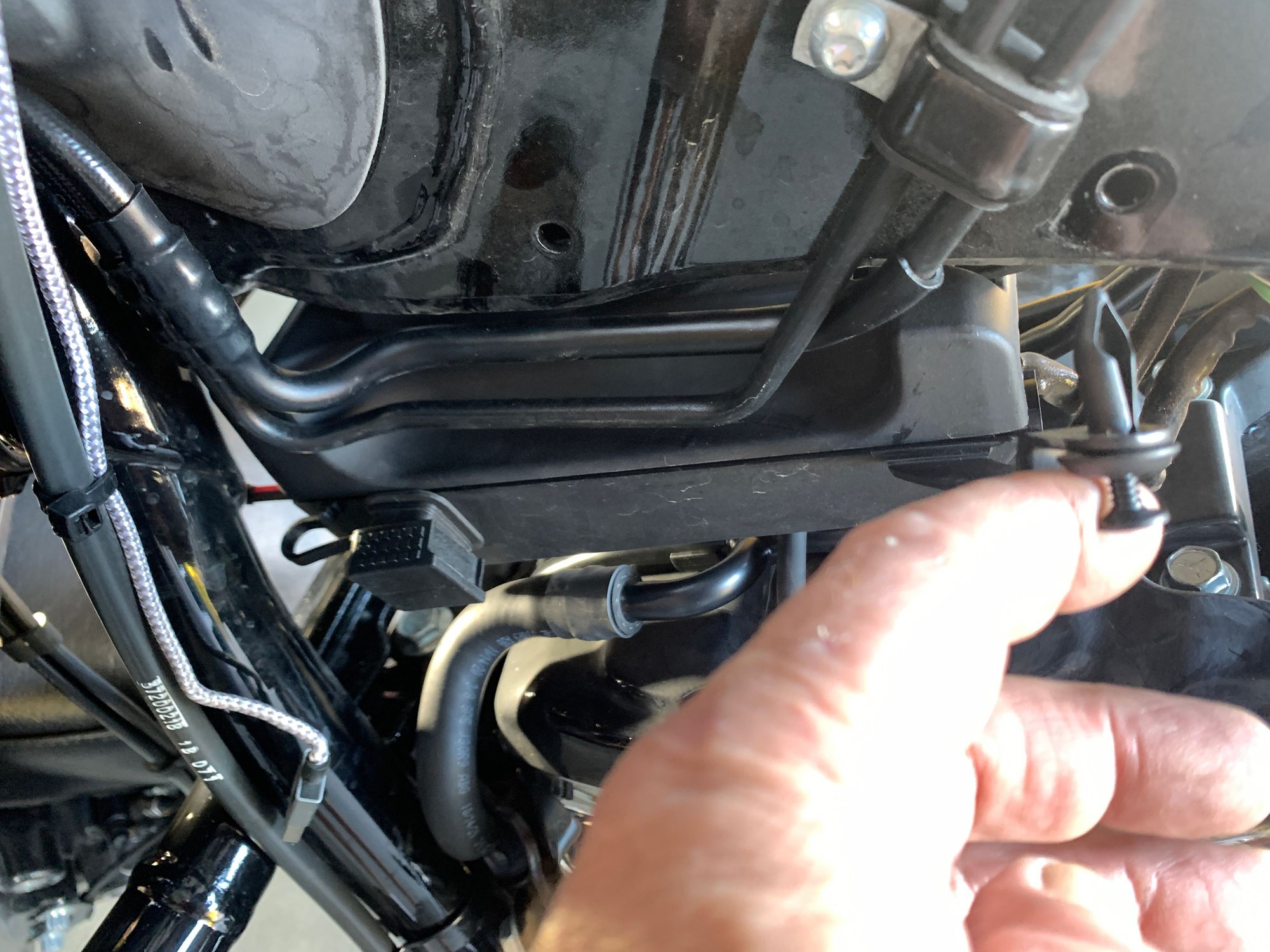

Go back to the right side of the bike, and slide the caddy forward to disconnect it from the rear mount. Now you can turn the bottom of the caddy toward you and remove the 4 screws that hold the top and bottom together. Pop the top off, then separate this connector.

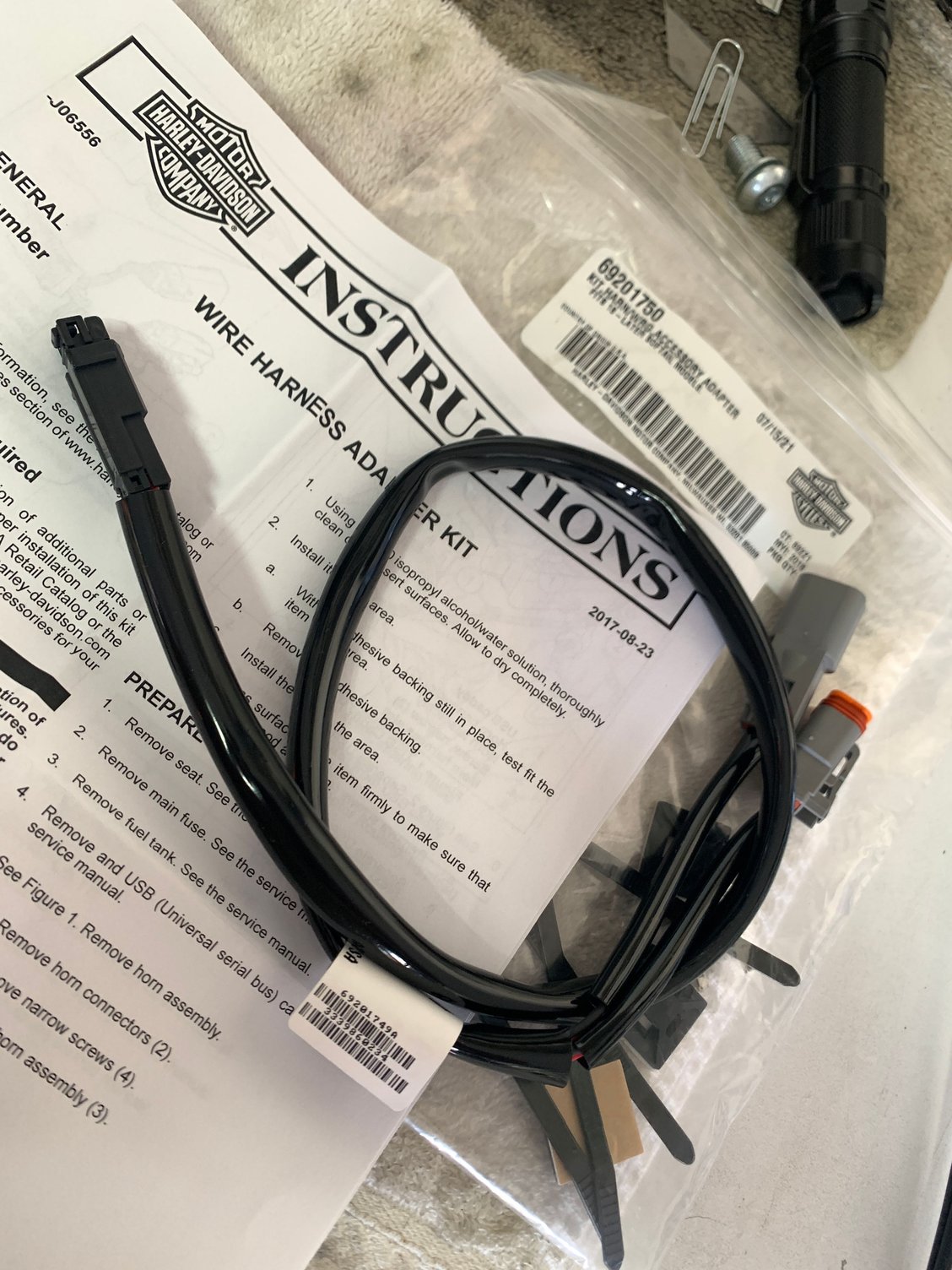

Grab the adapter harness, plug it in, and tuck it in nice and pretty like this.



Run the harness out of the rear of the caddy, put the 2 halves back together, then reinstall the caddy and horn assembly. The harness coming out of the rear of the caddy should look something like this.



The harness will be secured by zip ties and retainers included with the adapter kit, and run along the side of the frame rail forward of the steering head.

Obviously, everything else goes back together in the reverse.

I used this for heated grips, but you can use it for anything you want that requires 12v power. It's not hot until you turn on the ignition, so they've idiot proofed it too.
