Default Gas tank bottom bolts

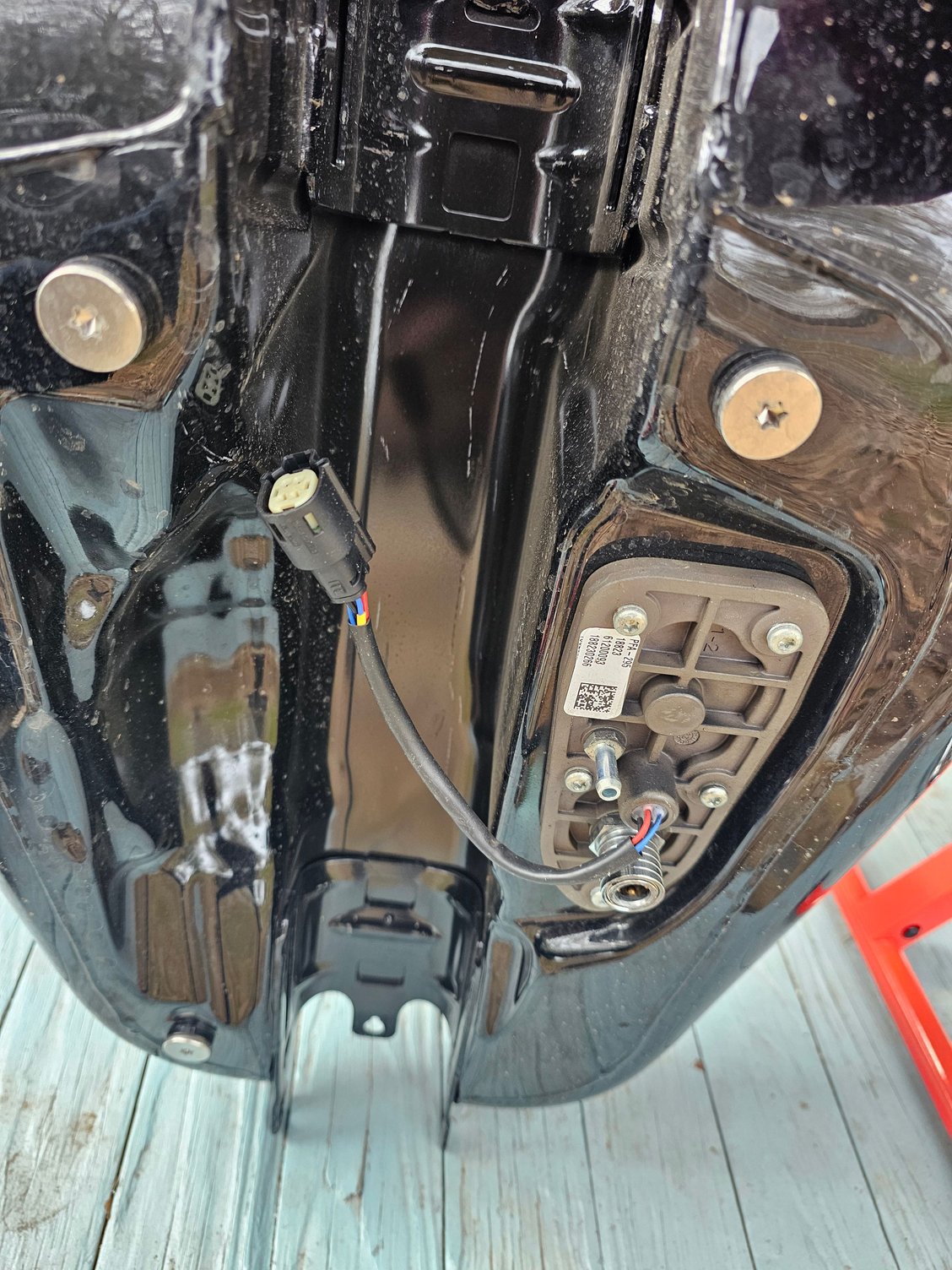

It's probably a simple answer but I couldn't find it. What is the purpose of the3 torx bolts on the bottom of the gas tank? 2023 lowrider st

Reply
Old Jan 14, 2024 | 02:23 PM
  #2
CoolBreeze3646's Avatar
CoolBreeze3646
Seasoned HDF Member
Joined: Aug 2006
Posts: 24,540
Likes: 30,870
From: Pennsylvania
Default

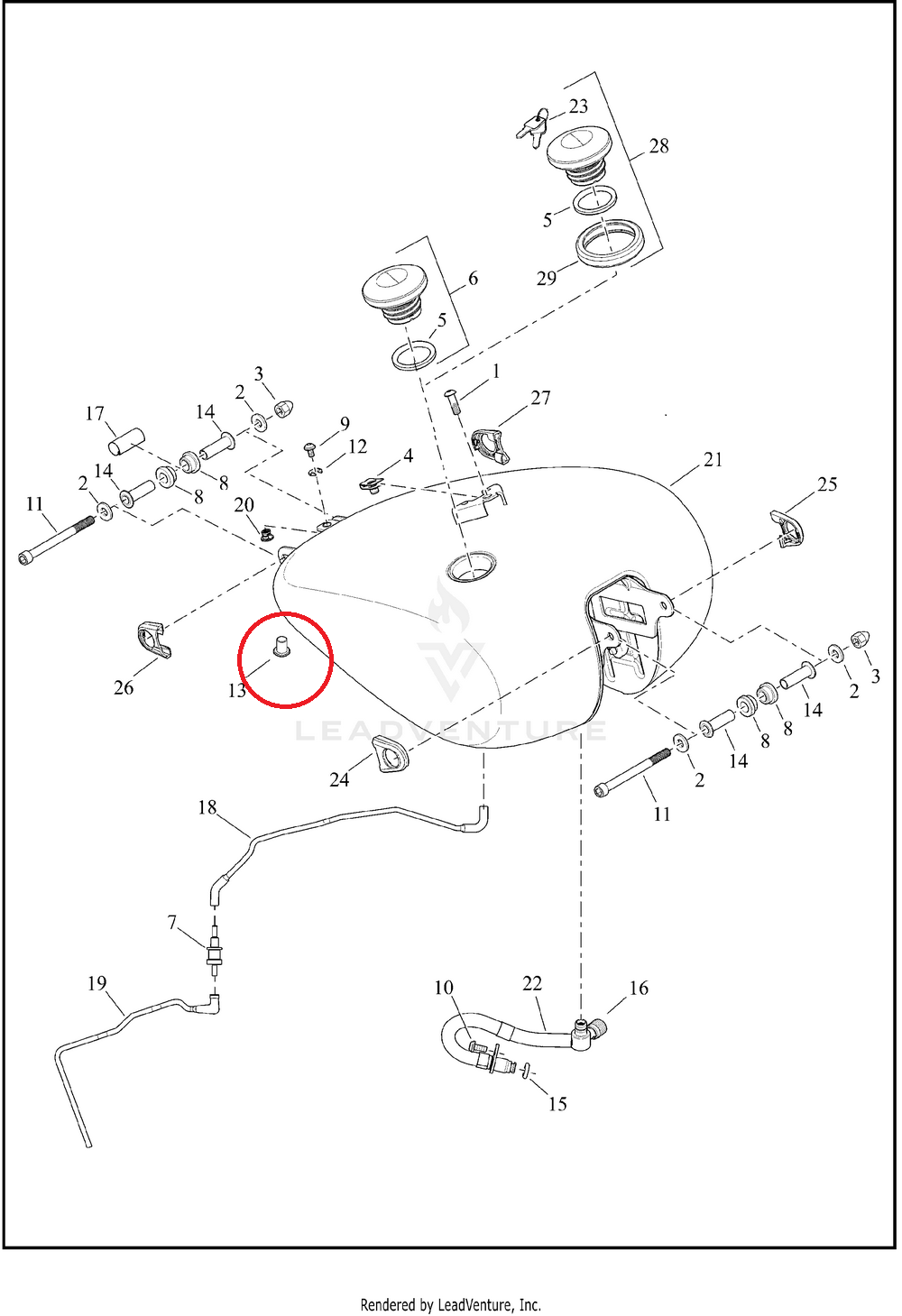

Ref:13
10500167
SCREW,CUST,ECOAT DRAIN PLUG
Price: $1.91
3 EA

https://www.harley-davidson.com/us/e...7da954d4b5b8/y





Last edited by CoolBreeze3646; Jan 14, 2024 at 02:25 PM.
Reply
Old Jan 14, 2024 | 03:24 PM
  #3
CryingJoker's Avatar
CryingJoker
Thread Starter
|
Road Master
10 Year Member
Shutterbug
Loved
Community Favorite
Joined: Dec 2012
Posts: 962
Likes: 329
From: Louisiana
Default

Thanks, drain bolts were the only thing I could think of.

Reply
Old Jan 15, 2024 | 01:18 AM
  #4
Chasingdrakes's Avatar
Chasingdrakes
Cruiser
Joined: Oct 2017
Posts: 147
Likes: 158
From: Colorado Springs
Default

Some where to hold it while painting?

Reply
Old Jan 15, 2024 | 06:15 AM
  #5
foxtrapper's Avatar
foxtrapper
HDF Community Team
Veteran: Navy
Veteran: National Guard
10 Year Member
Top Answer: 3
Joined: Nov 2012
Posts: 6,191
Likes: 2,423
From: USA
Community Team
Default

Originally Posted by Chasingdrakes
Some where to hold it while painting?
I was musing that myself. Drain bolts is odd, especially three of them.

Reply
Old Jan 15, 2024 | 06:40 AM
  #6
CoolBreeze3646's Avatar
CoolBreeze3646
Seasoned HDF Member
Joined: Aug 2006
Posts: 24,540
Likes: 30,870
From: Pennsylvania
Default

They may be used for mounting the tank on a fixture while it goes through the paint process, then plugged. Although I think the tank mounting tabs would serve the same function.

Must be specific to year and model as my 2019 Trike tank does not show them.

Reply
Old Jan 15, 2024 | 11:06 AM
  #7
chief08's Avatar
chief08
Road Master
10 Year Member
Liked
Loved
Community Favorite
Joined: May 2015
Posts: 791
Likes: 221
From: sf bay area ca
Default

take one out see what you find then tell us

Reply
Old Jan 15, 2024 | 12:26 PM
  #8
shiftace's Avatar
shiftace
Road Warrior
15 Year Member
Liked
Loved
Community Favorite
Joined: May 2010
Posts: 1,953
Likes: 1,169
From: Northern Colorado
Default

Originally Posted by chief08
take one out see what you find then tell us
"oh ****, they really ARE drain bolts" lol

Reply
