Amp Wiring Help
Thread Starter
|
Novice
Joined: Jun 2006
Posts: 16
Likes: 0
From: Lone Grove, OK
Amp Wiring Help
Not positive sure how to set this up, but I knew this would be the place to ask. Have the Fat Head Sony 7000 setup in 06 Streetglide. Got Polk 652 speakers in fairing only. Have 2 channel marine amp. Was wondering how you would run wiring and setup with what I have. I plan on adding bag speakers & better amp at some point down the road. I work in the oilfield so I'm kinda stuck with what I got till times get a little better. Thanks in advance for any help.
HDF Community Team
Joined: Mar 2017
Posts: 7,821
Likes: 4,381
From: Texas
You need to run RCA cables from Sony Front Outputs (the middle row of red and white outputs) to amp inputs (ch 1 and ch 2). Red is the right channel and ch1, white is the left channel and ch2. Run speaker wire from right speaker (+) and (-) to ch1 output (+) and (-). Run speaker wire from left speaker (+) and (-) to ch2 output (+) and (-). Run that blue wire in your picture to the REM on your amp. Run power and ground from your battery terminals to your amp.
HDF Community Team
Joined: Mar 2017
Posts: 7,821
Likes: 4,381
From: Texas

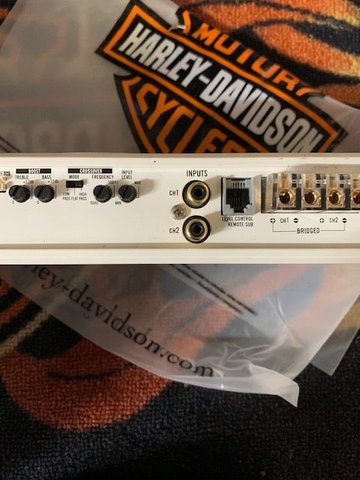

Alright, the pics show up here. since you have the Sony 7000 I would put your x-over on the amp to flat and use the Sony to add a high pass filter for 80HZ. Treble and bass boost should be all the way down on the amp, and in the Sony any sort of bass boost or enhancements of any kind should be off, and the eq should be flat. Turn your input level all the way down (counterclockwise). Have your bike running, put on some music, turn the volume up to 38, then turn your input level up until it starts to distort, then back off a little. You should be able to crank it up to 45 without much distortion. 50 will distort.
Last edited by BrandonSmith; Jun 6, 2020 at 08:47 PM.
Thread Starter
|
Novice
Joined: Jun 2006
Posts: 16
Likes: 0
From: Lone Grove, OK
Thanks a million man. I’ll set it up that way & hopefully be good to go. Thanks again for your time & help.
Trending Topics
Seasoned HDF Member
Joined: Jan 2013
Posts: 10,637
Likes: 1,246
From: Lake, Ms
Originally Posted by BrandonSmith
Alright, the pics show up here. since you have the Sony 7000 I would put your x-over on the amp to flat and use the Sony to add a high pass filter for 80HZ. Treble and bass boost should be all the way down on the amp, and in the Sony any sort of bass boost or enhancements of any kind should be off, and the eq should be flat. Turn your input level all the way down (counterclockwise). Have your bike running, put on some music, turn the volume up to 38, then turn your input level up until it starts to distort, then back off a little. You should be able to crank it up to 45 without much distortion. 50 will distort.
OP FWIW, once you set your gains at 38, that should be your new max volume and you should never go past that!!!!
