Ignition wiring

Thread Tools

Search this Thread

Old May 13, 2022 | 03:42 PM
  #1
Billyperry452's Avatar
Billyperry452
Thread Starter
|
Stage II
Joined: May 2022
Posts: 2
Likes: 0
From: IN
Default Ignition wiring

I'm going from a 3 prong to a 6 prong ignition.

I know what the wire colors r on the 3 prong original ignition.
Red = Hot
Red/Grey = Accessories
Red/Black = Start

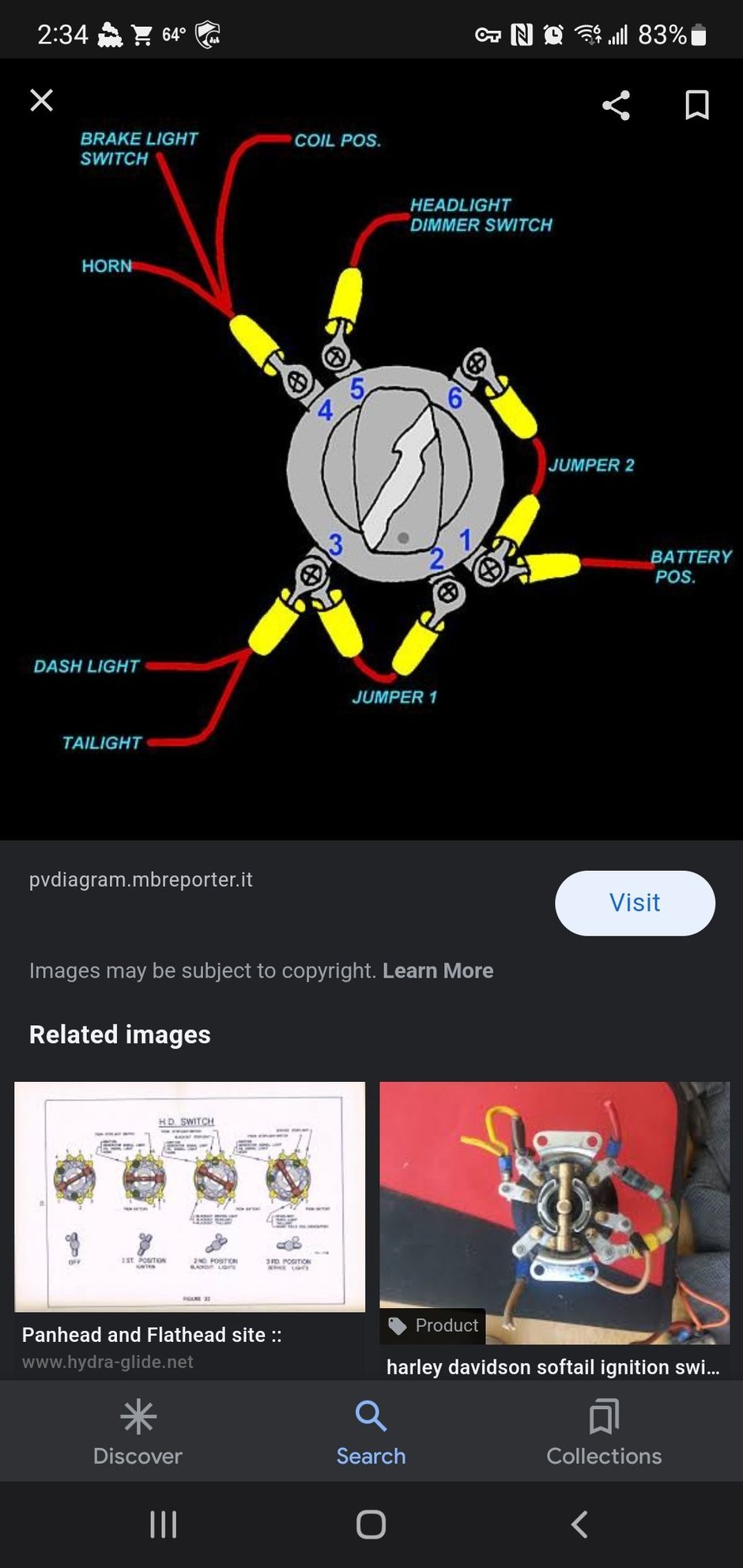

What I need to know is how would I do the 6 prong connection? Im unsure to witch ones i should hock what to. Here is a pic for example of what it looks like.



Reply
Old May 13, 2022 | 04:30 PM
  #2
Max Headflow's Avatar
Max Headflow
Seasoned HDF Member
Joined: Dec 2005
Posts: 19,795
Likes: 7,944
From: poway
Default

Hot, same as battery positive. 1,6

Accessories same as dash / tail. 2,3

Start ( I assume ignition wire) = horn brake.. 4

5 will be a no connect as the headlights are wired to the ignition wire.
