I have a 2008 Electraglide Classic. No spark. Pulled coil. I have the service manual and do not see primary or secondary resistance information. I am assuming it is 3 ohm. Additionally, not even sure how to test the primary resistance as it has four pins from a plug in connector and I can't get a read on it.
I appreciate any help.
Downtown Sammy
The OEM coil has 4 connections, 1-front cylinder, 2-rear cylinder, 3-power and 4-ION SENSING. Look in the FSM wire diagrams for ignition to find which connection to use.
The OEM coil has 4 connections, 1-front cylinder, 2-rear cylinder, 3-power and 4-ION SENSING. Look in the FSM wire diagrams for ignition to find which connection to use.
Jackie
thanks for the info. I was able to identify pins and tested primary. Both tested (multimeter) at .5. Range in manual was .5 to 2.5. Definitely on the lower end. Secondary (F and R) tested 6000 so in range. Now Im at a bit of a loss. Not sure where to go. I could buy another coil and replace to rule it out. Any thoughts?
Jackie
thanks for the info. I was able to identify pins and tested primary. Both tested (multimeter) at .5. Range in manual was .5 to 2.5. Definitely on the lower end. Secondary (F and R) tested 6000 so in range. Now I’m at a bit of a loss. Not sure where to go. I could buy another coil and replace to rule it out. Any thoughts?
Did you read for codes? How are you checking for no spark? With everything together, and cranking what is the voltage at power (A connection Y/GR wire}?
Last edited by Jackie Paper; Nov 22, 2023 at 04:33 PM.
I need check codes. I tested spark using spark tester. Coil is under tank so pulled it. how do I check for cranking power y/gr? This is new territory for me. Thanks!
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Slideshow: The bar-and-shield logo shows up on far more than motorcycles, some of the company's most unexpected products have nothing to do with riding.
Slideshow: From the troubled AMF years to modern misfires, these bikes earned reputations for reliability issues, questionable engineering, or disappointing performance.
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Slideshow: The Swiss custom shop has taken a Harley Softail and stretched it into something so long and low that it looks closer to a rolling sculpture than a conventional motorcycle.
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Slideshow: A standard cruiser becomes an intricate metal canvas in the hands of a Swiss custom house known for pushing Harley-Davidson platforms far beyond their factory brief.
Slideshow: Harley-Davidson's challenges aren't abstract; they show up in dropping shipments, shrinking dealer traffic, and strategic decisions that aren't yet translating into growth.

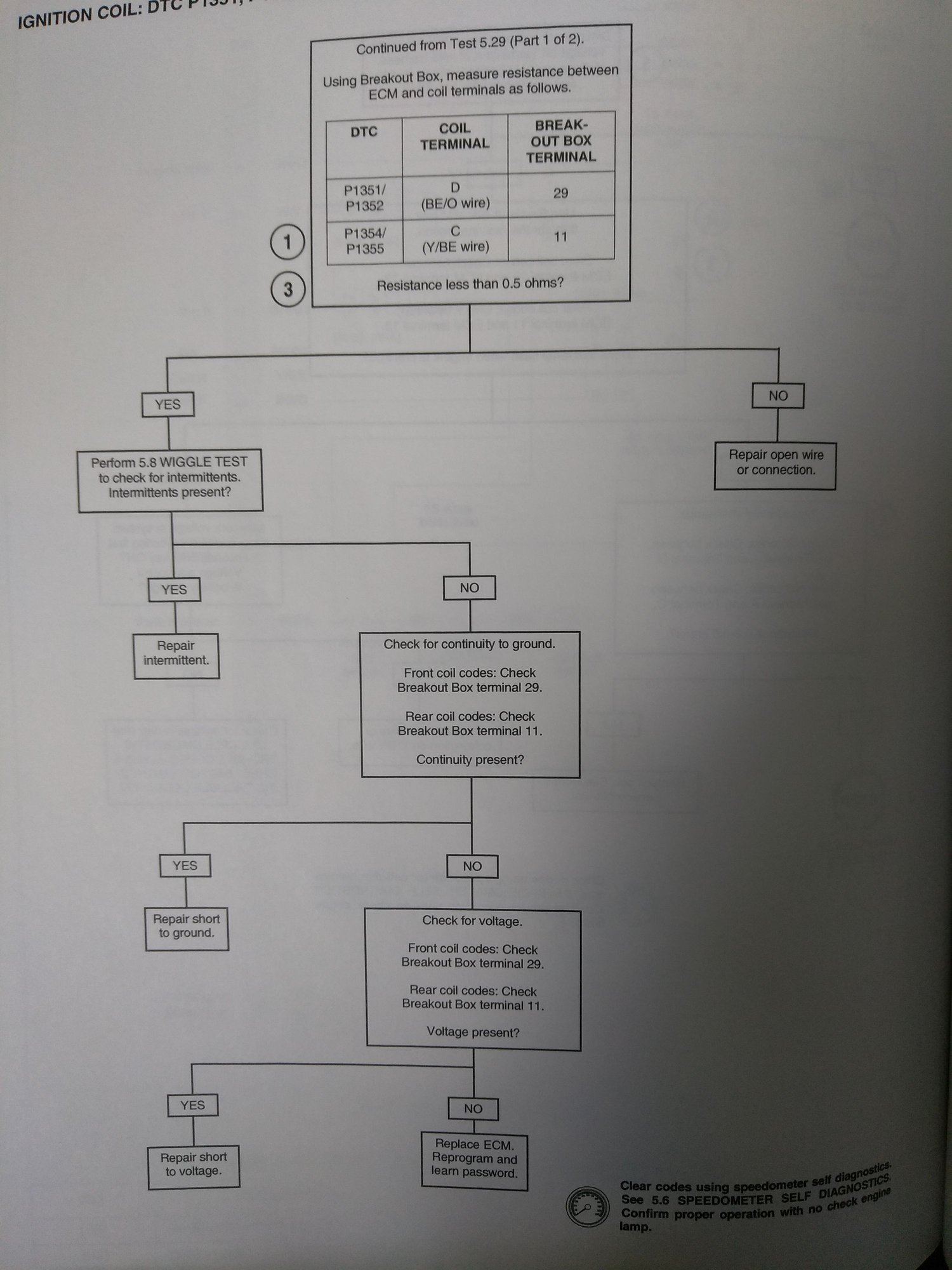

Ignition Coil Testing
