Electrical issues

My bad , I disconnected the right hand switch wiring and turned the key on the lights in back went off I plugged all of them back in and just unplugged one wire at a time the lights went out when I disconnected the orange or gray don't remember which

Sep 9, 2021 | 08:34 AM

#12

Vernal

Club Member

Joined: Apr 2013

Posts: 7,681

Likes: 8,413

From: Utah

Quote:

Originally Posted by myharley 726

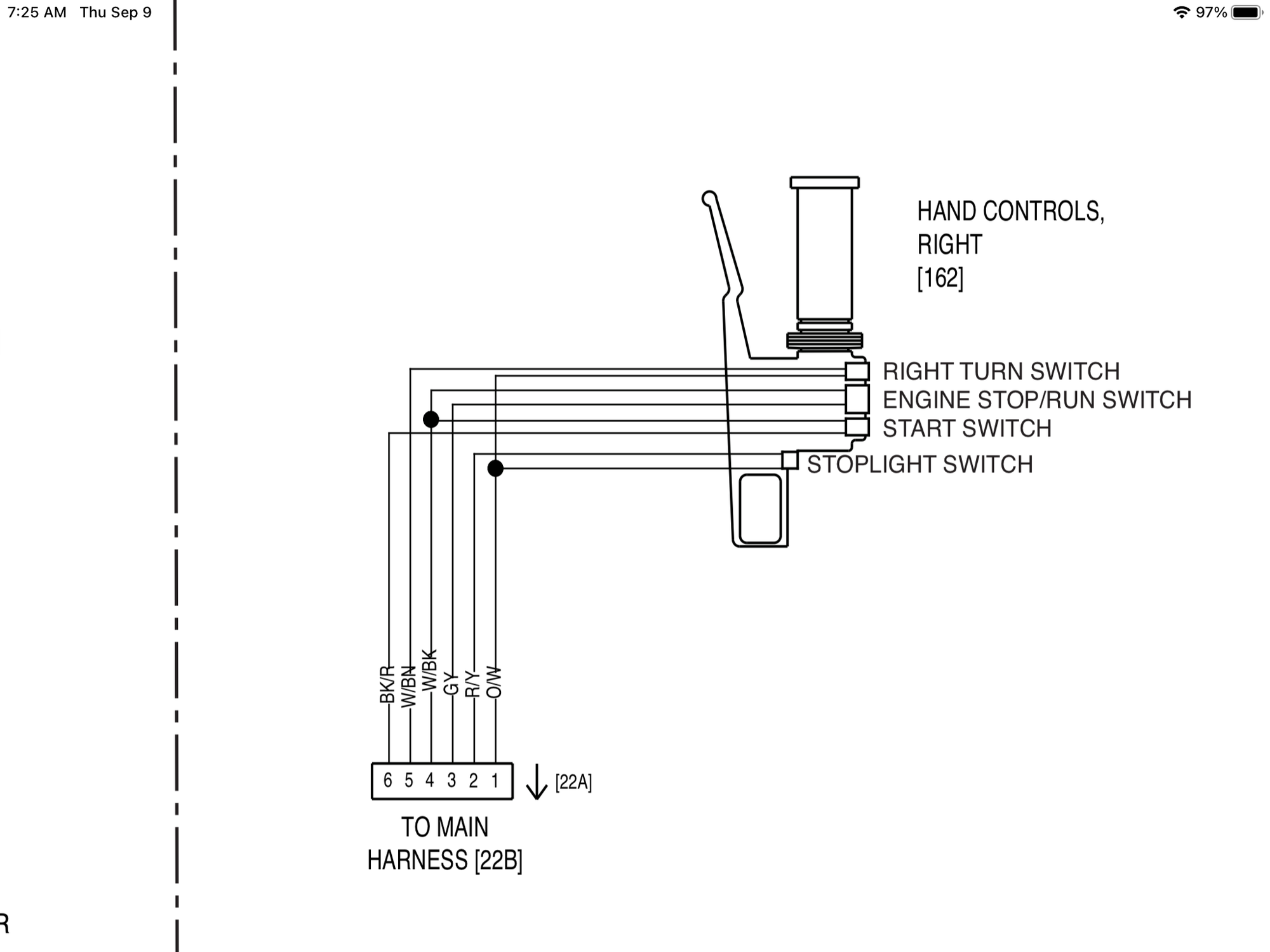

If it was the gray then you may have found your problem. The gray wire is from the Ignition fuse and puts power on the on/off switch. Turn the switch on and the W/BK wire energizes the system relay, puts power to the start relay and tells the ecm switched power is on. The gray wire also gives Tssm a signal.

disconnect right hand controls and see if gray is common to anything other than W/BK.

Sep 9, 2021 | 08:41 AM

#13

Zanthamos

Outstanding HDF Member

Joined: Feb 2015

Posts: 2,414

Likes: 433

From: Arkansas

Look at the front brake switch, you said that you just put some apes on, did you wedge the brake lever when installing the brake master cylinder? The common issue with brake lights staying on especially after a bar job is that the little nipple at the end of the brake switch gets caught on the brake lever and breaks off leaving just the end of the rubber boot making the switch too short to engage the lever properly. This is mitigated by using a piece of zip tie refuse or heavy card stock to wedge the lever slightly open upon installation of the master cylinder, do not remove the wedge u til the master cylinder and the switch housing are fully installed and torqued.

Sep 9, 2021 | 04:26 PM

#14

myharley 726

Thread Starter

Novice

Joined: Aug 2021

Posts: 16

Likes: 1

From: Florida

Electrical issues

Quote:

Originally Posted by myharley 726

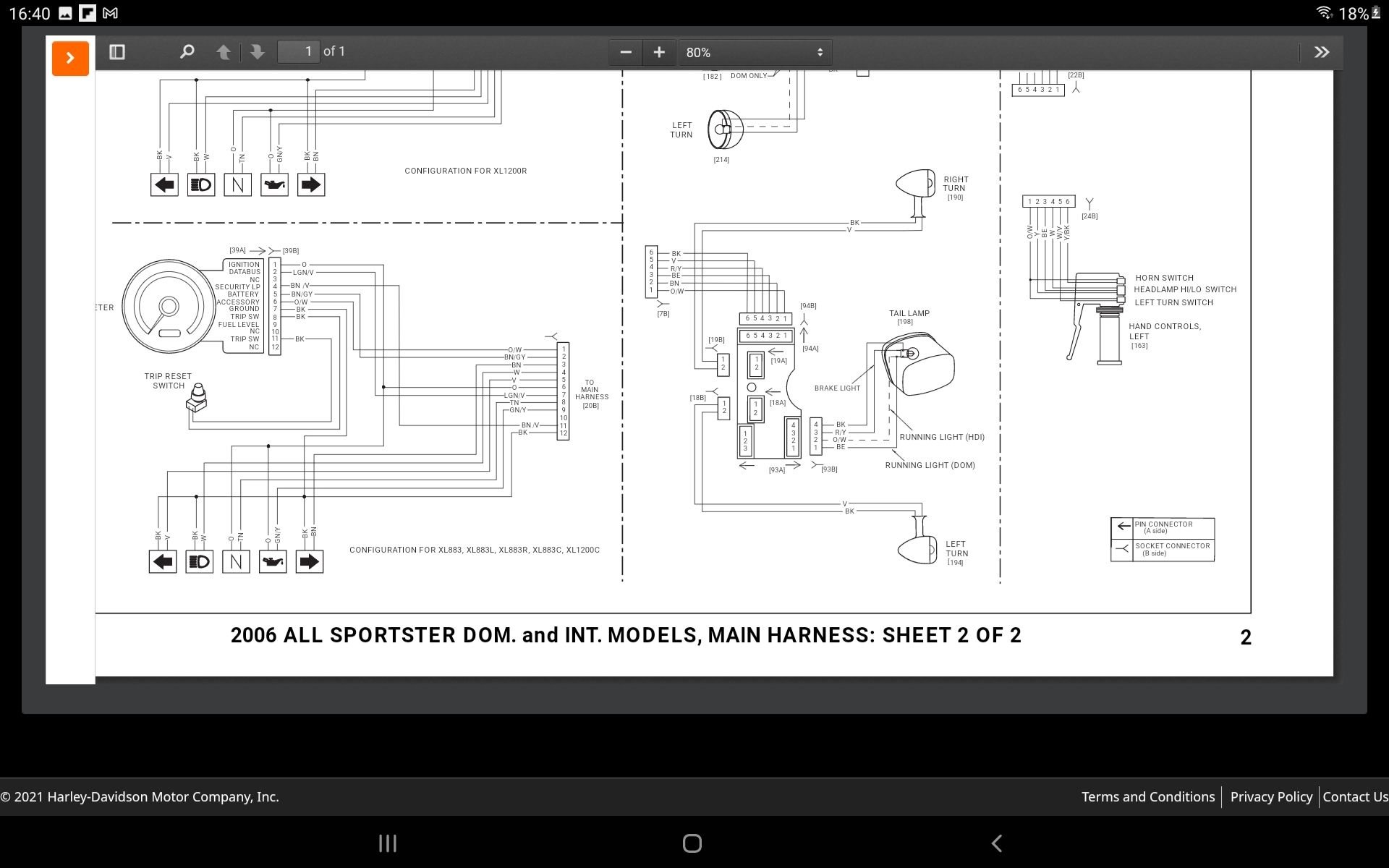

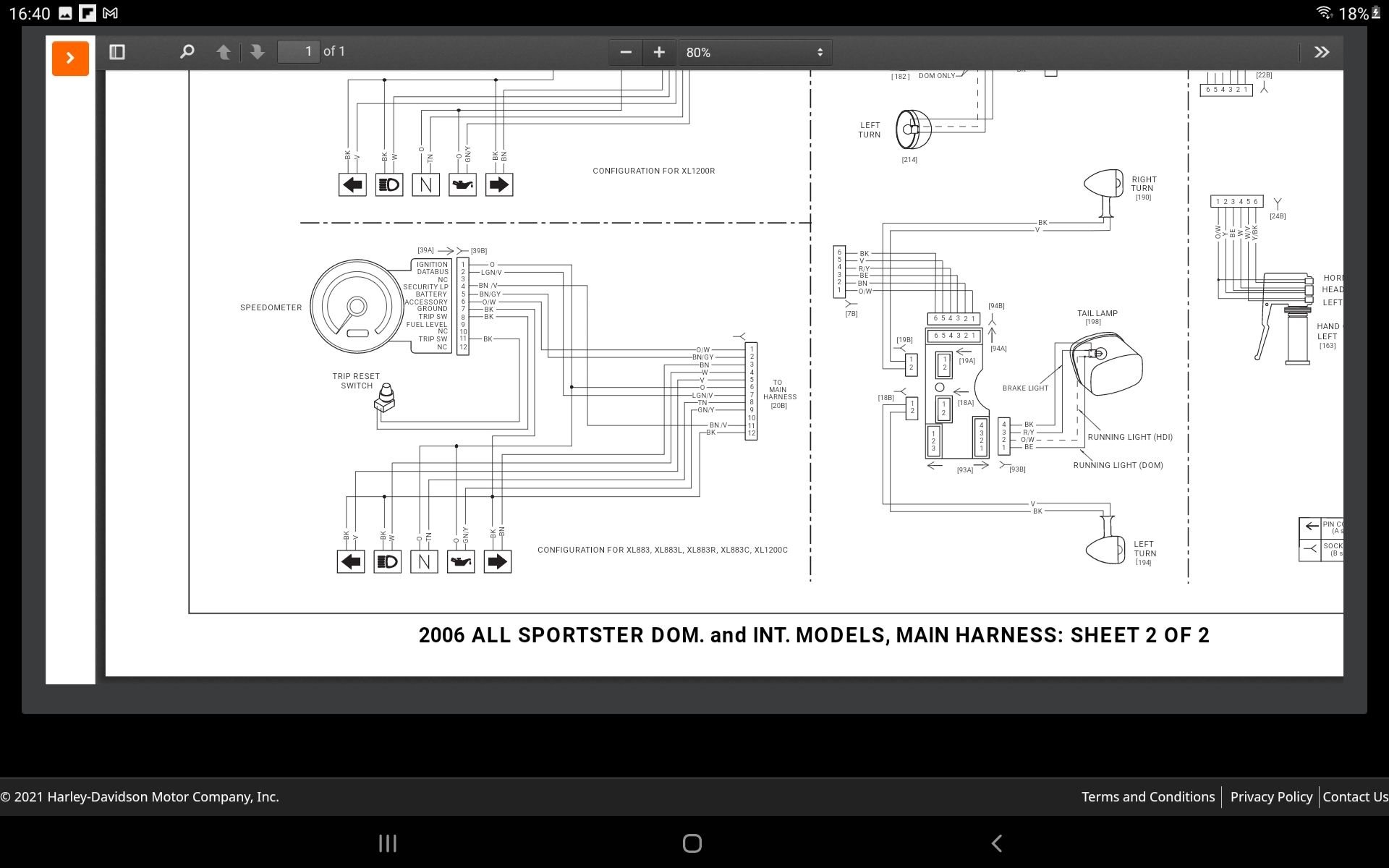

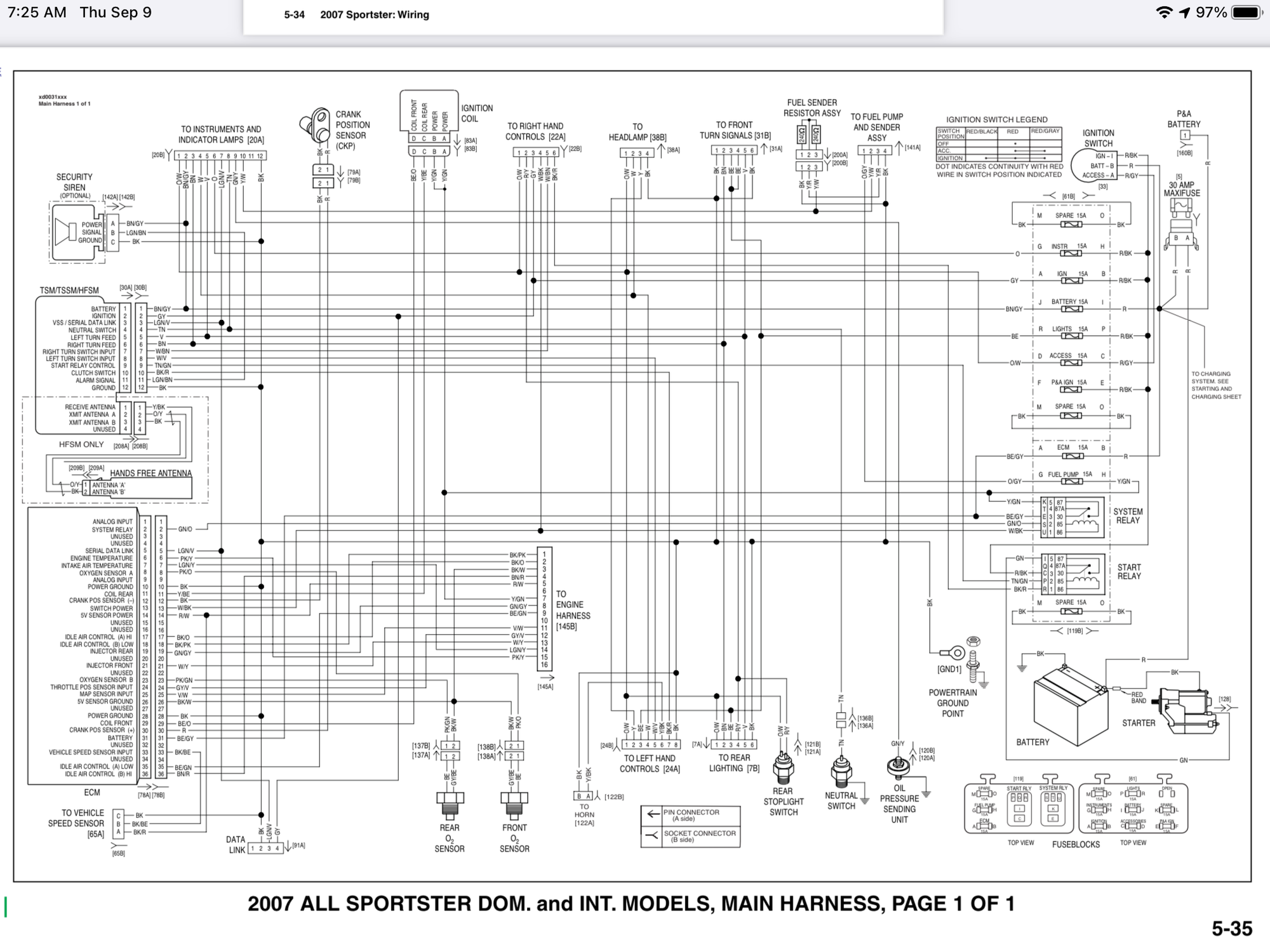

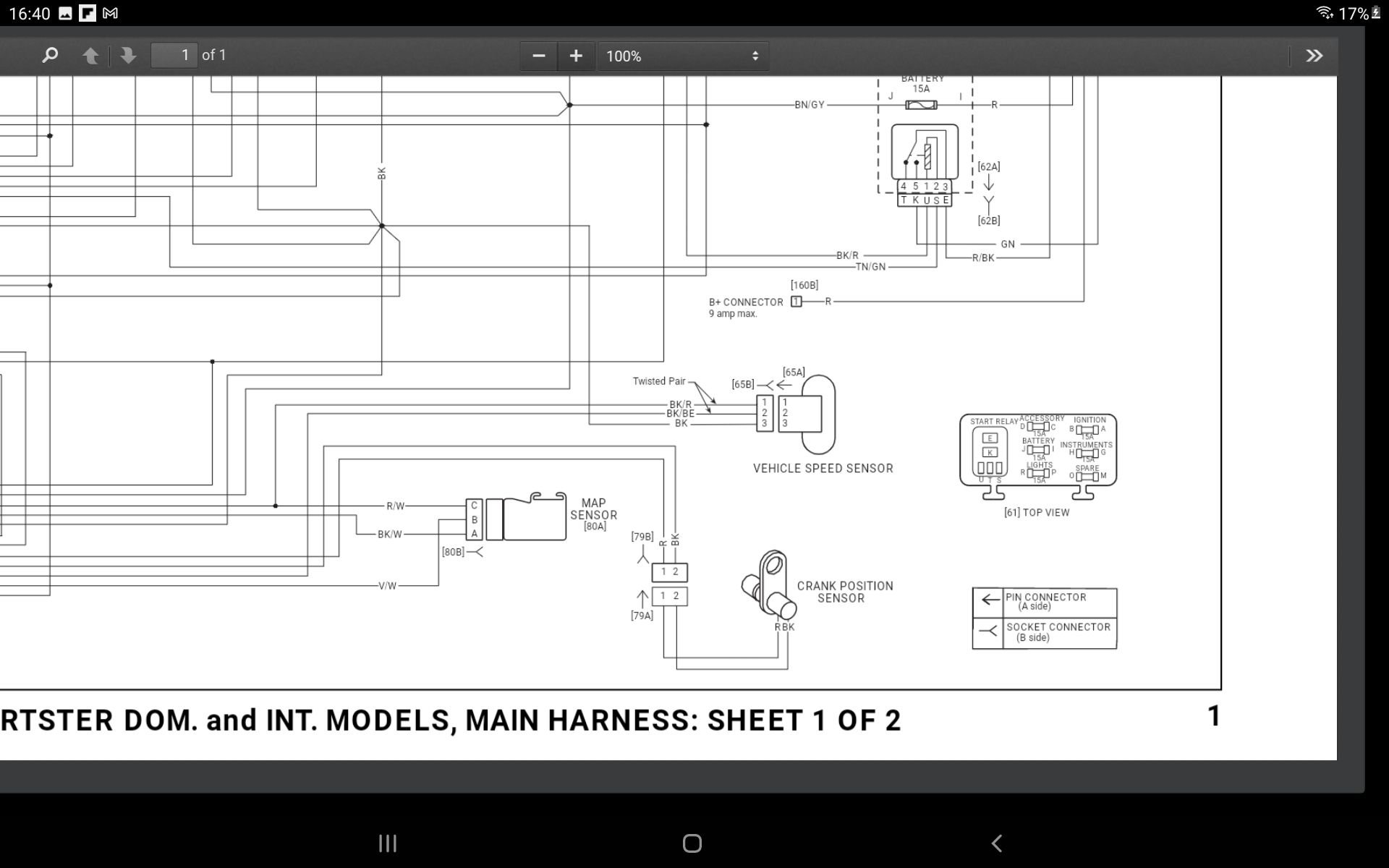

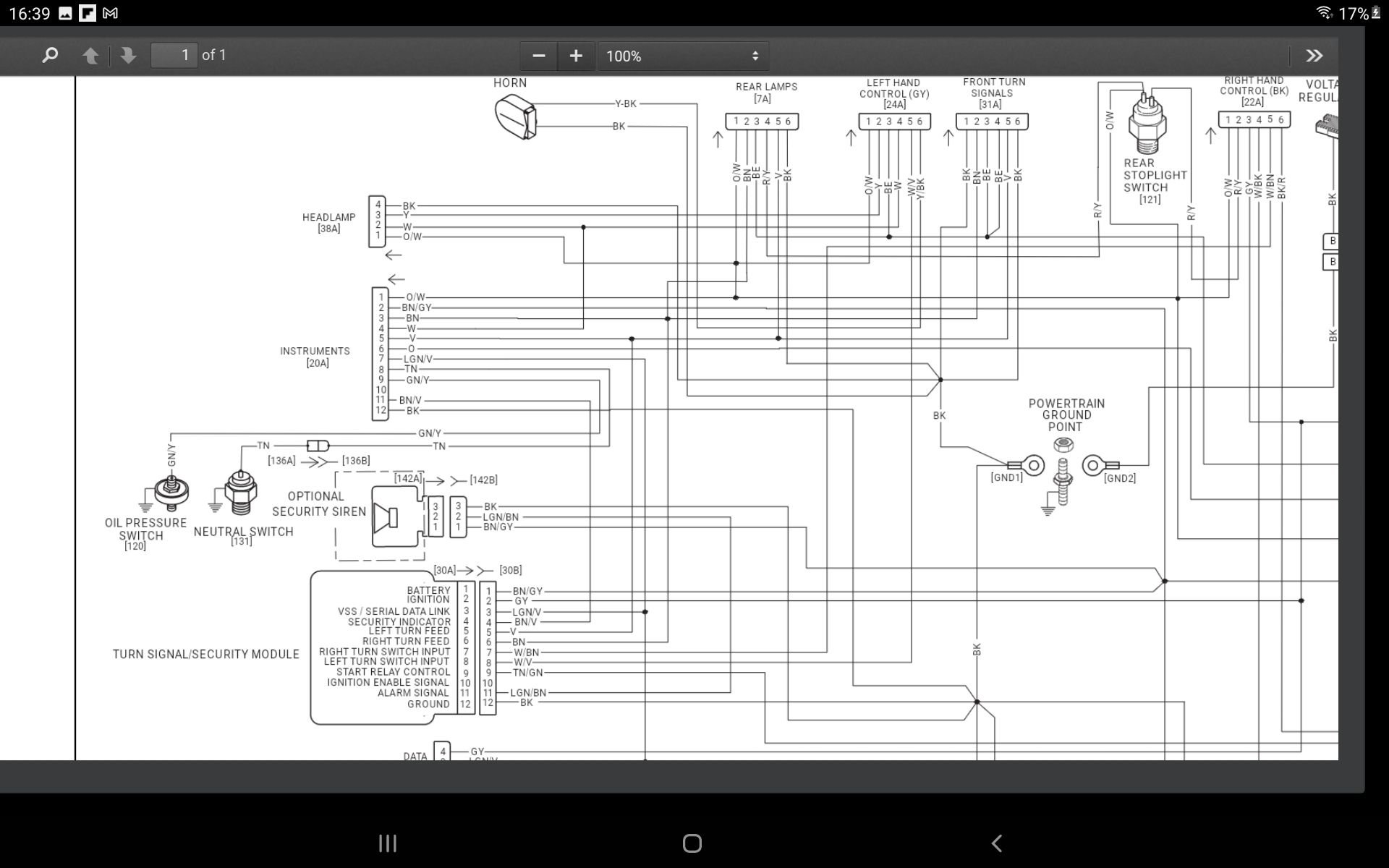

That diagram did help some thanks on a few other little items that needed fixed

Thanks for the help, I checked the front switch the lever wasn't even touching the switch so I repositioned the lever now the brake light is off and working properly the only thing left is the CDI BOX my guess is the tail light is going through that box as soon as I get the box I'll get it put in and hopefully the tail light Will work. Thanks guys for all your help greatly appreciated.

Sep 9, 2021 | 04:44 PM

#15

Zanthamos

Outstanding HDF Member

Joined: Feb 2015

Posts: 2,414

Likes: 433

From: Arkansas

What is this CDI box that you are talking about?

Sep 9, 2021 | 04:45 PM

#16

Zanthamos

Outstanding HDF Member

Joined: Feb 2015

Posts: 2,414

Likes: 433

From: Arkansas

What is this CDI box that you are talking about?

Sep 11, 2021 | 11:38 AM

#17

myharley 726

Thread Starter

Novice

Joined: Aug 2021

Posts: 16

Likes: 1

From: Florida

Electrical issuesa

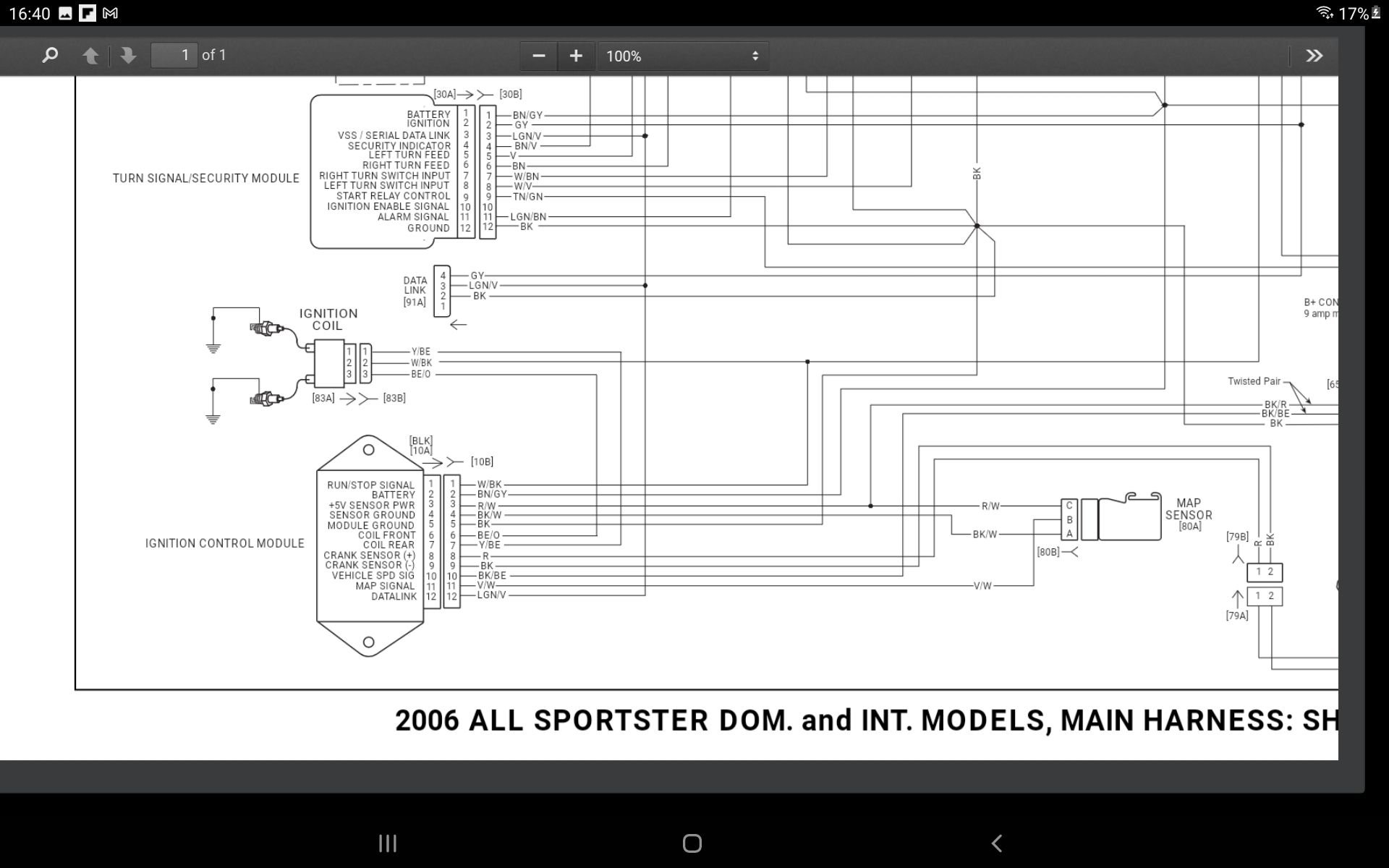

Actually it's the ignition module, I purchased a repair manual it got here yesterday I was looking at the harness for my bike this manual is worth it's weight in gold. I can't do much until I get the new ignition module it should be here in a day or two. This forum is Worth it's weight in gold as well there are a lot of helpful people on here and I thank everyone for all the help you have also given me it means a lot to me and is greatly appreciated.
