Hi fellas, new here and hoping to get help from someone. I bought this '92 FLHS and the trunk lights were directly wired to the hot side of the battery. This is how I found it, and I want it wired correctly.
1. Can anyone tell me or have a diagram showing how the trunk lights connect to the bike wiring?
2. On the '92 do the trunk lights serve as both, running & brake lights?
A couple of things wrong here. The '92 FLHS did not have a tour pak (trunk). If this is truly an FLHS it was added sometime after the initial sale so who knows what they did. The Electra Glide Sport (FLHS) did not have a fairing either. Is it possible that this is an Electa Glide Classic (FLHTC)? The were no lights in the FLHTC tour pak as delivered. It appears you are dealing with a homemade mess. Good luck.
A couple of things wrong here. The '92 FLHS did not have a tour pak (trunk). If this is truly an FLHS it was added sometime after the initial sale so who knows what they did. The Electra Glide Sport (FLHS) did not have a fairing either. Is it possible that this is an Electa Glide Classic (FLHTC)? The lights in the FLHTC tour pak were both running lights and turn signals.

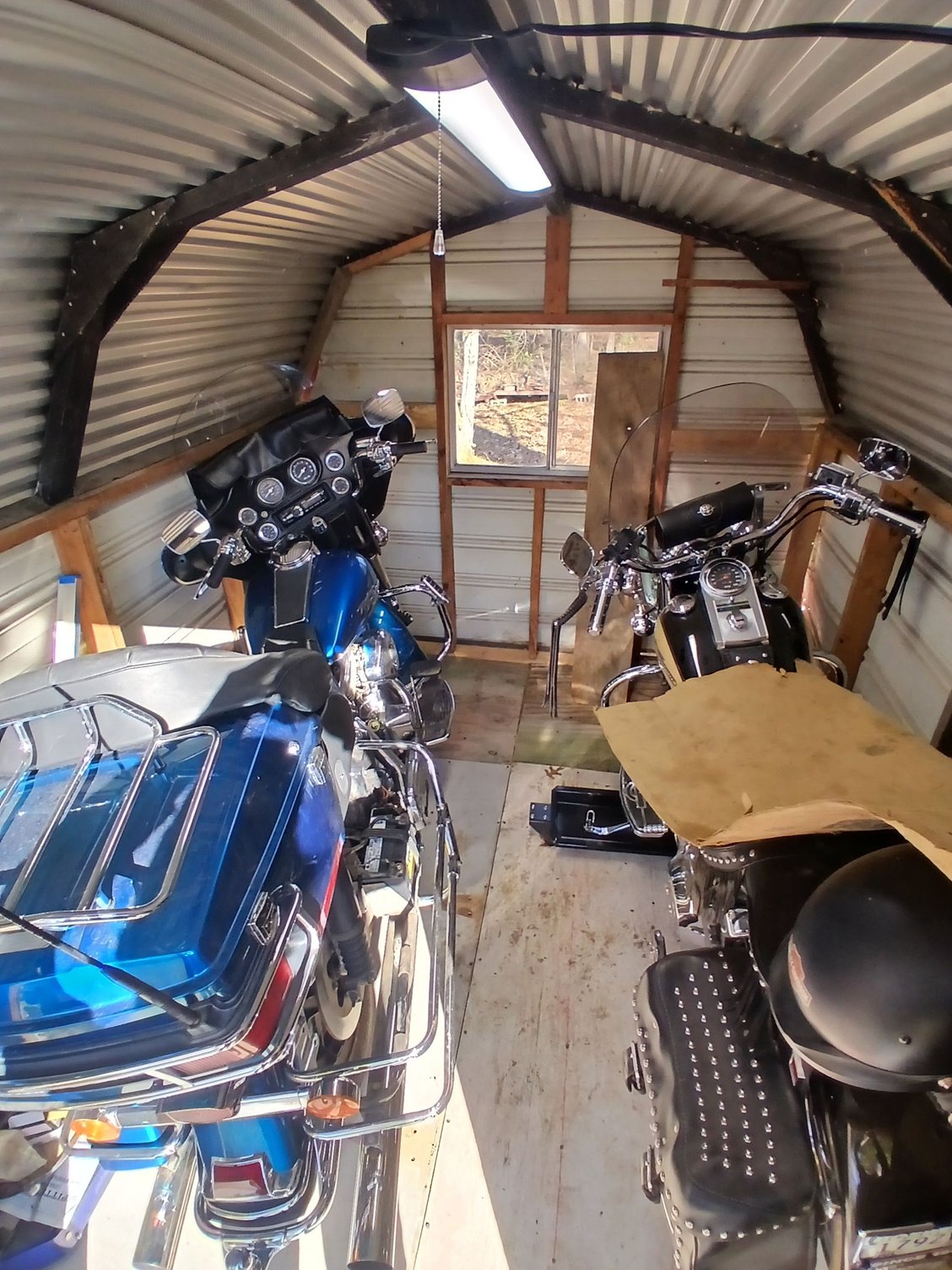

Yes sir, someone did add the trunk and the fairing. The fairing looks to be off of a 2012 or so. My VIN is coming up FLHS Sport so you're right. I almost have it right, except one light gives a bright brake light, the other gives normal running light. Both truck side lights are also normal. I'll try a make a quick video someone has fabricated.
Yes sir, someone did add the trunk and the fairing. The fairing looks to be off of a 2012 or so. My VIN is coming up FLHS Sport so you're right. I almost have it right, except one light gives a bright brake light, the other gives normal running light. Both truck side lights are also normal. I'll try a make a quick video someone has fabricated.
I've made a good video showing what I have but this site won't let me upload it. This harness is going into the trunk hooked up to a relay. Same harness going into the trunk hole hooked to relay. Same harness hooked to relay. Different plug going to the fender taillight I've temporarily tapped into. Harness inside the trunk from the harness I've tapped into. Note: No black wire here like the bulbs have. Both bulbs have red, green, black. Same color wiring in the left bulb.

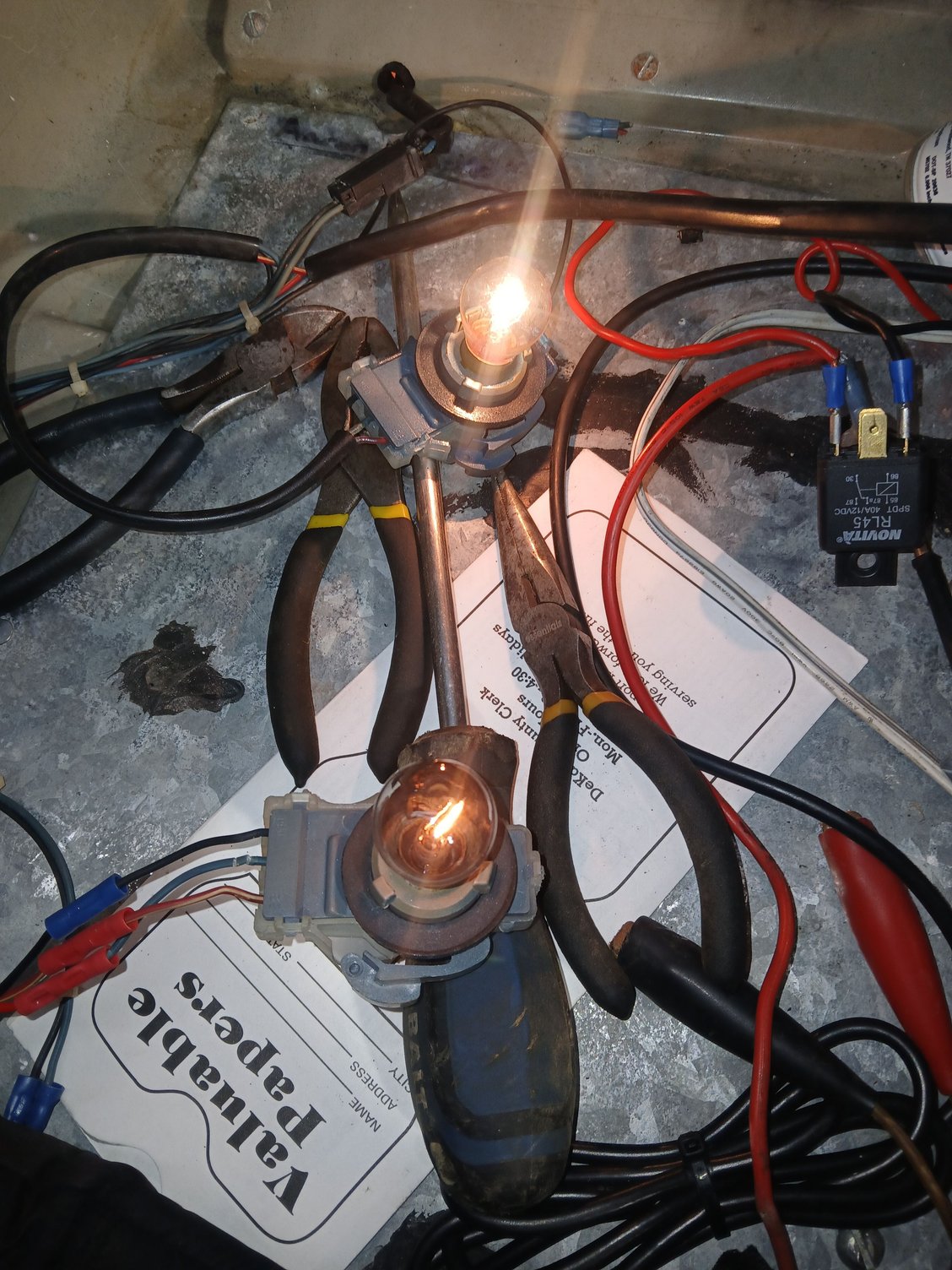

[img alt="When I power up at the ignition switch one bulb gives running light illumination. The other bulb gives a brighter brake light illumination. Theres gotta be an easier way to wire this.
Sidenote: Both side lights on the trunk appear to illuminate normal. "]https://cimg3.ibsrv.net/gimg/www.hdforums.com-vbulletin/2000x1504/20241125_164429_18c9eb05d32acf4c0c8c34718935578746 b91887.jpg[/img] When I power up at the ignition switch one bulb gives running light illumination. The other bulb gives a brighter brake light illumination. There's gotta be an easier way to wire this. Sidenote: Both side lights on the trunk appear to illuminate normal.

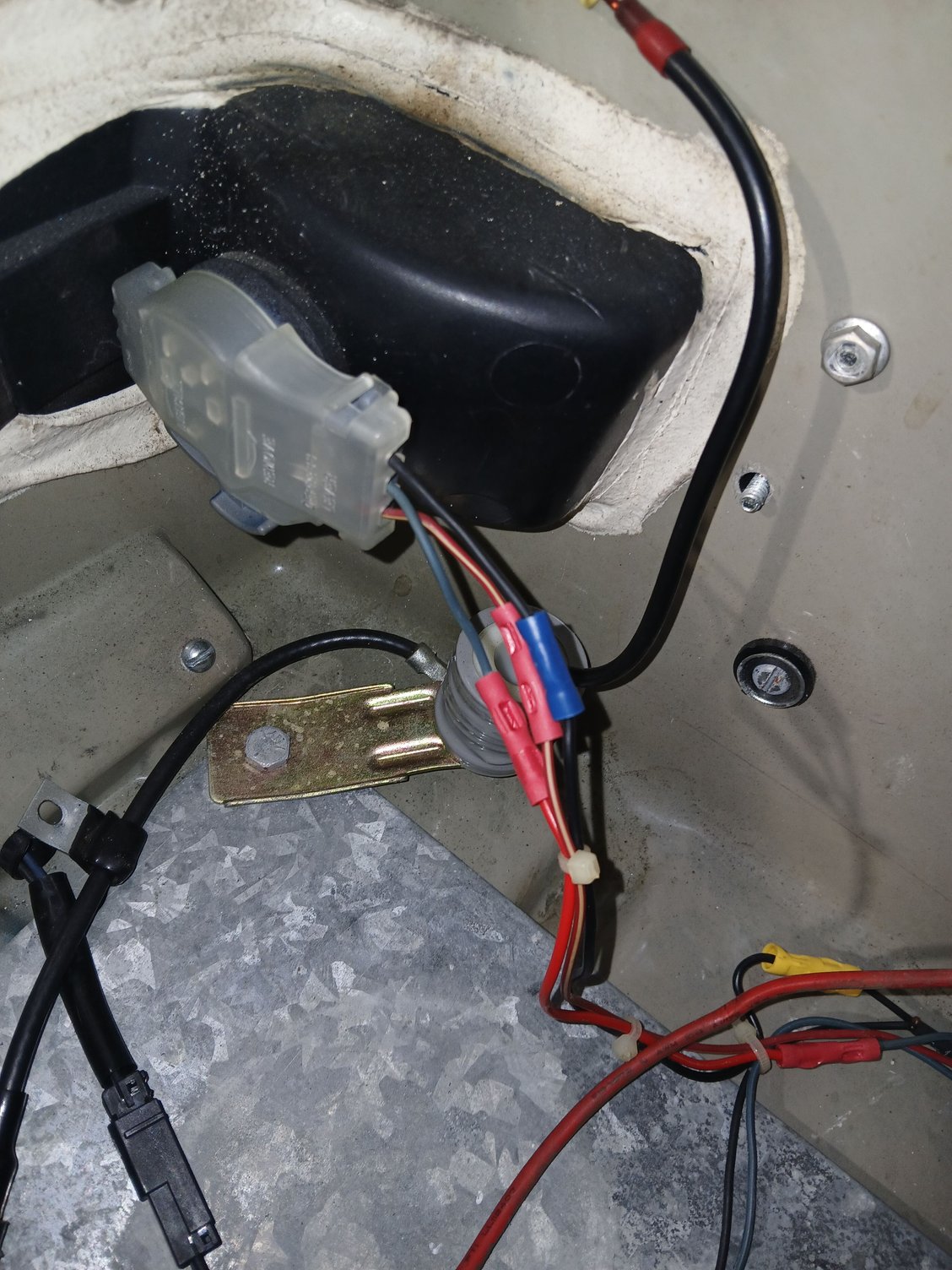

These are the trunk taillights.
Last edited by Phillip G.; Nov 25, 2024 at 05:37 PM.
Reason: Correcting Text
"quote: When I power up at the ignition switch one bulb gives running light illumination. The other bulb gives a brighter brake light illumination."
Do both bulbs have double filament and 12V P21/5W stamped on them? It sounds like one bulb is mounted into the fitting in the wrong way and or the wiring at one fitting has to be switched
Do both bulbs have double filament and 12V P21/5W stamped on them? It sounds like one bulb is mounted into the fitting in the wrong way and or the wiring at one fitting has to be switched[/QUOTE]
Yes, both have double filaments. I found not only an incorrect 1176 bulb in one socket. But, it also was in backwards. I put two new 1157 bulbs in and now I have taillights & brake lights when rear pedal is engaged. Now, hopefully all the wiring is correct on the relay someone has in the trunk. I have no idea....

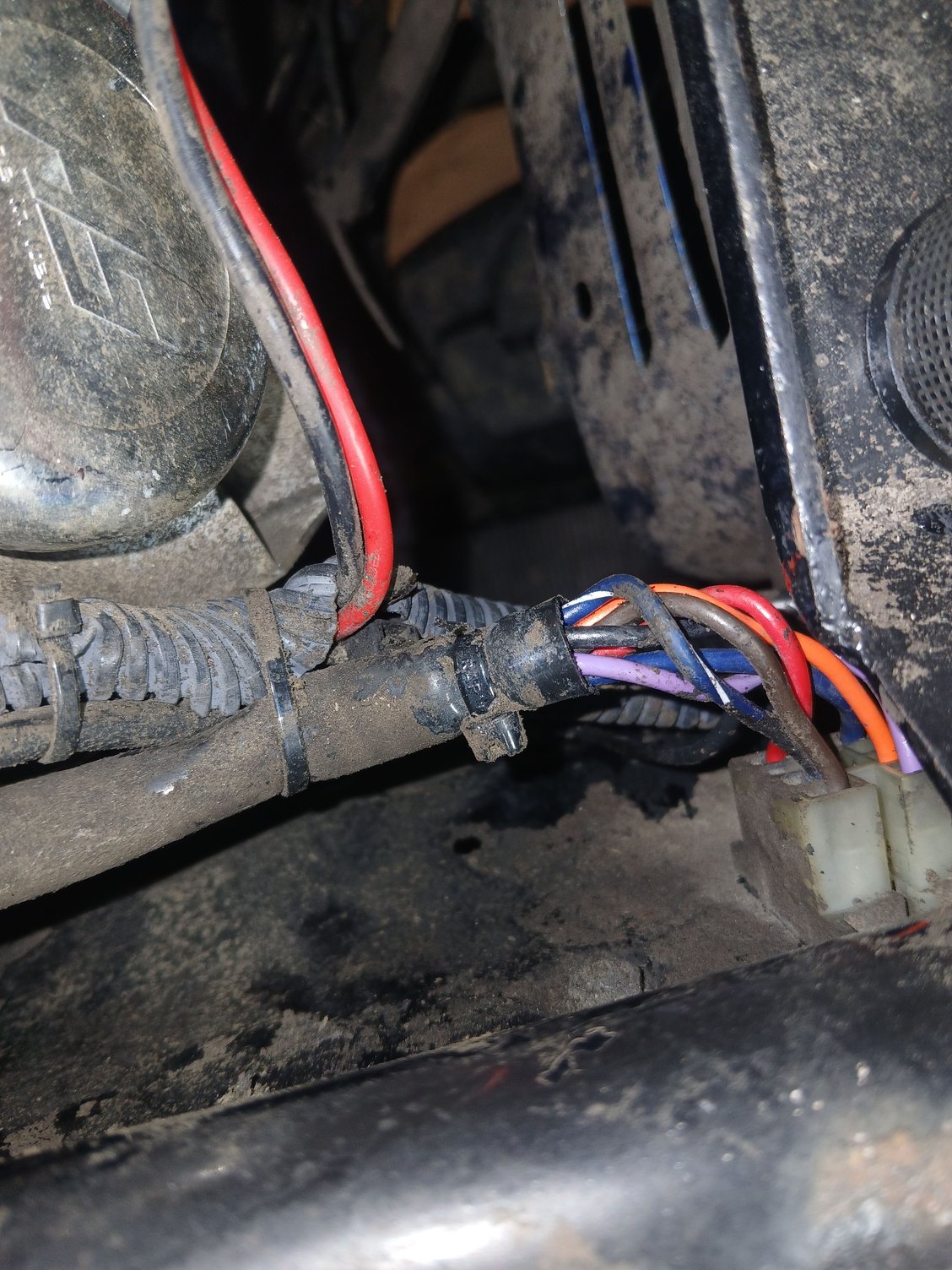

This harness is going into the trunk hooked up to a relay.
Originally Posted by Phillip G.

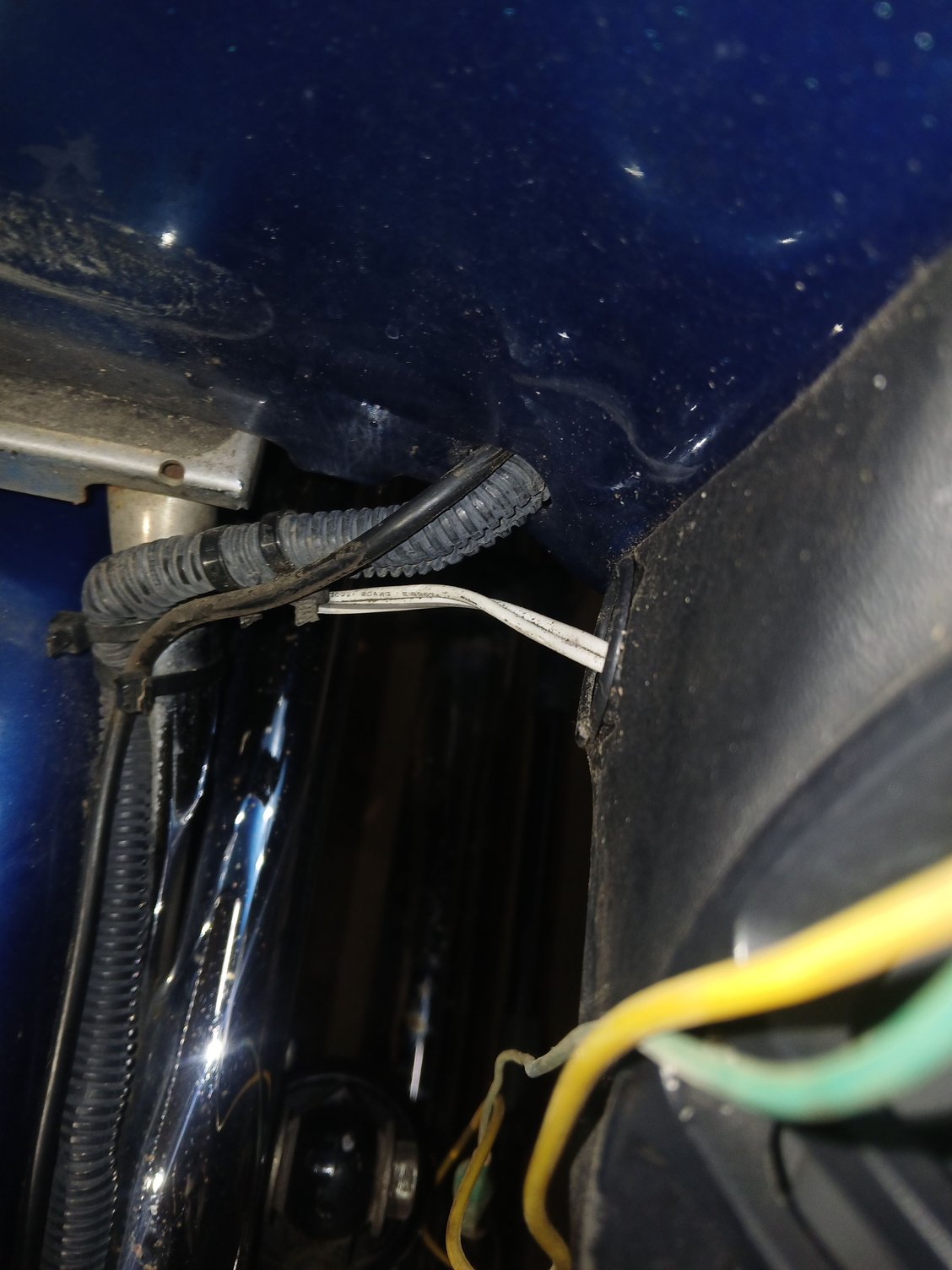

Same harness going into the trunk hole hooked to relay.
Did you manage to find out where this 2 wired harness comes from?
Originally Posted by Phillip G.

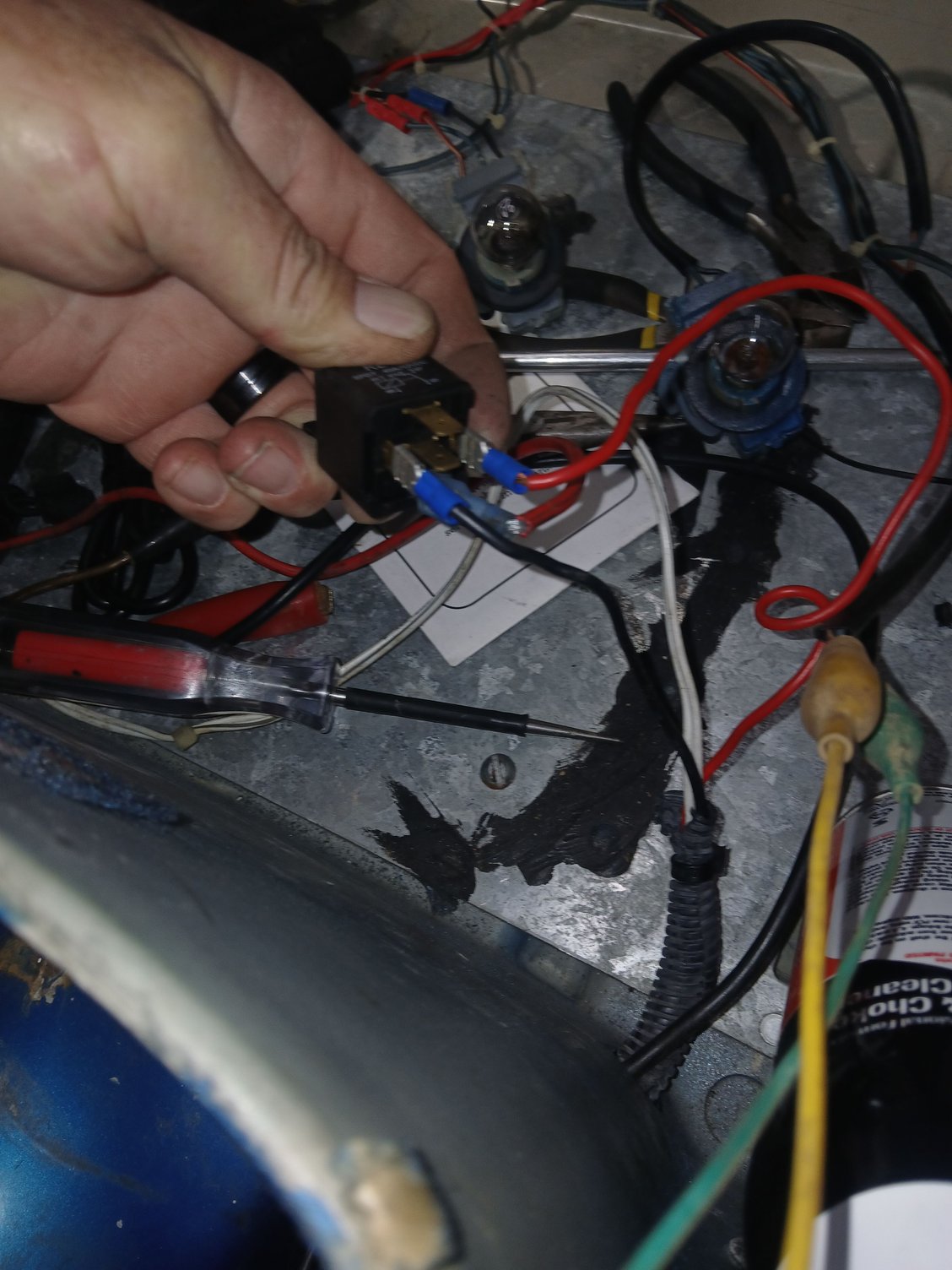

Same harness hooked to relay.
What wire is at what post at the relay??
Originally Posted by Phillip G.

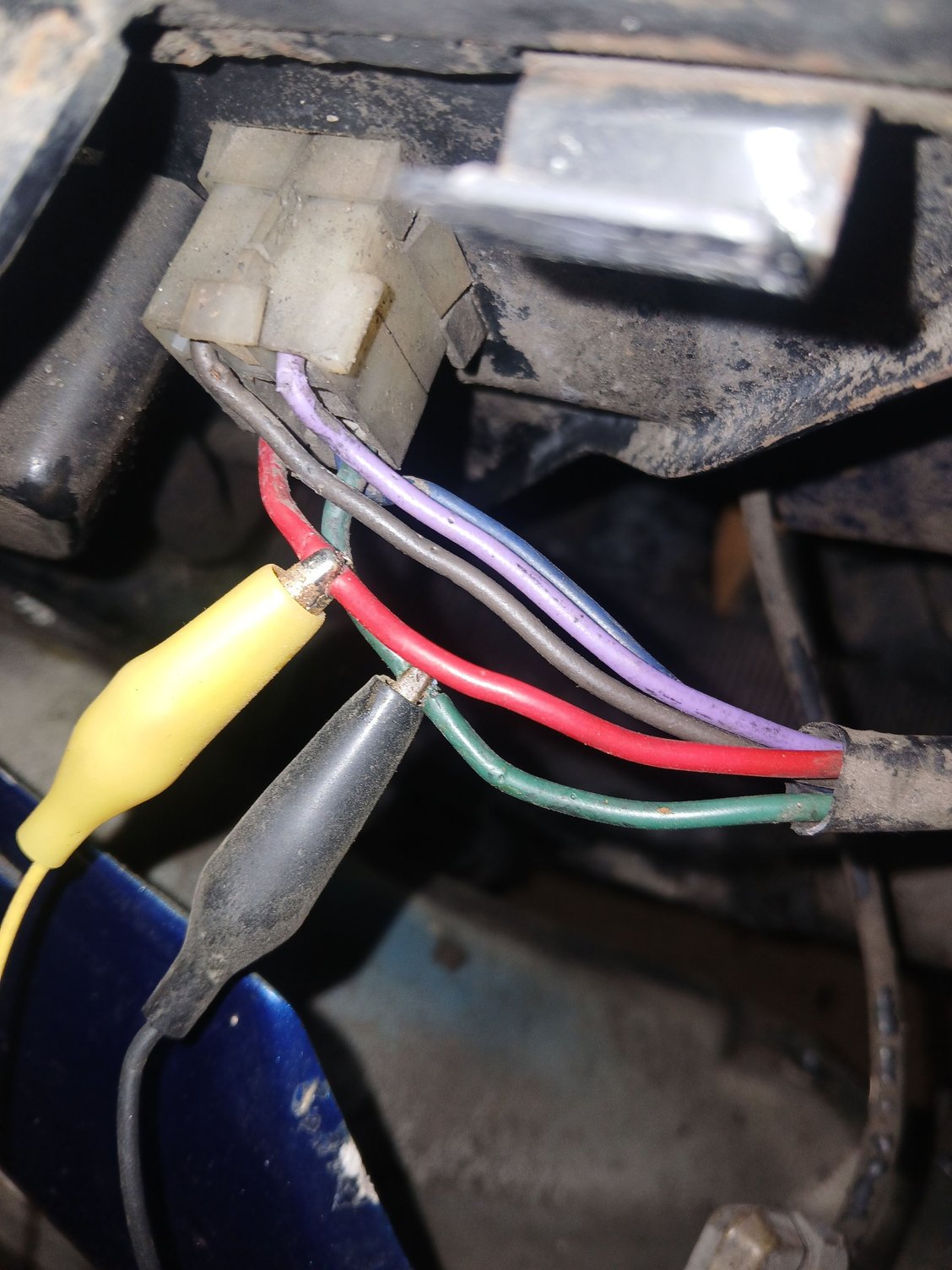

Different plug going to the fender taillight I've temporarily tapped into.
This plug looks like plug # 22B in the 1991 FLHS Domestic Models Wiring Diagram (attached). Red seems to be stoplight and Green seems to be rear light and rear fender tip lamp.
Originally Posted by Phillip G.

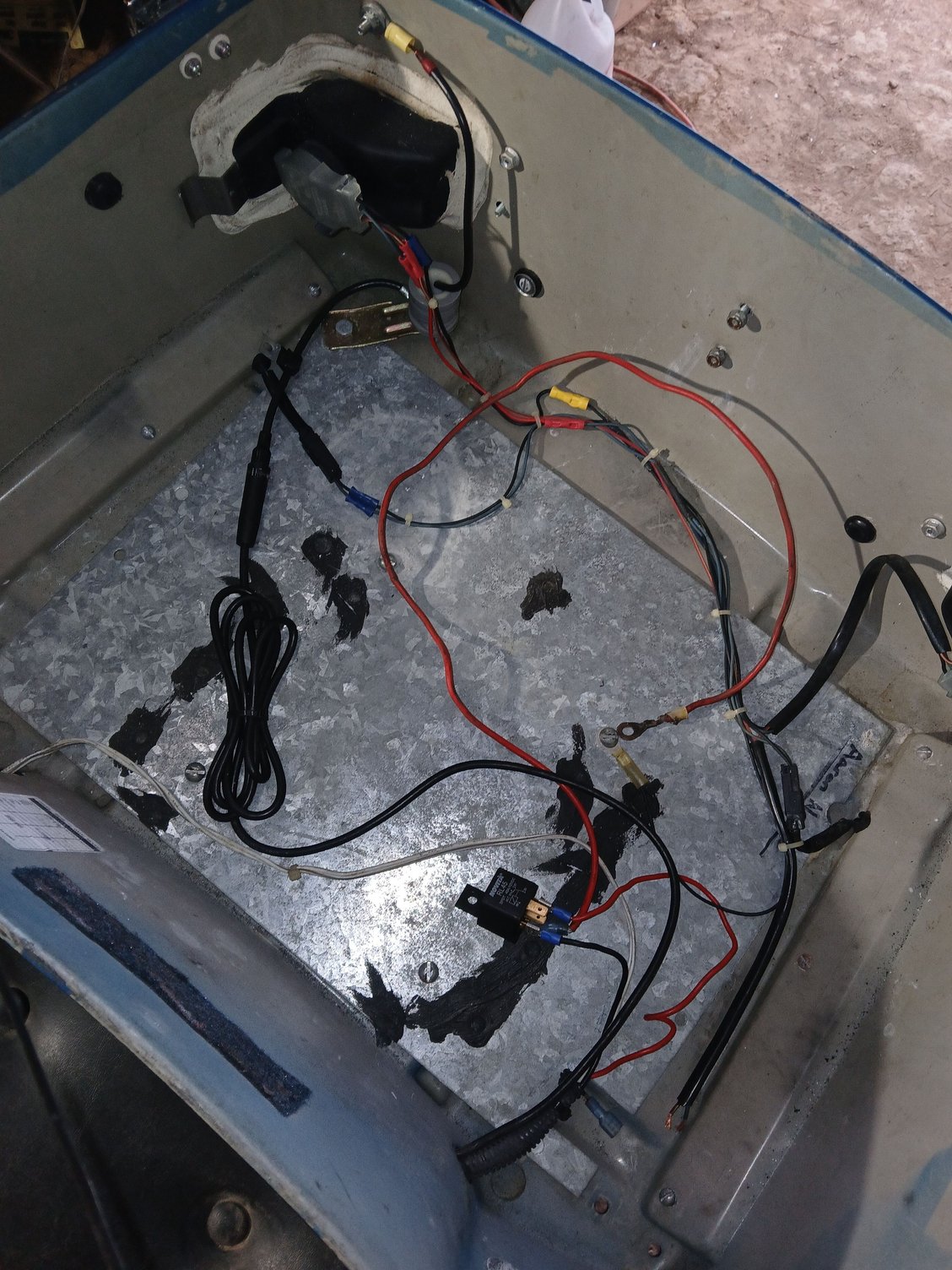

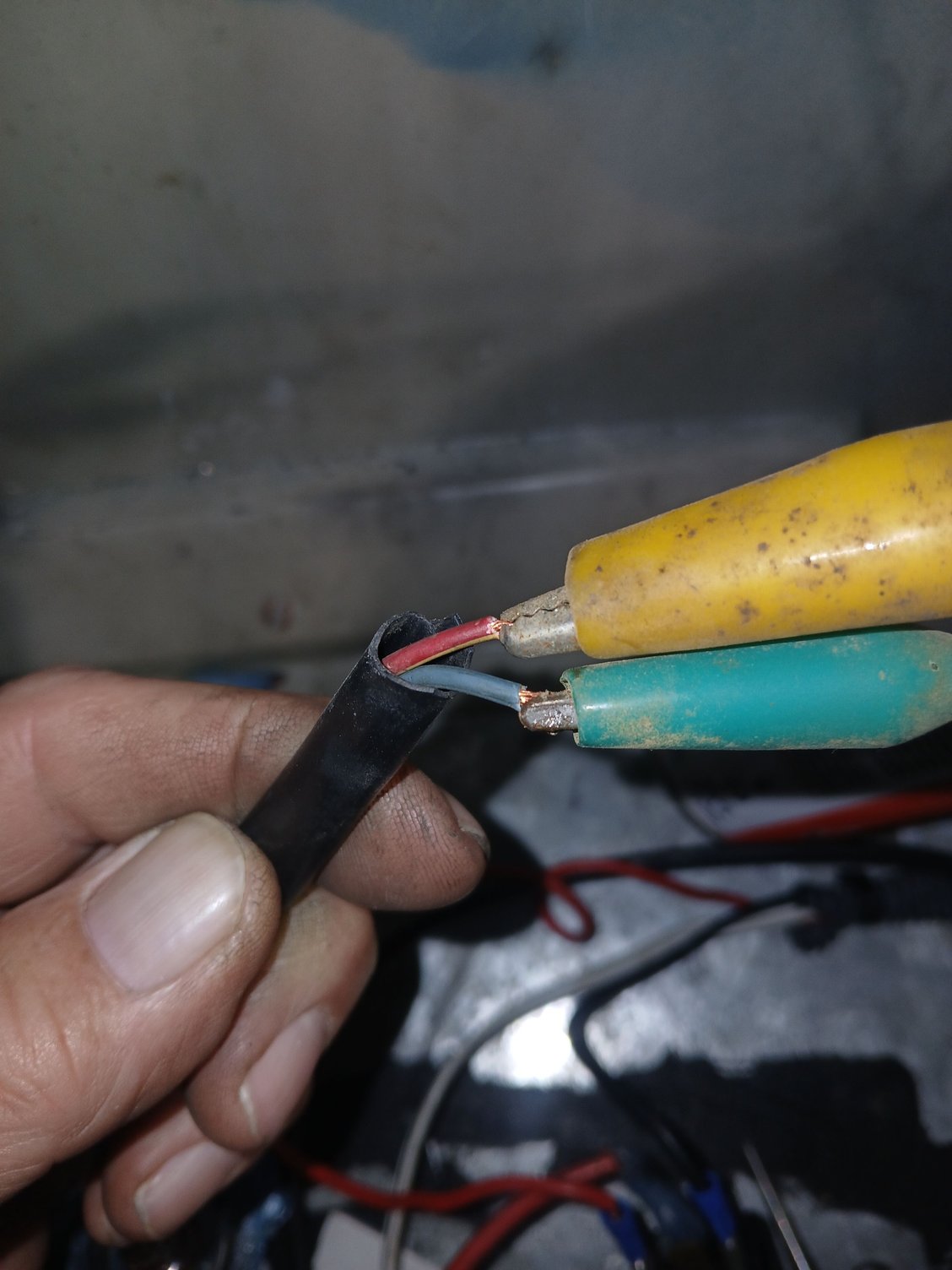

Harness inside the trunk from the harness I've tapped into. Note: No black wire here like the bulbs have.
Blue and red seem to be collors used in the trunk and fender tip light of the FLTC Ultra
Originally Posted by Phillip G.

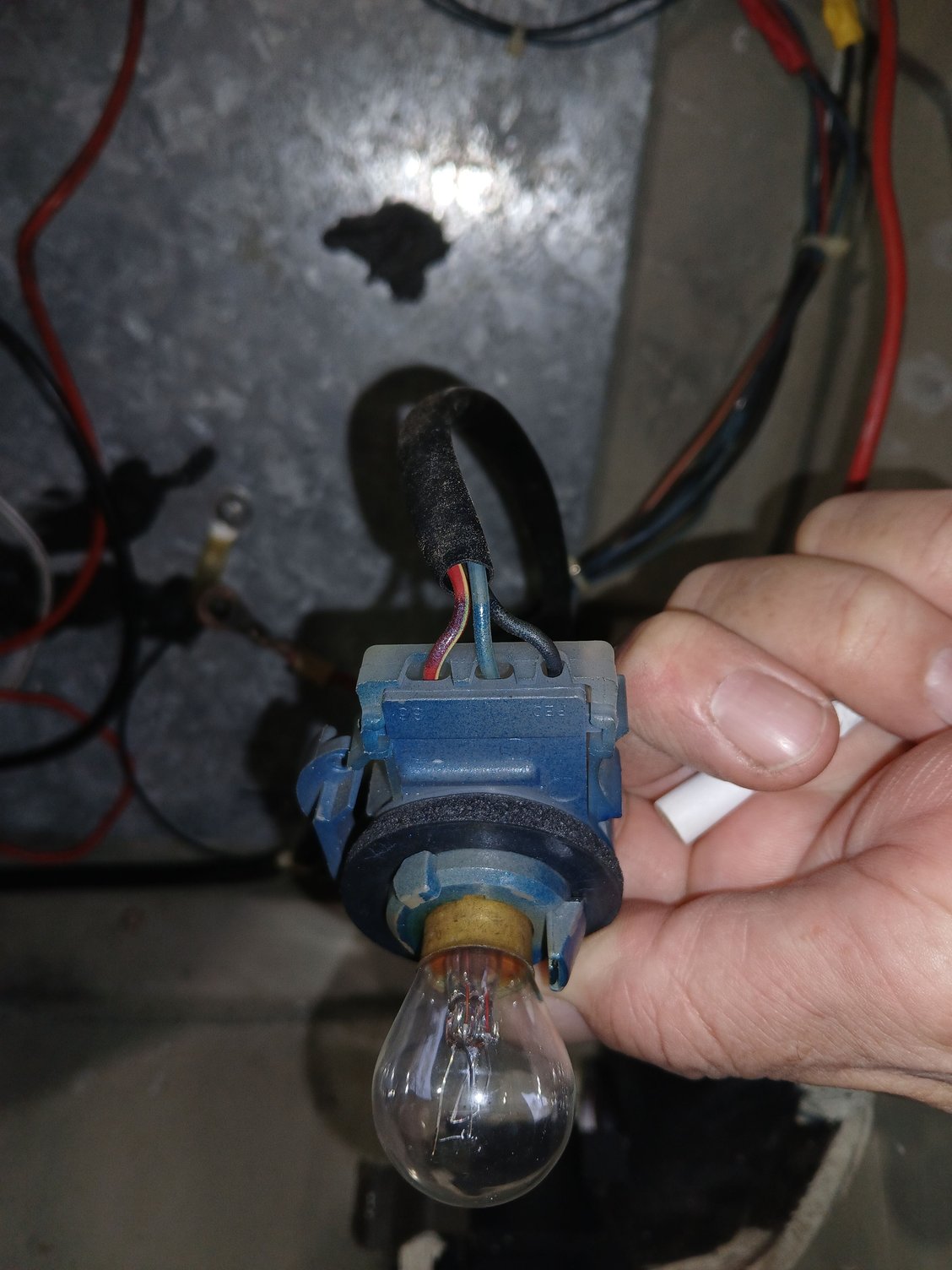

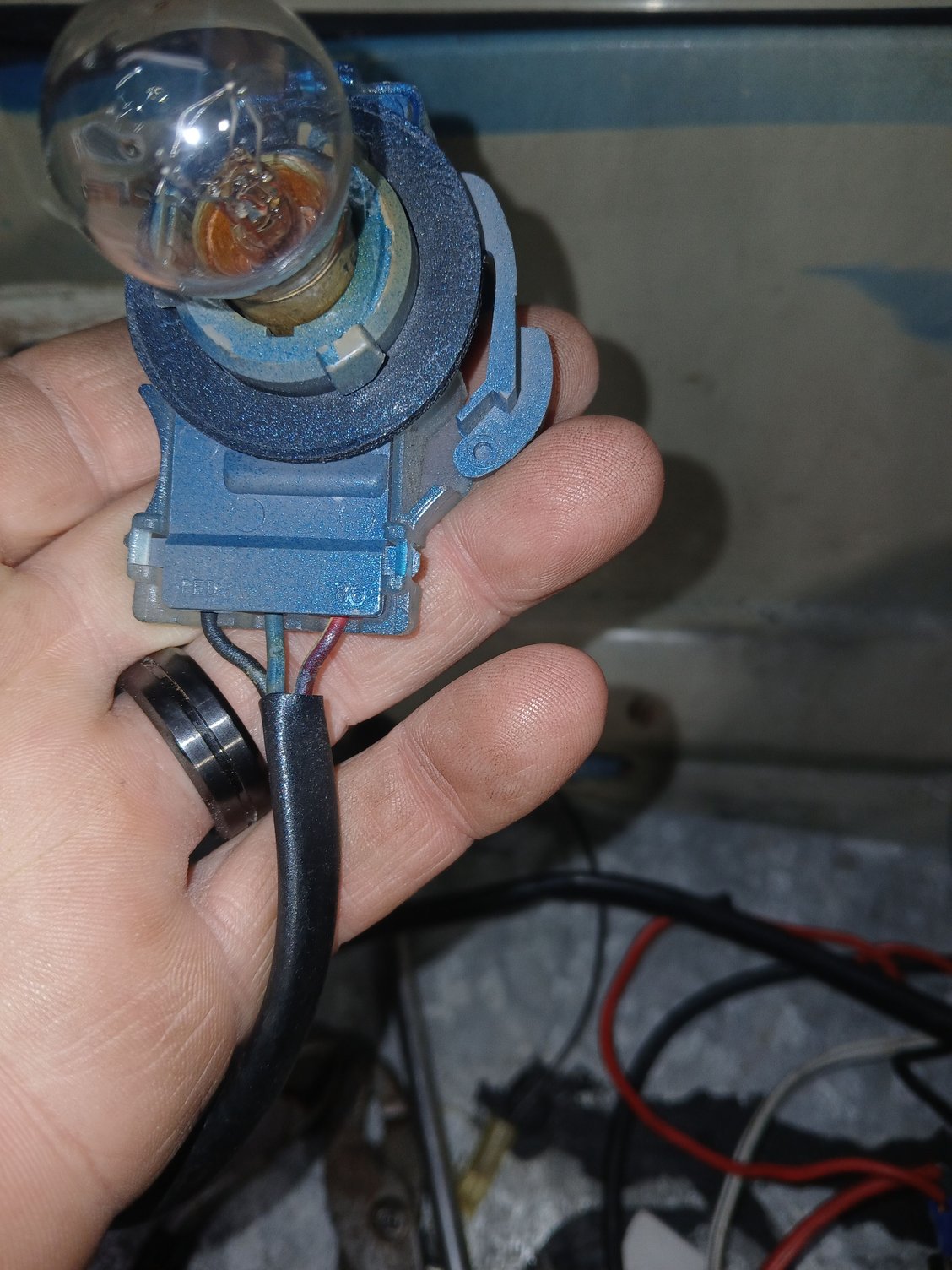

Both bulbs have red, green, black.
Red is stop
Green is rear light
Black is ground
Originally Posted by Phillip G.

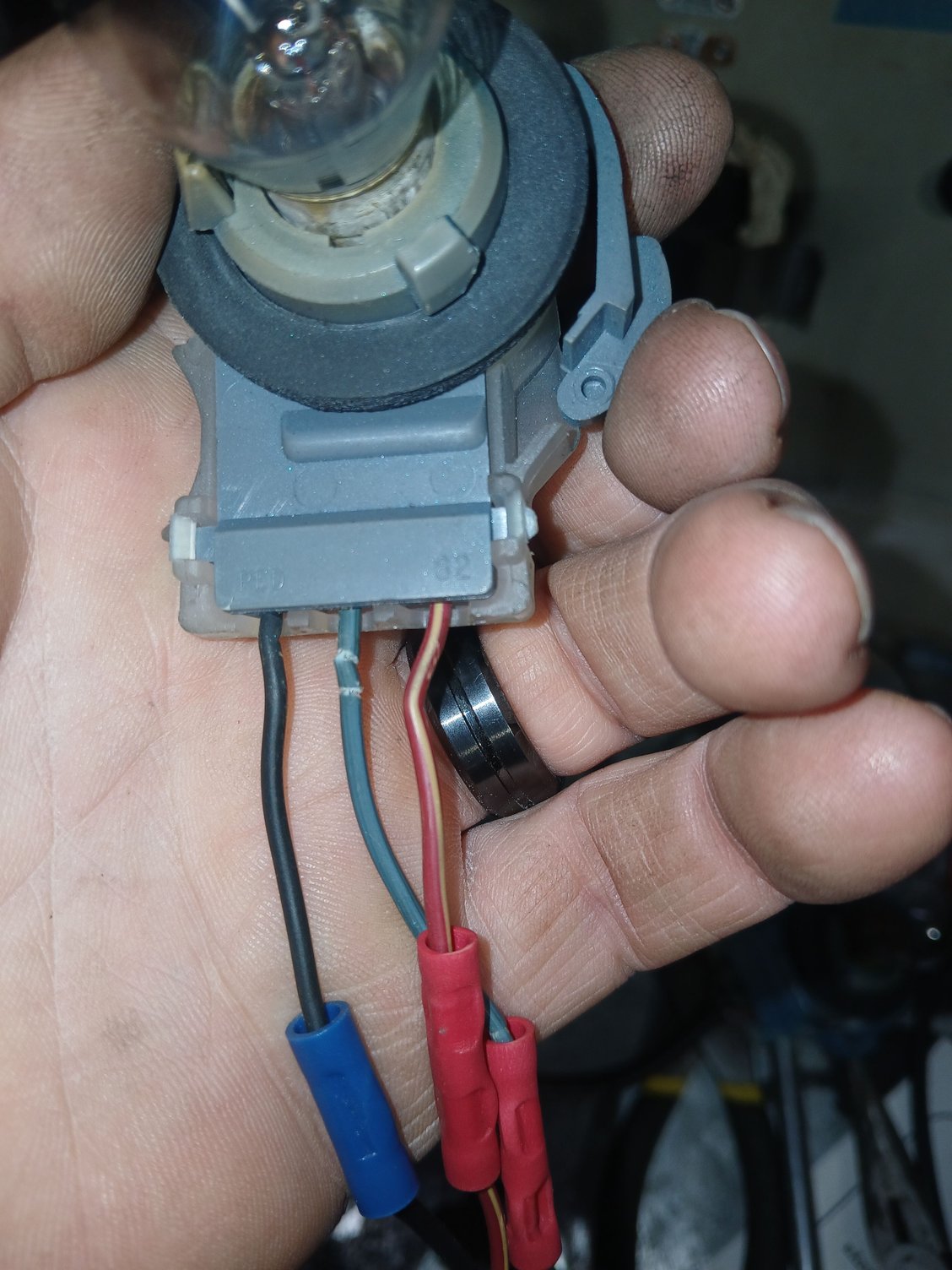

Same color wiring in the left bulb.
Red is stop
Green is rear light
Black is ground
Originally Posted by Phillip G.
[img alt="When I power up at the ignition switch one bulb gives running light illumination. The other bulb gives a brighter brake light illumination. Theres gotta be an easier way to wire this.
Sidenote: Both side lights on the trunk appear to illuminate normal. "]https://cimg3.ibsrv.net/gimg/www.hdforums.com-vbulletin/2000x1504/20241125_164429_18c9eb05d32acf4c0c8c34718935578746 b91887.jpg[/img] When I power up at the ignition switch one bulb gives running light illumination. The other bulb gives a brighter brake light illumination. There's gotta be an easier way to wire this. Sidenote: Both side lights on the trunk appear to illuminate normal.
It sounds like one bulb is mounted into the fitting in the wrong way and or the wiring at one fitting has to be switched
Originally Posted by Phillip G.
These are the trunk taillights.
It sounds like one bulb is mounted into the fitting in the wrong way and or the wiring at one fitting has to be switched
Last edited by FXD2003Rider; Nov 26, 2024 at 09:56 AM.
Do both bulbs have double filament and 12V P21/5W stamped on them? It sounds like one bulb is mounted into the fitting in the wrong way and or the wiring at one fitting has to be switched
Yes, both have double filaments. I found not only an incorrect 1176 bulb in one socket. But, it also was in backwards. I put two new 1157 bulbs in and now I have taillights & brake lights when rear pedal is engaged. Now, hopefully all the wiring is correct on the relay someone has in the trunk. I have no idea....[/QUOTE]
See my remark above. It looks to me the relay is not used.

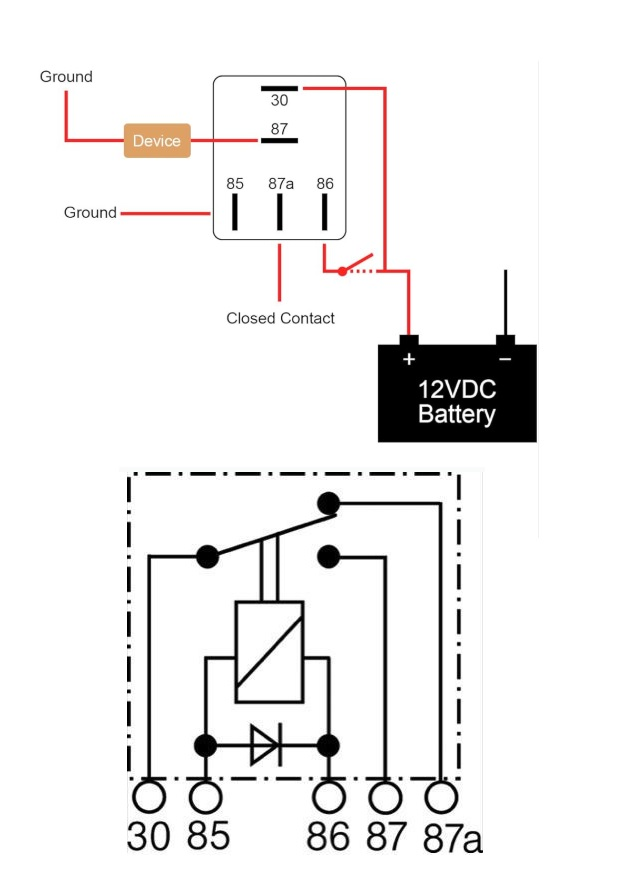

Normally the relay pins are wired as follows:
30 is connection to battery
85 is connected to ground
86 is connected to switched power
87 is normal open (NO)
87a is normal closed (NC) contact
